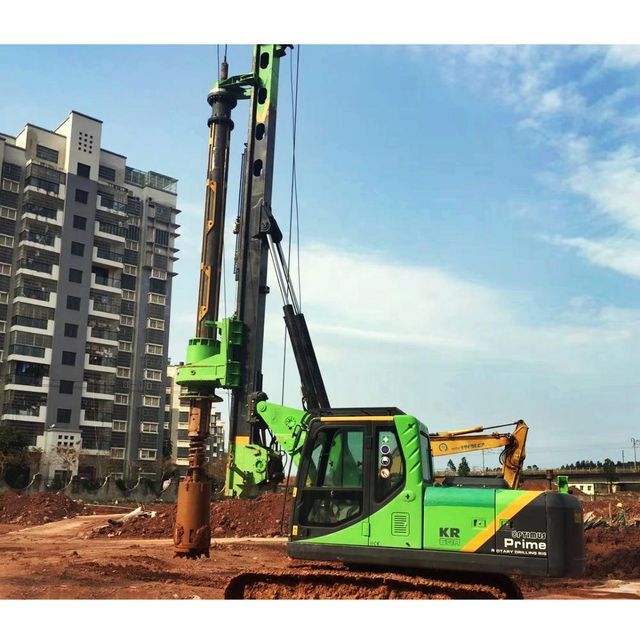

Support one-stop purchase of full hydraulic system drilling rotary used pile driver

Supplier: Tysim Piling Equipment Co., Ltd(JS)
Region: Jiangsu, China
Contact: Ms Camilla Mao
Price: $600000.00 /set
Min. Order: 1 set

Click here to contact

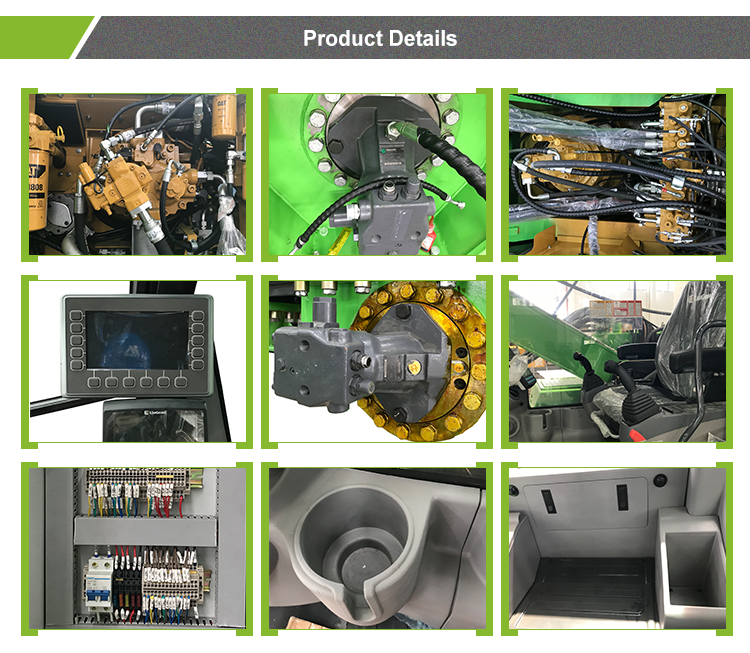

Product details

port:	Shanghai, Tianjin, Qingdao	weight:	22000 kg
Supply capacity:	3 sets per month	Core parts warranty:	6 months
Certification:	CE and ISO9001	maximum. Crowd pressure:	80kN
Health status:	used	Core components:	engine
brand:	Taixin	Speed of work:	8~35rpm
Warranty:	unavailable	place of origin; place of origin:	Jiangsu, China
maximum. Operating pressure:	34.3MPa	gross weight:	22 tons
Working width:	2600mm	payment terms:	letter of credit, wire transfer
Operating height:	12200mm	Marketing Type:	New Products 2022
maximum. Drilling depth:	25m(4 nodes)/19m(3 nodes)	Showroom location:	Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, Morocco, Kenya, Argentina, South Korea, Colombia, Algeria, Sri Lanka, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Packaging Details:	One is the overall transportation by sea in the bare package of the ro-ro ship. (LWH=915026003250 mm); the other is the main engine in the plane frame; the kelly and bucket are also exposed, and four wooden boxes are placed at the same time, which are respectively equipped with masts and power heads , follower frame and maintenance spare parts.	Video external inspection:	if
Dimensions (LWH):	915026003240mm	maximum. Drilling diameter:	1000mm
Applicable industries:	construction project	Mechanical test report:	if
Unique Selling Points:	Full hydraulic system	maximum. Torque:	60 kNm

Product Description

Technical Specifications

KR60A Rotary Drilling Rig Technical Specifications
type	KR60A
torque	60 kNm
maximum. diameter	1200 mm
maximum. Drilling depth	20 meters
spinning speed	8~30 rpm
maximum. crowd pressure	60kN
maximum. crowd pull	90kN
Main winch cable	65kN
Main winch line speed	48 m/min
Auxiliary winch cable	20kN
Auxiliary winch line speed	48 m/min
Stroke (crowd system)	2000 mm
Mast inclination (lateral)	±3°
Mast inclination (forward)	4°
maximum. operational pressure	34.3 MPa
pilot pressure	3.9 MPa
Driving speed	2.8 km/h
traction	98kN
working height	10600 mm
working width	2700 mm
transport height	3250 mm
Shipping width	2700 mm
Shipping length	9500 mm
gross weight	20 tons

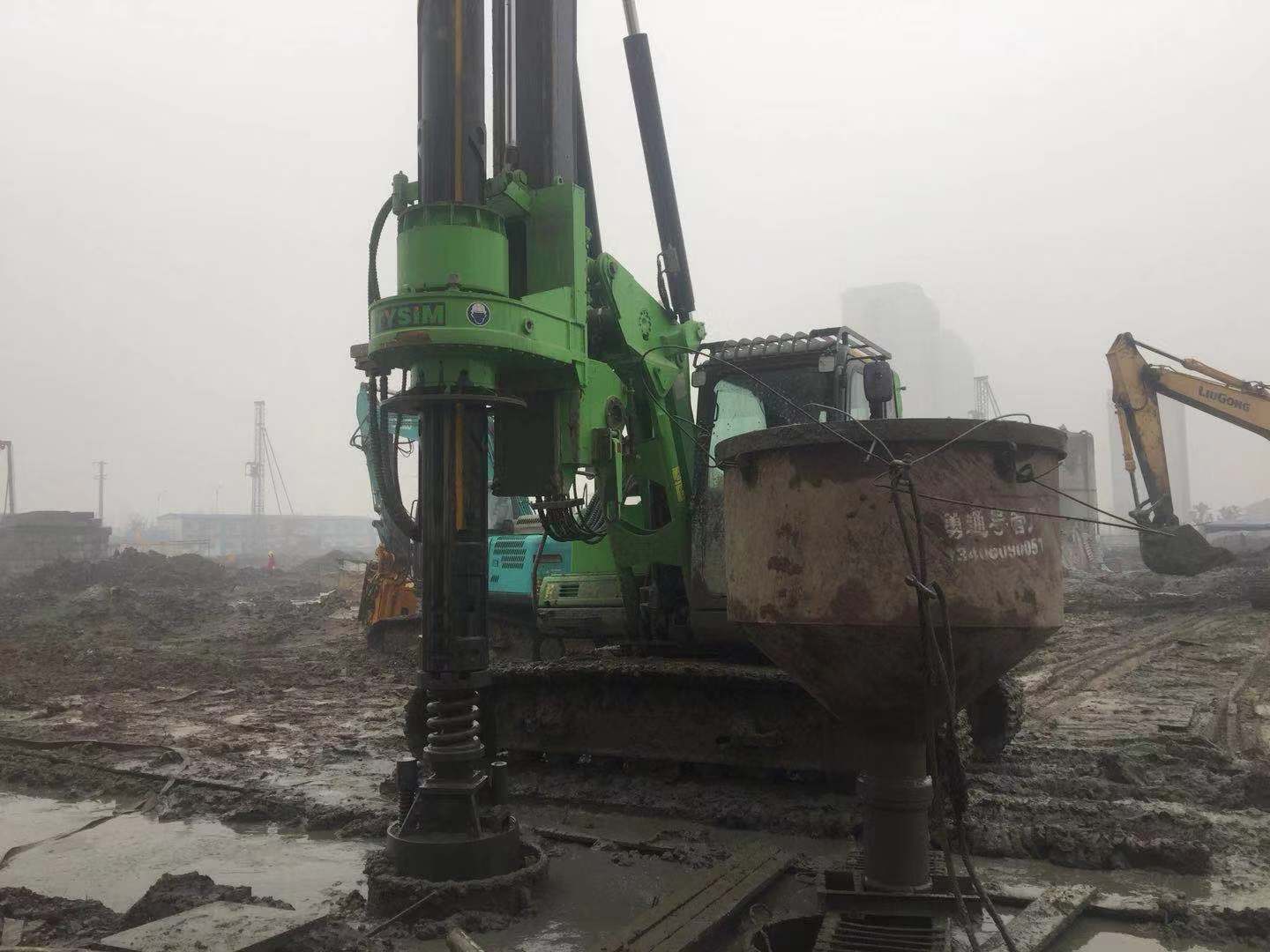

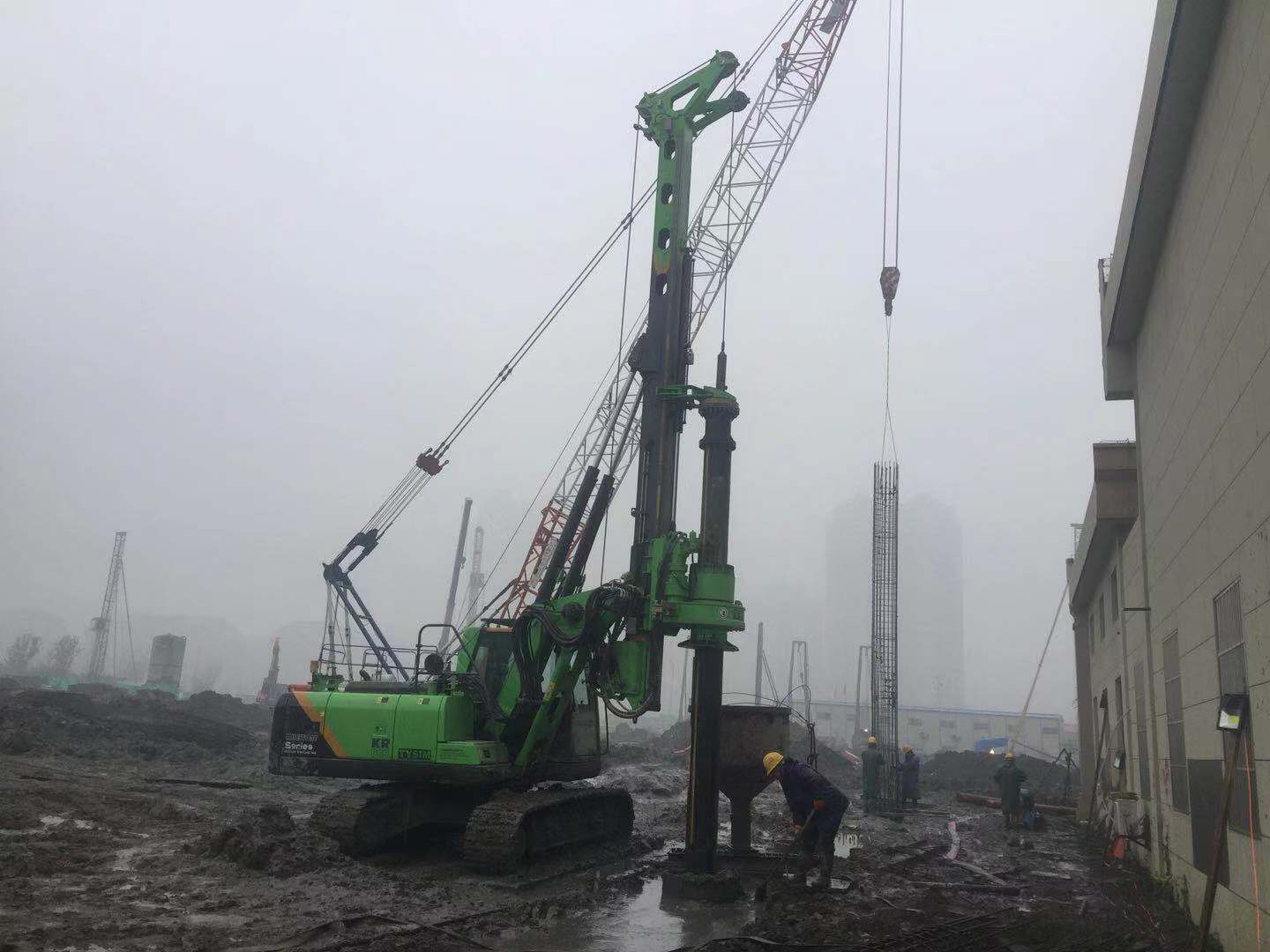

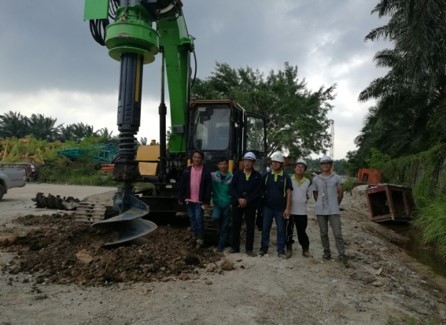

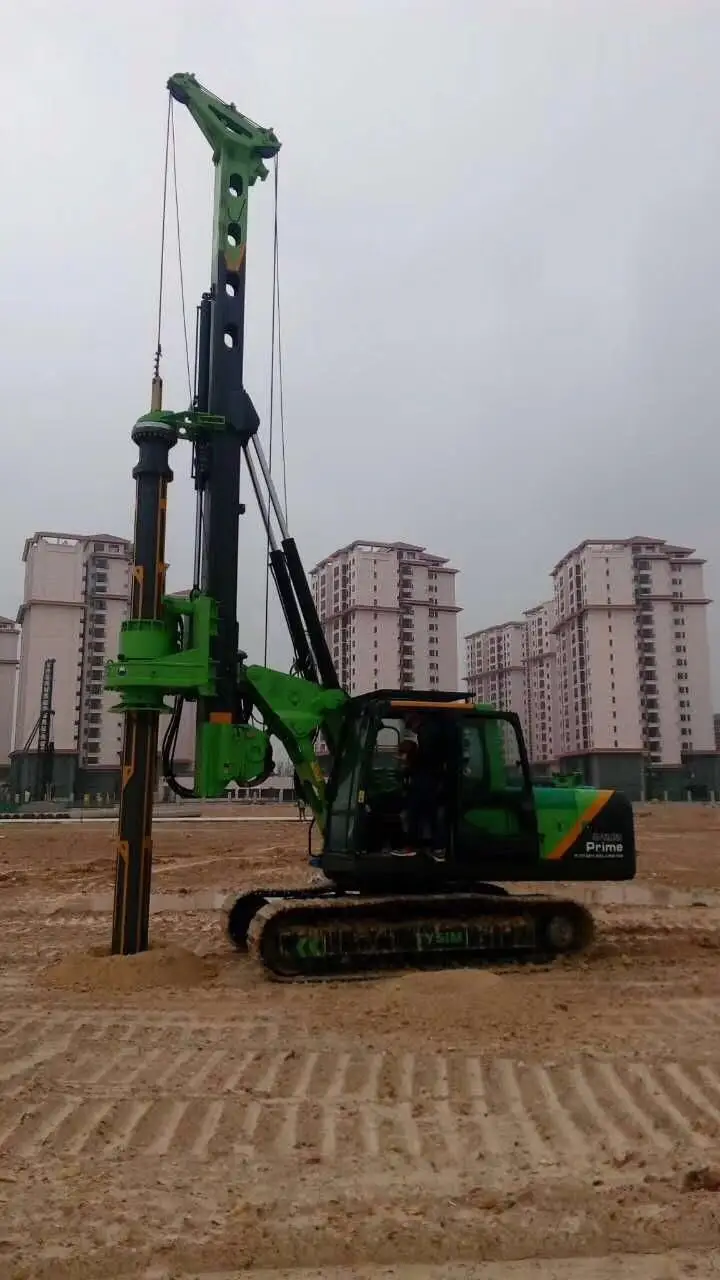

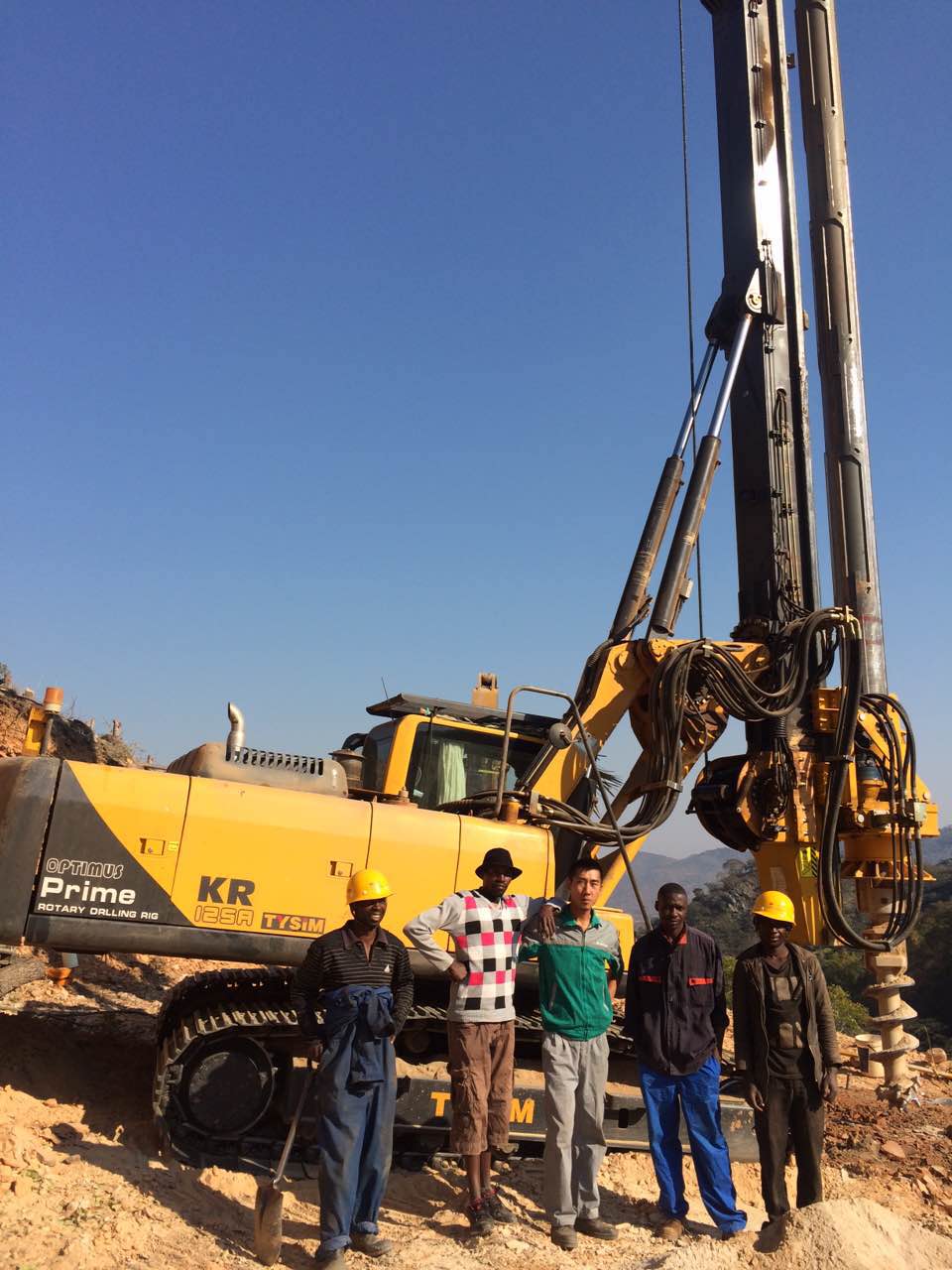

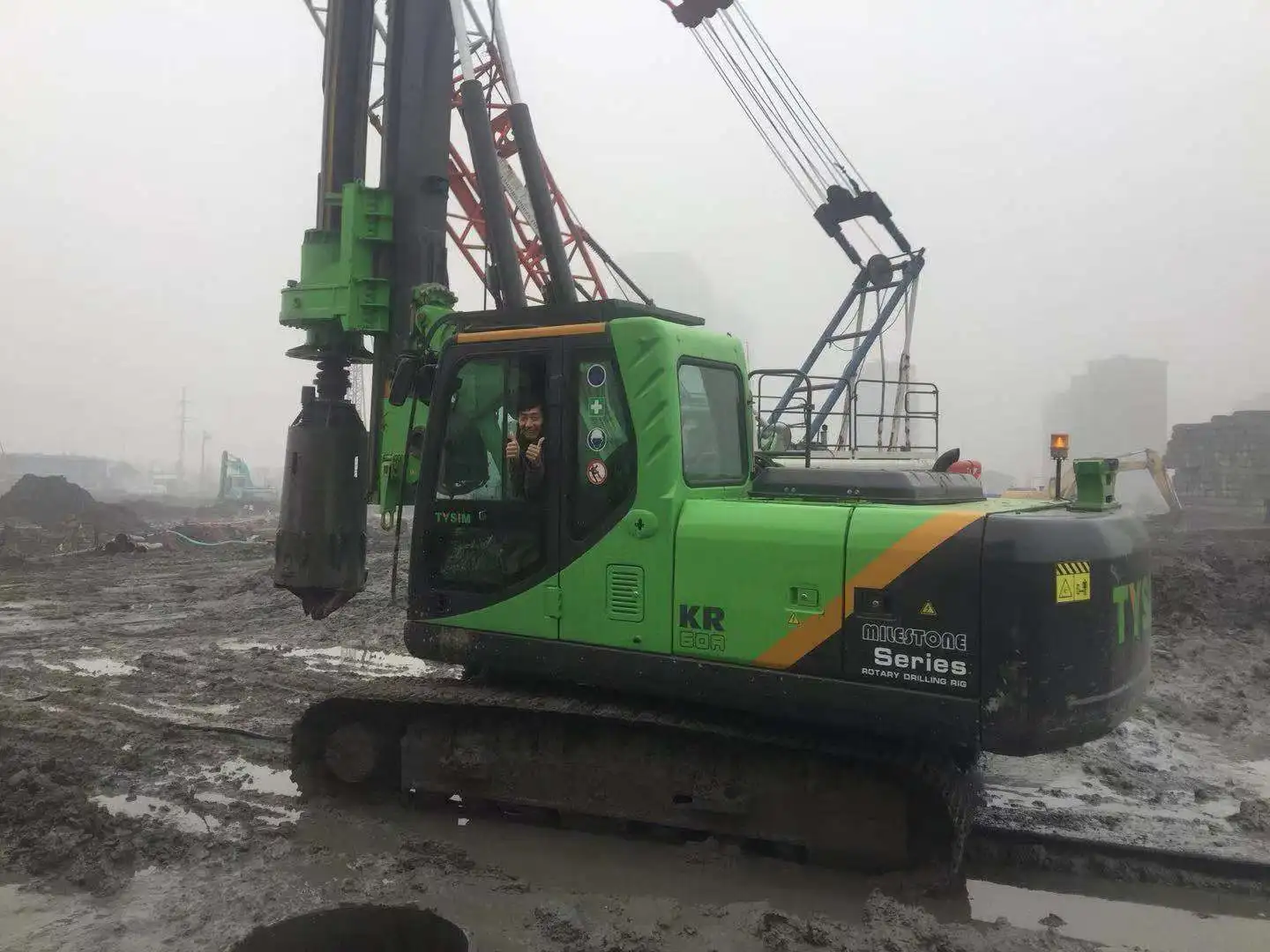

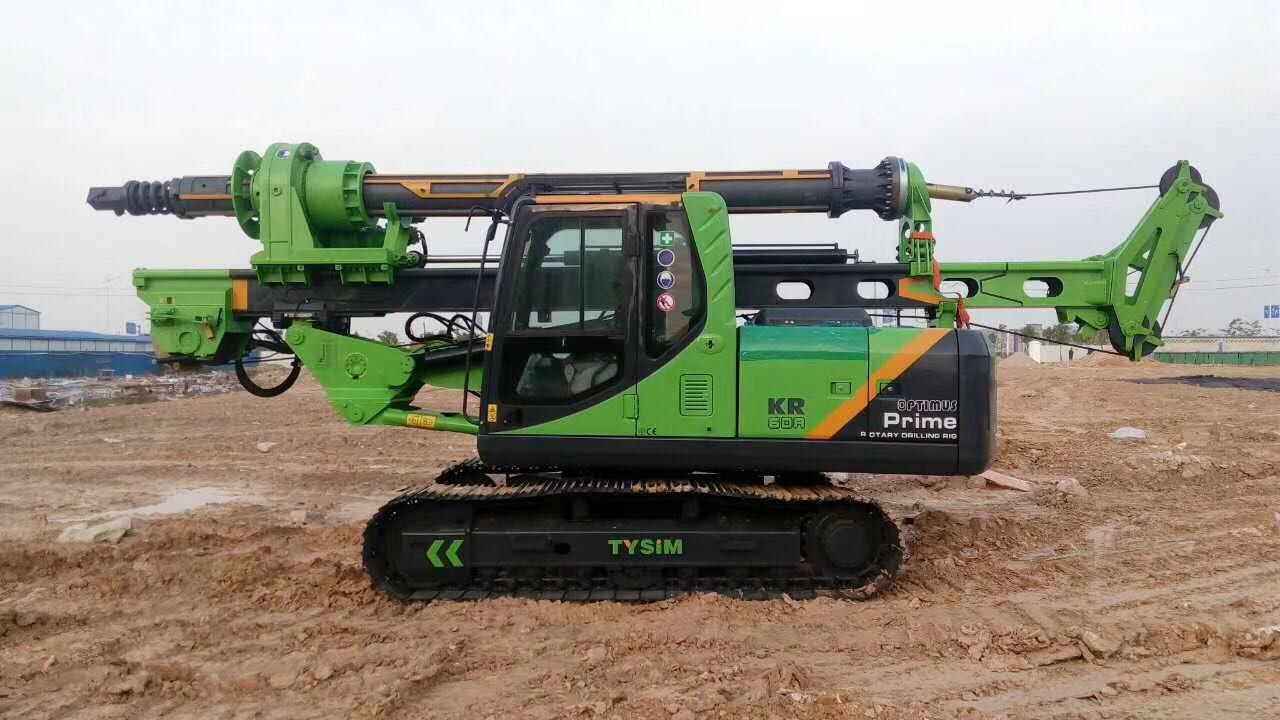

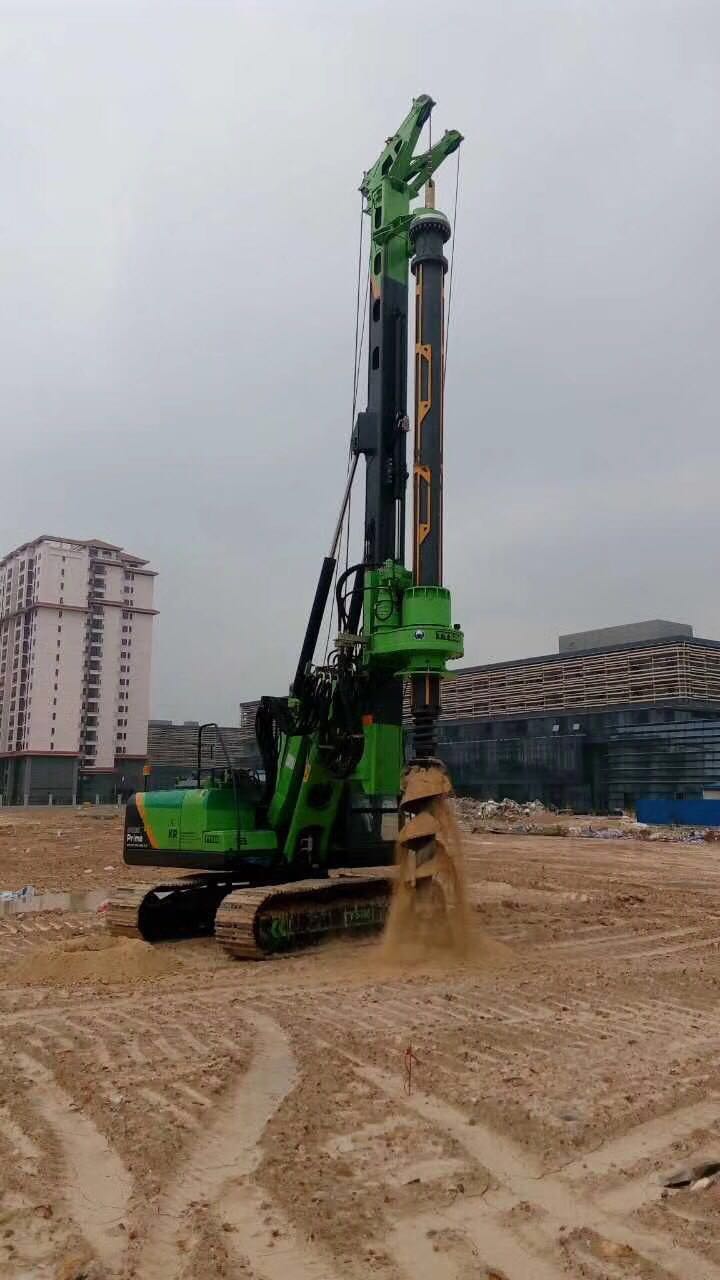

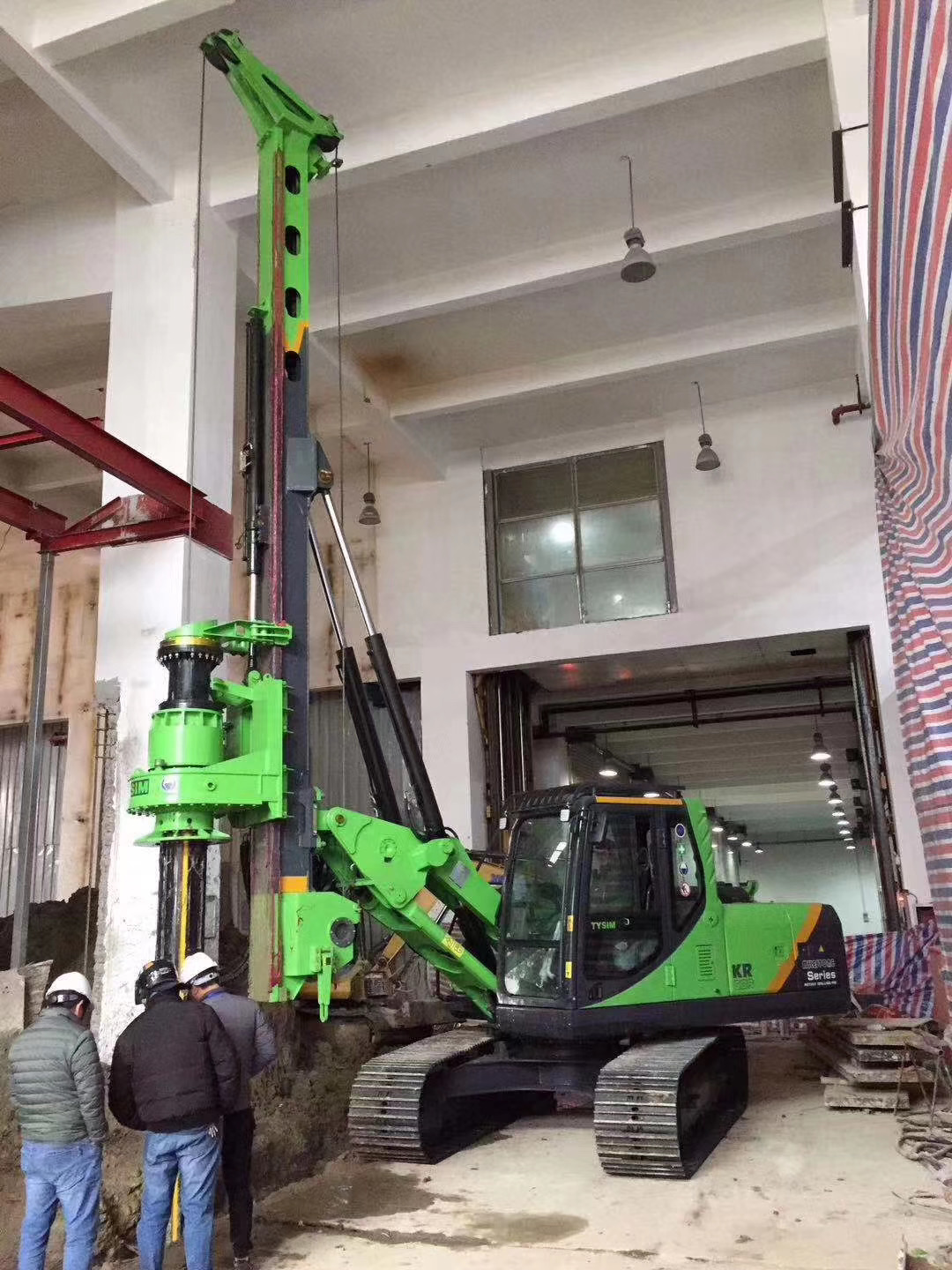

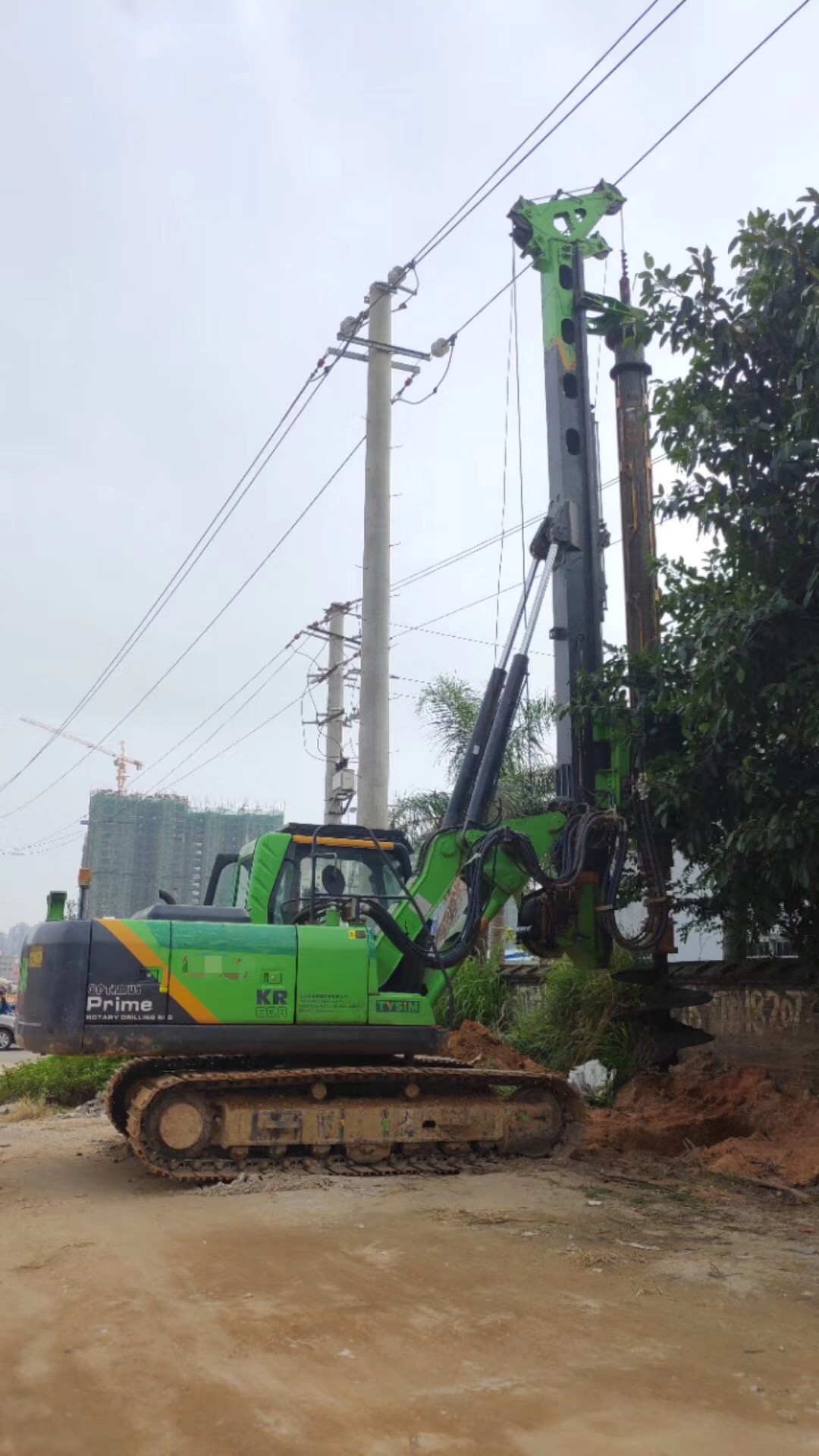

construction photos

Our advantage

Obtained more than 40 patents and exported to more than 40 countries.

Professional R&D team with 10 years of industry experience.
Passed ISO9001 quality management system certification and obtained CE certification.
Engineer overseas service. Guarantee the quality of the machine and good after-sales service.
The most complete series of small rotary drilling rig manufacturers in China.
China's largest export of small rotary drilling rigs.
The most spinning rig on the Australian market.
The first brand of small rotary drilling rigs in Thailand market.

customer visit

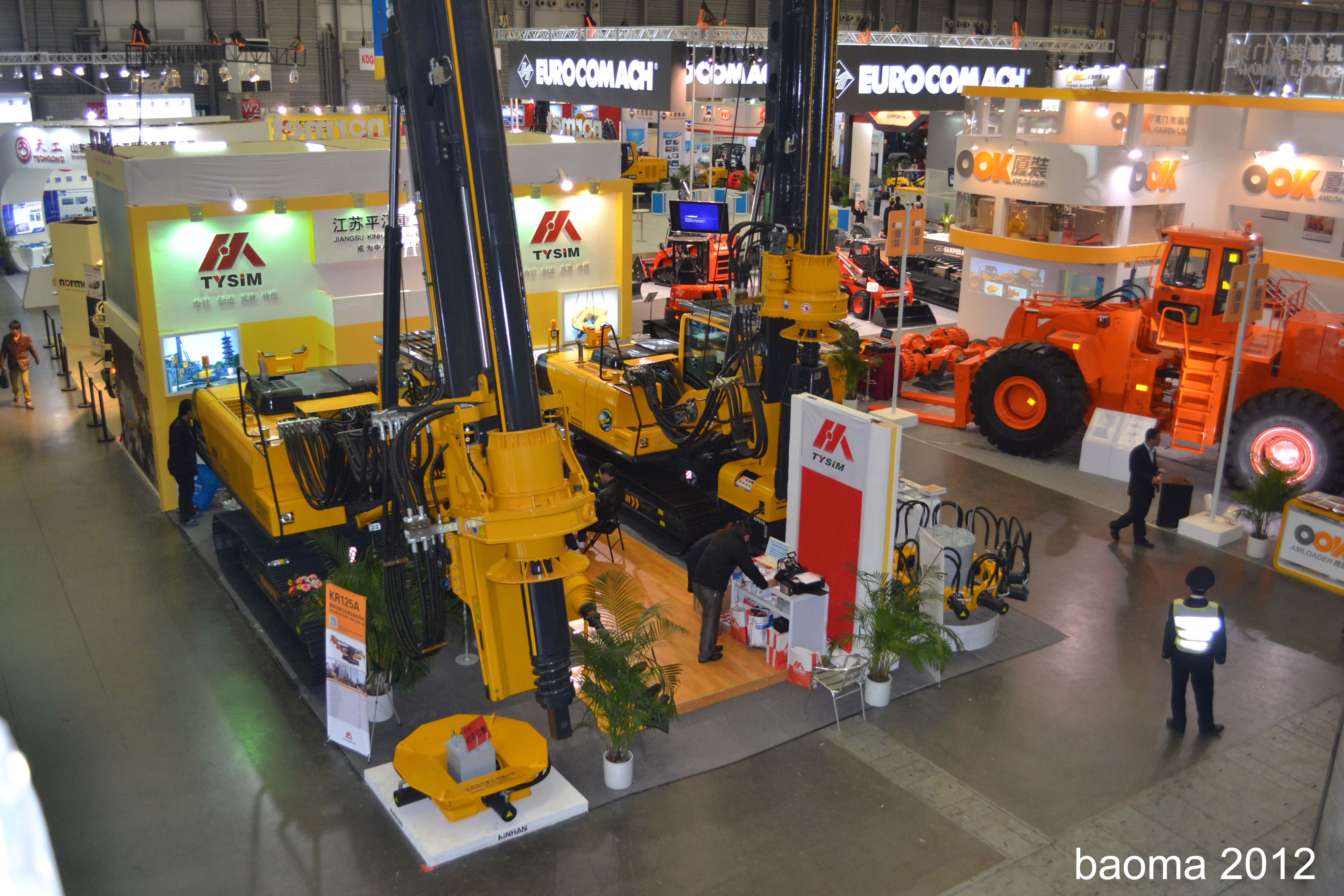

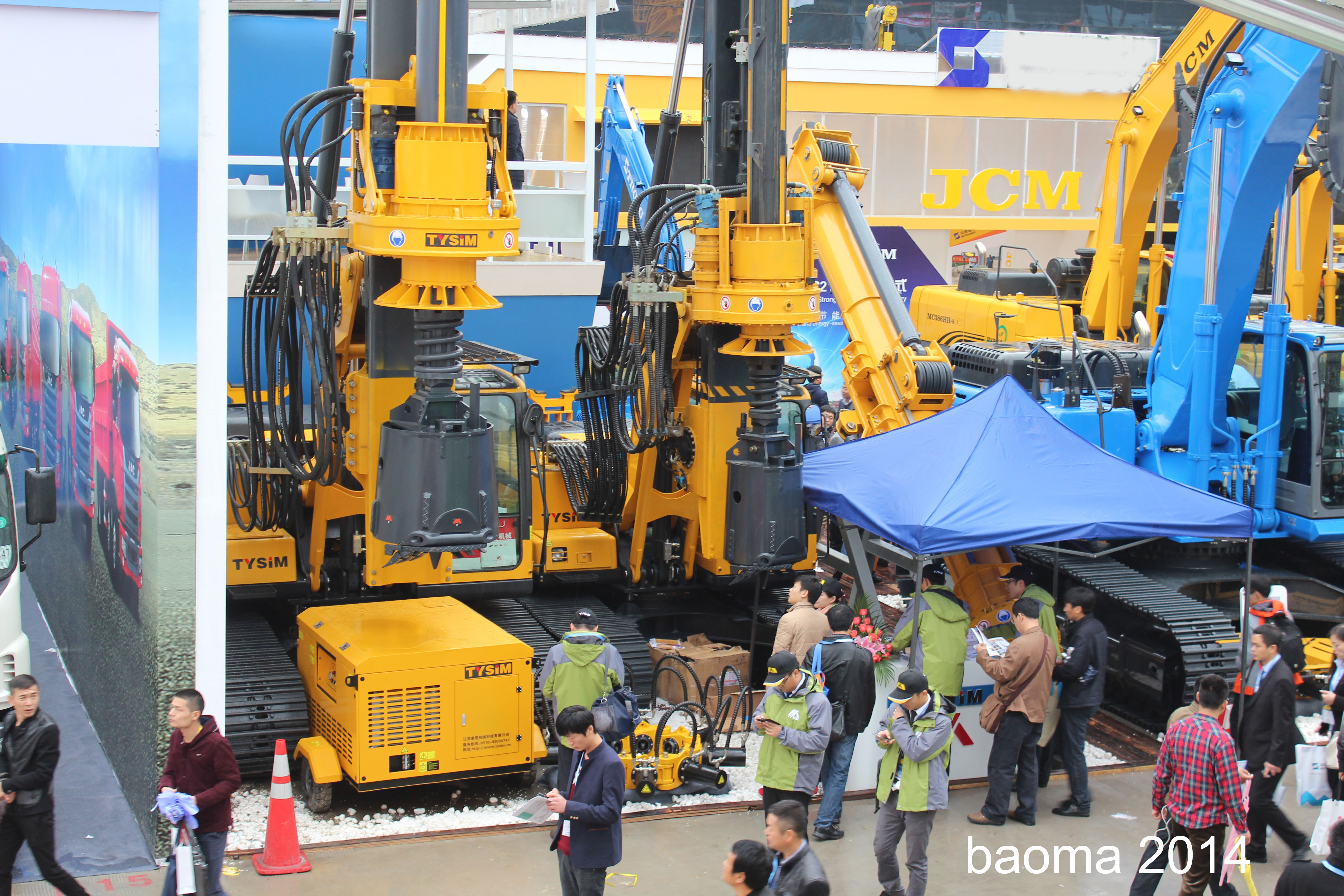

exhibition

FAQ

Q1: What is the warrantyRotary drilling rig?

The warranty period of the new machine is one year or 2000 working hours, whichever comes first.

Please contact us for detailed warranty provisions.
Q2: What is your service?

We can provide you with professional technical support and good after-sales service.

Depending on the model and configuration of the excavator you have, conversion methods will vary.

Configuration, mechanical and hydraulic connections, etc. are required before modification.

Before modification, you need to confirm the technical specifications.
