B207 Sprag Freewheel Clutch Bearing used in Hosting Machinery System

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $7.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Thickness:	28mm;	Shaft size:	42.088mm;
Type:	sprag;	Precision Rating:	P0 P4 P5 P6;
Port:	Shanghai ; Ningbo;	Model:	B207 Sprag Freewheel Clutch Bearing used in Hosting Machinery System;
Key way (mm):	7x4.0;	Application:	Machinery of conveyer,hosting,packing,printing,papermaking,corrugated;
Place of Origin:	Jiangsu China;	Outer Diameter:	72mm;
Model Number:	B207 Sprag Freewheel Clutch Bearing used in Hosting Machinery System;	Packaging Detail:	Single Box;
OEM:	Accept;	Supply Ability:	10000 Piece/Pieces per Year;
Outside Diameter:	72 - 72.01 mm;	Delivery Detail:	5-15 days;
Brand Name:	Suma or OEM;	Type:	Other Type;
Port:	Shanghai;Ningbo;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance;
Seals Type:	Sealed;	Bore Size:	42.088 - 42.0881 mm;
Material:	GCr15;

Product Description

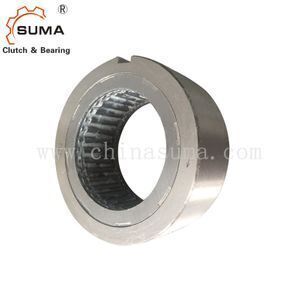

B207 Sprag Freewheel Clutch Bearing used in Hosting Machinery System

Description of B207 Sprag Freewheel Clutch Bearing used in Hosting Machinery System

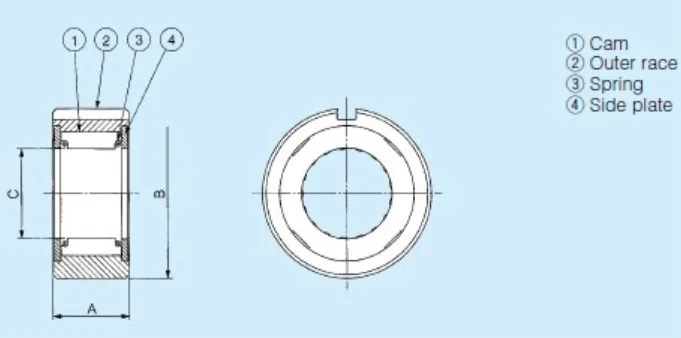

Type B200 series is a sprag type freewheel non-bearing and noninner ring supported.Nominal dia. direction diameter is a standard ball bearing dimesion. Bearing are required to support axial and radial loads. Units are delivered grease lubricated.

The outer race is keyed to the housing,because sprag contact to shaft,the shaft need hardness HRC56-60 and tolerance h7.

This series extensive used in machinery system of conveyer,hosting,packing,printing,papermaking,corrugated machine,food and so on.

Data sheet of B207 Sprag Freewheel Clutch Bearing used in Hosting Machinery System

TYPE		B207
NOMINAL TORQUE (N.m)		318
OVERRUNNING LIMITING SPEEDS ( rpm)	INNER RACE	1360
OVERRUNNING LIMITING SPEEDS ( rpm)	OUTER RACE	300
DIMESION IN CONTOUR (mm)	OUTER RACE SIZE	72
	INNER RACE SIZE	42.088
	THICKNESS	28
WEIGHT (Kg)		0.80

Parameter of B207 Sprag Freewheel Clutch Bearing used in Hosting Machinery System

Type	Drag torque	Overrunning Speed (r/min)		Shaft size	Outer race h7	Thickness	Key way	Weight
Type	(N.m)	inner race	outer race	(mm)	(mm)	(mm)	(mm)	(kg)
B203	39.2	2400	500	16.51	40	25	4.0×2.5	0.23
B204	58.8	2400	500	18.796	47	25	5.0×3.0	0.34
B205	98	1800	400	23.622	52	25	5.0×3.0	0.45
B206	235	1800	350	32.766	62	28	7.0×4.0	0.68
B207	372	1800	300	42.088	72	28	7.0×4.0	0.80
B208	549	1800	200	46.761	80	32	10.0×4.5	0.91
B209	549	1200	200	46.761	85	32	10.0×4.5	0.95
B210	784	1200	200	56.109	90	32	10.0×4.5	1.00
B211	784	1200	200	56.109	100	32	10.0×4.5	1.40
B212	1230	1200	180	70.029	110	42	10.0×4.5	1.80
B213	1230	1200	180	70.029	120	42	10.0×4.5	2.30
B214	1390	1000	180	79.356	125	42	12.0×4.5	2.40
