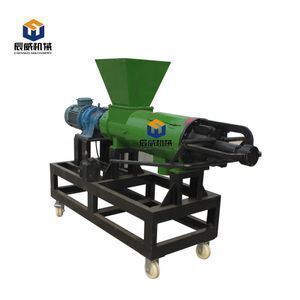

Chicken manure solid liquid separator farm machinery

Product details
Packaging Detail:Packed in wooden cases;Certification:ISO,CE,BV;
Screen Diameter:200/280mm;After-sales Service Provided:Video technical support,Online support;
Product Type:Chenwei- solid liquid separator;Payment Terms:L/C,T/T,Western Union;
Port:Qingdao,Shanghai;Weight:Variable;
Warranty:1 Year;Usage:Liquid Material;
Place of Origin:Henan China (Mainland);Material:Carbon Steel/ Stainless Steel 304;
Brand name:CW-SLA;Brand Name:CWJX;
Type:Air Separation Plant;Pump power:3kw or 4kw;
Handling capacity:7-20m3/h;Voltage:220V/240V/380V/415V;
Working principle:Screw extrusion;Supply Ability:200 Set/Sets per Month;
Power:4-5.5kw;Power(W):3-4KW;
Condition:New;Used for:Liquid Seprating;
Dimension(L*W*H):Variable;Function:Separater;
Product Description

Function

This Cattle Farming Equipment is a solids-liquid separating machine including a screw conveyor. Using both principles of separation, by gravity and by mechanical pressing, the machine is designed to separate the liquid phase from the solid phase in a wide range of substances such as sludge, sewage, manure, solids-liquid mixtures, vegetables, processing waste and others, where the percentage of liquid inside the solid may be considerably different.

The separated solid and liquid phases can be handled in an easier and cheaper way. In some sectors this can even become a source of income.

Operation:

The machine receives the material to be separated and conveys it using the screw conveyor inside the separator casing. The liquid phase is separated through the mesh of the cylindrical screen which encloses the screw conveyor. Along its path toward the exit, the material gradually separates progressively the less linked liquid and then the more strongly linked liquid until a plug of almost dry material has formed before the outlet. The plug is continuously expelled through the outlet diaphragm.The machine will automatically find its balance of squeezing force depending on the material. Consequently, it can be used for a wide range of materials without the need for any manual adjustments

Commodity
Mode
Motor power
Reduction box
Speed(r/s)
Voltage
              Capacity(m3/h)

Main engine
CWY-280
5.5kw
5-43
33.7
380V
Cow dung
Pig manure
Poultrydung
CWY-280
5.5kw
5-43
33.7
380V
4-6
5-12
2-4
Water pump
3KW
1450
380

Performance & Technical Features - Benefits

Compliant with a wide range of materials in different throughput rates

Optimized feeding thanks to compensator tank

Outlet diaphragm for solids manufactured from anti-wear engineering polymer: cost saving in spare parts

Self-balanced pressure at the solids outlet: steady and safe operation

Simple operation and cost saving in spare parts

Continuous operation

Quick return on investment


Model
Motor
Capacity
Water Consume
Cleaning Frequency
Max cesspool

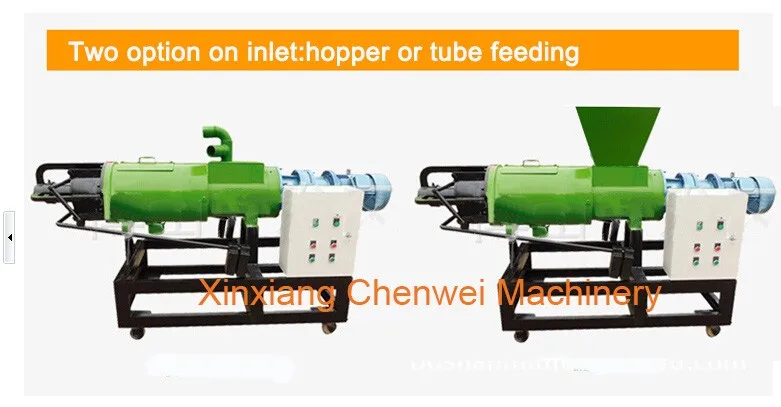

Feeding Method
CWY-
4
10
0.1m³
Each 20-30
3.5m
Hopper or
CWY-
5.5
20
0.1m³
Each 20-30
3.5m
Hopper or

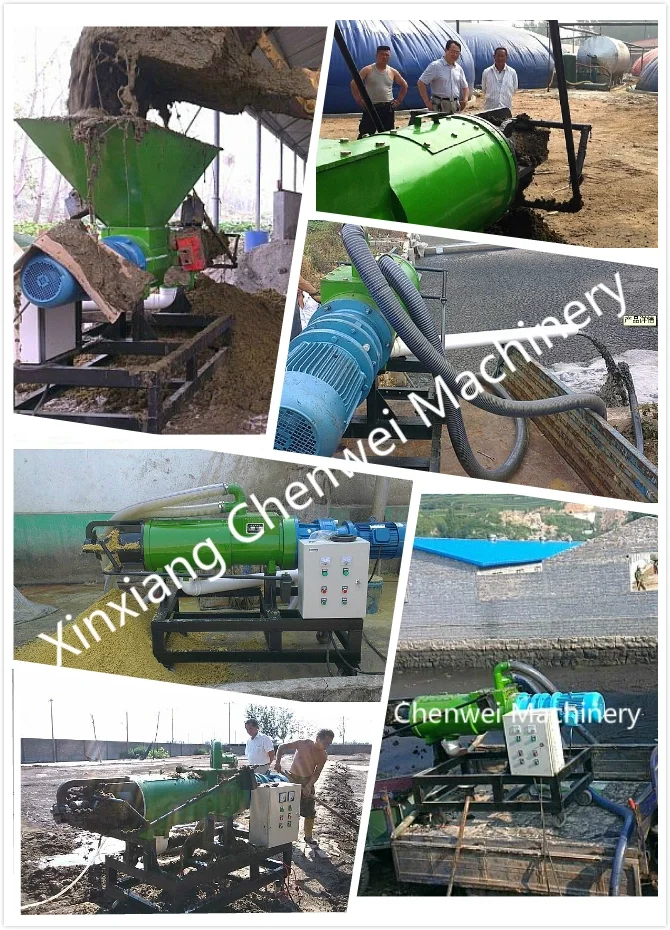

Application

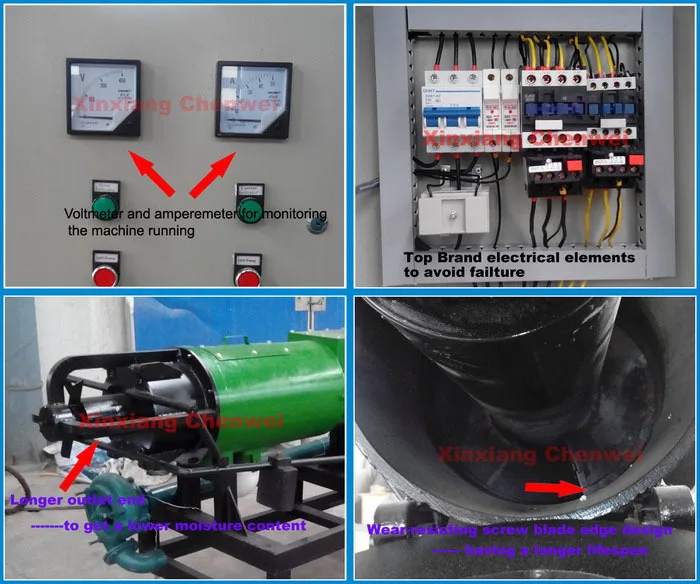

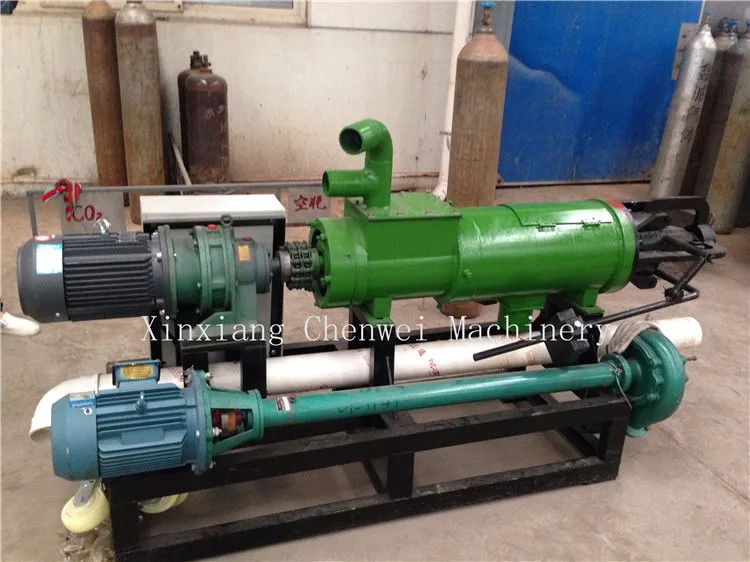

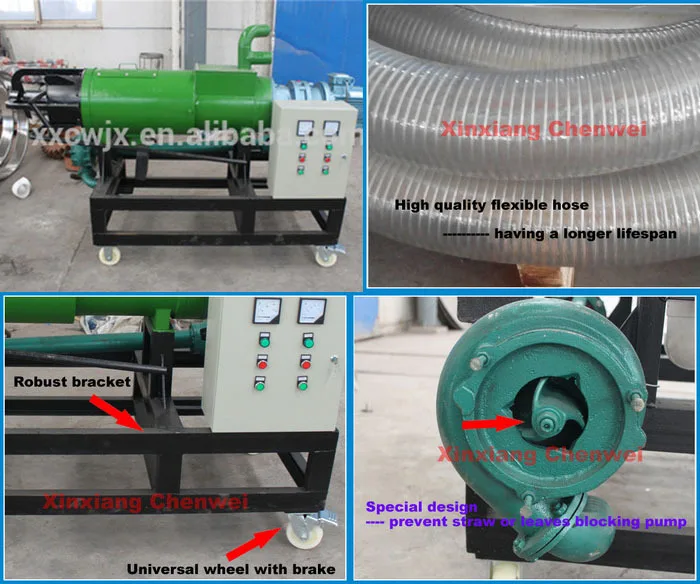

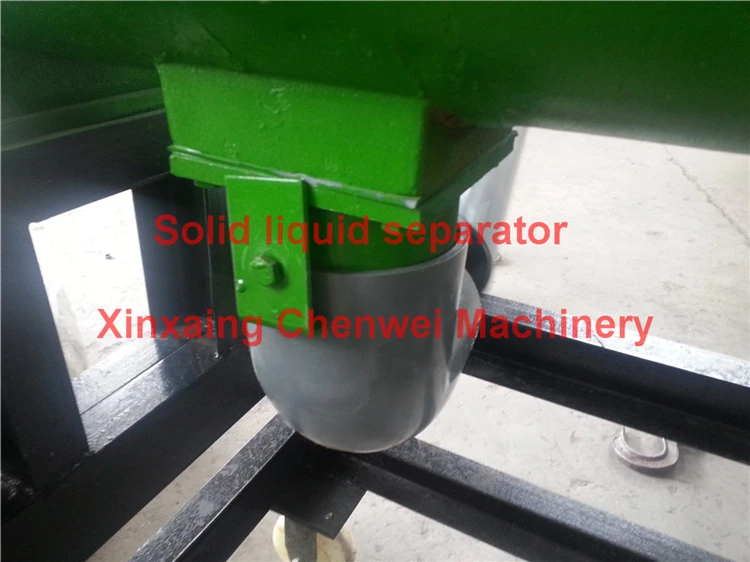

Detailed Images
Packing & Delivery

company

FAQ

Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.

Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.

Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)

Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;

secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;

Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
