Made In Japan Mini Lathe C6236 Metal Lathe Machine For Steel

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $5600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	4kw;	Max. Length of Workpiece (mm):	1000;
distance between centers:	750/1000/1500/2000mm;	Model Number:	C6236;
Place of Origin:	Shandong China (Mainland);	Year:	2019;
CNC or Not:	Normal;	After-sales Service Provided:	Online support,Video technical support;
Voltage:	Customer's Requirement;	Single gross weight:	1,600 KG;
Certification:	CE ISO;	Condition:	New;
color:	blue and white;	Selling Units:	Single item;
swing over cross slide:	200mm;	Applicable Industries:	Manufacturing Plant;
Package Type:	The Package of lathe machine is export standard plywood case ,very strong and durable . The lathe machine will be shipped to customers by land freight or sea freight .;	spindle bore:	52/80;
Power (kW):	4;	Weight (KG):	1600;
Product Name:	Made In Japan Mini Metal Lathe C6136 Lathe Machine For Steel;	Warranty:	1 Year;
Model:	C6136;	Range of Spindle Speed(r.p.m):	36-1600rpm;
Dimension(LWH):	2350x1150x1550mm;	Brand Name:	Luzhong Machine;
Automatic Grade:	Manual;	Type:	Horizontal;
swing over bed:	360mm;	Key Selling Points:	Competitive Price;
Width of bed (mm):	360;	Single package size:	240X120X170 cm;

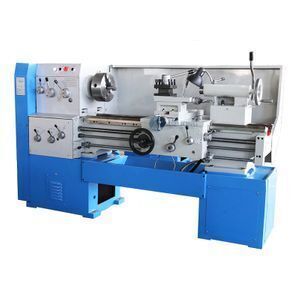

Made In Japan Mini Metal Lathe C6236 Lathe Machine For Steel

Product Description

Product description:

1.Bed rail by super audio quenching and precision grinding.

2.Precision grinding of the main shaft box, low noise.

3.More thread type.

4.Electrical safety performance is good, high reliability.

5.With electromagnetic brake, the color of available options.

Product main technical Specifications:

Specifications		C6236
Capacity	Max. Swing over bed	360mm
	Max. rotating diameter	200mm
	Max. swing over gap	590mm
	Center distance	750/1000/1500/2000mm
Spindle	Spindle hole	52mm(82mm)
	Spindle nose	ISO-C6(C8)
	Spindle tap	MT6
	Spindle speeds(Number)	36-1600rpm (12 Steps)
Feed	Metric threads range(Kinds)	0.5-14mm (18 Kinds)
	Inch threads range(Kinds)	2-40/inch (28 Kinds)
	Module threads range(Kinds)	0.25-3.5mπ (17 Kinds)
	Compound rest travel	150mm
	Cross slide travel	180mm
	Cross-section size of tool shank	20×20mm2
Tailstock	Dia. of tailstock sleeve	75mm
	Taper of tailstock sleeve	MT5
	Travel of tailstock sleeve	160mm
Main motor power		4
Machine size (LWH mm)	Overall dimensions for750mm	2100×1150×1550mm
	Overall dimensions for1000mm	2350×1150×1550mm
	Overall dimensions for1500mm	2850×1150×1550mm
	Overall dimensions for2000mm	3350×1150×1550mm
Weight(kg)	Weight for 750mm	1500kg
	Weight for 1000mm	1600kg
	Weight for 1500mm	1800kg
	Weight for 2000mm	2000kg

Details Display

Related Products

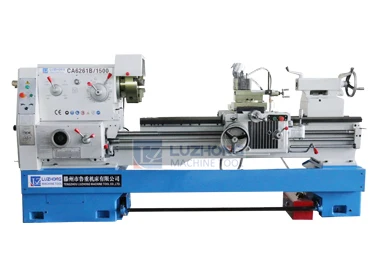

C series Lathe Machine	CA Series Lathe Machine

CJM320B Mini Lathe Machine	CW6180E Lathe Machine

Company Profile

Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.

Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .

Certificate

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
