Tongda FA1569 Textile Cotton Yarn Machine Production Line Ring Spinning Machine Price

Supplier: Qingdao Tongda Textile Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr jerry zhao
Price: $43000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	manufacturing plant	strength:	25KW
Applicable fiber length:	Less than 40mm, 40-51mm.51-60mm	brand:	Mastery
After warranty service:	online support	type:	Ring Spinning Machine
Supply capacity:	1000 sets per month	Automatic doffing time:	3 minutes
Health status:	new	Marketing Type:	hot product
Spindle speed r/min:	12000-25000 (frequency conversion mechanical speed	Core components:	PLC, engine, bearing, gearbox, motor, gear
Warranty:	1 year	Mechanical test report:	if
Spinning equipment:	spinning machine	Origin:	Shandong China
Spindle Gauge:	70	application:	spinning
Package preview:		automatic:	Yes
Core component warranty:	1 year	Packaging Details:	export wooden box standard
Twist direction:	Z with single tension disc, Z and S with double tension disc	weight:	9000 kg
Production capacity:	99.9%	Cartography Type:	3-wire drum, cradle apron (short) and bottom apron (long). top weighted
Spinning method:	Ring spinning	Yarn count:	6-120Ne
port:	China	Dimensions (LWH):	20300x1150x2315mm
Serve:	Custom OEM	Showroom location:	Indonesia, Pakistan, India, Bangladesh, Uzbekistan
payment terms:	L/C, Western Union, T/T	Video shipment inspection:	if

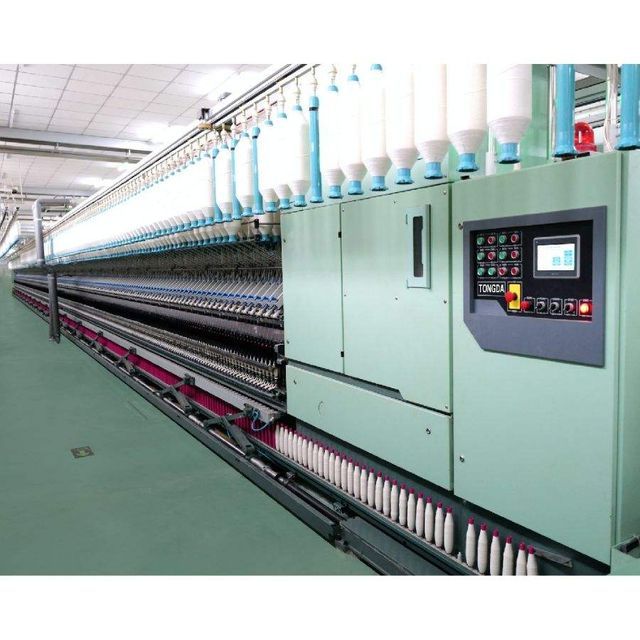

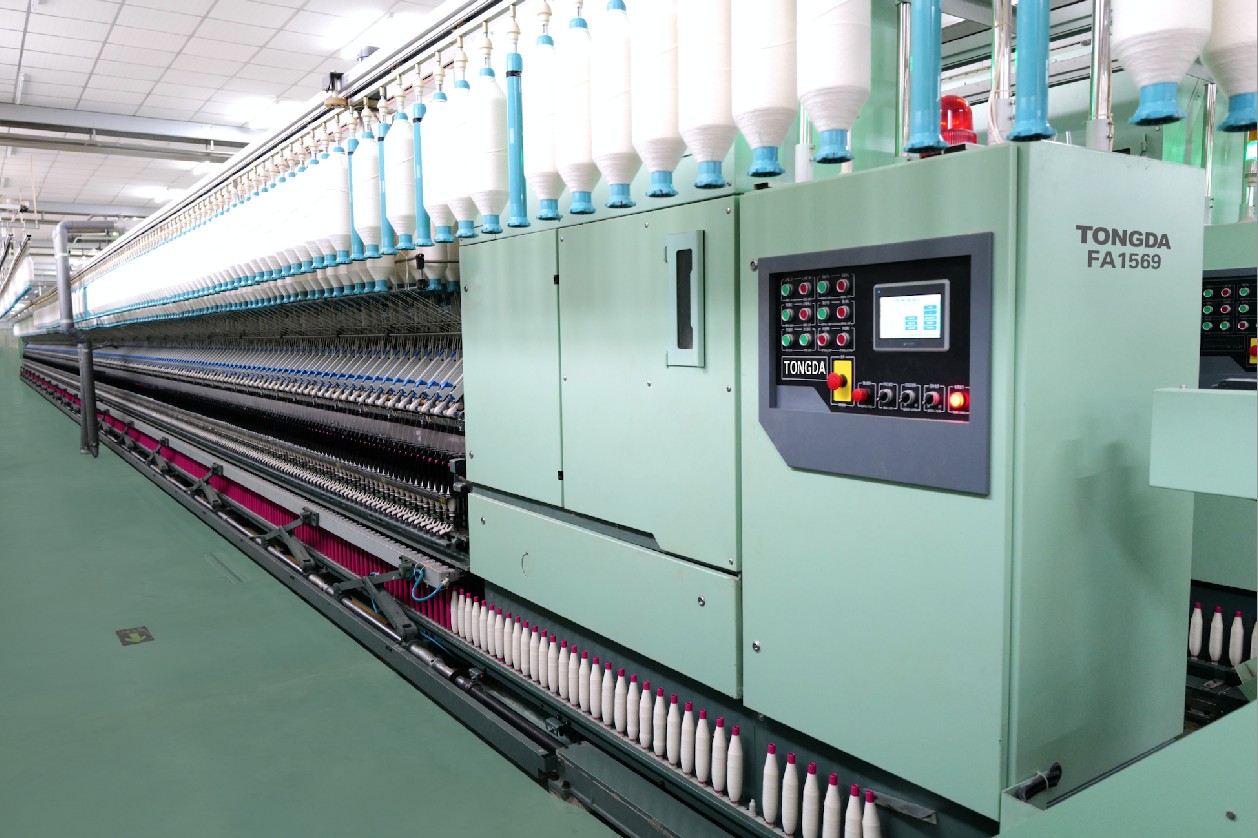

Tongda FA1569 latest high-efficiency automatic doffing ring spinning machine

FA1569 series super-stretch intelligent ring spinning frame is a new generation of main engine leading the development trend, and its various performances have reached the international advanced level. It integrates fast loading technology, fast falling technology, head and tail double suction technology and intelligent spinning expert system. . Compared with the existing ring frame, the energy consumption is reduced by 10%. FA1569 is an ideal choice for middle and high-end customers.

Product Description

FA1569 Technical Data and Specifications:

_{Spindle Gauge}	_{70 mm}
_{Number of spindles}	_{From 612-1824. Each additional 36 spindles}
_boiler	_{Φ27XΦ27XΦ27 or Φ27XΦ30XΦ27 box length 6 spindles}
_lift	_{160,180 (with aluminum shaft)}
_{Large diameter mm}	_{38, 40, 42, 45 (PG type)}
_{Applicable fiber length}	_{less than 40mm. 40-51mm, 51-60mm}
_{Applicable yarn density Tex(Ne)}	_{36.4-4.86(16-120)}
_{Applicable twist ((urns per meter)}	_{230-3000 (dock diameter 19)}
_{twist direction}	_{Z with single tension disc. Z and S with double tensioning disc}
_draft	_{10-60 total drafts (standard), 10-80 total drafts (optional)}
_{Spindle speedr/min}	_{12000-25000 (frequency conversion mechanical speed)}
_{Spindle drive}	_{CD drive}
_{cartography type}	_{3-wire rollers, cradle apron (short), base apron (long), drop cloth counterweight arm}
_{lift motor}	_{by electric lifting}
_{Twisted type}	_{twisted by electrons}
_{Doffing type}	_{Automatic doffing}
_{Bobbin lifting rate during doffing}	_>99.5%
_{Intubation rate}	_100%
_{No end-break rate at the end of automatic doffing}	_2300mm
_{Automatic doffing time}	_{3 minutes}
