New machine developed for recycling cotton fabric waste of textile machinery

Supplier: Qingdao Tongda Textile Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr jerry zhao
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Preview:		payment terms:	L/C,Western Union,T/T,MoneyGram
product:	Cotton fiber, polyester, waste fiber	Function:	waste cotton machine
Marketing Type:	New Products 2022	Machine capacity:	300~700Kg/hour
brand:	Mastery	Health status:	new
Applicable industries:	manufacturing plant	Material Capability:	fiber

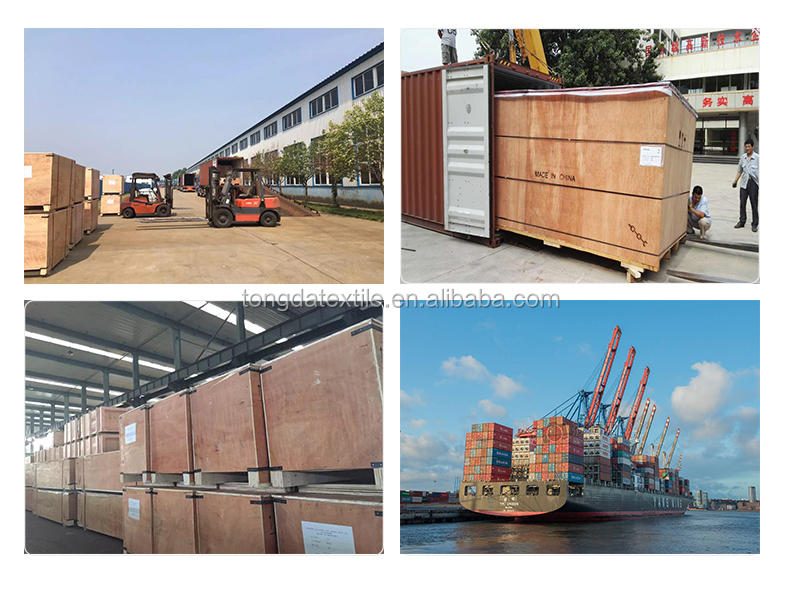

expiration of pay:	wire transfer	Packaging Details:	Seaworthy export packaging

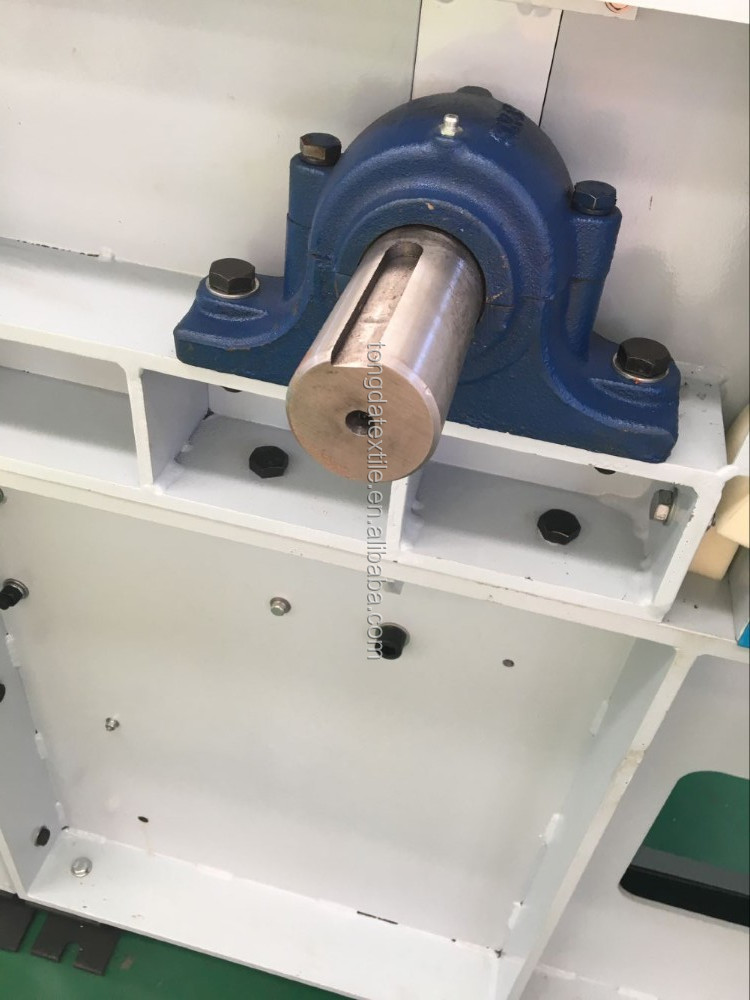

Core components:	PLC, bearing, gear	feature:	high efficiency
product name:	fabric waste recycling machine	Type of machine:	textile machine
Warranty:	1 year	usage:	yarn
Supply capacity:	100 sets per month	Spinning method:	rotor spins
Minimum order quantity:	1	port:	Qingdao
Serve:	warranty service	Mechanical test report:	if
Video external inspection:	if	Weight (kg):	7000
Showroom location:	not any	place of origin; place of origin:	Shandong China
After-sales service provided:	Engineers can repair machinery overseas	Core Components Warranty:	1 year

Product Description

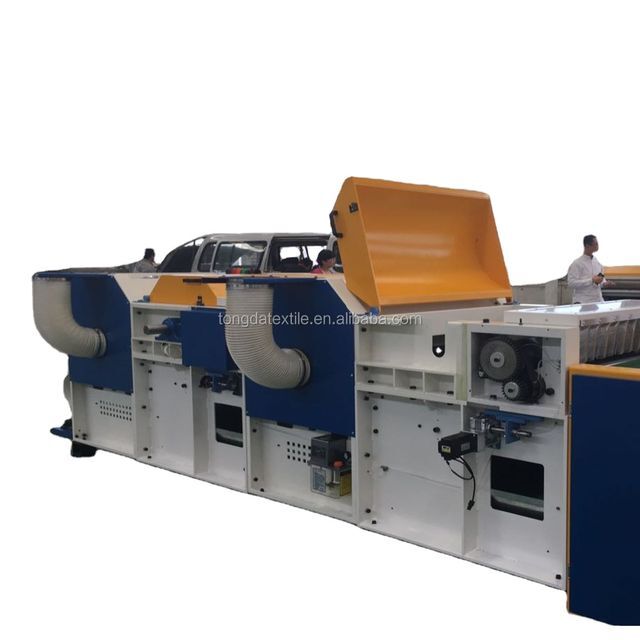

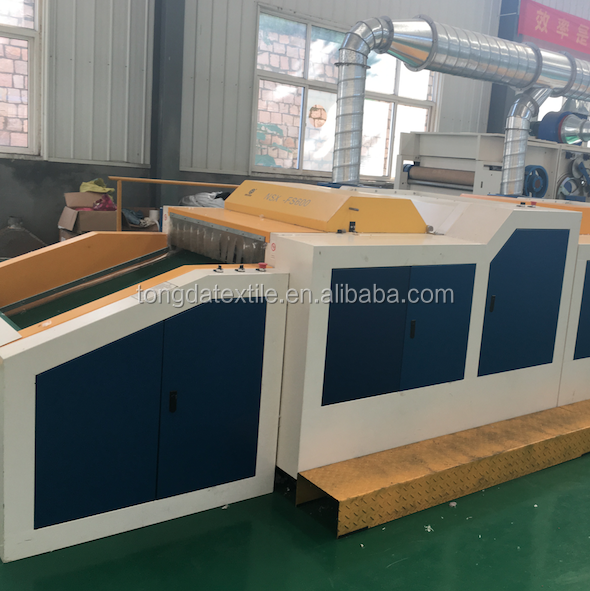

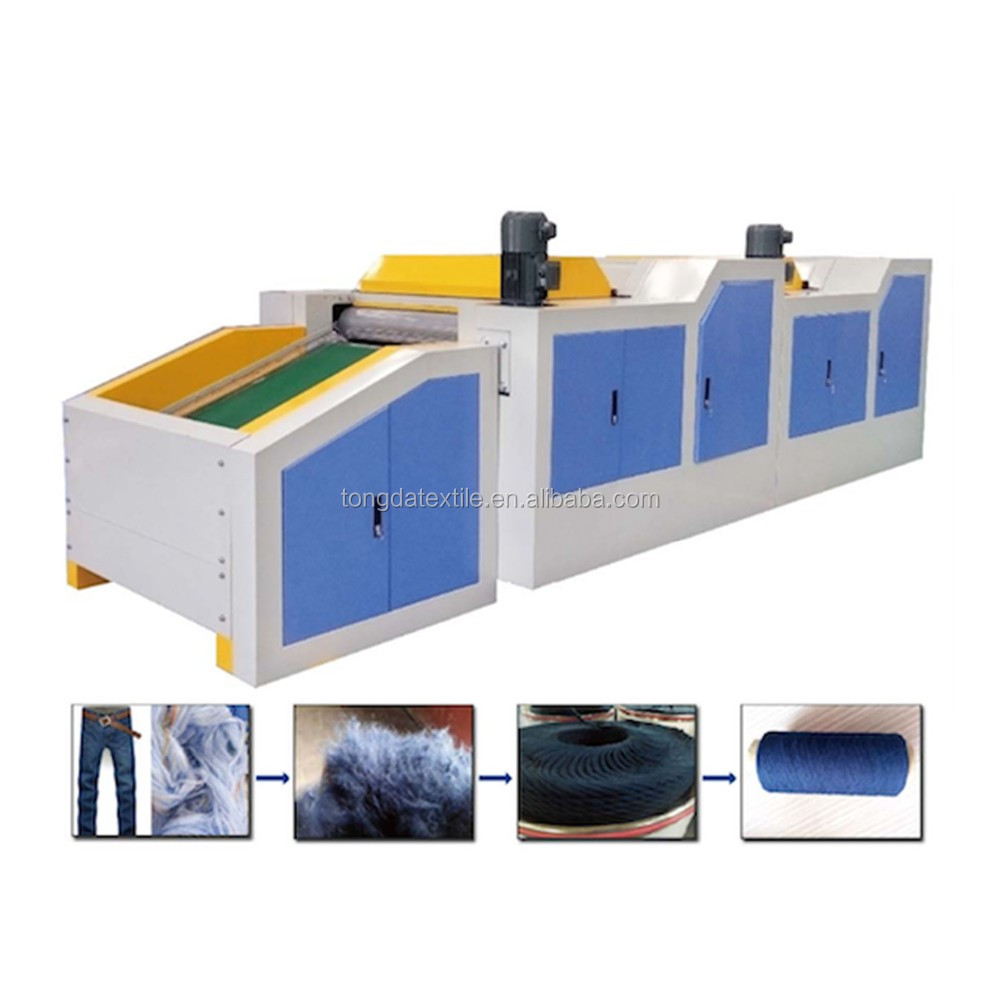

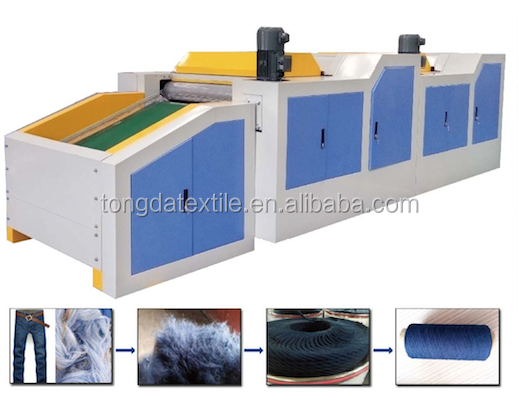

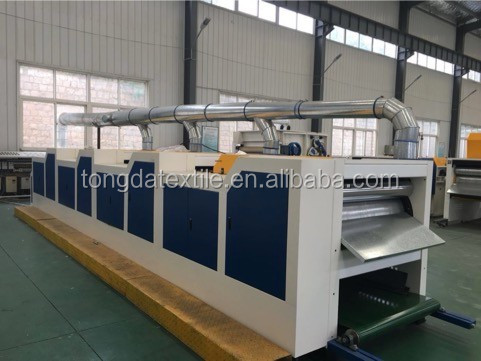

Newly developed textile machinery cotton fabric waste recycling machine

Applications

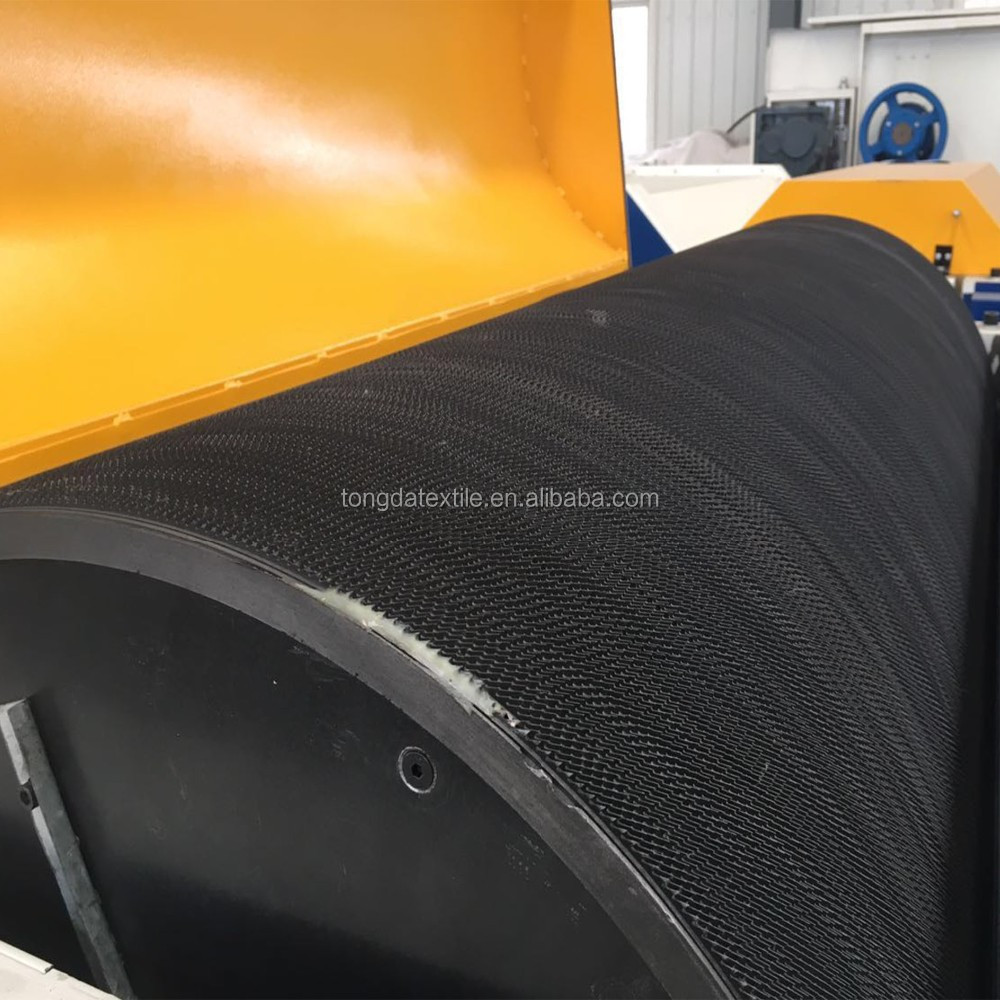

The machine adopts a new type of ultra-fine textile waste tearing machine with domestic leading technology, adopts porcupine rollers with a diameter of 600-1000mm, taper pins with different angles and specifications for each cylinder, and the feed roller adopts elastic rubber-coated rollers with a diameter of 150-250mm. . The working width is 1000-2000 mm, and the maximum capacity can reach 2500 kg per hour.

Advantages of textile waste recycling machine:

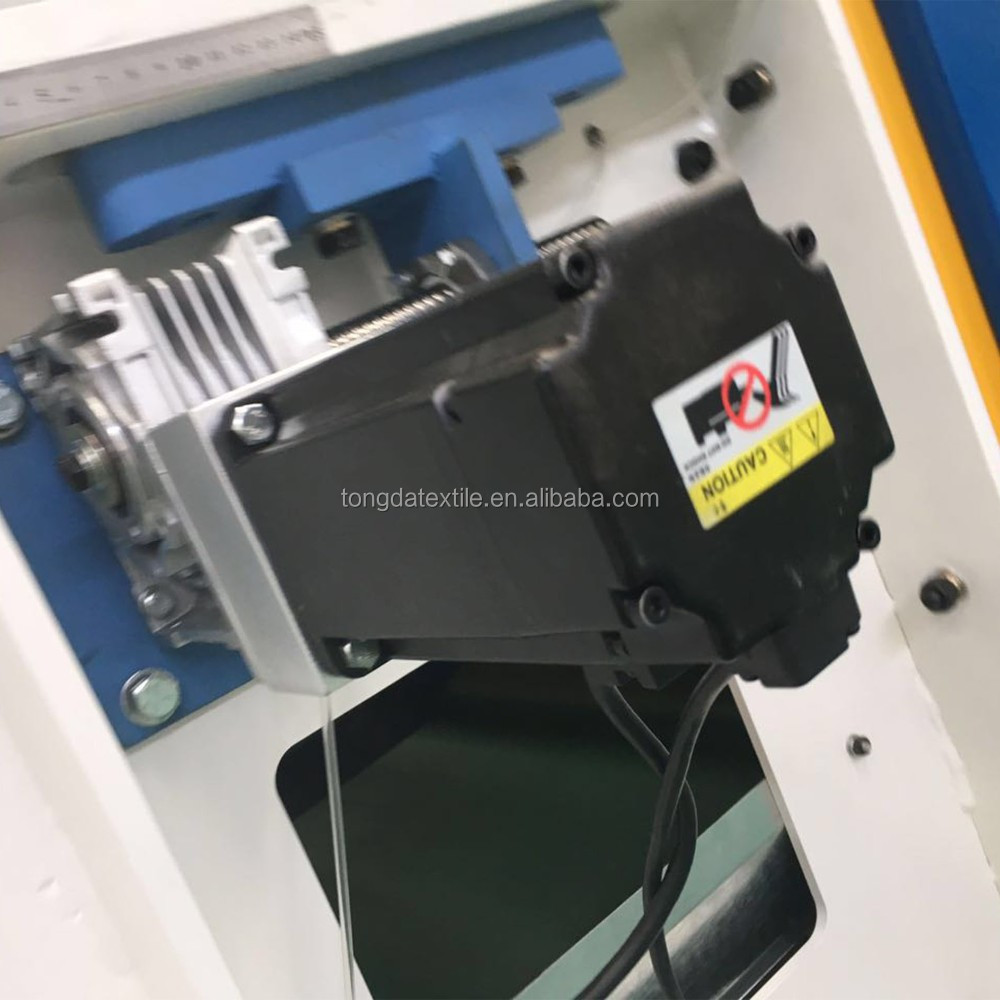

1) With pneumatic braking system and lubrication system, gear motor direct drive system, without chain drive system

2) Reduce the damage to the fiber and keep the fiber length.

3) Procupin rollers will be replaced according to raw materials and customer requirements.

4) Fully automatic, saving manpower

5) High efficiency and environmental protection

Host Specifications:

Model/Specification	TDFS250	TDFS400	TDFS600	TDFS6160
Handling capacity (kg/h)	160~180	220~280	300~350	450~550
Drum diameter (mm)	250	400	600	600
Drum weight (Kg/Drum)	420	640	600	600
Working width(mm)	1000	1000	1000	1500
Installed power (Kg/h)	5.5*N	7.5*N	22+15*(N-1)	30+18.5*(N-1)
Dimensions (LxWxH) (mm)	10200x1800x1400	11600x1800x1400	14400x1800x1450	14400x2300x1450
