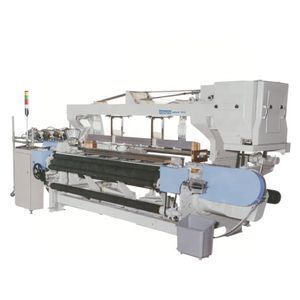

TD-736 Dobby shuttleless weaving machine 736 rapier loom

Supplier: Qingdao Tongda Textile Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr jerry zhao
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	China;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Supply Ability:	1000 Set/Sets per Month;	Packaging Detail:	nude packing or as customer's request;
Port:	Qingdao;	After-sales Service Provided:	Engineers available to service machinery overseas;
Showroom Location:	None;	Reed Width:	150cm,170cm,190cm,230cm,280cm,360cm;
Dimension(LWH):	2800x1600x1200mm;	After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Local Service Location:	India,Bangladesh;	Key Selling Points:	Automatic;
Weight:	3.1Ton;	Machine Type:	rapier loom machine;
Production Capacity:	99.99%;	Applicable Industries:	Manufacturing Plant;
Type:	Rapier Loom;	Brand Name:	TONGDA;
Machine color:	As customer request;	Condition:	New;
Warranty:	1 year;	Application:	weaving Machine;
Power(W):	2.5KW;	Payment Terms:	T/T;
Certification:	ISO9001;

TD-736 Dobby shuttleless weaving machine 736 rapier loom

Product Display

Application

Model	TD736
Reed width (cm)	180(74") 200(78") 230(90") 250(98") 280(110") 330(130")
Rotation Speed(RPM)	190-300
Yarn Range	Cotton:6Ne-80Ne,Wool:10Ne-135Nm,Chemical Fabric:900D-70D
Shedding	Upper Mechanical(electronic)dobby,spring reversing motion, 20 or 24 shafts
Weft Insertion Form	Six Linkages Weft Insertion
Beating-up Motion	Four Linkages Short Crank Arm Beating-Up
Take-up and Rolling-up	Continous take-up and separate rolling-up,full rolling diameter 400mm
Weft Selection	4-6 colors
Diameter of Warp Beam	600mm
Warp Stop	6 rows electric warp stop
Weft Stop	Piezoelectric Ceramic Sensor Control Weft Stop
Electric System	PLC
Power	1.8-2.2KW
Weight	3200-3500KG
Overall Size	3700x2000x1800(200cm/78'')

Production Process

Product Categories

Factory Appearance

Our Advantage

FAQ

(1)Q: Why Choose Our Company?

A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.

(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.

(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?

A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.

(7) Q: Product /Quality Guarantee and After Sale Service?

A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

(8) Q: One-stop Service:

A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.

(9) Q: Certification?

A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
