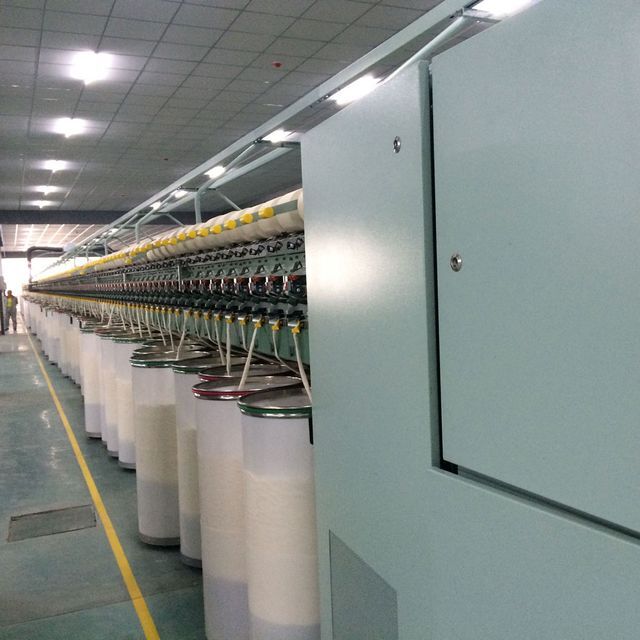

Rotor Spinning Machine Regenerated Cotton Yarn Open Spinning Machine

Supplier: Qingdao Tongda Textile Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr jerry zhao
Price: $60000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core Components Warranty:	1 year	place of origin; place of origin:	Shandong China
Supply capacity:	10 sets per month	Spinning method:	Rotor Spinning
Packaging Details:	Bare package or according to customer requirements	Rotor speed (rpm):	30000-75000
automatic:	Yes	Warranty:	1 year
payment terms:	L/C,Western Union,T/T	Video external inspection:	if
port:	Qingdao	Packaging Preview:
Mechanical test report:	if	Measurement:	200
Applicable industries:	manufacturing plant	Name:	Waste Cotton Yarn OE Spinning Machine Rotor Spinning Machine
strength:	15kW	Advantage:	High performance and energy saving
Showroom location:	not any	Take-up speed (m/min):	20-116.7
Core components:	PLC, bearing, gear	brand:	Mastery
Drafting ratio:	35-230.5	application:	Spinning production line
programmable logic controller:	Delta, Taiwan	Draft scope:	9-274
Marketing Type:	New Products 2022	Rotor diameter:	43,54,66
Combing roller speed (rpm):	5200,6200,6700,7200,7700,8200	weight:	6000kg
Health status:	new	type:	Open spinning
Production capacity:	high speed

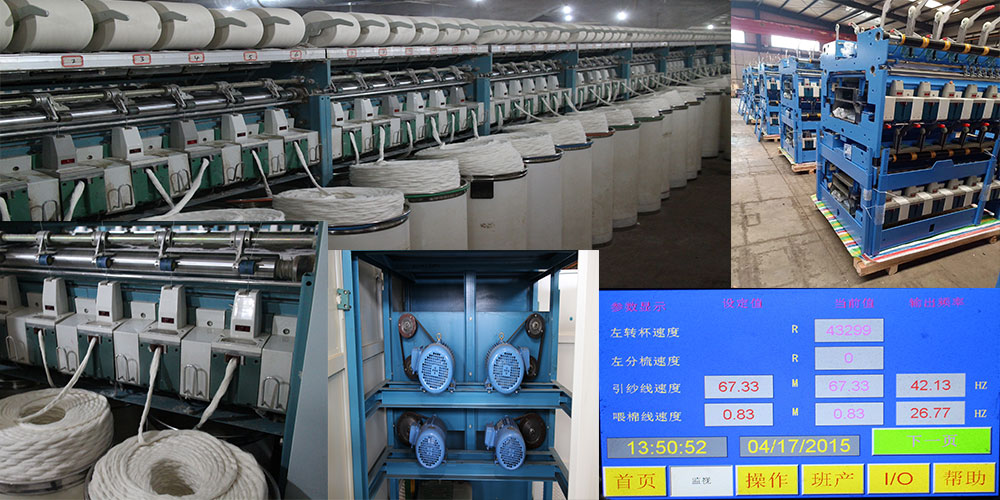

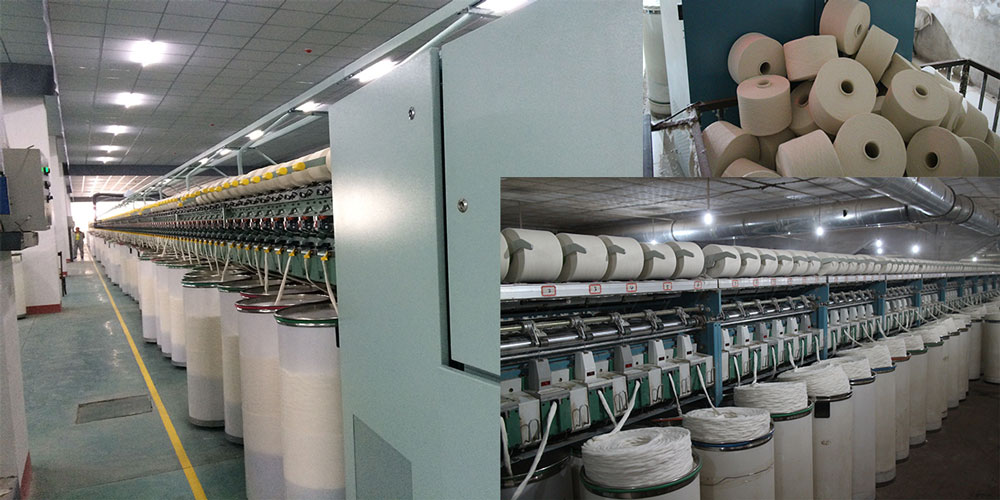

Rotor Spinning Machine Regenerated Cotton Yarn Open Spinning Machine

Product Description

The HJF1603 rotor spinning frame is a high-speed, high-efficiency, large-package, self-venting open-end spinning frame produced on the basis of the advanced technology of other domestic rotor spinning frames. On the basis of digesting and absorbing modern spinning technology, integrating the most advanced scientific and technological achievements, segmenting the market demand, especially ordering equipment for special yarn markets such as waste cotton yarn, wool spinning, linen yarn, and glove yarn.

The main parameters

1. Air pump rotor spinning machine.

2. The design of the open spinning device has good impurity removal effect and excellent yarn quality.

3. The transmission arrangement is simple, reasonable, easy to maintain and economical.

4. Fully considering energy saving, the installed power is the lowest among similar products.

5. The key accessories such as rotor bearings and dragon belts are all selected from world-renowned potato brands to ensure machine performance.

Measurement		200
Number of Units		192-360 spindles
Rotor speed (rpm)		30000-75000
Rotor diameter		43,54,66
Combing roller speed (rpm)		5200, 6200, 6700, 7200, 7700, 8200
draft ratio		35-230.5
Number of bars		0.2-0.45nm (5000-2200 tex)
can size		250900, 300900, 350*900
Tube size		6862170 (3°30 taper tube) 5650170 (cylinder)
Package dimensions		300150 (cylinder) 250150(3°30 cone tube)
package weight		About. 4 (cylinder)
Motor power (KW)	rotor drive	2*11
	Combing roller drive	2*4.5
	third hand fan	1*3
	Sewage fan	1*4
	conveyor belt drive	1*0.4 (with reducer)
	gearbox drive	21.5 (drawing)+20.75 (feeding)
