JD758B Towel bar loom
- 7500.00 10 - 99 sets
- 6500.00 >=100 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Applicable industries: | Clothing store, manufacturing plant, textile, textile machinery | Origin: | Shandong China |
| port: | any china port | Marketing Type: | 2019 Hot Products |
| Mechanical test report: | not available | Warranty: | 1 year |
| Showroom location: | not any | Health status: | new |
| payment terms: | L/C, Western Union, D/P, T/T | brand: | Jiu Rui |
| Spinning method: | to weave | weight: | 1500 kg |
| strength: | 1.5kw | automatic: | Yes |
| Video shipment inspection: | if | type: | loom |
| application: | towel weaving | Core component warranty: | 1 year |
| Production capacity: | 160-220rpm | Model: | JD758 |
| Supply capacity: | 1000 sets per year | Core components: | engine |
Product overview

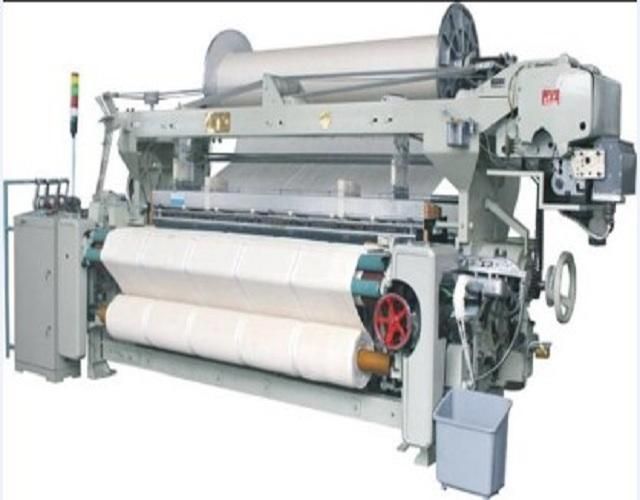

JD758B Towel Rapier Loom
Main data:
* Reed width: 180, 200, 230, 260cm
2. Speed: 200-150rpm
3. Weft selection: 6 colors
4. Warp beam diameter: 550 or 600mm
5. Opening method: Electronic carding dobby
6. Let-off mode: positive electric let-off
7. Raising method: cam type movable reed raising
6. Weft stop: piezoelectric ceramics
* Reed width: 180, 200, 230, 260cm
2. Speed: 200-150rpm
3. Weft selection: 6 colors
4. Warp beam diameter: 550 or 600mm
5. Opening method: Electronic carding dobby
6. Let-off mode: positive electric let-off
7. Raising method: cam type movable reed raising
6. Weft stop: piezoelectric ceramics
List of functions
Working width: 135, 150, 180, 230, 280, 340cm
Heald frames: 2 or 4, or 6 or 8
Weft color: 1 color
Trimming type: doup or tuckin
Stop: six rows of electronic control
Weft Stop: Piezoelectric Ceramics
JD758B Towel Rapier Loom
Towel Rapier Loom

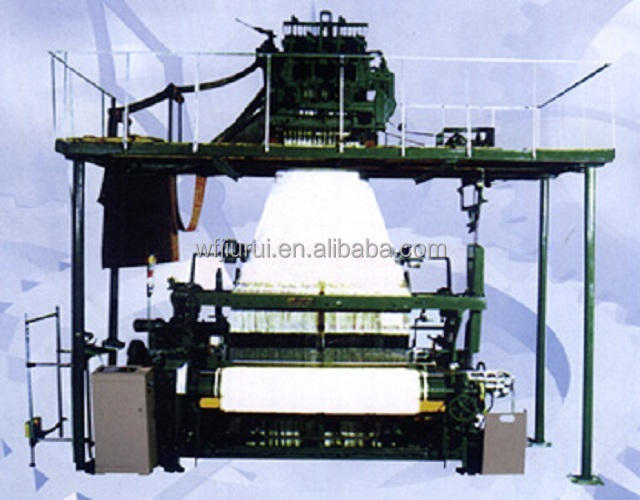

jacquard loom
You May Like
Thermal godet/spinning machine godet
Hot Godet Roll
Hot Godet Roller

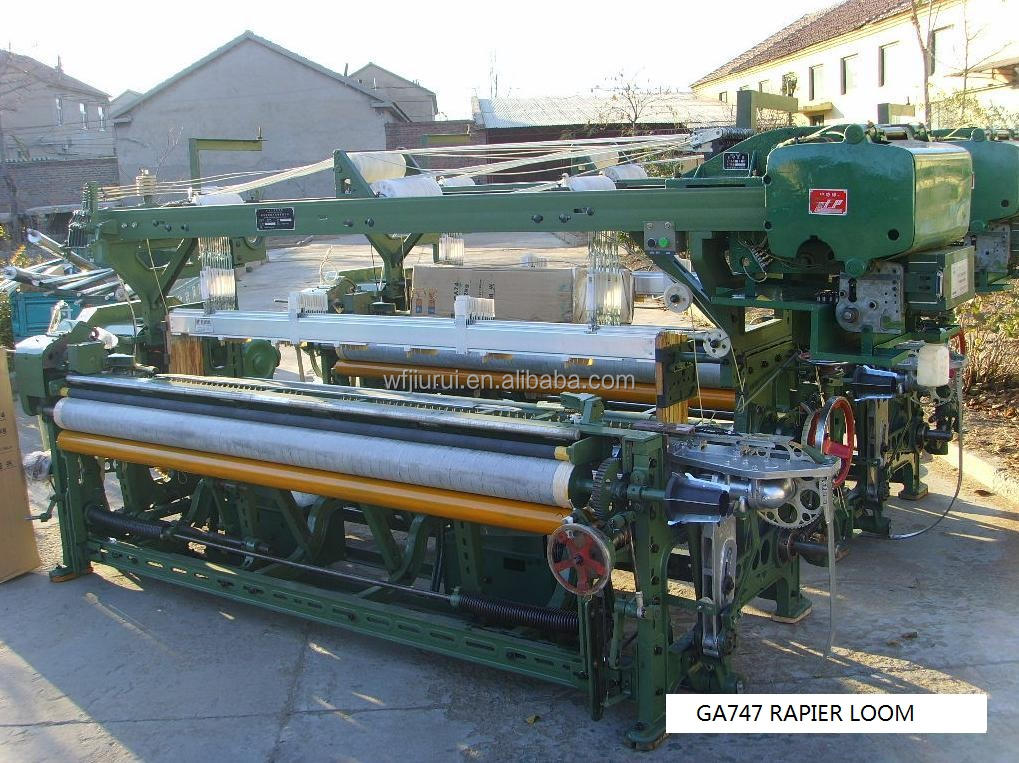

GA747-III Flexible Sword Loom Simple Sword Loom No Ship To China
