TONGDA cotton yarn twisting machine for sale details
Certification:CE;Spinning Method:Ring Spinning;
Place of Origin:Shandong China;Packaging Detail:Standard export packing;
Condition:New;Automatic:Yes;
Port:Qingdao;Payment Terms:L/C,T/T,Western Union;
Supply Ability:300 Set/Sets per Month;Application:yarn twisting;
After-sales Service Provided:Video technical support,Field installation, commissioning and training;Brand Name:TONGDA;
Power:18.5kw or 22.5 kw;Applicable Industries:Manufacturing Plant;
Production Capacity:99.9%;Warranty:1 YEAR;
Type:Twisting Machine;Dimension(L*W*H):Depends on customer;
Weight:0.5 tons;

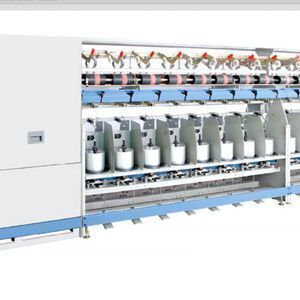

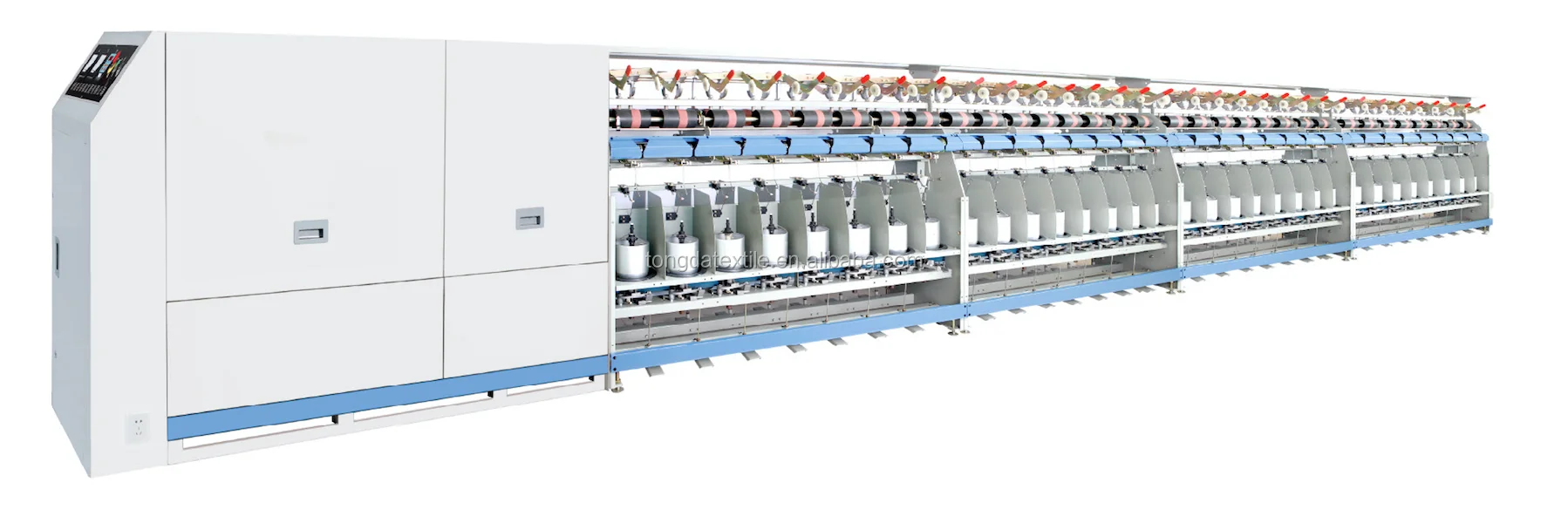

TONGDA cotton yarn twisting machine for sale

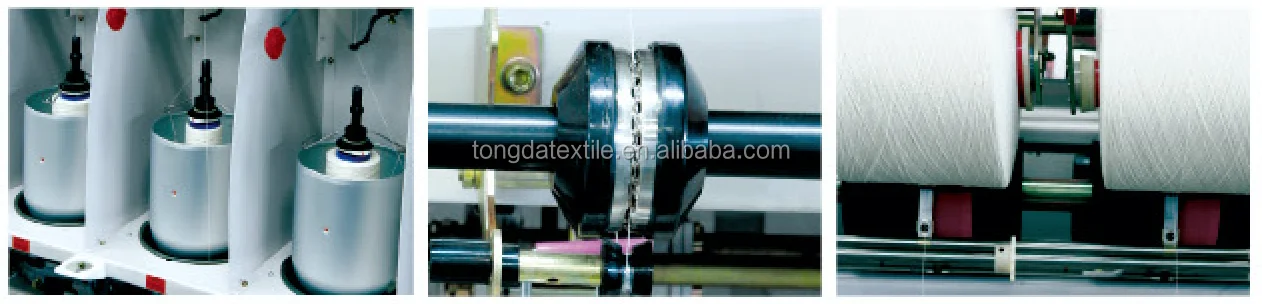

Main Features:



1. Special designed reversing device which fits for twisting both yarns and spandex fibers

2. The stable qualit of spindle run long-time even under high-speed operation

3. Double-geared drive device, reasonable force load transmitting, winder twist range

4. Adjustment system through belt tension, easy operation

5. Pedal brake systme, operation easy, extend the life of belt and spindle

6. Winding completed or yarn broken, spindle support lift automatic to avoid yarn grind

7. Oil-bath gearbox and special yarn guide, made excellent winding form

8. The take-up tension on the roller can adjust at ease. It is alos suit for winding loose packages for dyeing



Main Technical Parameters:

Type of machine

Double sides, single layer, pneumatic yarn-guide (or manual)
No of sections

≤10 standard 9 sections

Spindle gauge

18.16. 14

Twist

156-2027 (special requirements could deploy based on technological)

Twist direction

S or Z

Winding angle

14°47′. 16°36′. 18°41′. 20°07′.

Spindle driving

Belt circuletion driving

Start mode

Star-delta slow start

Tendioner

Capsule

Motor Power

18.5kw or 22kw





DIMENSION:

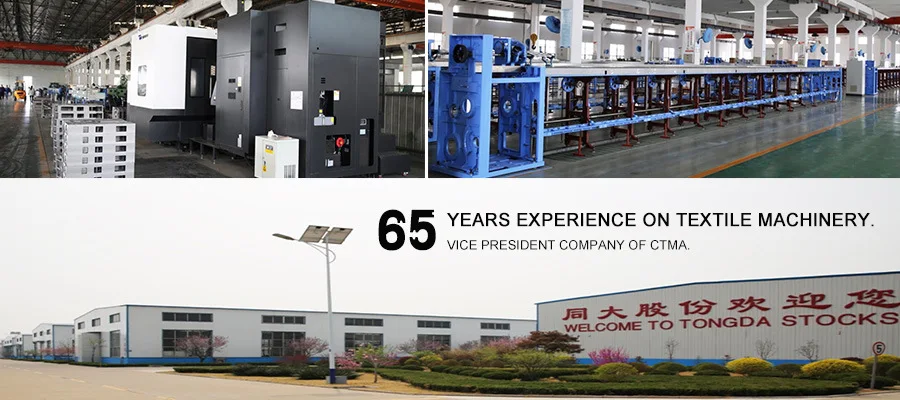

Work shop:



Certificates:



FAQ:



About Payment Terms:

We accept the following payment methods: T/T & L/C.

About After-Sales Service:

Our goal is Good,better,best,never let it rest. & Our service purpose is try our best to make customers satisfied.

Professional team will solve any problems you met during the whole purchasing progress.



Contact Information:



Certification:CE;Spinning Method:Ring Spinning;Place of Origin:Shandong China;Packaging Detail:Standard export packing;Condition:New;Automatic:Yes;Por
above is detail introduction of TONGDA cotton yarn twisting machine for sale, include price, model, picture and supplier of TONGDA cotton yarn twisting machine for sale.
