FA538 Ring spinning machine cotton ring spinning frame machine

Supplier: Qingdao Tongda Textile Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr jerry zhao
Price: $63504.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	500 Set/Sets per Month;	Payment Terms:	T/T;
Brand Name:	TONGDA;	Warranty:	1 Year;
After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Name:	FA538 Ring Spinning Machine;
Weight:	10ton;	Type:	Spinning Production Line;
Packaging Detail:	wooden cases;	Applicable Industries:	Manufacturing Plant;
Application:	Ring spinning machine;	Certification:	ISO9001;
Automatic:	Yes;	Spinning Type:	Ring spinning machine;
Port:	Qingdao;	No. Of spindles:	1008 spindles;
Production Capacity:	99.9%;	Place of Origin:	Shandong China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Spinning Method:	Ring Spinning;	Dimension(LWH):	37600x1000x2300mm;
Suitable for Fiber:	cotton,poylester;	Power(W):	45KW;

FA538 Ring spinning machine cotton ring spinning frame machine

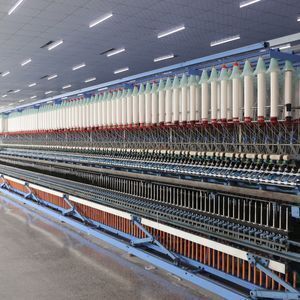

Product Display

FA538 Technical Data and Specifications:
Spindle gauge	70mm
Lifting	205 180 155 mm
Ring Diameter	Φ45,Φ42,Φ38mm
Number of Spindle	384,396,408,420,432,444,456,468,480,492,504,516
Yarn count	97.2---4.9tex (6--12Ne)
Twist	300--1600(T/m)
Draft Ratio	10-50
Spindle speed	19000-25000 rpm
Spindle drive	Single tension pulley,Z or S twist optional
Spindle wharve diameter	Φ22,Φ24,Φ20.5mm
Creel	One tier hanger, Four or six rows optional
Main Motor(380v50Hz)	15/7KW 17/9KW 18.5/11KW 22/11KW (380v)
Suction Motor (380v 59 Hz)	1.5KW(for No.of spindles below 444) 2.2KW (for No.of spindles above 456)
Lift Motor	370W
Distance between Spindle of left and right side	700 mm
Headstock dimensions Endstock Dimensions	Width: 640mm, length:680mm, height:1700mm Width:640mm, length:1300mm,height: 1768mm
Total height of the machine	2300mm
Total length of the machine	L=2380+(N/2-1)70mm L:length N:where means the number of spindles

Production Process

Product Categories

Factory Appearance

Our Advantage

FAQ

(1) Q: Are you a manufacturer or Trade Company?

A: We are a professional manufacturer holding our own International Trade Department, for that

we can better understand customer's needs and offer a reasonable price.

(2) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation.

Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.

(3) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.

(4) Q: How about the quality?
A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.

(5) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
