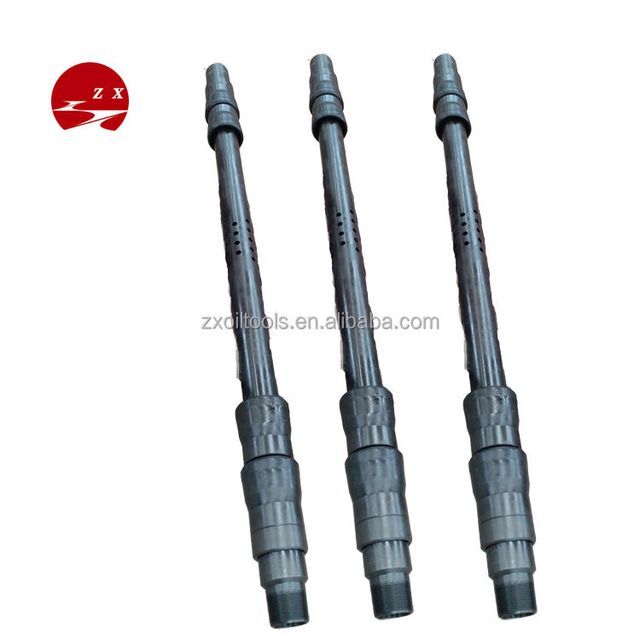

API 11D1 oil field downhole tool double rubber cup packer casing packer

Supplier: Dongying Zhaoxin Industry And Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Xiang
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	Cup packing machine	size:	7"
model:	6-5/8	Name:	Cup packing machine
Work pressure:	25	payment terms:	L/C, T/T, Western Union
temperature:	120	port:	Qingdao
Warranty:	one year	Material:	4135
Certificate:	API 11D1	Applicable industries:	Energy and Mining

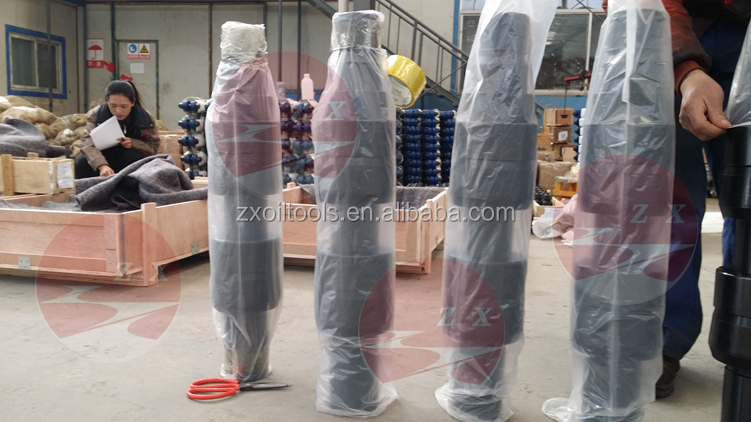

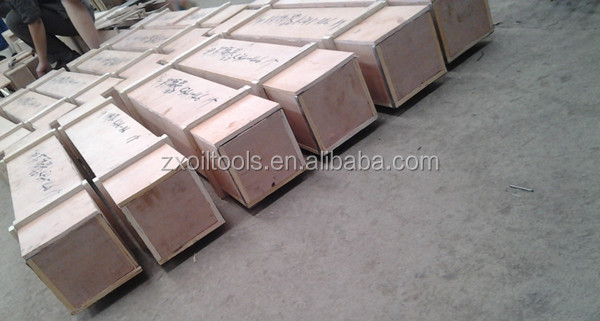

Packaging Details:	wooden box	Supply capacity:	3000 pieces per year
Maximum outer diameter:	150	Applicable shell:	7"
application:	oilfield

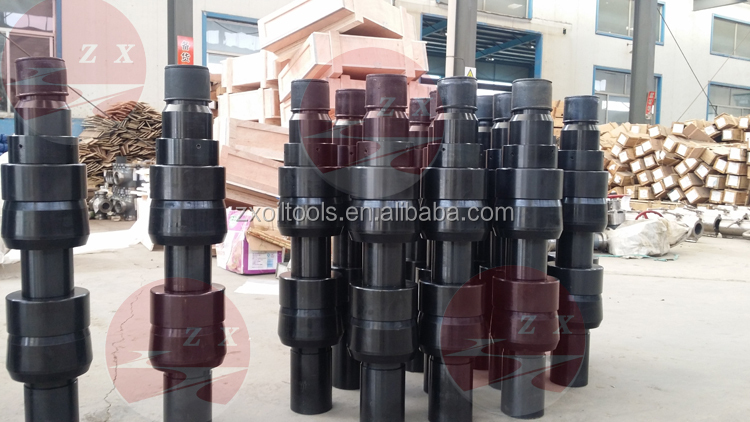

API 11D1 oil field downhole tool double rubber cup packer casing packer

Product Description

The packer is a self-sealing packer, which mainly relies on the interference contact between the cup body and the casing to seal the annular space between the oil and casing, and is an economical method for sealing casing leakage and exhaustion areas Means, also a production or injection packer for low pressure applications.

The packer can run with cups in the opposite or the same direction depending on the application. The design is simple, the structure is strong, and the cost is low; making the product attractive to operators for a wide range of applications.

Cup packers are an economical way to isolate casing leaks and depleted zones, as well as production or injection packers for low-pressure applications. It has no latch or locking mechanism and won't get dirty with sand, shale or mud. It has no slips, requires no set tubing weights, and packs off equally well at any point in the hole.

feature

1. No need to rotate the settings.

2.Adjustable to any length from wrapper between one foot.
3. Wide variety of materials.
4. High quality thread available upon request.

our service

total length (mm)	Maximum outer diameter of steel body (mm)	The maximum outer diameter of the cup (mm)	Minimum ND(mm) of steel body	Differential pressure (MPa)	threaded connection
600	114	130	60	35	2 7/8"UPTBG
690	148	165	75	35	3 1/2"UPTBG
895	210	228	99	35	3 1/2"UPTBG
