Hydraulic Tubing Anchor for Progressive Cavity Pump

Supplier: Dongying Zhaoxin Industry And Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Xiang
Price: $600.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Warranty of core components:	Not Available;	Condition:	New;
Payment Terms:	L/C,T/T,Western Union;	Type:	tubing anchor;
Thread type:	EUE;	Marketing Type:	New Product 2020;
Applicable Industries:	Energy & Mining;	After-sales Service Provided:	Free spare parts,Online support;
Warranty:	6 months;	Suitable Casing:	5";
Pressure:	3000psi;	Local Service Location:	None;
Supply Ability:	500.0 Piece/Pieces per Month;	Core Components:	none;
Packaging Detail:	wooden case for dispatch tubing anchor;	Standard:	API;
Tool type:	anchor;	Machinery Test Report:	Provided;
Showroom Location:	None;	Model Number:	5*3-1/2";
Use:	down hole oil tools;	Video outgoing-inspection:	Provided;
Port:	Qingdao/Tianjin /Shanghai for dispatch tubing anchor;	Material:	AISI 4140;

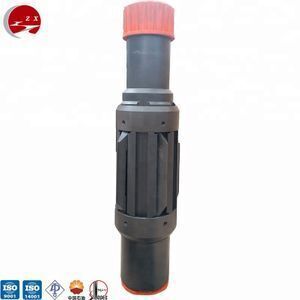

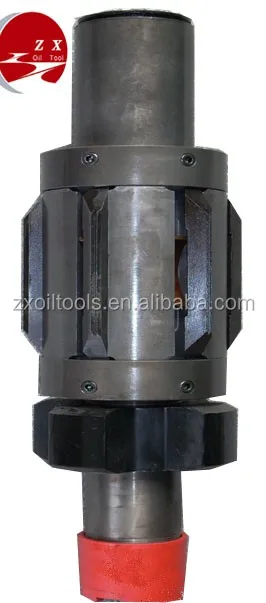

Hydraulic Tubing Anchor for Progressive Cavity Pump

1.Brief Introduction

Tubing anchor is a downhole, packer-like device run in a string of tubing that clamps against the wall of the casing.

The tubing anchor prevents the "breathing" of the tubing, the cyclic up and down movement of the lower section of tubing

as the well is pumped by a rod pump.

1. Characteristics: (1)effectively anchoring the tubing string on the wall of well during the PC pump operation.

(2)When the anchoring is no need it is easy release the anchoring condition.
2. Specification: API 5CT 2-3/8” to 4-1/2”
3.Connecting thread type: EUE, NUE
