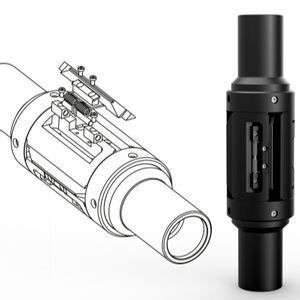

Torque anchor / tubing catcher- Artificial Lift System

Supplier: Dongying Zhaoxin Industry And Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Xiang
Price: $400.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	1000 Piece/Pieces per Month;	Condition:	New;
Machinery Test Report:	Provided;	Standard:	API;
Local Service Location:	none;	Casing ID:	5-1/2";
Warranty:	6 months;	Marketing Type:	New Product 2020;
Port:	Tianjin/Qingdao /Shanghai;	After-sales Service Provided:	Free spare parts,Video technical support;
Applicable Industries:	Energy & Mining;	Showroom Location:	none;
Model Number:	3-1/2";	Core Components:	mandrel;
Payment Terms:	L/C,T/T,Western Union;	Warranty of core components:	1 Year;

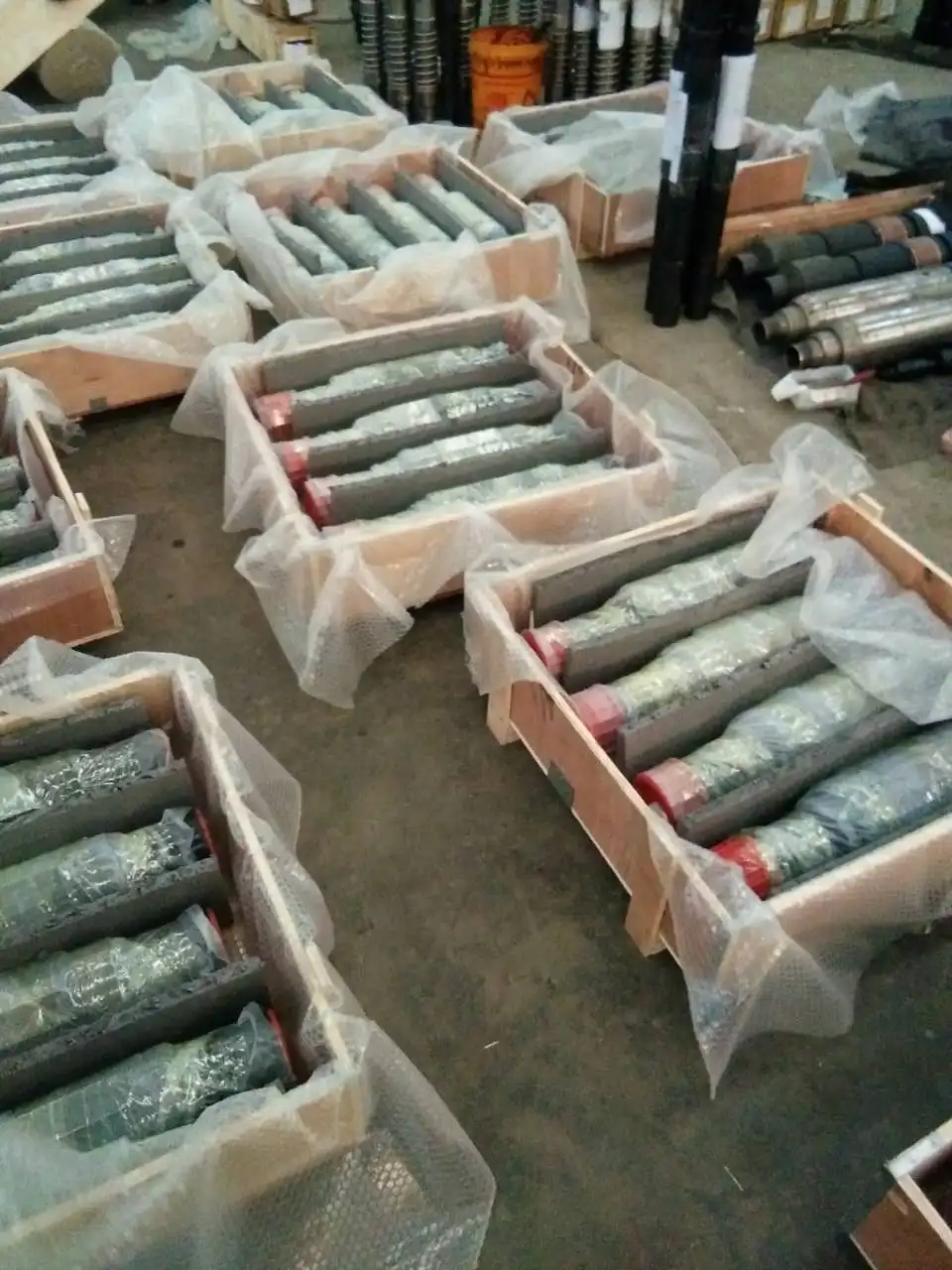

Video outgoing-inspection:	Provided;	Packaging Detail:	wooden case for Dynamic Torque Tubing Anchor;
Connection Thread:	3-1/2' EUE;	Material:	Alloy steel 4140;
Type:	Tubing Anchor;	Pressure:	3000PSI;

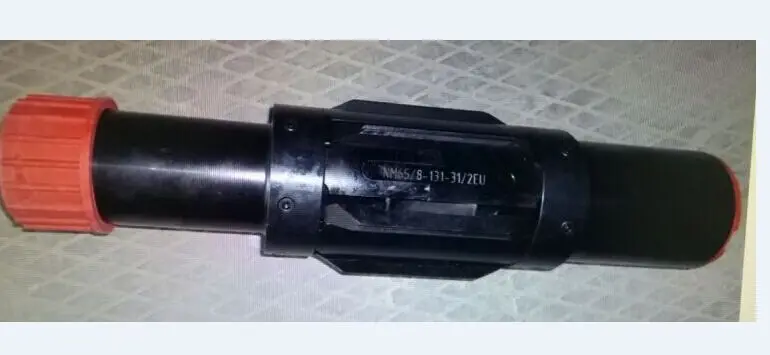

Dynamic Torque Tubing Anchor Used for Progressive Cavity Pump

Usage for tubing anchor

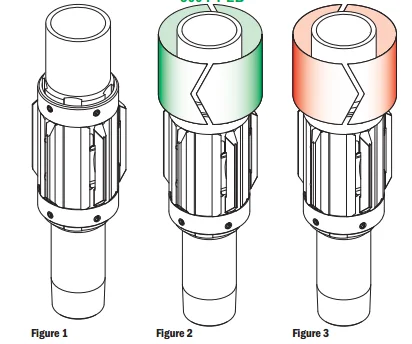

1.) Run the torque anchor to the desired depth. The anchor must be installed box end up and below the pump (Fig. 1).

2.) At the desired depth, apply approximately 300 ft-lb of right-hand torque (Fig. 2) on the anchor to engage the anchor blocks to the casing wall.

3.) The setting torque can be locked in and pump operation started. Note: To avoid disengaging the anchor when starting or stopping the pump, pre-torque the tubing string.
