Deep Oill Well API Mechanical Tubing Anchor for PC Pump

Supplier: Tianjin Soright Technology Development Co., Ltd.
Region: Tianjin, China
Contact: Ms Peggy Lee
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	Ordinary Product;	Brand Name:	SRD;
Machinery Test Report:	Provided;	Tool type:	downhole tool;
After-sales Service Provided:	Field maintenance and repair service,Field installation, commissioning and training,Video technical support,Online support;	Thread type:	EUE, NUE;
Unlock force:	80-120KN;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:	Mechanical Tubing Anchor;	Condition:	New;
Local Service Location:	Egypt,Canada,Turkey,United States,Germany,Viet Nam,Peru,Saudi Arabia,Indonesia,Pakistan,India,Malaysia,Australia,Argentina,UAE,Colombia,Algeria,Romania,South Africa,Kazakhstan,Ukraine,Uzbekistan;	Working pressure:	35MPa;
Length:	790mm;	Warranty of core components:	1 Year;
Standard:	API 5CT;	Port:	Tianjin Port or any other port;
OEM:	Support;	Supply Ability:	5000 Set/Sets per Month tubing anchor for PC pump;
Warranty:	1 Year;	Model Number:	4-1/2;
Packaging Detail:	the tubing anchor is packed by wooden box or other standard package;	Usage:	anchoring the tubing string on the wall of well;
Video outgoing-inspection:	Provided;	Applicable Industries:	Energy & Mining;
Sample:	Provide;	Core Components:	Tubing Anchor;
Package Preview:	;	Showroom Location:	None;
Production Name:	Deep Oill Well API Mechanical Tubing Anchor for PC Pump;

Deep Oill Well API Mechanical Tubing Anchor for PC Pump

Tubing anchor is a downhole, packer-like device run in a string of tubing that clamps against the wall of the casing. The tubing anchor prevents the "breathing" of the tubing, the cyclic up and down movement of the lower section of tubing as the well is pumped by a rod pump.

Place of Origin	Tianjin, China (Mainland)
Brand Name	China Petroleum Equipment
Model Number	2-3/8" to 4-1/2"
Type	Tubing anchor
Machine Type	Oil production
Certification	API 5CT
Material	alloy steel, stainless steel
Processing Type	Forging
Use	Oil production

1. Characteristics:

(1)effectively anchoring the tubing string on the wall of well during the PC pump operation.

(2)When the anchoring is no need it is easy release the anchoring condition.
2. Specification: API 5CT 2-3/8” to 4-1/2”
3. Connecting thread type: EUE, NUE

Specification of the tubing anchor

Specification	Max OD (mm)	Drift diameter (mm)	Slip free OD(mm)	Slip open max OD (mm)	Working pressure(Mpa)	Pulling tension (KN)	Setting pressure (Mpa)	Release force (KN)	Lift Load (KN)	Suitable casing diameter (mm)
Tubing Anchor	114	62	112	132	35	≤60	8~10	90~100	≤400	121.4~124.3

Feature:

1. Safely and firmly set in all type of casing, including premium grades.

2. Bi-directional slip anchoring, which improved the ability of pressure difference resistance between upper and lower pressure

3. Hydrostatic setting, straight pull releasing, suitable for all kinds wells (vertical Wells, deviated well and horizontal well)

4. Bore diameter could satisfy the requirements of different kind wells.

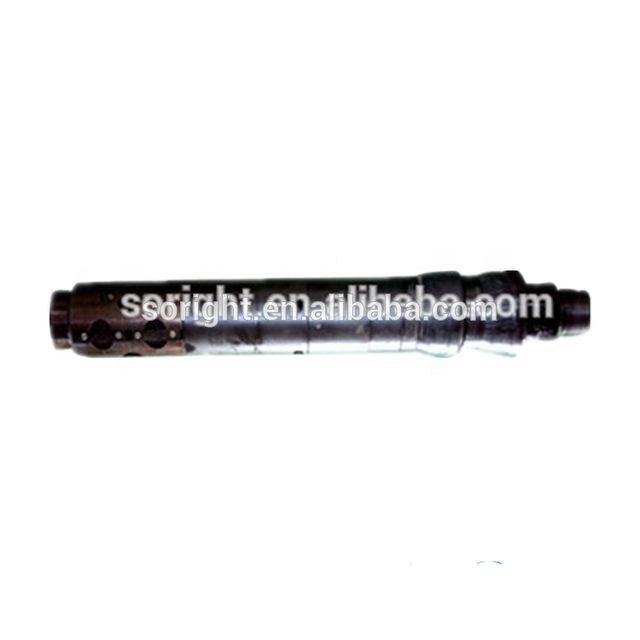

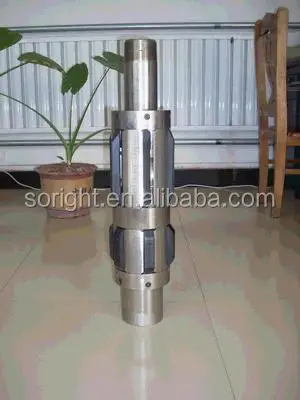

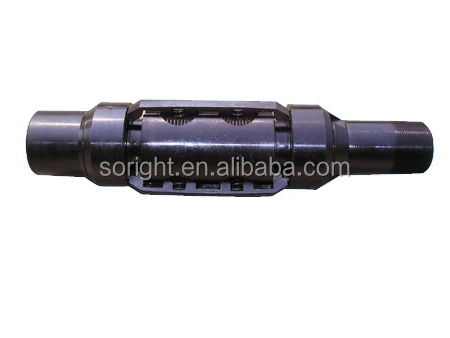

Photos of tubing anchor

Our working procedure

1. Demonstrated company product on Alibaba web

2. Received the inquiry from potential customer

3. Provided the quotation and product techincal information to customer

4. Negotiated with customer about the price, payment terms, delivery terms etc.

5. Signed the product procurement contracts

6. Customer remitted the advance payment

7. Received the prepayment and arranged the production

8. Finished the production and inspection, chartered ship and booked space

9. Customer payed the follow-up payment for goods

10. Timely delivered the products to carrier and done customs clearance

11. Sent out the files to customer which including bill of lading, invoice, packing list, certificate of origin, product test report, certificate of quality etc.

Tianjin Soright Technology & Development Co.,Ltd is one of exporting windows of China Petroleum Machinery. It is an integrity combined with R&D, machinery and processing, technical services on petroleum machinery products and services.

Our main products are as follows: subsurface sucker rod pump, sucker rod, tubing crossover, tubing/casing couplings, stuffing box, thread protector, packings, float shoe and float collar etc. All of products are designed and processed meeting API Specifications.
