API Braided Spring Sleeve Concentration

Supplier: Tianjin Soright Technology Development Co., Ltd.
Region: Tianjin, China
Contact: Ms Peggy Lee
Price: $39.00 / 1 - 99 pieces
$38.80 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

standard:	APIs and ISO	Core components:	Braided Spring Sleeve Centralizers
Certification:	API 10D	color:	Require
Warranty:	1 year	type:	Casing Centralizer, Sucker Rod Centralizer
Core component warranty:	1 year	Supply capacity:	15000 pcs high quality casing centralizers per month
product name:	API standard braided spring casing centralizer	Package preview:
Mechanical test report:	if	Marketing Type:	normal product
Packaging Details:	plywood case	Local service location:	Egypt, Turkey, USA, Germany, Peru, Indonesia, Mexico, Russia, UAE, Kazakhstan
Video shipment inspection:	if	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
model:	4-1/2 to 20	Tool type:	Cementing tool
brand:	SRD	Showroom location:	not any
Processing:	support	Health status:	new
MOQ:	1	Applicable industries:	Energy and Mining
port:	China Tianjin Xingang or any other port	sample:	if
color:	red, black, green	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram

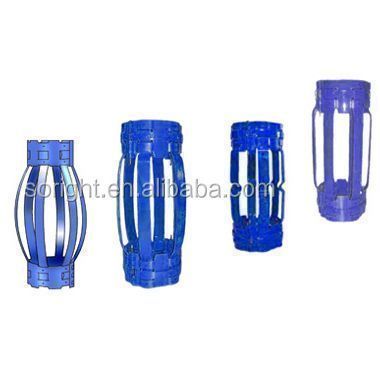

High Quality API Standard Braided Spring Sleeve Centralizer

The casing centralizer is an important cementing tool, which can make the casing go into the wellbore smoothly and keep the casing centered in the wellbore. Casing centralizers are available in sizes 4" to 20". There are bow spring centralizers and rigid centralizers.

advantage:

1. Use ultra-high strength spring steel to center the casing in the wellbore and improve the cementing quality.

2. It can be stacked flexibly to save storage and transportation costs.

3. Non-welding, stamping, high strength.

4. Simple and convenient to use.

5. Complete specifications (4″×5-7/8″, 4-1/2″×6-1/8″, 5″×61/2″, 5-1/2″×8-1/2″ , 7″×8-1/2″, 7-5/8″×9-1/2″, 8-5/8″×10-5/8″, 9-5/8″×12- 1/ 4″, 10-3/4″×14-3/4″, 13-3/8″×17-1/2″, 16″×20″, 20″×26″, etc.) can meet customs requirements.

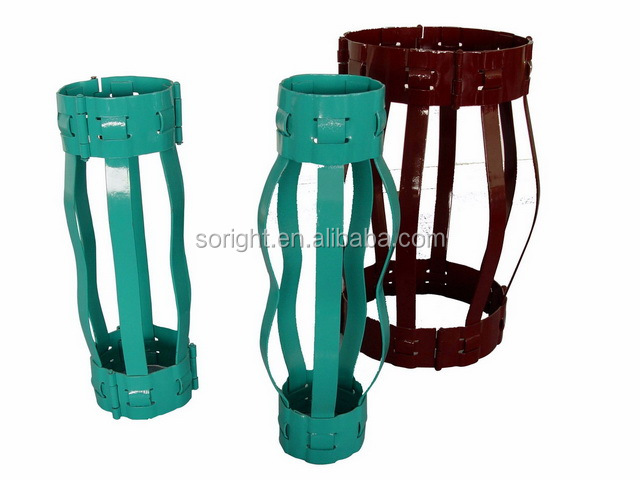

Type 1: Bow Spring Centralizer

(1) Weld casing centralizer

Welded casing centralizer specifications

Model	Hoop in India.	hoop thickness	hoop high	total length	maximum. outside diameter.	Spring parts
Model	Hoop in India.	hoop thickness	hoop high	total length	maximum. outside diameter.	Spring parts
exist	mm	mm	mm	mm	mm	pieces
5-1/2*8-1/2	142-148	5-7	50-60	650±50	225±5	5
6*8-1/2	154-158	5-7	50-60	650±50	255±5	5
13-3/8*17-1/2	342-349	8	50-60	580	450±5	6
20*26	510-518	8	50-60	650±50	670±5	10

(2) Non-welded casing centralizers

Non-Welded Casing Centralizer Specifications

Model	Hoop in India.	hoop thickness	hoop high	total length	maximum. outside diameter.	Spring parts
Model	Hoop in India.	hoop thickness	hoop high	total length	maximum. outside diameter.	Spring parts
exist	mm	mm	mm	mm	mm	pieces
5-1/2*8-1/2	142-148	3-5	90-120	650±50	225±5	5
7*9-5/8	181-186	3-5	90-120	650±50	255±5	6
7*8-1/2	181-186	3-5	90-120	650±50	235±5	6
8-5/8*12-1/4	223-228	3-5	90-120	650±50	330±5	8
9-5/8*12-1/4	250-255	3-5	90-120	650±50	330±5	8
10-3/4*12-1/4	274-276	3-5	90-120	650±50	330±5	9
13-3/8*17-1/2	342-347	3-5	90-120	650±50	450±5	11
18-5/8*24	476±1	3-5	90-120	600±50	610±5	12
20*26	510±1	3-5	90-120	600±50	660±5	12

Type 2: Rigid Casing Centralizer

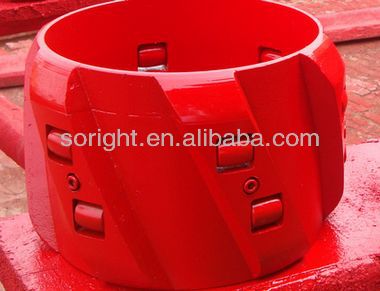

(1)Screw Type Helical Rolling Rigid Centralizer
figure:

1. Reduce planing and scraping of formations

2. Maximum wall contact

3. Spiral blades allow for better cement coverage

(2) Straight roll rigid centralizer

figure:

1. Easy to install

2. Less flow restriction than other centralizers

3. The casing can move freely in the centralizer

4. Reduce differential sticking and bushing contact

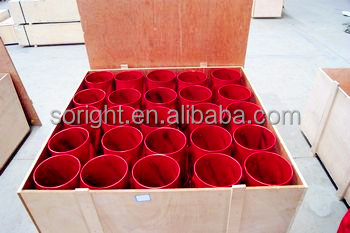

Casing Centralizer Packages

Company profile

Tianjin Soruit Technology Development Co., Ltd. (hereinafter referred to as Soruit Technology) is a comprehensive enterprise integrating research and development of petroleum machinery products, mechanical processing and technical services.

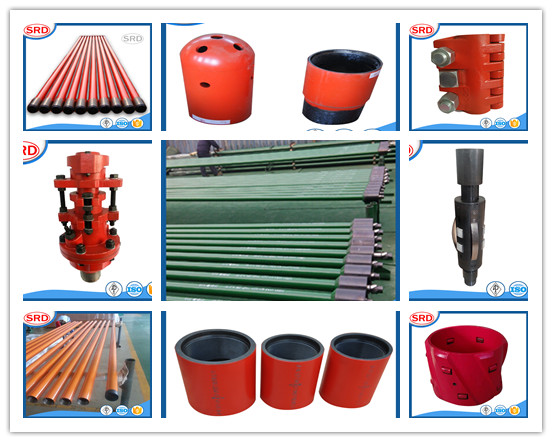

Suorite Technology mainly provides customers with production equipment, tools, spare parts and accessories produced by CNPC (China National Petroleum Corporation) high-quality petroleum equipment manufacturers. The main products are: underground sucker rod pumps, sucker rods, tubing butt fittings, tubing couplings, stuffing boxes, thread protectors, packing, floating boots, floating hoops, etc.

The company insists on quality first. All products are designed and processed in compliance with API specifications. A quality management system has been established to ensure that the entire process is properly controlled.

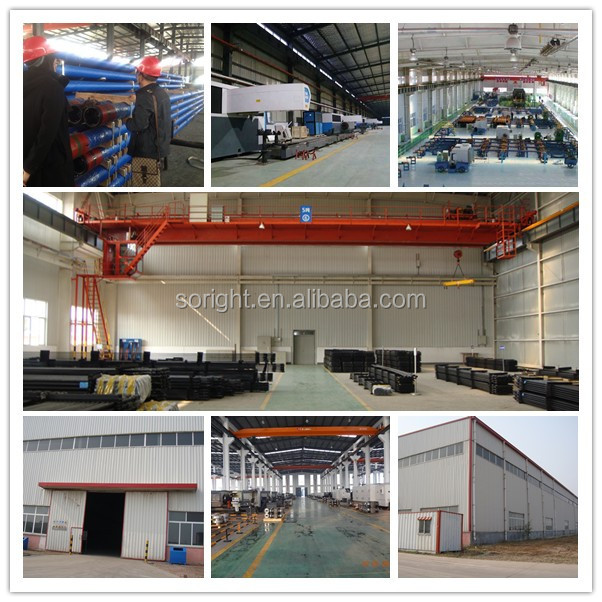

our workshop
