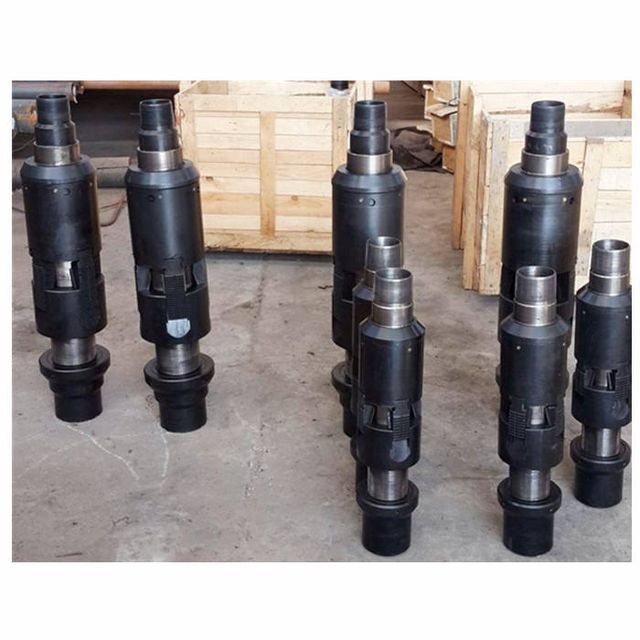

API Torque Tubing Anchor

Supplier: Tianjin Soright Technology Development Co., Ltd.
Region: Tianjin, China
Contact: Ms Peggy Lee
Price: $199.00 / 10 - 49 sets
$179.00 / 50 - 99 sets
$159.00 / 100 - 499 sets
$129.00 / >=500 sets
Min. Order: 10 sets

Click here to contact

Product details

Packaging Details:	Packed in wooden case or other standard packing	port:	Tianjin Xingang or other Chinese ports
Warranty:	1 year	Health status:	new
Mechanical test report:	if	Core component warranty:	1 year
Core components:	Tubing anchor	Thread type:	European Union, European Union
Video outbound inspection:	if	Applicable industries:	oil equipment
brand:	SRD	model:	5-1/2" - 9-5/8"
Overall length:	610-711 mm	Torque:	≥5000N·m
Package preview:		Tool type:	Downhole Tools
Showroom location:	not any	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, T/T, VISA, e-Checking, Paypal
Unlocking force:	80-120KN	color:	black, silver gray
Minimum path:	48-98mm	Body diameter:	114-190 mm
Supply capacity:	1200 sets per week	type:	PC pump pipe anchor
Marketing Type:	normal product	After-sales service provided:	Video technical support, online support
size:	5-1/2" - 9-5/8"

API Torque Tubing Anchor

1. Introduction of torsion anchor

Torque anchors are special anchors for PC pumps. The centering performance is good, and there is no need to lift when anchoring into the well. Simple operation and good stability. The anchor block is anchored on the inner wall of the casing at the same time, and the same pressure is applied to the casing at three points to avoid damage to the casing. In order to prevent the tubing thread from being tripped, the anchoring force of the anchor bolt should be greater than the reverse torque. Torque ≥ 5000N·m. Alloy anchor bolts are suitable for corroding oil and gas wells. The anchor has very good anchoring performance, convenient operation and good centering performance.

Torque anchors are mainly exported to Peru, Venezuela, Kazakhstan, Russia, Sudan, Chad, Algeria and other countries.

2. Material

2.1. Valve body: 42CrMo hardness: HB277--311

2.2. Block: 20CrMnTi Hardness: HRC52--60

3. Specifications

size	en (mm)	minimum path (mm)	overall length (mm)	The scope of work (mm)	Wire
size	en (mm)	minimum path (mm)	overall length (mm)	The scope of work (mm)	side (European Union, European Union)	the other side (European Union, European Union)
5¹/₂"	Φ114	Φ48	610	116-130	2-3/8" pin 2-7/8" pin 3-/12" pin 4-1/2" pin	2-3/8" boxed 2-7/8" box 3-/12" box 4-1/2" box
6⁵/₈"	Φ137	Φ60	610	140-156
7 inches	Φ137	Φ60	610	150-168
9⁵/₈"	Φ190	Φ98	711	208-232

4. How to use

4.1 Select the anchor bolt according to the casing size.

4.2 Connect the anchor bolts under the PC pump.

4.3 Check whether the module works normally.

4.4 Put the anchor bolt into the casing.

4.5 After reaching the required depth, turn the tubing string clockwise with a torque of 400N.m, and at the same time the anchor has been anchored on the casing.

4.6 Fix the tubing string to the wellhead and complete the anchor loading.

4.7 Turn the pipe string 1-5 circles, unload the anchor.

5. Packaging of torsion anchors

6. Company Profile

Tianjin Soruit Technology Development Co., Ltd. (hereinafter referred to as Soruit Technology) is one of China's petroleum machinery export windows. It is a comprehensive enterprise integrating research and development, mechanical processing, technical services, petroleum machinery products and services.

Solite Technology mainly provides customers with production equipment, tools, spare parts and accessories produced by high-quality petroleum equipment manufacturers of China National Petroleum Corporation. Our main products are: sucker rod pumps, sucker rods, tubing jumpers, tubing and casing joints, stuffing boxes, thread protectors, packing, floating shoes, floating rings, etc.

The company always insists on quality first. All products are designed and processed in compliance with API specifications. A quality management system has been established to ensure that the entire process is properly controlled.
