API Oil Well Downhole Tools PCP Pump Torque Anchor

Click here to contact

Product details

Body Size:	114	Mechanical test report:	if
Core components:	anchor	Core component warranty:	1 year
Applicable shell:	5-1/2"	Applicable industries:	Energy and Mining
Warranty:	1.5 years	Video outbound inspection:	if
Supply capacity:	100 pieces per month	product name:	torsion anchor
Maximum outer diameter:	121	payment terms:	wire transfer
length:	690	port:	Qingdao/Beijing/Shanghai/Tianjin
Marketing Type:	normal product	Showroom location:	not any
Minimum ID:	62	Health status:	new
QC:	internal quality control	brand:	zx

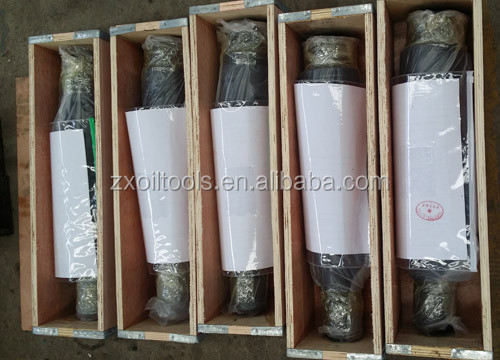

Packaging Details:	International standard wooden box or according to customer requirements	Connection thread 1:	2-7/8EU
Operating temperature:	180 degrees Celsius	model:	6-5/8
type:	Centralizer Type, Torsion Anchor

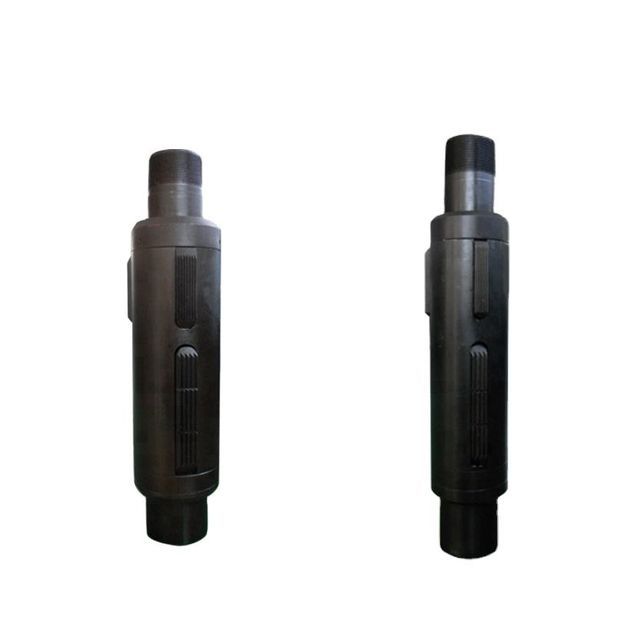

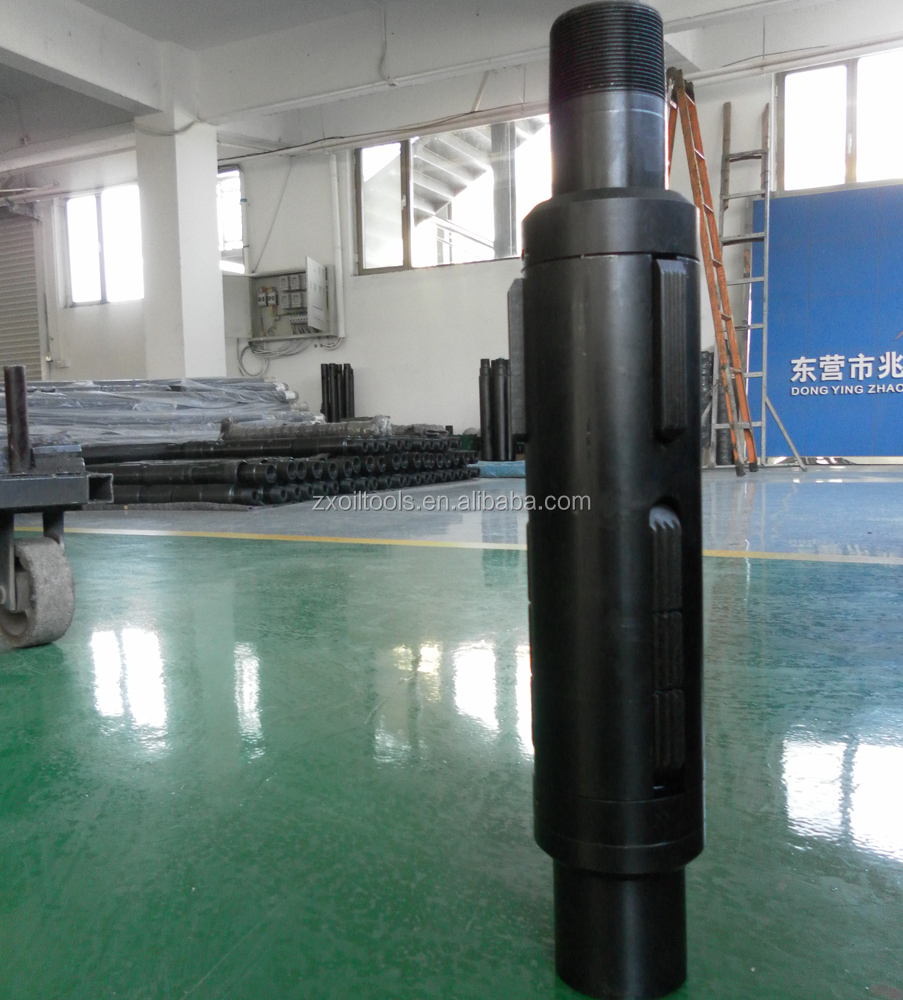

API Downhole Tool Torque Anchor

Product Description

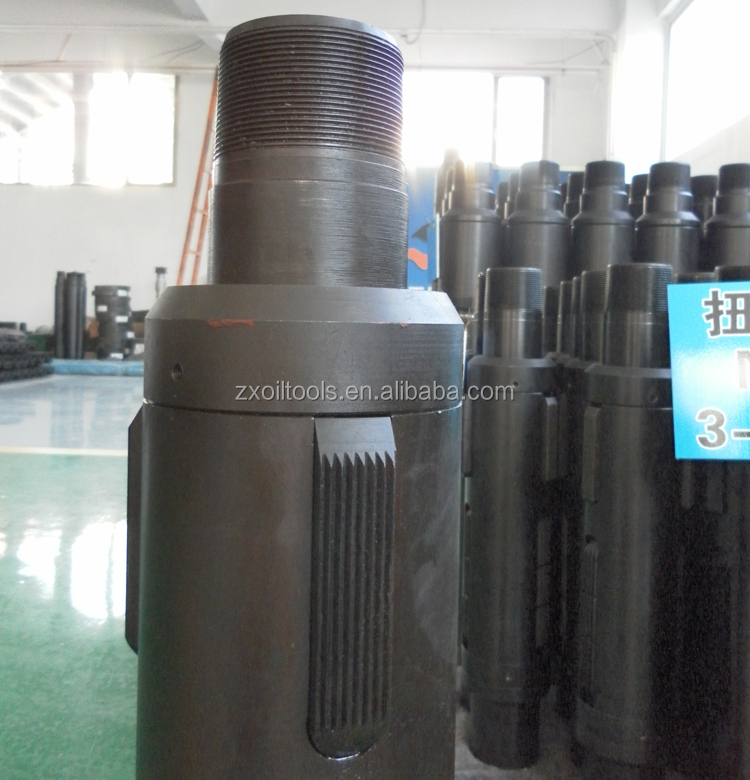

thistorque anchorUse separate slide and drag blocks to eliminate premature slide wear during installation.

The drag block centers the tool and provides frictional interference to spread the slips when torque is applied.

Torque anchors centralize equipment in the housing and slotted tab bars allow for better production.

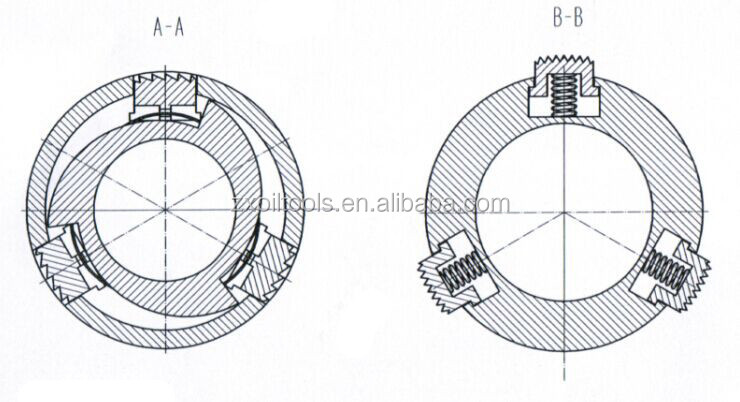

It consists of body, slips, centralizer and spring bars. It prevents tubing from tripping during PCP operation.

Because of its simple structure,

It has the characteristics of flexible rotation and safe and reliable anchoring.

the code	Case installation diameter [mm]	connection [inch]
5-1/2	119…139	2 – 7/8 EU
7	152…172	2 – 7/8 EU or 3 – 1/2 EU
9-5/8 me	215…235	3 – 1/2 EU
9-5/8 Tuesday	220…240	3 – 1/2 EU
