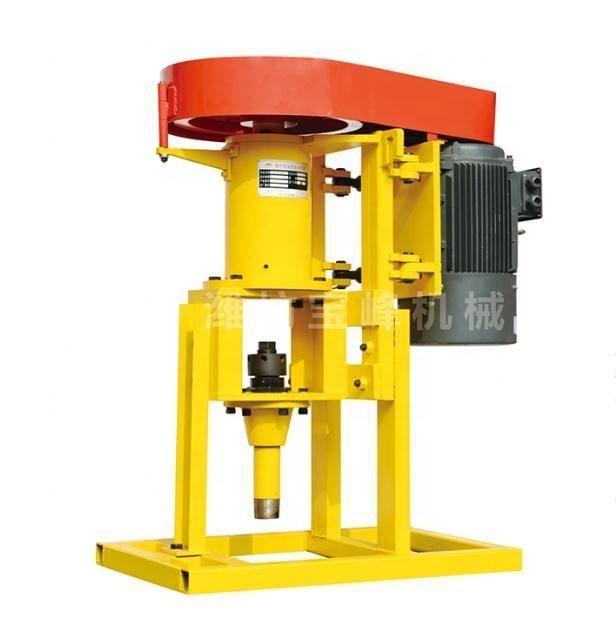

Artificial Lift Vertical 30HP PC Pump Ground Direct Drive Unit

Supplier: Weifang Baofeng Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Monica Nie
Price: $6200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	T/T, Western Union	Supply capacity:	300 pieces per month
strength:	30 hp	model:	30 hp
product name:	vertical drive	type:	vertical drive
Packaging Details:	Plywood boxes	port:	Qingdao, Ningbo, Shanghai, Guangzhou, Tianjin

Product Description

PC pump vertical drive device technical parameters

Model	Rated voltage (V)	Rated torque (Nm)	Rated speed(r/min)	Rated power (kW)	Ratio η(%)	Speed range (r/min)
LBQZ11	380	Chapter 525	200	11	90.5	15-200
LBQZ15	380	716	200	15	90.5	15-200
LBQZ18.5	380	Chapter 883	200	18.5	91.5	15-200
LBQZ22	380	1051	200	twenty two	91.5	15-200
LBQZ30	380	Chapter 1433	200	30	92.5	15-200
LBQZ37	380	Chapter 1767	200	37	93	15-200

fFeatures:

Large reduction ratio, step reduction, get rid of the traditional helical gear, simple structure, convenient maintenance and reliable use.

Custom sizes and configurations also available

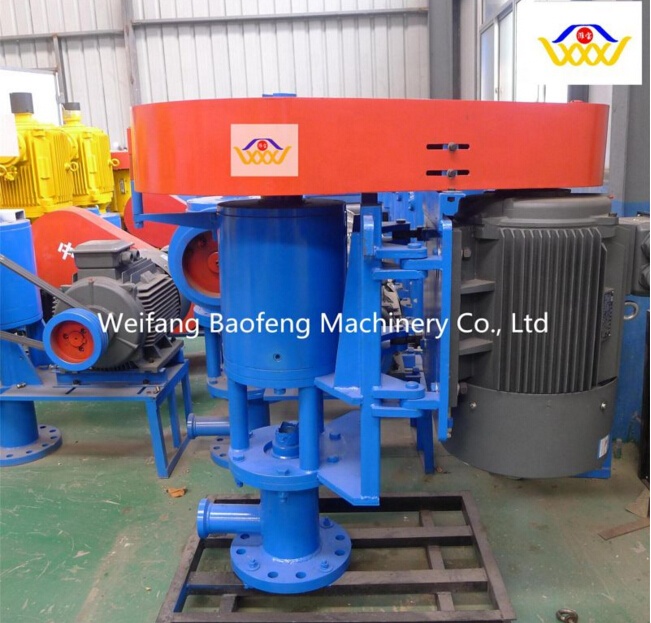

detailed image

Package

Related Products

our company

Weifang Baofeng Machinery Co., Ltd. was established in September 2006 with a registered capital of 102 million yuan. It is an emerging private enterprise, which produces and sells machinery, integrating petroleum machinery, agricultural machinery, mining machinery and other machinery. It is a provincial safety production unit, a municipal standardization advanced enterprise, and a municipal contract-abiding and credit-worthy enterprise.

The company covers an area of 15,000 square meters, with an office and production area of 5,000 square meters. The company consists of an office and seven departments: Technology Research and Development Department, Quality Inspection Department, Production Department, Purchasing Department, Marketing Department, Technical Service Department, and Finance Department. There are 2 workshops and 30 service personnel, including 3 management personnel, 2 engineering and technical personnel, and 5 marketing personnel. The company has more than 80 sets of screw pump production equipment, 4 sets of screw pump and ground drive testing equipment. In 2008, the company passed the ISO9001-2008 quality system certification, ISO14001: 2004 environmental management system certification and OHSAS18001: 2007 occupational health and safety management system certification.

Since its establishment, the company has been mainly engaged in the development, production and sales of screw pump oil recovery systems. The company has complete processing equipment, scientific management system, strong technical force, and advanced technology. It has produced more than 50 types of screw pumps: from GLB20 to GLB3000, from conventional screw pumps to high-temperature screw pumps, and from single-head screw pumps to multi-head screw pumps. , from conventional screw pumps to constant thickness screw pumps, from surface driven screw pumps to downhole driven screw pumps, from oil production screw pumps to coalbed methane special screw pumps. It has been promoted and applied in Shengli Oilfield, Daqing Oilfield, Huabei Oilfield, Jilin Oilfield, Dagang Oilfield, Henan Oilfield, Xinjiang Oilfield, Inner Mongolia Oilfield, Kazakhstan Oilfield, and Oman Oilfield, and has been well received by users at home and abroad.
