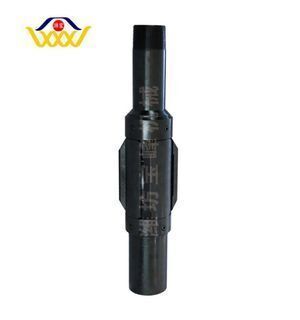

Artificial Lift Coiled Tubing Torque Anchor

Supplier: Weifang Baofeng Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Monica Nie
Price: $500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Detail:	plywood box;	Payment Terms:	T/T;
Supply Ability:	300 Piece/Pieces per Month;	Model Number:	7"*3 1/2";
Thread type:	3 1/2" EUE;	Product name:	Torque anchor;
Port:	Qingdao,Ningbo,Shanghai,Guangzhou,Tianjin;	Type:	Torque anchor;

Product Description

Torque Anchor is a simple and reliable subsurface tool for preventing tubing back-off when using progressing cavity (PC) pumps. It transfers PC pump torque to the casing walls.

The bypass capability of it is second to none. In most configurations, it offers greater than 95% of the potential bypass available past a similarly sized EUE coupling.

Additionally, because it remains centralized there are no limits to pump size.

Torque anchor also has the unique ability for 3/4 inch coil tubing to bypass the anchor smoothly regardless of orientation within the tubing.

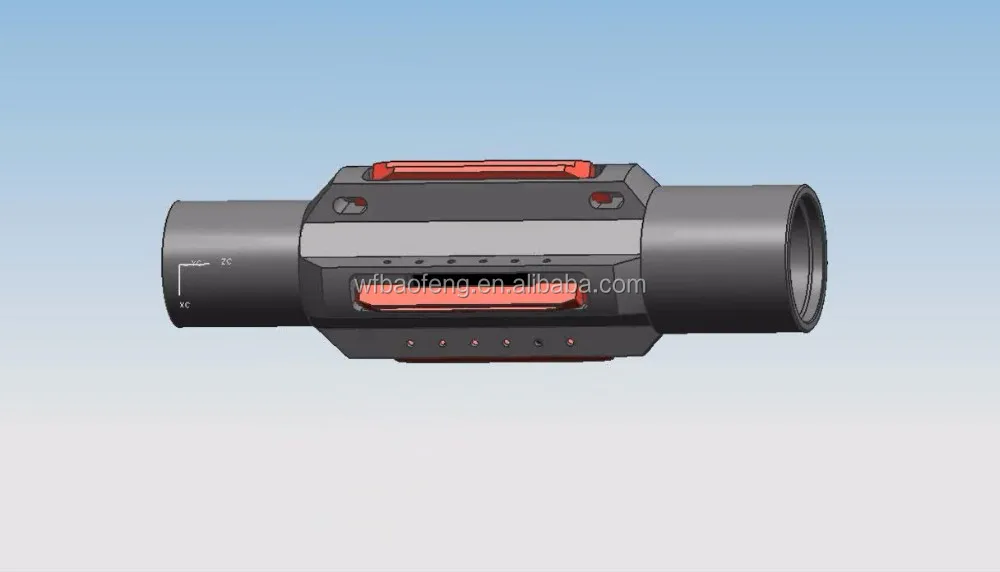

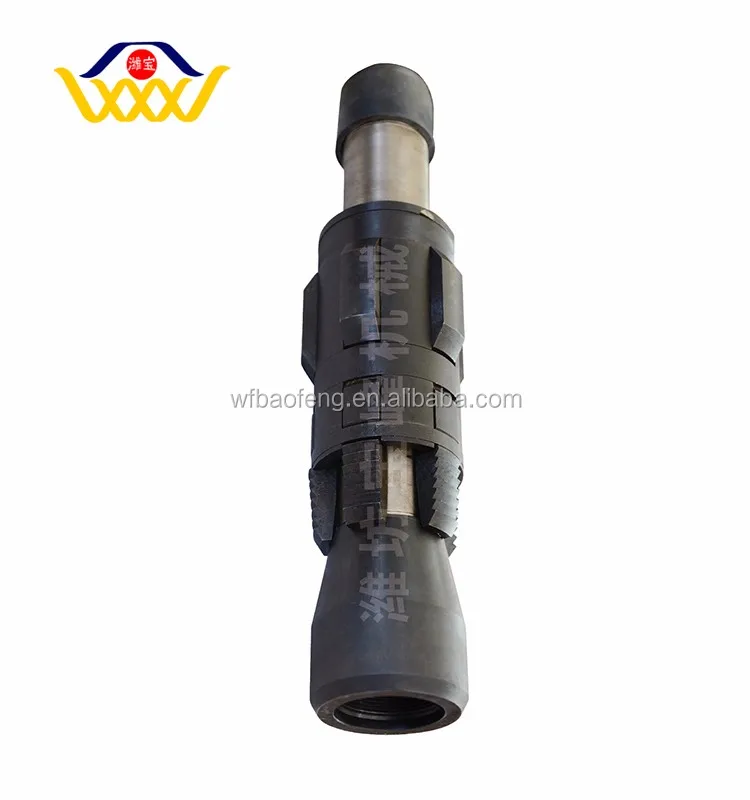

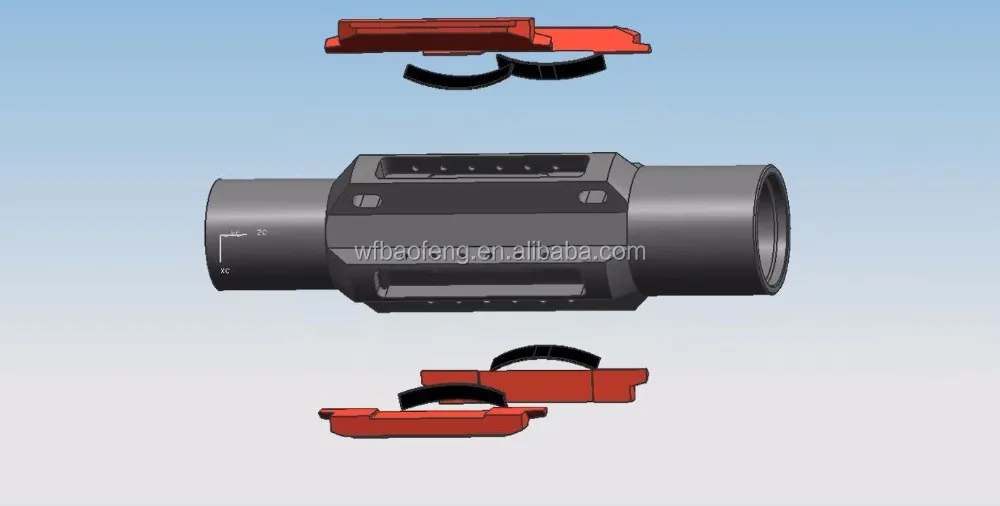

Torque Anchor uses wedge shaped anchoring blocks which bite into the casing wall when right hand torque is generated in the tubing string. These anchoring blocks are spring loaded so that transfer of torque to the casing is immediate (clockwise) and the tubing string may be freely rotated to the left (counter-clockwise).

Applications

Tubing back-off for progressing cavity pump applications

Deep wells and horizontal wells

Heavy oil situations

Anchoring with maximum bypass requirements

Features & Benefits

Robust, reliable design

Spring-loaded anchor blocks

Simple to use

Provides maximum bypass

Easily to redress, extending tool life

Casing Information				7" * 3 1/2"EUE Anchor
7"Casing Weight (Ibs/ft)	7"Casing Weight (kg/m)	7"Casing ID (inches,ref API Table 1.1)	Available Annular Area Between Casing ID and 3 1/2 EUE Box OD (in2)	Actual Diameter of Coil Bypass No Drift (inches)	Coil Tubing Bypass Capability (inches)	Annular Area (in2)	% of Available Annular Area	We've more Available Annular Area than competing common anchor by...
17	25.30	6.58	17.668	1.019	3/4	16.480	93%	12%
20	29.76	6.456	16.831	0.978	3/4	15.840	94%	13%
23	34.23	6.366	15.925	0.933	3/4	15.113	95%	15%
26	28.69	6.276	15.031	0.888	3/4	14.376	96%	17%

Running Procedure

The running procedure of the anchor is straightforward. The anchor is installed below the pump and can be run in and out of the well freely. When the anchor has reached the required depth, the application of approximately 300ft-lbs right hand torque, will securely engage the anchoring blocks to the casing wall. The setting torque may now be locked in and the pump operation started.

To disengage the anchor, simply stop the pump operation and relax initial setting torque.

Additional Sizes

4.5" x 2.875" EUE

5.5" x 3.5" EUE

6.625" x 2.875" EUE

6.625" x 3.5" EUE

9.625" x 3.5" EUE

Can be available.

Custom sized and configurations also available

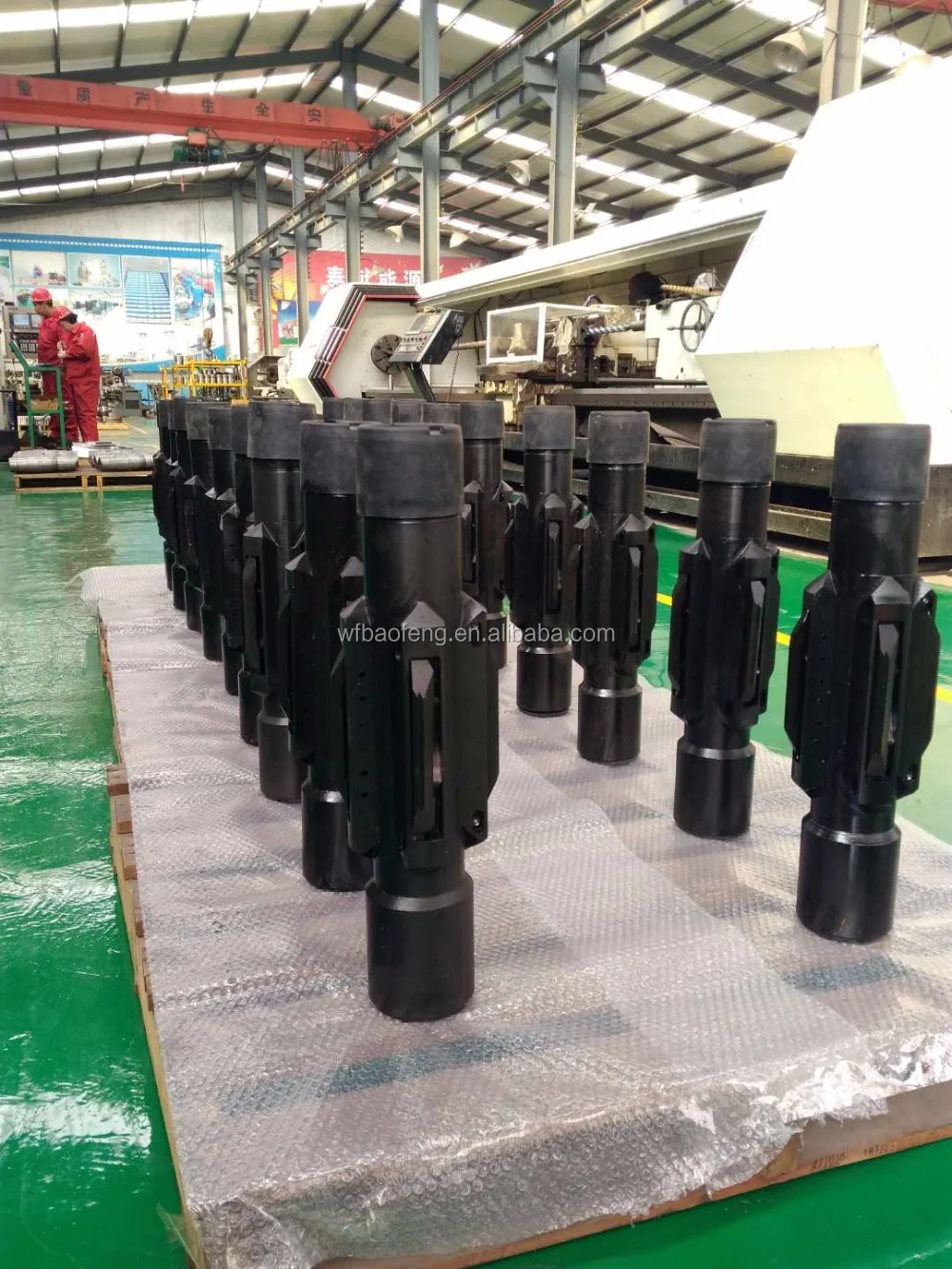

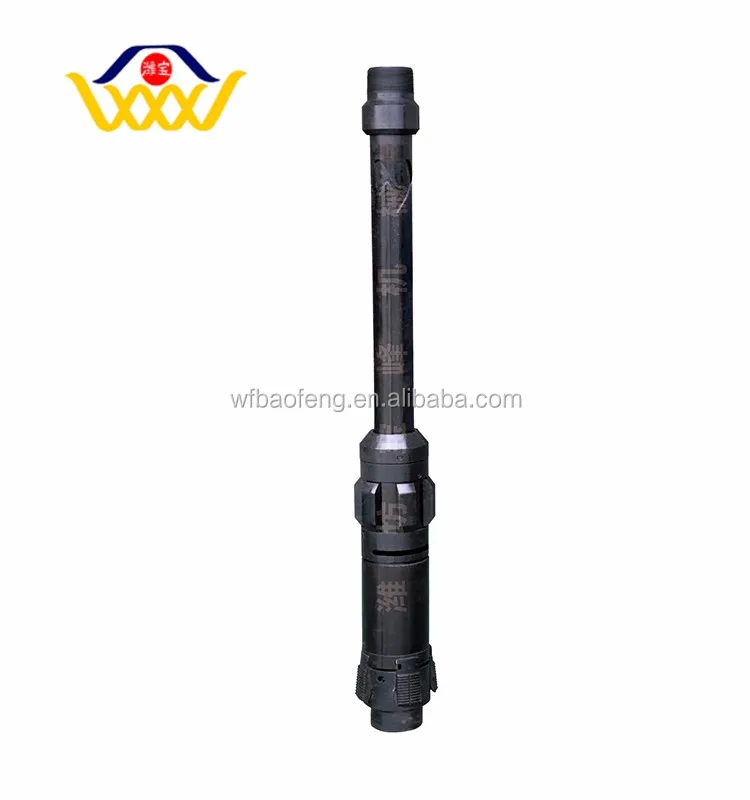

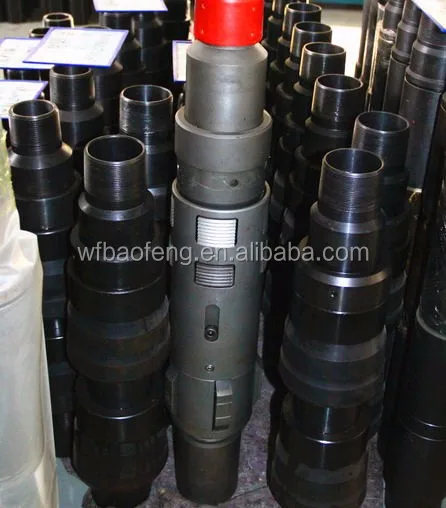

Detailed Images
