API 11B Twist on 7/8 sucker rod centralizer sucker rod guide

Product details
Condition:New;OD:58;
Material:Nylon;Model Number:3/4;
Warranty of core components:1.5 years;Showroom Location:None;
warranty:1 year;Packaging Detail:international standard wooden case or as per client's requirement;
Supply Ability:1000 Pieces per Month;Certification:API;
Size:3/4,7/8;Port:Qingdao/Tianjin/Shanghai/Beijing;
Machinery Test Report:Provided;Warranty:1 Year;
Package Preview:;Application:tubing;
Applicable Industries:Energy & Mining;Local Service Location:None;
Diameter:22;Type:Twist on;
Video outgoing-inspection:Provided;Payment Terms:T/T;
Core Components:centralizer;Marketing Type:Ordinary Product;
Model:Twist-on;Brand Name:zx;
Product name:Sucker rod guide;

 API 11B Twist on 3/4 sucker rod centralizer sucker rod guide

Product Description

 Increase Pumping Efficiency Eliminate or greatly reduce down-hole problems with Snap-On and Twist-On Rod Guides. With a coefficient of friction when wet lower than metal, overall pumping efficiency is increased while costly metal-to-metal contact between the rods and tubing is minimized.

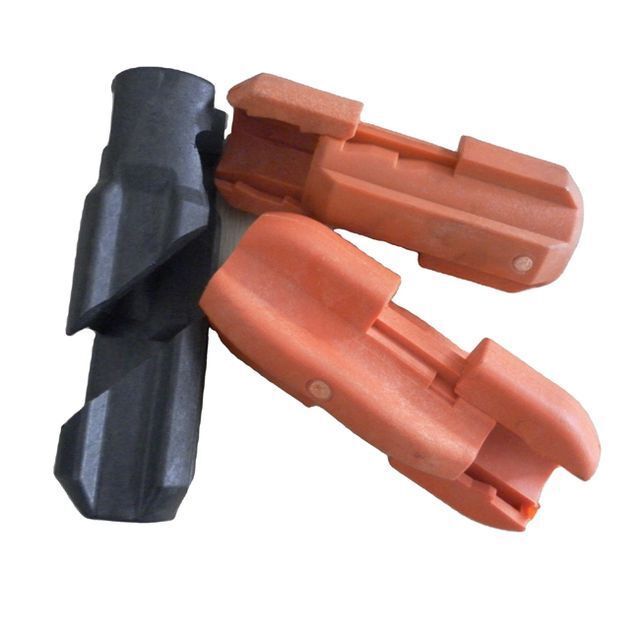

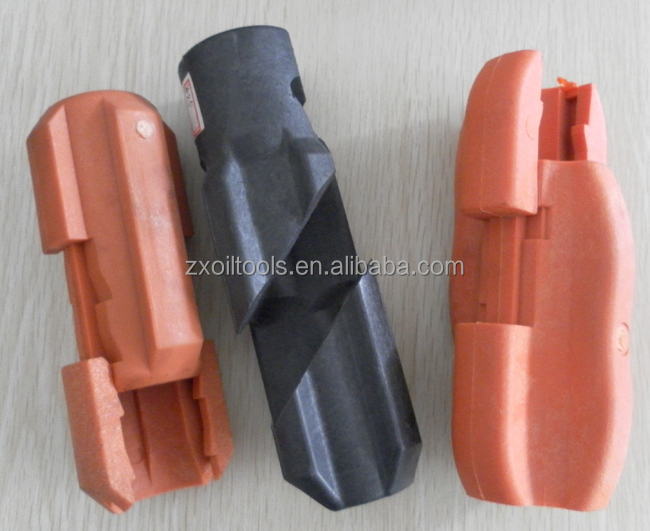

Snap-On Guides
The standard of the industry for years, Snap-On guides are made of abrasion-resistant, synthetic rubber. A spring steel "clip" insert is molded into the rubber guide, providing a positive grip on the sucker rod and preventing slippage in temperatures up to 300oF.

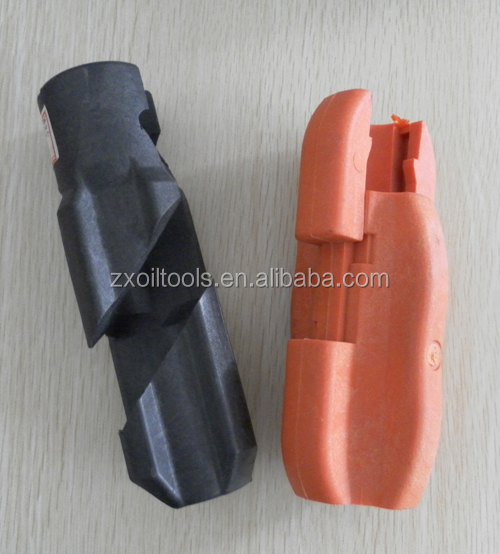

Twist-On Guides
Twist-On rod guides contain no metal clip insert. Tests, however, indicate an excellent holding strength due to design and materials. The Twist-On style rod guide can easily be installed with a pipe wrench, and withstands temperatures up to 200oF.



Our Services



Snap-On Guides

Size

Rod Size

Tubing Size

5/8 x 2

5/8

2-3/8

3/4 x 2

3/4

7/8 x 2

7/8

5/8 x 2-1/2

5/8

2-7/8

3/4 x 2-1/2

3/4

7/8 x 2-1/2

7/8



1 x 2-1/2

1

1-1/16 x 2-1/2

3/4 Pipe

1-5/16 x 2-1/2

1 Pipe

5/8 x 3

5/8

3-1/2

3/4 x 3

3/4

7/8 x 3

7/8

1 x 3

1

1-1/16 x 3

3/4 Pipe

1-5/16 x 3

1 Pipe



Packaging & Shipping

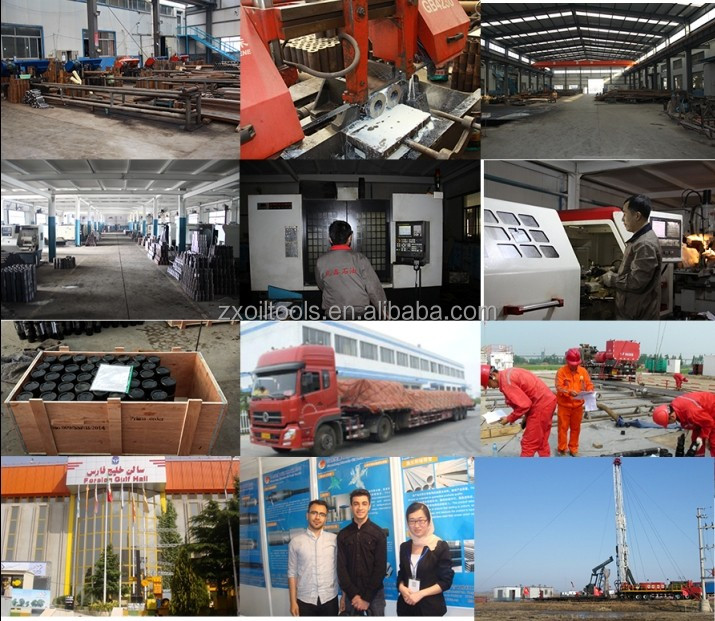

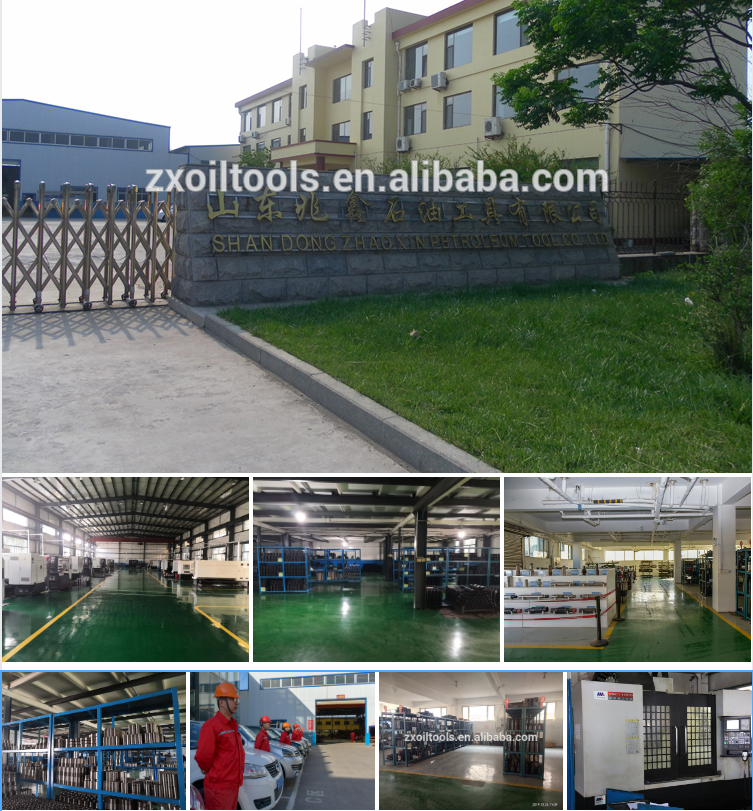

Company Information

Dongying Zhaoxin Industry and Trade Co.,Ltd is an ISO-9001, ISO-14001, ISO45001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that Dongying Zhaoxin Industry and Trade Co.,Ltd products match the highest quality & reliability Standards similar to any International major in this field.

Dongying Zhaoxin Industry and Trade Co.,Ltd with perfect attitude, product and service, is going to make further development together with customers at home and abroad .
