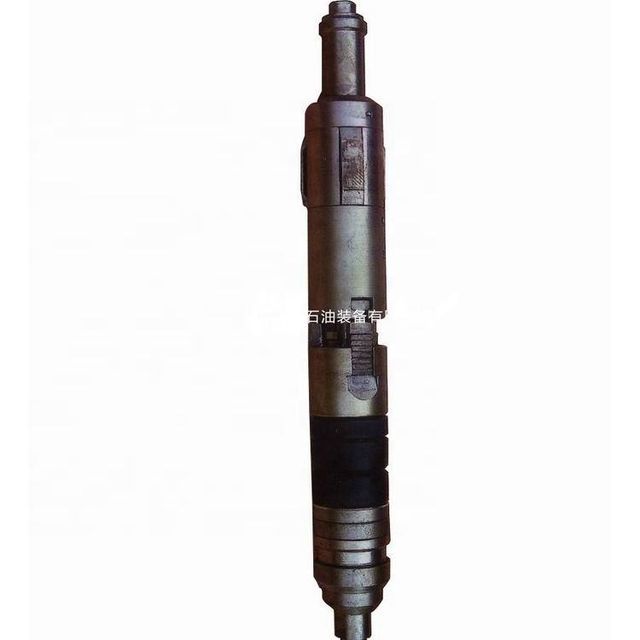

5-1/2" 7" 9-5/8" Mechanical Kit Double Jacket Packer RTTS Packer

Supplier: Dongying Oilman Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Oilman Zhang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	brand:	oil man
Advantage:	high performance	Showroom location:	not any
Applicable industries:	Energy and Mining	usage:	oil, gas, water
port:	Tianjin harbor	Mechanical test report:	if
Supply capacity:	500 sets of mechanical double jacket packer RTTS packer per month	Health status:	new
product name:	Mechanical Kit Double Jacketed Packer RTTS Packer	Core components:	Packing Machine
Marketing Type:	normal product	Work pressure:	20Mpa-75Mpa
Packaging Details:	Outlet plywood box for 5-1/2" 7" 9-5/8" mechanical kit double jacketed pipe packer RTTS packer	Core component warranty:	1 year
model:	RTTS Casing Packer	type:	Completion tools
Warranty:	1.5 years	Video outbound inspection:	if
Local service locations:	not any	After Warranty Service:	Video technical support, online support

5-1/2" 7" 9-5/8" Mechanical Kit Double Jacket Packer RTTS Packer

Product Description

5-1/2" 7" 9-5/8" Mechanical Kit Double Jacket Packer RTTS Packer

1. Application

Oil well drilling packers are mainly used in various constructions such as layered oil recovery, water injection, water exploration, leak plugging, fracturing, acidizing, fracturing, etc.

Cup filling machine

mechanical packer

hydraulic packer

2. Principle

Sealing: The control pin is in the short track when going downhole. When the packer is in the desired position, the column is pulled to the level of the contents, then the column is lowered so that the control pin is tangent to the long track. The slips extend and become lodged in the inner wall of the pipe. The barrel is compressed to achieve a seal.

Unsealing: Pull the cylinder upwards to reset the slips to realize unsealing.

3. Technical parameters

type	Applicable tube mm	total length mm	Maximum outer diameter mm	Minimum ID mm	work pressure MPa	set load KN	backwash cubic meter/hour	centralizer outer diameter mm	Operating temperature ℃
Y211-114	121-124	2080	114	48	35	100~140	/	114-133	120
Y211-136	143-150	2080	136	60	35	100~140	/	136-157	120
Y211-148	154-164	2080	148	60	35	100~140	/	148-168	120

4. Structure:

As shown in the figure above, the Y211 packer is composed of a high-temperature, high-pressure anti-corrosion cylinder, an integral center pipe, a friction commutator and a lower joint. The slip is carburized and quenched. The surface rigidity and central toughness are very high, and it is not easy to break when subjected to load impact. The barrel is positioned above the slips to avoid being covered with sand. The structure is simple and the operation is convenient.
