API mud cleaner/shaker

Supplier: Dongying Oilman Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Oilman Zhang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Production capacity:	240 cubic meters / hour	Sand removal cone:	10"
Core components:	motor, desander, desilter	feature:	high efficiency
Certification:	API	Desilter cone:	4"
Dimensions (LWH):	3065 x 1920 x 2670 mm	Work pressure:	0.25~0.4MPa
Core component warranty:	1 year	After-sales service provided:	Engineers available to service machinery overseas
Key words:	mud cleaner	Marketing Type:	Hot Products
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	weight:	3100 kg
Applicable industries:	Energy and Mining	product name:	API mud cleaner/shaker
application:	solid-liquid separation	place of origin; place of origin:	Shandong China
brand:	oil man	Supply capacity:	20 sets of API mud cleaners/shakers per month
State of health:	new	Local service location:	not any
Advantage:	high performance	Video shipment inspection:	if
Showroom location:	not any	Packaging Details:	export package
Mechanical test report:	if	port:	Tianjin harbor
model:	ZQJ series	Warranty:	one year
Voltage:	380V-460V

API mud cleaner/shaker

Product Description

mud cleanerIt is the secondary or tertiary separation equipment for drilling fluid, and it treats the mud processed by the primary separation equipment. Barite will be recovered and cuttings larger than barite will be removed. Then the barite in the underflow flows into the circulation tank through the screen when the weighted mud passes through, and the particles larger than the screen holes are removed.

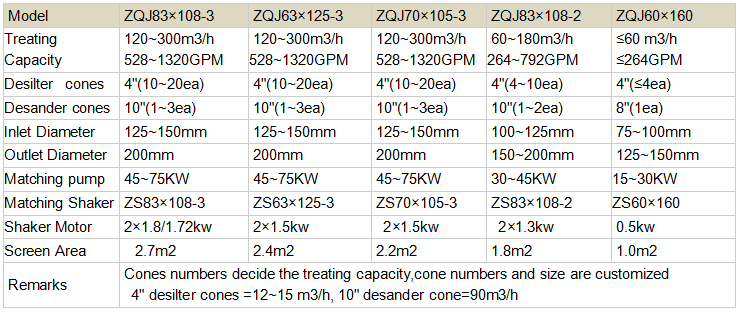

ZQJ series mud cleaning machine technical parameters:

complete product line

Ø Main equipment: vibrating screen, mud cleaner, desander, desilter, centrifuge, cutting dryer, agitator, mixing hopper, torch igniter, various tanks, pumps, degasser, etc.
Ø Manufacture various types of vibrating screens in the largest wire mesh center city in Asia.

product display
