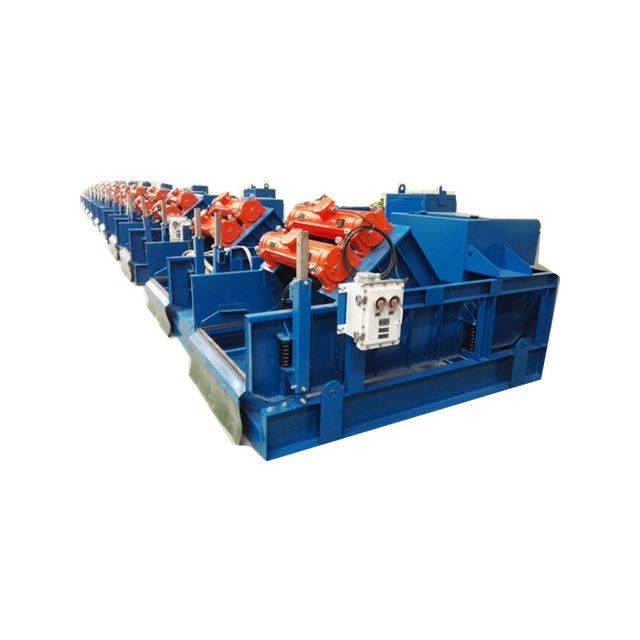

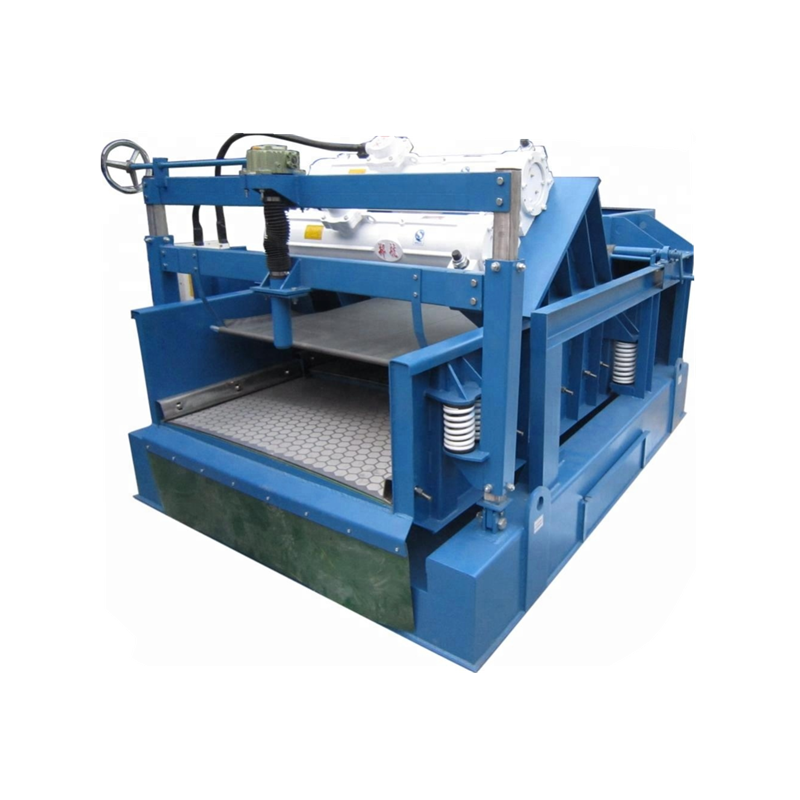

API vibrating screen high-quality solids control equipment for oilfield trailer-mounted drilling rigs
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
Product Description
Model | JZS280-3P | JZS270-4P | JZS240-3P | JZS220-3P | JZS180-2P |
Motor power | 2×2.2kW | 2×2.2kW | 2×2.2kW | 2×2.2kW | 2×1.3kW |
Screen area (m2) | 3×0.833×1.15 | 4×0.585×1.165 | 3×0.7×1.15 | 3×0.7×1.05 | 2×0.833×1.15 |
Vibration intensity (g) | 7.2 grams | 7.2 grams | 7.2 grams | 7.2 grams | 7.2 grams |
Discharge capacity | 42 liters/second | 40 liters/second | 35 liters/second | 30 liters/second | 26 liters/second |
Adjustable range | -2°~+6° | -2°~+6° | -2°~+6° | --2°~+6° | -2°~+6° |
Overall dimensions, mm | 3140×1980×1540 | 2970×1980×1530 | 2700×1980×1540 | 2700×1900×1540 | 2300×1940×1300 |
weight | 2000kg | 2000kg | 1900kg | 1700kg | 1200kg |
