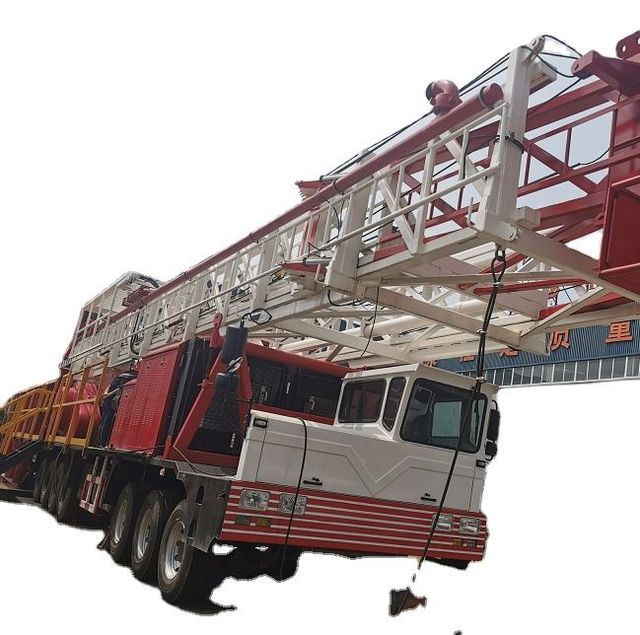

API standard second-hand workover rig oil drilling rig price

Supplier: Shandong Beyond Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Zhao
Price: $400000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	50 pieces per month	Mechanical test report:	if
Travel system:	6*5	Applicable industries:	Building materials stores, manufacturing plants, machine repair shops, energy and mining
Place of origin:	Shandong Province, China	type:	Rotary drilling rig
payment terms:	Letter of credit, wire transfer	Package preview:
maximum. Hook load:	1800kN	Dimensions (lengthwidthheight):	2050030504450mm
Marketing type:	Hot Products of 2019	brand:	Beyond or OEM
Core components:	Engines, bearings, gearboxes, motors, pressure vessels, gears, pumps	Drilling depth:	3000m (4-1/2'' DP)
Health status:	new	maximum. speed:	60 km/h; speed limit 45 km/h
Mast height:	38M	Drilling line diameter:	32mm
Well workover depth:	8000 meters (3-1/2'' DP)	usage:	oil well
Power supply type:	diesel engine	Core component warranty:	1 year
Packaging details:	Standard airworthy packaging	weight:	85000kg
port:	Qingdao	Warranty:	1 year
Video outbound inspection:	if	Showroom location:	Saudi Arabia, Indonesia, India, Russia, Argentina, Algeria, Bangladesh, Kazakhstan, Ukraine, Nigeria, Uzbekistan
Turning radius:	21m	model:	XJ750
Shelf board height:	17m;23m;24.5m	Rated hook load:	1580 thousand cattle

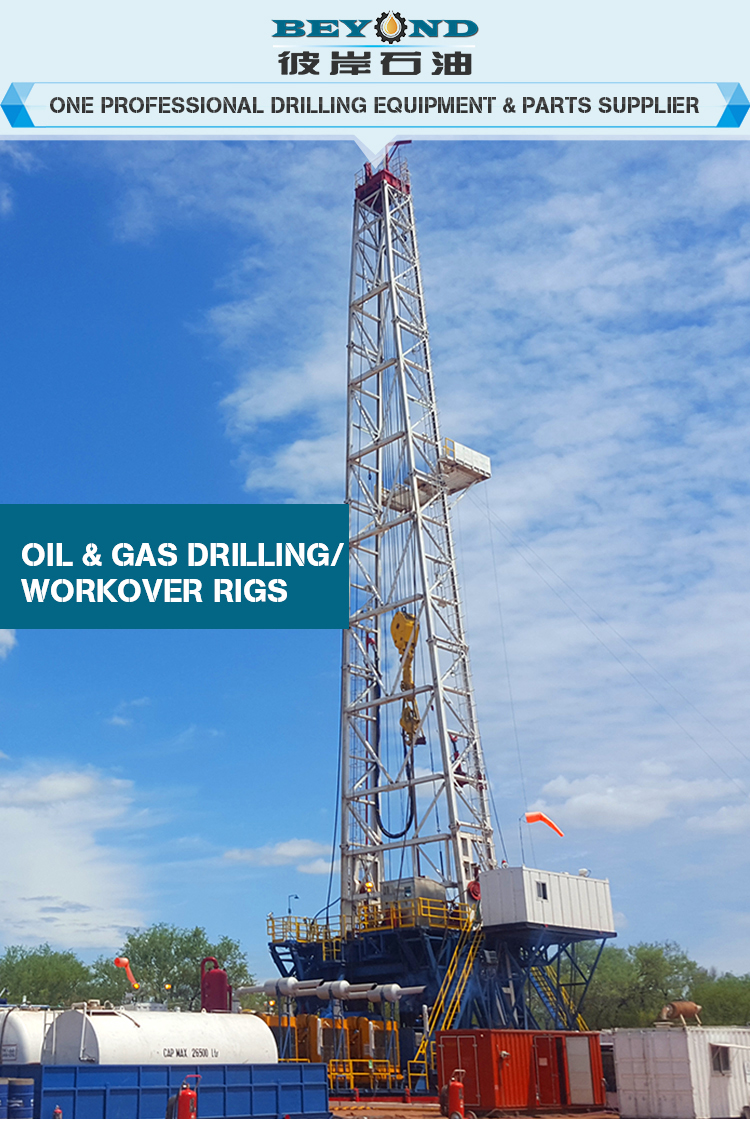

We offer a full range of land rigs: skid-mounted, truck-mounted and trailer-mounted. Our skid-mounted drill rigs range in power from 450HP to 3,000HP (rated drilling depth: 1,500-9,000m).

type Technical specifications	ZJ30	ZJ40	ZJ50	ZJ70	ZJ90
Drilling depth(M)	3000	4000	5000	7000	9000
maximum. Hook load (KN)	1700	2250	3150	4500	6750
Winch power (HP)	750	1000	1500	2000	3000
Drive and transmission methods	Mechanical (Belt/Chain)	Mechanical/ Electric (AC/DC)/ combination	Mechanical/ Electric (AC/DC)/ combination	Mechanical/ Electric (AC/DC)/ combination	electrical (AC/DC)
Mast height(M)	36/38	42	45	45/48	46/50
Substructure height (meters)	5	6.7	7.5	9	12
Roulette	ZP275	ZP275	ZP375	ZP375	ZP375

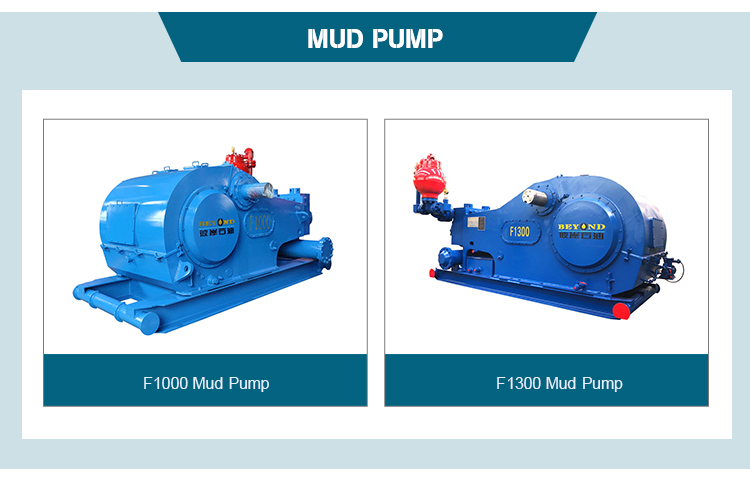

mud pump	F/3NB-1000	F/3NB-1300	F/3NB-1600	F/3NB-1600	F/3NB-2200L
Mud pump power (HP/KW)	1000/735	1300/956	1600/1180	1600/1180	2200/1640
Mud handling capacity (m3)	185	240	300	360	360
Rope diameter (mm)	29/32	32	35	38	45
Wired system	5x6	5x6	6x7	6x7	7x8
manifold Diameter (mm) x pressure (MPa)	∮103x35	∮103x40	∮103x70	∮103x70	∮140x80

All its power systems, winches, masts, traveling systems and drive mechanisms are mounted on a self-propelled chassis to achieve efficient maneuverability. BEYOND can provide mobile drilling rigs with drilling depths from 1000m to 4000m. Mobile drilling rigs have the characteristics of large workload, reliable performance, strong off-road capability, easy movement and low cost.

Drilling rig model	ZJ15CZ (XJ-550)	ZJ20CZ (XJ-650)	ZJ30CZ (XJ-750)	ZJ40CZ (XJ-850)
thing	Specification	Specification	Specification	Specification
Installed power	540 hp (402 kW)	630 hp (470 kW)	630 HP × 2 (470 kW × 2)	630 HP × 2 (470 kW × 2)
Maximum hook load	1350kN	1580kN	1800KN	2250kN
maximum. Drill string load	500kN	700KN	750KN	1150KN
Winch rated power	450 HP	600 HP	750 HP	850 HP
transfer method	Hydraulic + Mechanical	Hydraulic + Mechanical	Hydraulic + Mechanical	Hydraulic + Mechanical
Drive mode	10×8	12×8	14×8	14×10
Nominal drilling depth (4 1/2"DP)	1500 meters	2000 meters	3000 meters	4000 meters
mast height	33m	35m	38m	38m
Drill floor height	4.5m	4.5m	6m	6m
Wire rope diameter	Ф26mm	Ф29mm	Ф32mm	Ф32mm
Hydraulic system	14 MPa	14 MPa	21 MPa	21 MPa
Pneumatic system	0.8 MPa	0.8 MPa	0.8 MPa	0.8 MPa
travel system	5×4	5×4	5x4	6×5
total measurement	19.37×3.05×4.49m (including mast) 14.6×3.05×3.1m (Excluding mast)	20.1×3.05×4.49m (including mast) 15.56×3.05×3.1m (Excluding mast)	23×3.2×4.8m (including mast) 16. 56×3.2×3.2m (Excluding mast)	23×3.2×4.8m (including mast) 16. 56×3.2×3.2m (Excluding mast)
total mass	52,000 kg	58,000 kg	73,000 kg	85000kg
