API oil and gas drilling rig 2000m ZJ-20CZ oil well drilling rig

Supplier: Shandong Beyond Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Zhao
Price: $850000.00 / 1 - 1 sets
$445000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

maximum. Hooker load:	1580KN	port:	Qingdao/Ningbo/Shanghai
Certification:	application programming interface	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Applicable industries:	Construction Engineering, Energy and Mining	Video outbound inspection:	if
model:	ZJ20CZ	Supply capacity:	50 sets per year
Dimensions (LWH):	20.13.054.49 (m)	transfer method:	hydraulic+mechanical
Packaging Details:	naked packaging	Core components:	Engines, motors, gears
product name:	oil rig	Winch rated power:	600 hp
Core component warranty:	1 year	Key words:	1500m borehole oil drilling rig
Health status:	new	Package preview:
usage:	oil well	Showroom location:	Egypt, India, Argentina, Kazakhstan
Marketing Type:	normal product	weight:	58000KG
brand:	Exceed	Warranty:	12 months
Nominal Drilling Depth (4 1/2"DP):	2000 meters	MOQ:	1 set
Mast height:	35m	Voltage:	220V~380V
Local service locations:	Egypt, Germany, Pakistan, India, Argentina, Kazakhstan	Origin:	Shandong Province, China
Wire Rope Diameter:	29 mm	Mechanical test report:	if
Power type:	diesel engine	Rig Platform Height:	4.5m
type:	Rotary Drilling Rig

API oil and gas drilling rig 2000m ZJ-20CZ water well drilling rig

What kind of drilling rig we can provide you:

We offer a full line of drill kits: skid mounted, truck mounted and trailer mounted. Our skid-mounted drilling rigs include diesel-electric AC/VF or DC/SCR driven drilling rigs, electromechanical combined driving drilling rigs and mechanical drilling rigs (belt or chain drive), from 450HP to 3,000HP (rated drilling depth: 1,500-9,000m). Our truck mounted drill rigs range in power from 550HP to 1,000HP.

What we can provide for drilling rigs:

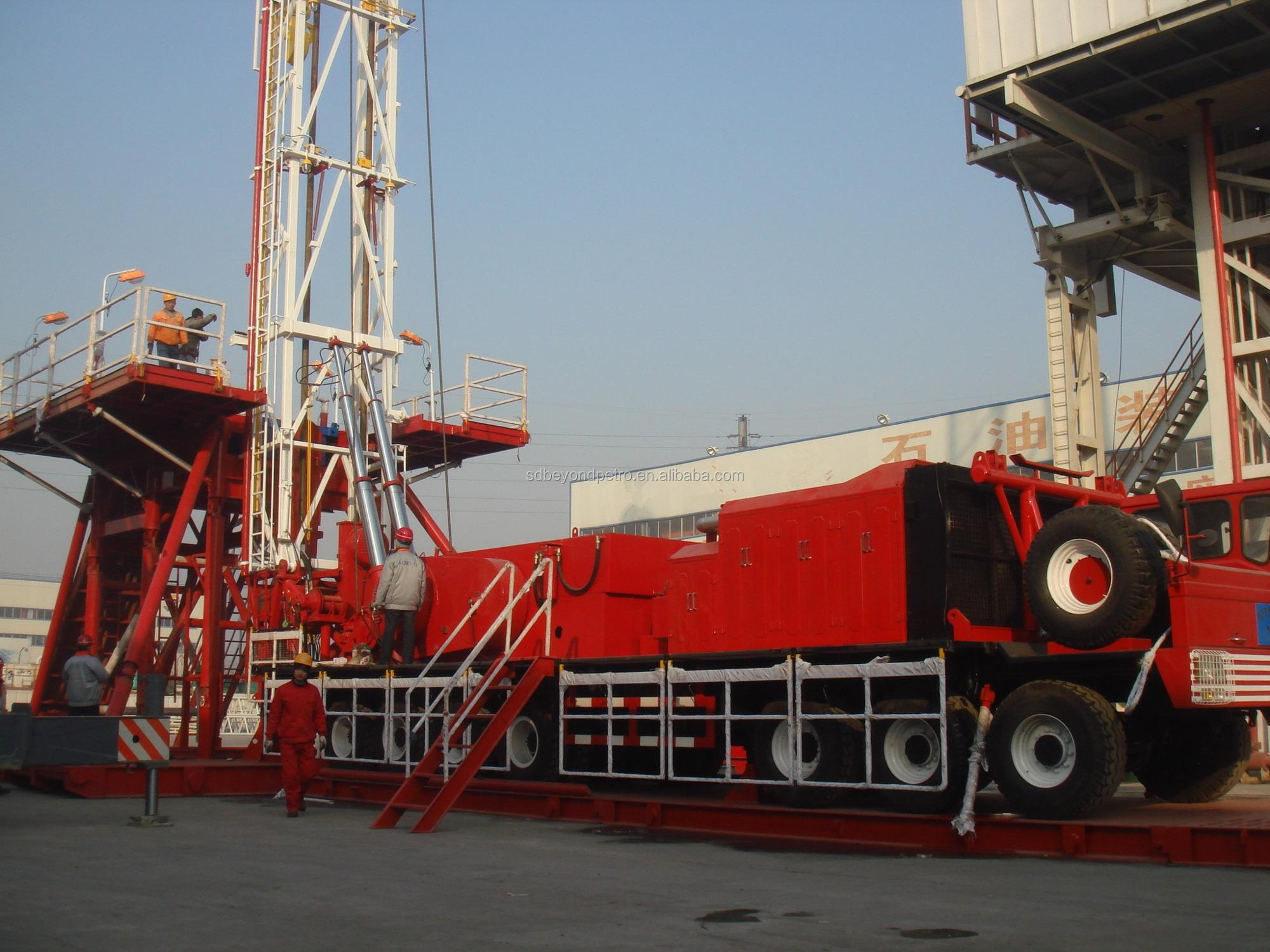

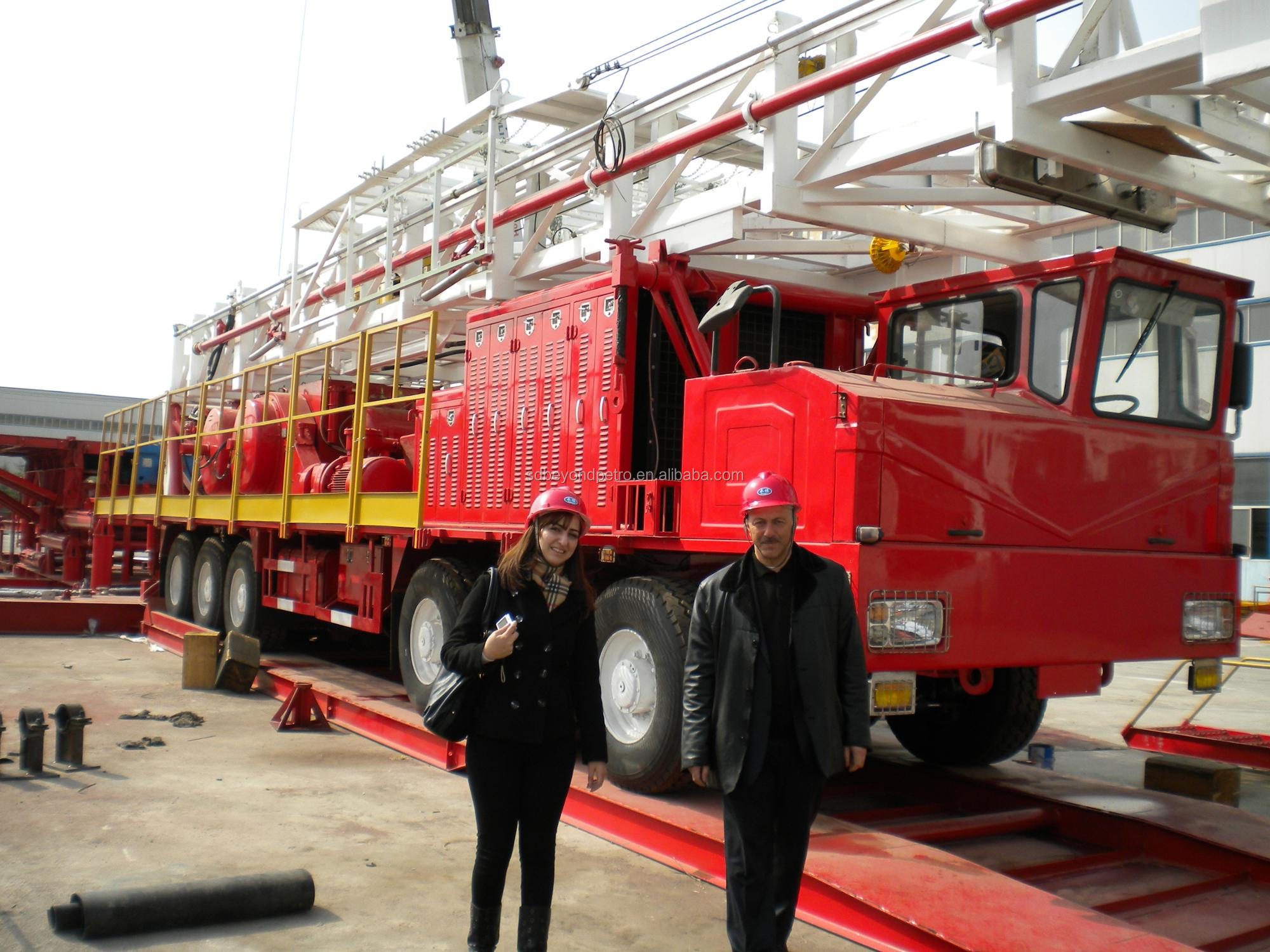

The power system, winch, mast, travel system and driving device of the vehicle-mounted drilling rig are all installed on the self-propelled chassis to achieve efficient movement. The company has developed vehicle-mounted drilling rigs with drilling depths of 1500m, 2000m, 3000m, 4000m and static hook loads of 1350kN-2250kN. The vehicle-mounted drilling rig has a large workload, reliable performance, good off-road capability, convenient maneuverability, and low cost. It is suitable for drilling operations in medium-depth and shallow oil wells on land, deserts, and plateaus.

Vehicle rig parameters:

Rig model		ZJ15CZ	ZJ20CZ	ZJ30CZ	ZJ40CZ
No.	thing	Specification	Specification	Specification	Specification
1	Installed power	540 hp (402 kW)	630 hp (470 kW)	630 hp x 2 (470 kW x 2)	630 hp x 2 (470 kW x 2)
2	Maximum hook load	1350kN	1580kN	2250kN	2250kN
3	maximum. drill string load	500kN	700KN	1150KN	1150KN
4	Winch rated power	450 hp	600 hp	1000 hp	1000 hp
5	transfer method	hydraulic+mechanical	hydraulic+ Mechanical	hydraulic+mechanical	hydraulic+ Mechanical
6	drive mode	10×8	12×8	14×10	14×10
7	Nominal Drilling Depth (4 1/2"DP)	1500 meters	2000 meters	4000 meters	4000 meters
8	mast height	33m	35m	38m	38m
9	Drill floor height	4.5m	4.5m	6m	6m
10	Wire rope diameter	26mm	29mm	32mm	32 mm
11	Hydraulic system	14MPa	14 MPa	21 MPa	21 MPa
12	Pneumatic system	0.8 MPa	0.8 MPa	0.8 MPa	0.8 MPa
13	travel system	5×4	5×4	6×5	6×5
14	total measurement	19.37×3.05×4.49m (including mast) 14.6×3.05×3.1m (without mast)	20.1×3.05×4.49m ((including mast) 15.56×3.05×3.1m (without mast)	23×3.2×4.8m (including mast) 16. 56×3.2×3.2m (without mast)	23×3.2×4.8m (including mast) 16. 56×3.2×3.2m (without mast)
15	total mass	52000 kg	58000 kg	85000 kg	85000 kg

Vehicle-mounted drilling rig series features:

1. The power system consists of an engine and a hydromechanical transmission.

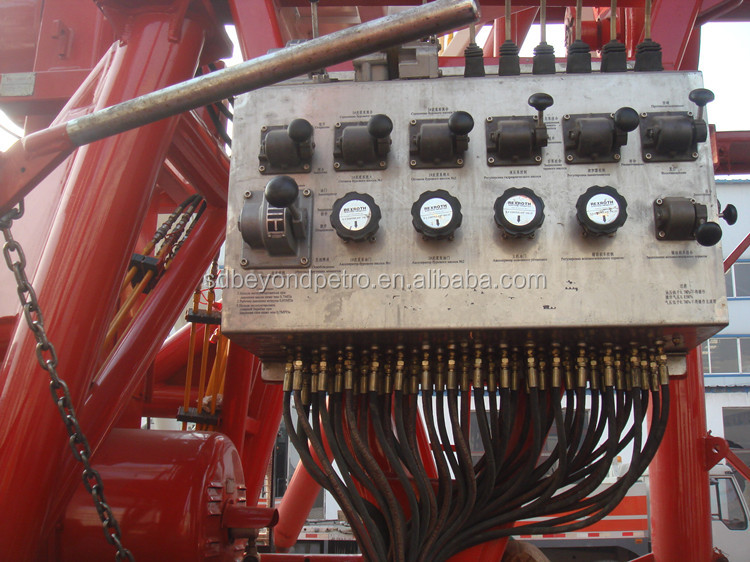

2. Centralized control of electrical, pneumatic and hydraulic systems. Key components are all world famous brands.

3. The mast is designed and manufactured in compliance with API 4F and 8C specifications. The mast will undergo finite element analysis and stress inspection tests. The surface of the structural parts will be sandblasted.

4. The main drum adopts integral Lebus groove. The main brake adopts band brake or hydraulic disc brake. Auxiliary brakes can be selected from air-controlled water-cooled disc brakes, air caliper brakes, hydraulic brakes, and electromagnetic eddy current auxiliary brakes. Sand drums are optional.

5. The chassis is powered by the deck engine through the transfer case. Heavy-duty wide wheelbase, high-strength beam, hydraulic power steering.

6. A variety of user-friendly designs are optional, including new cabs, embedded stairs, automatic door lock pins, air-controlled auxiliary brakes, and engine guards designed for different climatic conditions.
