Oil well drilling rig part of solid control equipment TC225 crown seat

Supplier: Puyang Star Petroleum Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lillian Zhao
Price: $14280.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Crown seat: 1. The main body is naked into the container. Other parts are fixed with iron frame 2. Transport to the port. 3. By sea to the destination port. Remarks: Can be packaged according to the order requirements.	Outer diameter of guide wheel:	1270-1524mm
Dimensions (LWH):	329530113700mm	Wire rope diameter:	32-38mm
Specification:	API 4F/8A	Factory name:	Puyang Star Petroleum Machinery Co., Ltd.
After-sales service provided:	Engineers can repair machinery overseas	Warranty:	2 years
usage:	oil well	Certification:	API ISO
Voltage:	Do not	Health status:	new
type:	Rotary drilling rig	Delivery Details:	Within 15 working days after deposit
weight:	7980KG,5764-10600Ton	Maximum hook load:	2250-4500kN
payment terms:	Letter of Credit, T/T, Western Union, MoneyGram, Cash, PayPal	brand:	Star
Supply capacity:	700 sets per month	product name:	crown seat
model:	TC315	application:	Rig Lifting System
strength:	Do not	color:	According to order
port:	Tianjin, Qingdao, Shanghai, Lianyungang, Guangzhou, Ningbo	Application industry:	oilfield
place of origin; place of origin:	Henan, China	Power Type:	electrical

Product Description

Applications

Crown Blocks are an important part of the rig's lifting system.

crown blocks

Product display

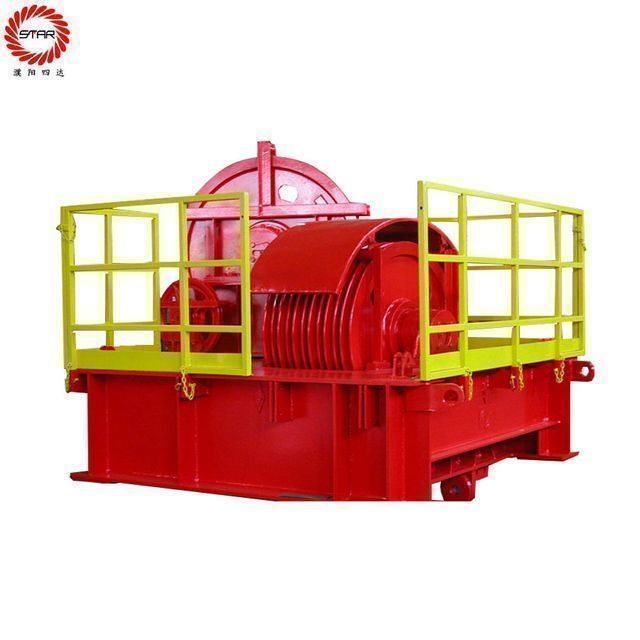

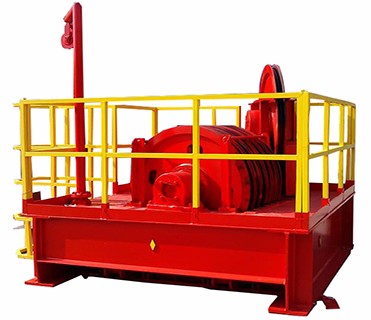

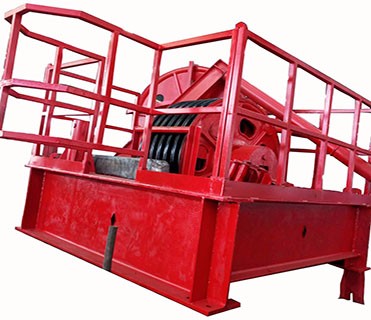

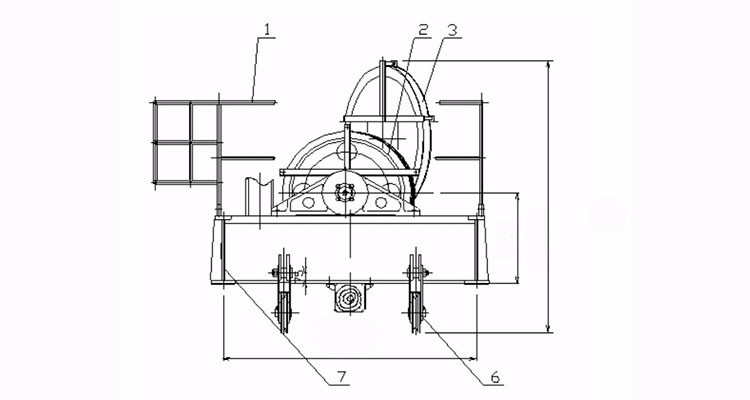

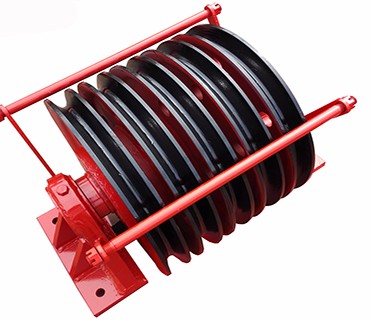

Crown Block Display

Technical Features

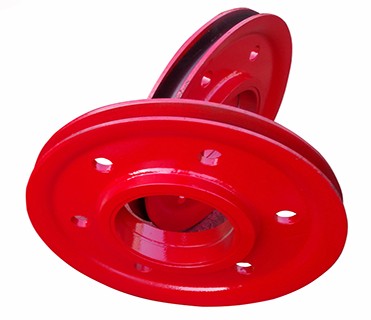

■The pulley grooves are quenched for wear resistance and long service life. Pulleys and bearings are interchangeable with matching traveling blocks.

■A wire rope protection device is provided to prevent the wire rope from bouncing or falling off.

■Equipped with anti-collision wood and protective net.

■Equipped with lifting frame for maintenance of pulleys.

■Equipped with lugs for installing top drive rails.

■Equipped with grinding wheel and auxiliary wheel.

Crown seat technical parameters
Model parameter		TC225	TC315	TC450
Maximum hook load kN(lbf)		2250 (505800)	3150(708200)	4500(1011600)
quantity. Pulley outer diameter mm(in)		(5+1) 1120(44)	(6+1) 1270(50)	(6+1) 1524(60)
Outer diameter of guide pulley mm(in)		1270(500)	1524(60)	1524(60)
diameter. Wire rope mm(in)		32 (1)¹/₄)	35 (1)³/₈)	38(1¹/₂)
Dimensions mm (in)	length	3200(126)	3295 (129.7)	3305(1300)
	width
	high	3135 (123.4)	3700(145.7)	3760(148)
Weight kg (lbs)		5764 (12707.3)	7980 (17592.9)	10600(23369)
