Reduce Rating Oilwell Oil Extraction Machine Sucker Rod API B Series B Model Pump Jack

Supplier: Puyang Star Petroleum Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lillian Zhao
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	Conventional;	Warranty:	2 Years;
Place of Origin:	Henan China;	Standard:	API Spec 11E;
Condition:	New;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal,Credit Card,Cash;
Delivery Detail:	According the order quantity;	Brand Name:	STAR;
Port:	Tianjiin,Qingdao,Shanghai,Ningbo,Guangzhou,Dalian;	Stroke Length(in):	20-82;
Weight:	3-20 Tons;	HS Code:	8413200000/8431499900;
Model Number:	C-57D-76-64;	Voltage:	Requirement;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	300 Set/Sets per Month;
Certification:	ISO9001:2008 / API Spec 11E/BV;	Production Capacity:	Stroke Frequency;
Color:	According to the order;	Polished Rod Capacity(lb):	6700-13300;
Balance:	Crank Balance;	Features:	Conventional Walking-beam;
Dimension(LWH):	Irregular;	Product name:	B Model Pump Jack;
Packaging Detail:	Horsehead Pump: 1.Small parts into the iron box, 2.Large parts naked into the container, 3.The specific container shipping infromation depends on the pumping unit model.;	Rated Torque(in.lb):	16000-80000;
Company Name:	Puyang Star Petroleum Machinery Co.,Ltd;	Type:	C Series;

Product Description

Brief Introduction:

Pump Jack is one kind of convention beam pumping unit,which selects the crank balanced method.It is the most common, an application scope broadest surface power equipment in field production oil.

The products conform to API Spec 11E "Specification for Pumping Units" and other related standards,and have obtained the certificate of authority to use the official API monogram.

Product Detail

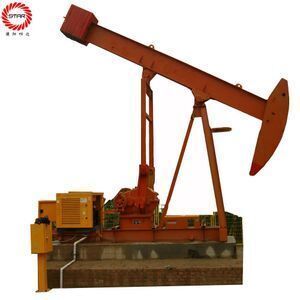

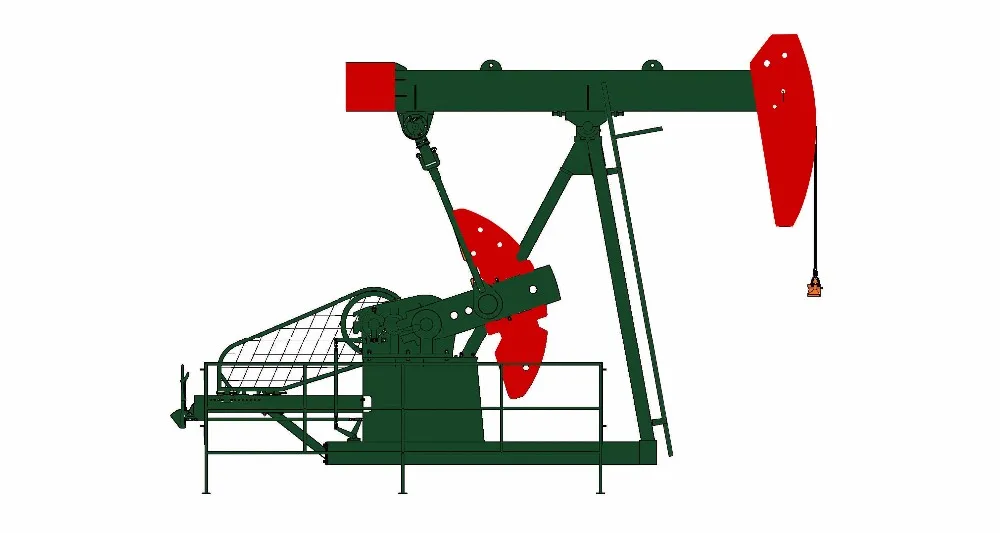

API B Series Pump Jack

Effect Diagram

API B Series Pump Jack

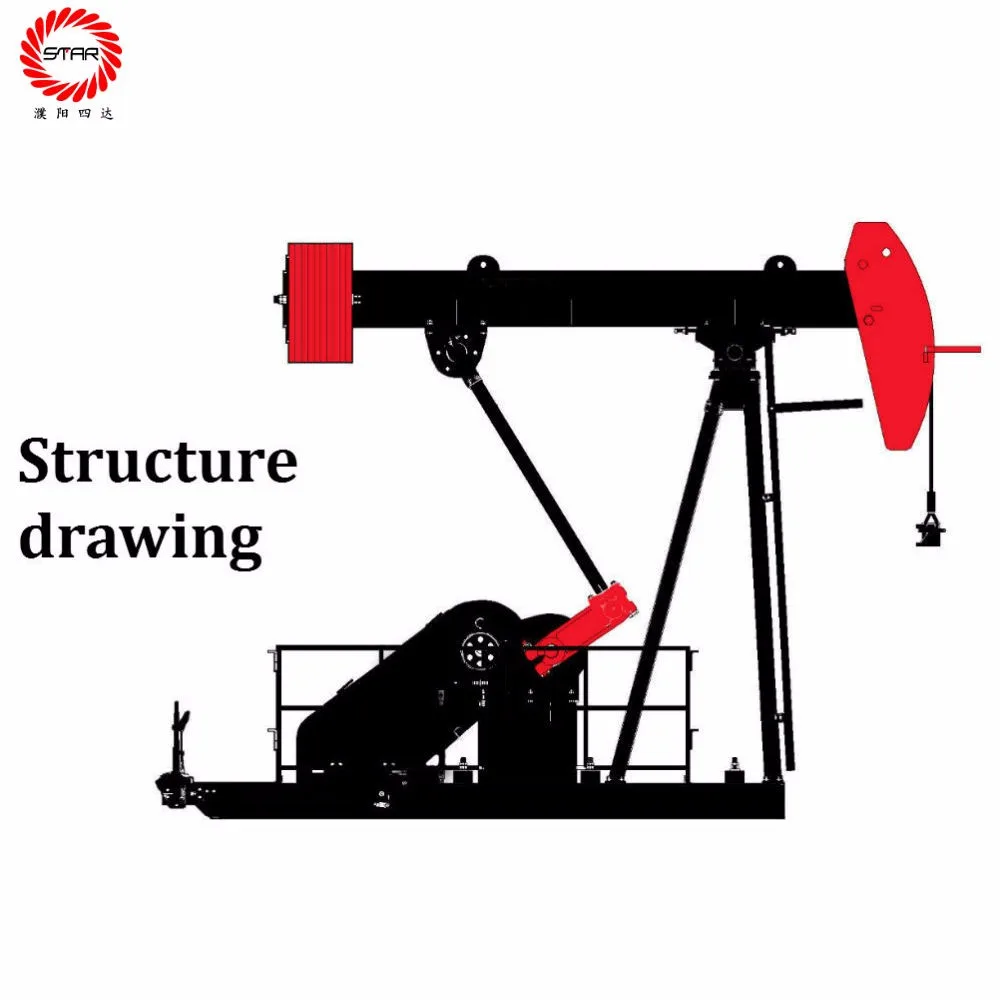

Drawing

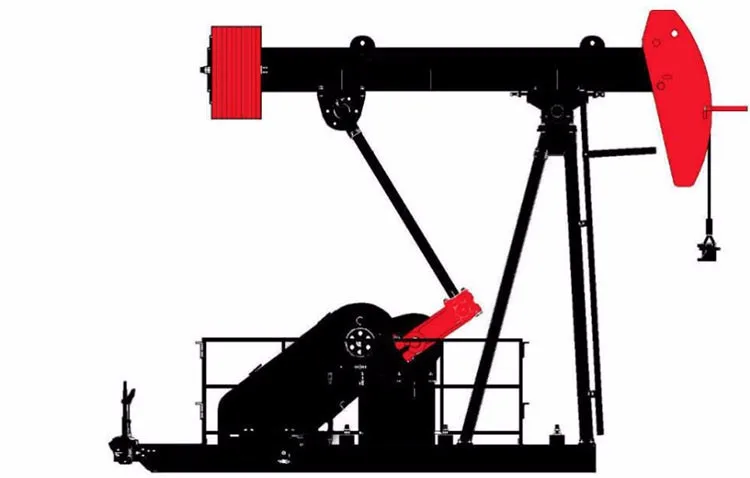

API C Series Pump Jack

Effect Diagram

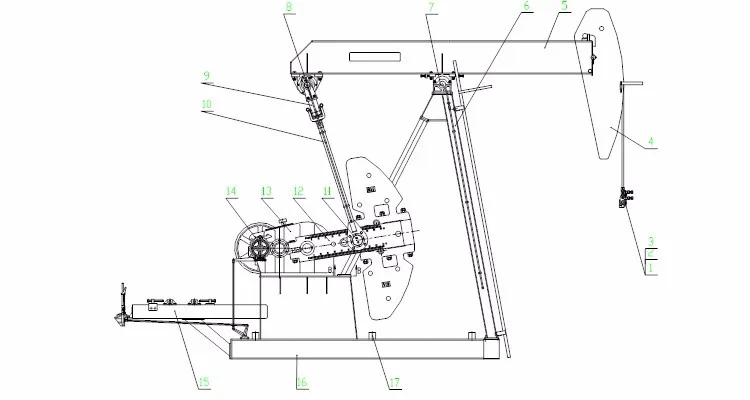

API C Series Pump Jack Drawing

1.Wireline	2.Polished Rod Hanger	3.Polished Rod Clamp	4.Mulehead
5.Walking Beam	6.Sampon post support leg	7.Saddle Bearing Assembly	8.Equalizer Bearing Assembly
9.Equalizer Beam	10.Pitman Arm	11.Crank Assembly	12.Crank
13.Reducer	14.Brake Assembly	15.,Motor Base	16.Main Frame
17.Cross Bars Assembly	Crank Guard,Belt Cover

B Series and C Series Pump Jack Effect Diagram Comparison

Beam Balance

B Series Pumping Unit

Crank Balance

C Series Pumping Unit

B Series and C Series Pump Jack Drawing Comparison

Technical Parameters

API B Series Pump Jack

Technical Parameters

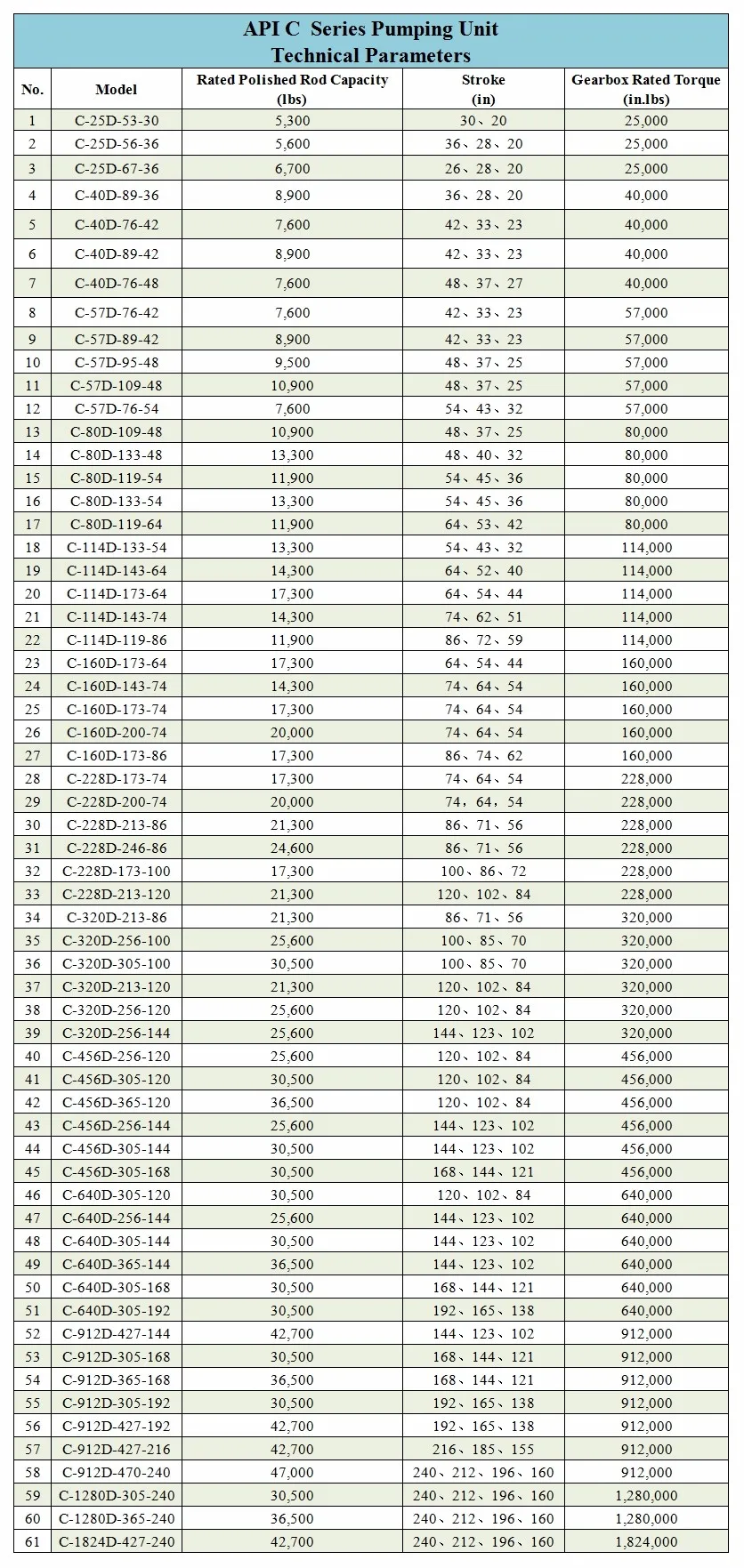

API C Series Pump Jack Technical Parameters

Want to know more, please contact Lillian .

Please supply following information, that I can make the quotation list soon:

1.Gear Reducer:Peak Torque Rating,Reductioin ratio,Type of bearings.

2.Frame structure:Unit structure rating,Range of stroke,Wrist Pin Bearing,Color.

3.Quantity.

4.Trading method:EXW, FOB, CIF(CIF need the destination port) ...

If have model is better, such as C-25D-53-30

Certifications

Packing & Delivery

Packaging
Name	Parts/Tools/Files
Method	Iron BOx

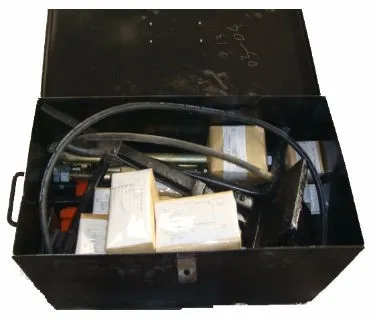

Packaging Details	Pumping Unit small parts ,tools and files(Operation Manual,Parts Catalog) in to the Iron box,then with the Main Machine in to the container
