API Spec 11E Rotaflex Pump Belt for Oil Well Production Belt
- 70000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| After-sales service provided: | online support | payment terms: | wire transfer |
| Frequency/minute: | 4.3/4.1/3.7/3.4 | Marketing Type: | hot product |
| Core component warranty: | 2 years | brand: | Banglong |
| Showroom location: | not any | Core components: | motor, gear |
| Applicable industries: | Energy and Mining | weight: | 16.3 kg |
| Supply capacity: | 100 pieces per month | Video shipment inspection: | if |
| Dimensions (L*W*H): | 2*1*6M | port: | China's main ports |
| Production capacity: | 100 | Rated Torque/lbs: | 228000-500000 |
| Health status: | new | standard: | API 11E |
| Polishing rod capacity/pound force: | 26500-60000 | Origin: | Shandong China |
| Voltage: | 220/380 | model: | D1234567 |
| Packaging Details: | nude/container | product name: | Belt pumping unit |
| Supply experience: | 30 years / Uzbekistan, Kazakhstan, Mexico, Ethiopia, Peru | Mechanical test report: | if |
| stroke: | 236/288/306/366in | feature: | belt |
| Warranty: | 2 years | temperature: | -40°C-59°C |
| Advantage: | long stroke/low frequency |
Product Description

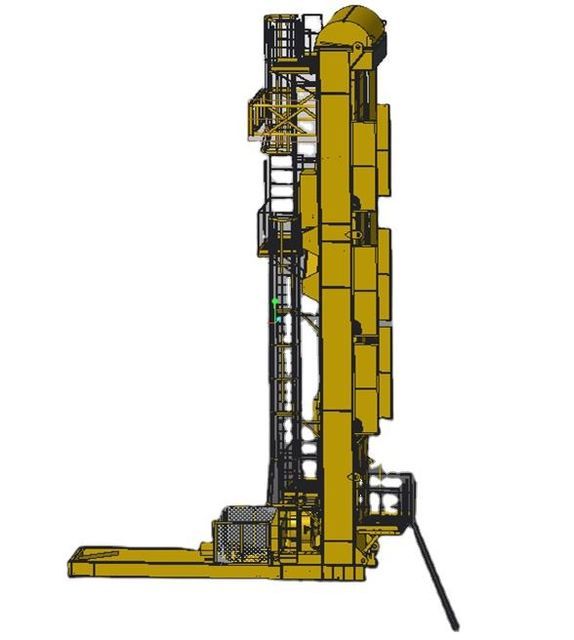

Belt pumping unit
The belt-type mechanically reversing vertical pumping unit is a vertical pumping unit with chain closed-loop transmission and belt traction. This series of vertical pumping units has the following advantagesLong stroke, adjustable stroke, simple operation, convenient transportation, stable operation,etc. Compared with the beam pumping unit with the same rated load, it needs smaller gearbox torque and smaller motor power, and the energy saving effect is obvious. It is especially suitable for developingDeep wells, ultra-deep wells and heavy oil reservoirs. Workover does not require large lifting equipment, and personnel can complete the work without climbing, which is safe, reliable and easy.
Specification
Model | D1 | D2 | D3 | D3X | D4 | D5 | D6 | D7 |
Gearhead Rated Torque (in-lb) | 228000 | 250000 | 320000 | 350000 | 350000 | 350000 | 500000 | 500000 |
Polishing Rod Load (lbf) | 26500 | 30000 | 36000 | 36000 | 50000 | 50000 | 50000 | 60000 |
Travel (inches) | 236 | 288 | 288 | 288 | 306 | 366 | 366 | 366 |
Motor power (kw) | 37 | 45 | 55 | 75 | 75 | 75 | 75 | 110 |
stroke frequency/min | 4.3 | 3.7 | 4.3 | 4.3 | 4.1 | 3.4 | 3.4 | 3.4 |
Weight (T) | 16.3 | 18.7 | 25 | 25.2 | 28.6 | 29.7 | 30.2 | 31.4 |
