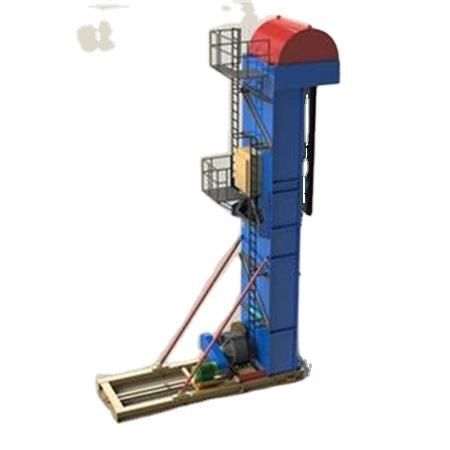

API spec 11E belt pumping unit

Supplier: Shandong Wealth Petroleum Equipment Co., Ltd.
Region: Shandong, China
Price: $250000.00 / 1 - 6 sets
$200000.00 / 7 - 14 sets
$100000.00 / >=15 sets
Min. Order: 1 set

Click here to contact

Product details

balance:	crank	Applicable industries:	Oil production equipment
Voltage:	380V/220V 380V/220V	Model:	1100
port:	Tianjin harbor	Health status:	new
Origin:	China	feature:	Long stroke; Stretch resistance
weight:	2-20 tons	payment terms:	wire transfer
Packaging Details:	API Spec 11E Bulk Packaging for Belt Pumping Units for Oil and Gas Production	model:	API Spec 11E Belt Pumping Unit
Crank Direction:	clockwise	Certification:	API 11E
product name:	API Oilfield Belt Pumping Unit	Dimensions (LWH):	7.4,2.6,13.4
Supply capacity:	100 sets per year	Gear Type:	Double arc gear reducer
After-sales service provided:	On-site installation, commissioning and training, on-site maintenance and repair services	Lubricating oil for gear reducer:	200# gear oil
journey:	48~216 inches	brand:	WF
Local service location:	Uzbekistan	Showroom location:	Uzbekistan
Package preview:		Production capacity:	100%
standard:	API Specification 11E	Rated torque:	40000~1824000in.lbs
product:	oil equipment	Warranty:	1 year

Product Description

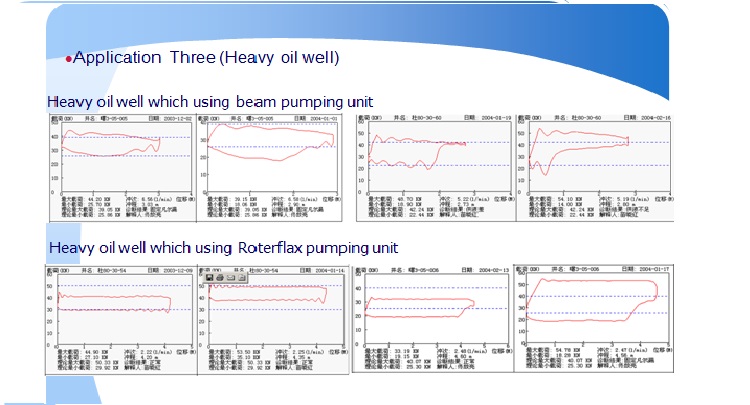

The belt pumping unit is a patented product. After years of research and development, it combines the main features and advantages of various types of pumping units. A unique engineering breakthrough, 100% Mechanical is especially suited for the production of large volumes of fluids in deep wells with rod pumps and heavy oil recovery. We developed as many as seven types. A large number of products are exported to the United States, Canada, Cuba, Argentina, Kazakhstan, Uzbekistan, the Middle East and other countries, and are used in major domestic oil fields such as Shengli, Dagang, and Liaohe Oilfield. Practice has proved that the water pump unit with international advanced level has the advantages of high efficiency, reliability and energy saving.

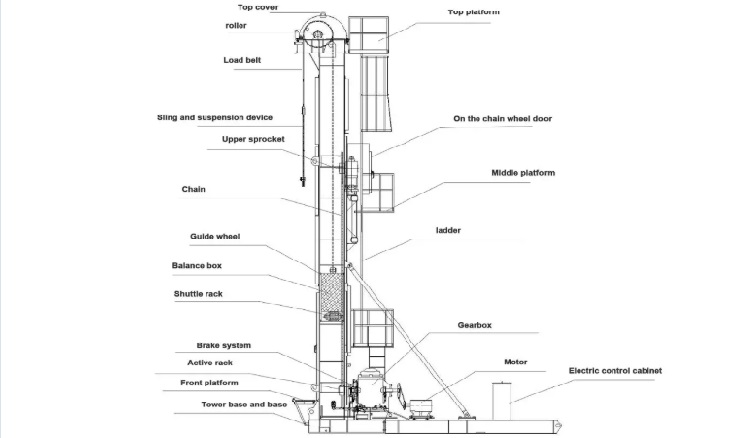

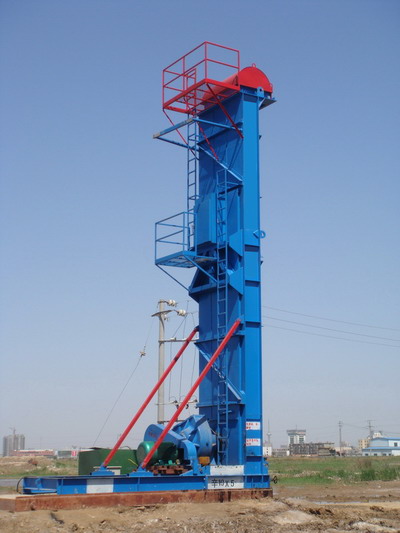

detailed image

Main advantages:

1. Slow speed and long stroke: long stroke has high filling coefficient and small fluid impact; slow stroke has little wear on downhole equipment and low cost.
2. Belt drive: The long-life heavy-duty belt drive can absorb the impact when the stroke is reversed, thereby effectively reducing the stress of the downhole components and making the pole run smoothly.
3. Low torque demand: Due to the short torque arm of only 0.46m, the torque demand is greatly reduced. As a result, smaller prime movers and gearboxes can potentially reduce energy costs by 10% to 40% compared to other manual lift systems.
4. Optimized structural design, safe and convenient: two sets of braking systems with automatic braking devices absolutely ensure the safety of the unit; the closed unit design makes the unit foldable for easy transportation and safe movement.
5. High reliability and less maintenance: adopt wear-resistant bearings, heavy-duty belts, heavy-duty sleeve roller chains, mechanical balance, perfect lubrication system and self-protection, and high reliability of closed unit design Ensure uniform load through optimized design and perfect rigidity.
6. The auxiliary system is relatively complete, not only suitable for mass production, but also for small batch production in deep wells.

API spec 11E belt pumping unit
