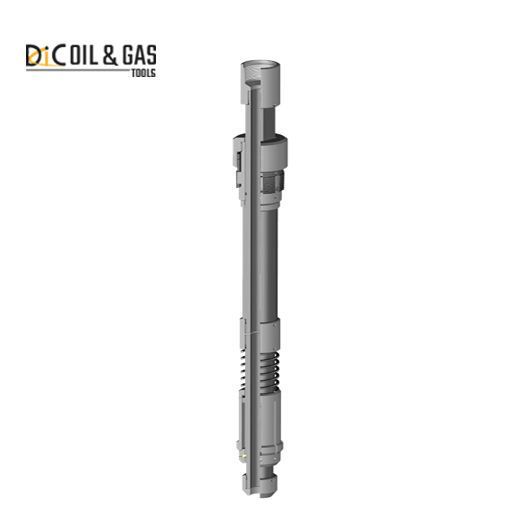

RSB search tool
The RSB Search Tool is used to search RSB Packers. The retrieval tool latches into the top sub using a standard anchor bolt, allowing the RSB Packer to be retrieved with a straight pull. Collet chucks sit below the support rings and lock the packer in the set position. The locking fingers lock into the packer. Pull the shear support ring and release the packer. ifThe packer cannot be retrieved normally, the retrieval tool has a safety release which can be disconnected from the packer by turning it to the right.
special function:
1.easy to use2.economy3.easy to retrieve
4.Easily modified to suit various conditions and temperatures.
detailed drawing
Specification
single hole RSB
Packer Dimensions (inches) | Packer bore diameter (inches) | Tool Outside Diameter (inches) | Tool ID (inches) | top connection | ||||
5 | 2.688 | 3.500 | 1.00 | 2-3/8 European Union | ||||
5-1/2 | 3.000 | 3.688 | 1.25 | 2-7/8 European Union | ||||
6-5/8 | 3.250 | 4.250 | 1.38 | 2-7/8 European Union | ||||
7 | 3.000 | 3.688 | 1.25 | 2-7/8 European Union | ||||
4.000 | 5.062 | 1.75 | 2-7/8 European Union | |||||
9-5/8 | 6.000 | 6.980 | 2.75 | 4-1/2 Europa League | ||||
13-3/8 | 9.000 | 9.365 | 5.75 | 7” long gun | ||||
Double Hole RSB
.
Packer Dimensions (inches) | Packer bore diameter (inches) | Tool Outside Diameter (inches) | Tool ID (inches) | top connection | ||||
4-1/2 | 3.50 | 0.50 | 2.688 / 2.062 | 2-3/8 European Union | ||||
5 | 3.000 / 2.688 | 3.688 | 1.00 | 2-7/8 European Union | ||||
5-1/2 | 3.000 | 3.688 | 1.25 | 2-7/8 European Union | ||||
7 | 5.250 / 4.000 | 5.062 | 1.75 | 2-7/8 European Union | ||||
7-5/8 | 4.750 / 4.000 | 5.810 | 1.75 | 2-7/8 European Union | ||||
Hydraulic kit RSB
Packer Dimensions (inches) | Packer bore diameter (inches) | Tool Outside Diameter (inches) | Tool ID (inches) | top connection | ||||
5-1/2 | 3.000 | 3.688 | 1.25 | 2-7/8 European Union | ||||
7 | 4.000 | 5.062 | 1.75 | 2-7/8 European Union | ||||
