RD USB2.0 UM24C voltmeter ammeter multimeter wire resistance battery USB tester color LCD display voltage current ammeter

Supplier: Hangzhou Ruideng Technology Co., Ltd.
Region: Zhejiang, China
Price: $13.50 / 1 - 9 pieces
$13.00 / 10 - 99 pieces
$12.50 / 100 - 499 pieces
$12.00 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

Current measurement accuracy:	±(0.8%+3 digits)	Load Impedance Range:	1.5-9999.9Ω
Accuracy class:	No	Sales unit:	single product
voltage:	4.50-24.00V	Operating temperature:	-10℃~100℃/0℉~200℉
brand:	research and development	Temperature measurement error:	±3℃/±6℉
model:	UM24C-1	Current measurement range:	0.000-3.000A
place of origin; place of origin:	Zhejiang, China	Display type:	numbers only
Packaging Details:	Protect the product with foam and multiple layers of cardboard.	product weight:	23.47 grams
Time measurement range:	0-99 hours 59 minutes 59 seconds	Measuring range:	4.50-24.00V
aspect:	71.2mmx31.8mmx12.4mm	Voltage measurement resolution:	0.01V
Current measurement resolution:	0.001A	Capacity accumulation range:	0-99999mAh
Single package size:	16X10X13 cm	Gross weight per piece:	0.300 kg
Screen Brightness Settings:	Level 0-5

Product Description

1. Technical parameters:

Product model: UM24C
Voltage measurement range: 4.50-24.00V
Current measurement range: 0.000-3.000A
Capacity accumulation range: 0-99999mAh
Energy storage range: 0-99999mWh
Load impedance range: 1.5-9999.9Ω
Temperature range: -10℃~100℃/0℉~200℉
Screen brightness setting: 0-5 levels
Voltage drawing range: 04.5-24.0V
Display: 1.44 inches color LCD display
Product size: 71.2mmx31.8mmx12.4mm

Product weight: 23.47g
Voltage measurement resolution: 0.01V
Current measurement resolution: 0.001A
Voltage measurement accuracy: ±(0.2%+1 digit)
Current measurement accuracy: ±(0.8%+3 digit)
Time measurement range: 0-99h59min59s
Temperature measurement error: ±3℃/±6℉
Automatic screen off time: 1-9 minutes
Current drawing range: 0.00A-3.00A
Fast charging identification mode: QC2.0 QC3.0

2. Introduction download link:
http://www.mediafire.com/folder/0jt6xx2cyn7jt/UM24

3. Precautions

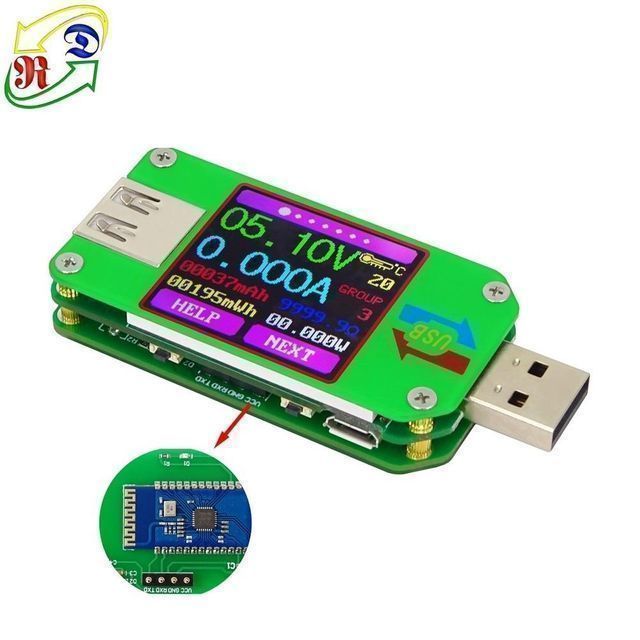

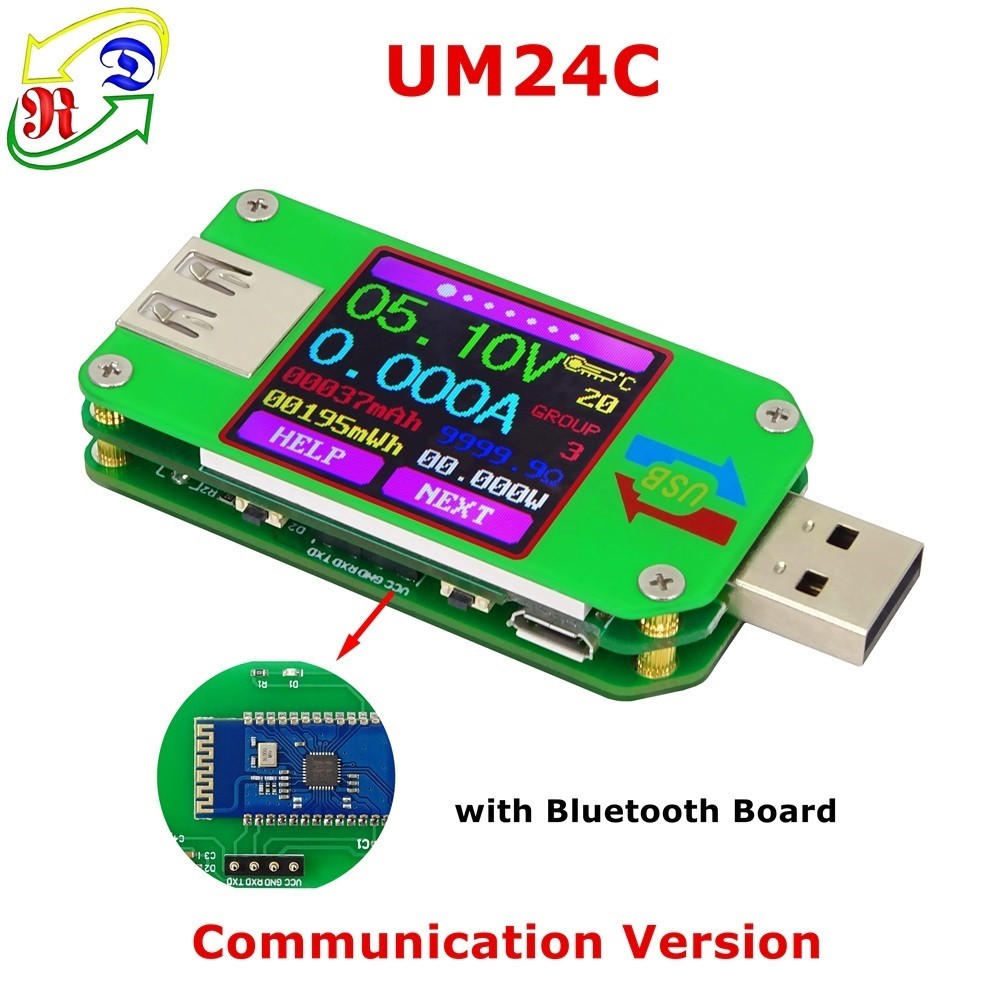

① UM24 is the version without communication, and UM24C is the version with Bluetooth connection.

②PC software supports PC window (Win 7 and above) and Phone Android and IOS (Android 5.0 and above, IOS 8 and above,

Support 14 languages, Chinese, English, Russian....)

4. Related products:

UM24C

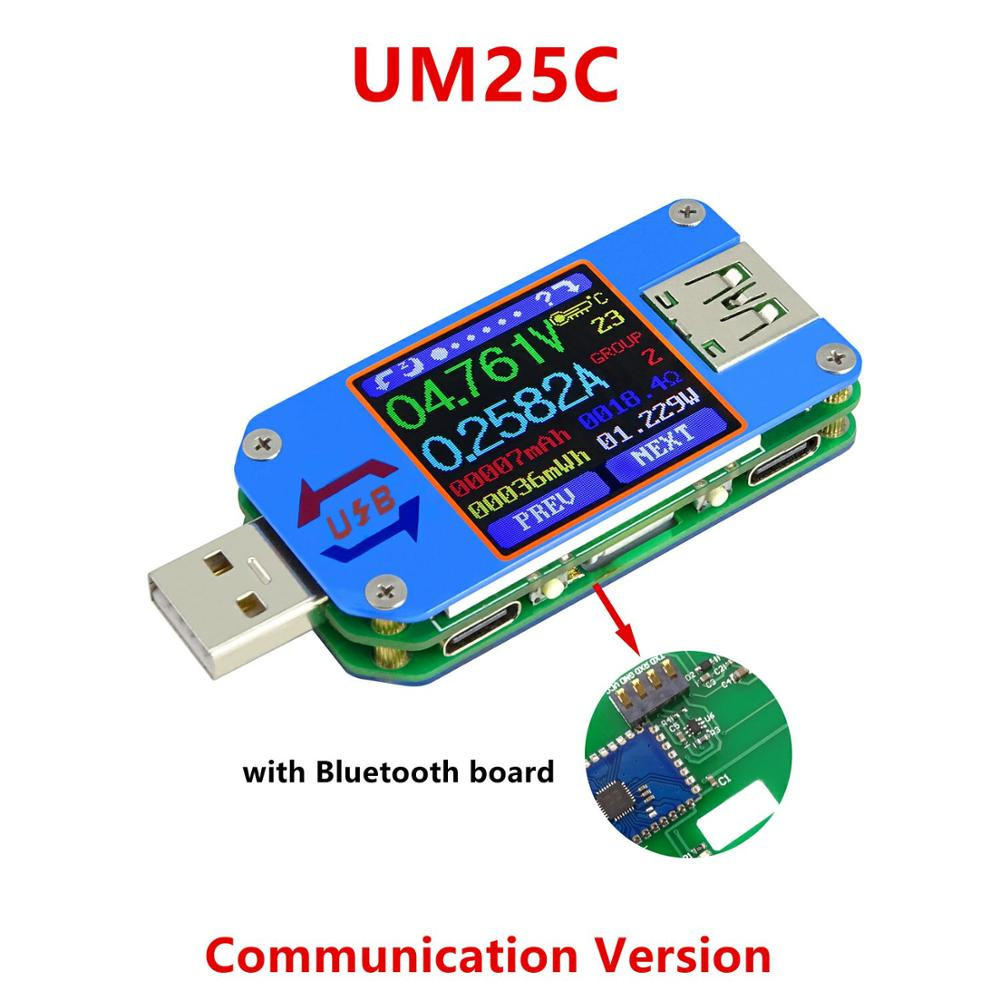

UM25C

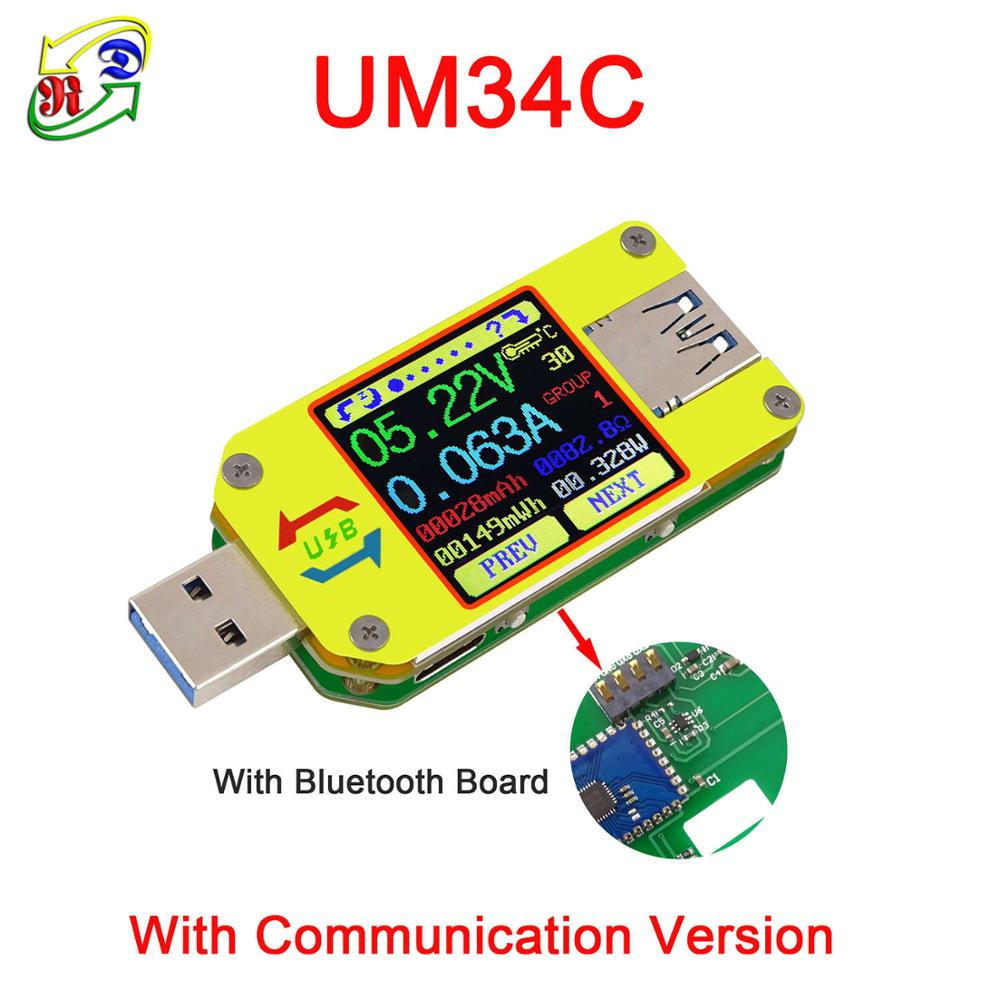

UM34C

5. Product description

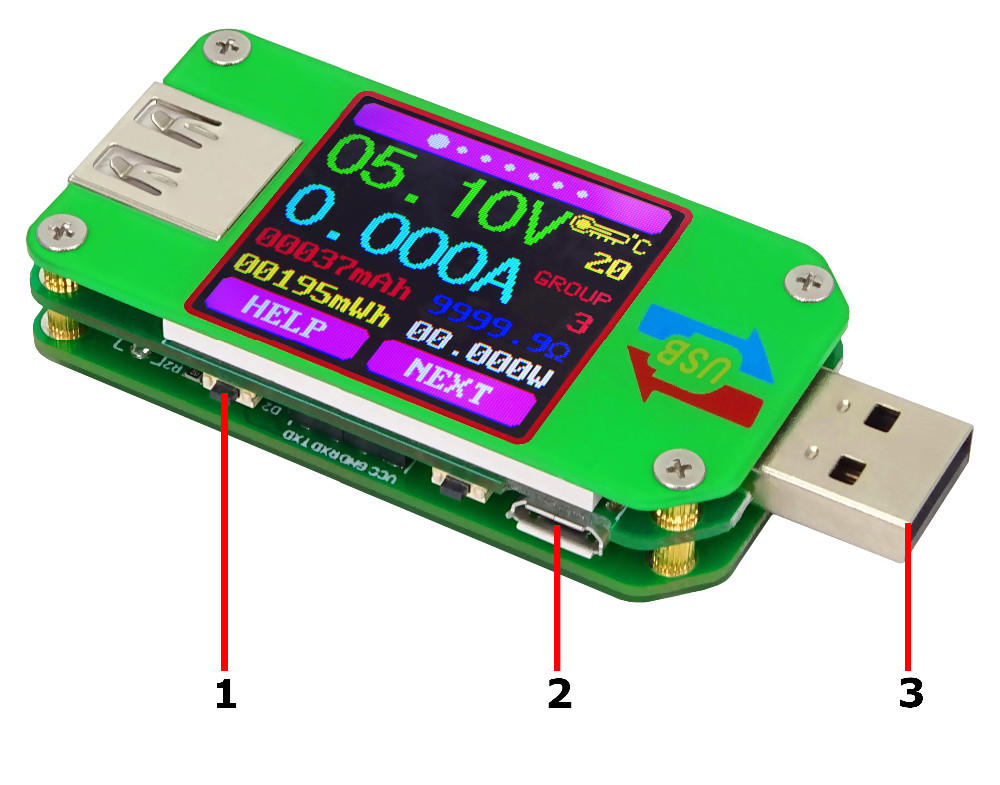

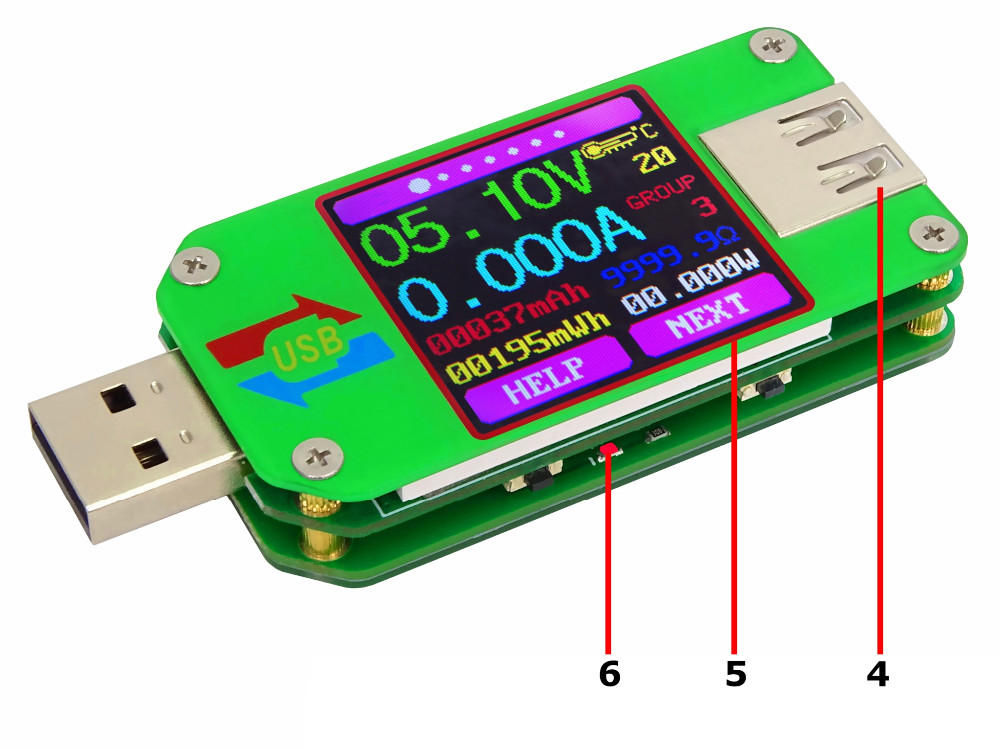

Key Description:

1: Multifunction button(4)
2: Micro-USB port
3: USB A male port

4: USB A female port
5: 1.44 inch color LCD screen

6: Bluetooth indicator: when connected to the host

Computer control software, bluetooth indicator light

From blinking to steady state. when connected,

The Bluetooth icon is displayed on the screen. (Bluetooth

newsletter version only).

Seven functional interfaces:

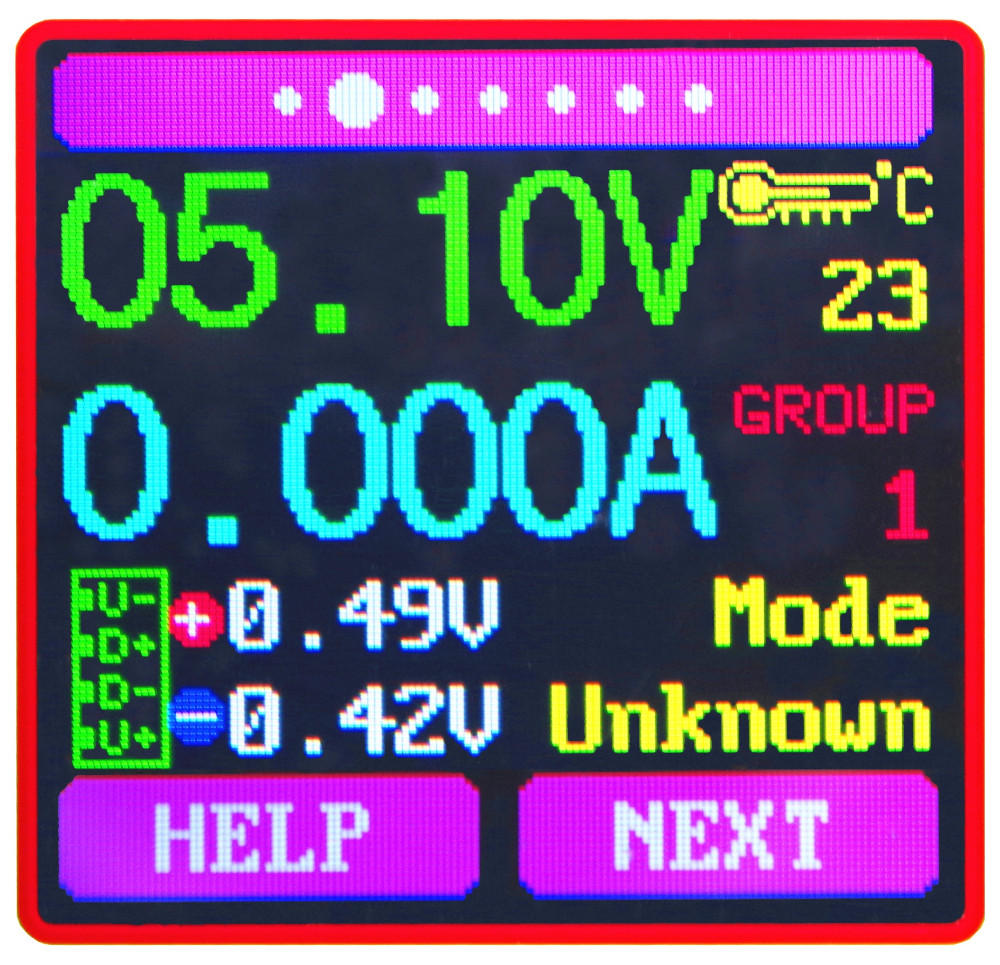

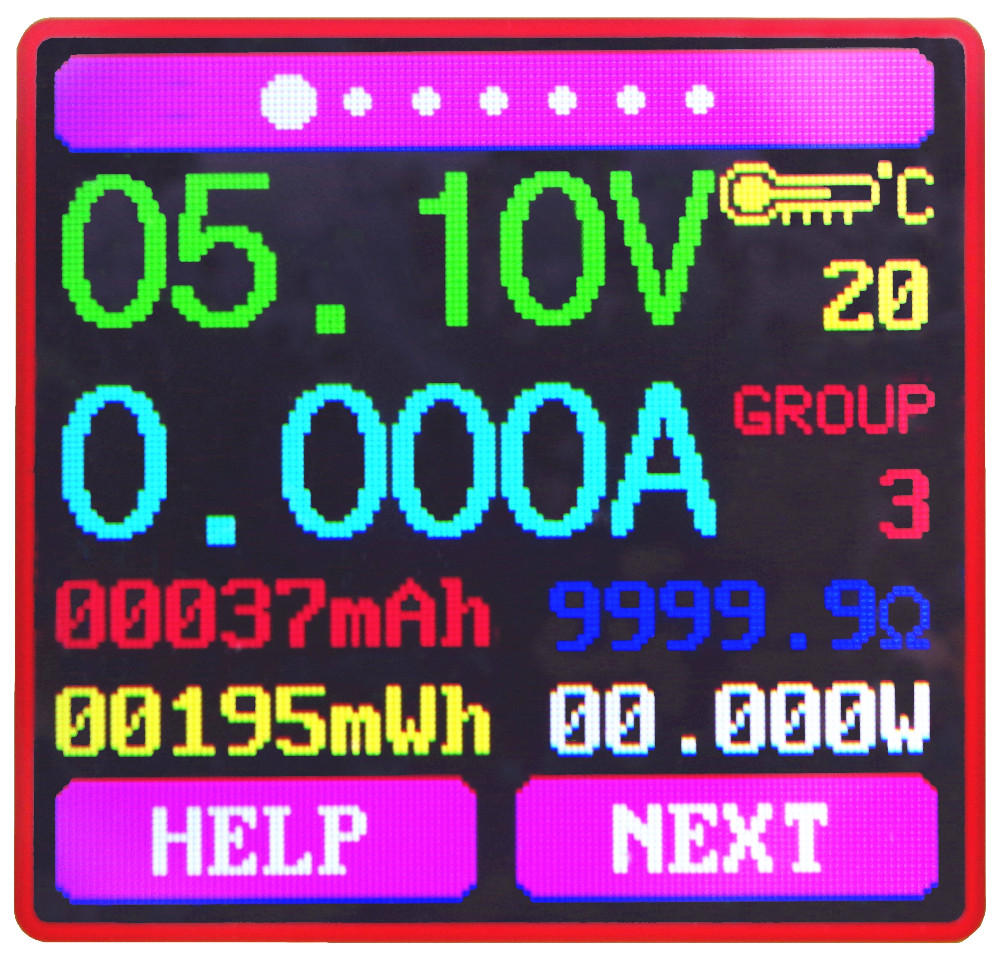

Measurement main interface

Fast charging identification interface

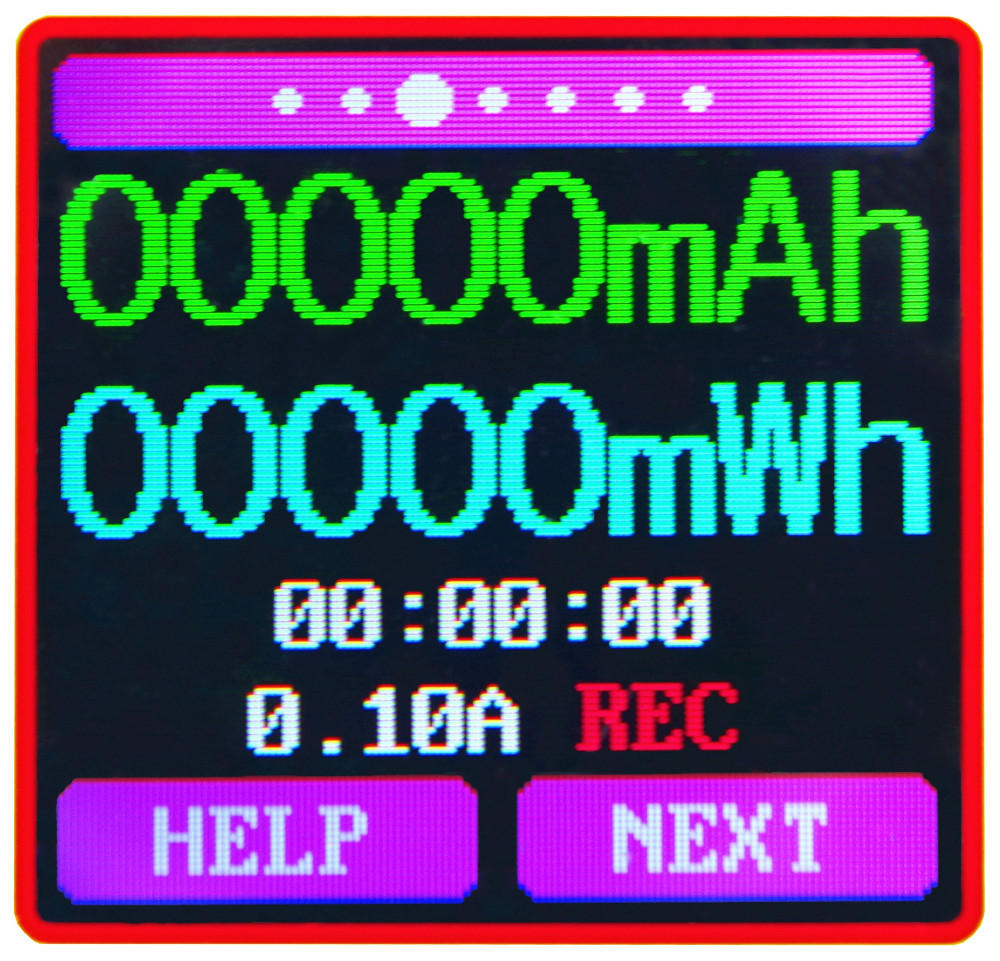

Data logging interface

data cable

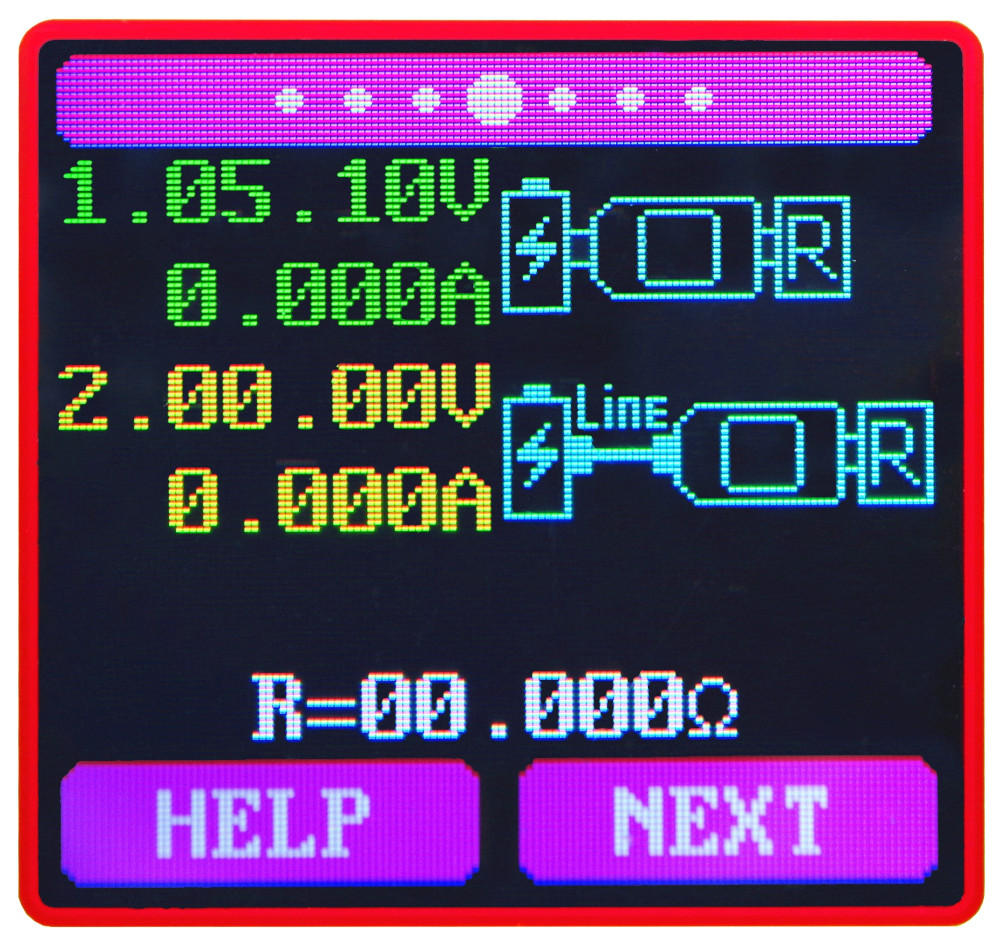

Impedance measurement interface

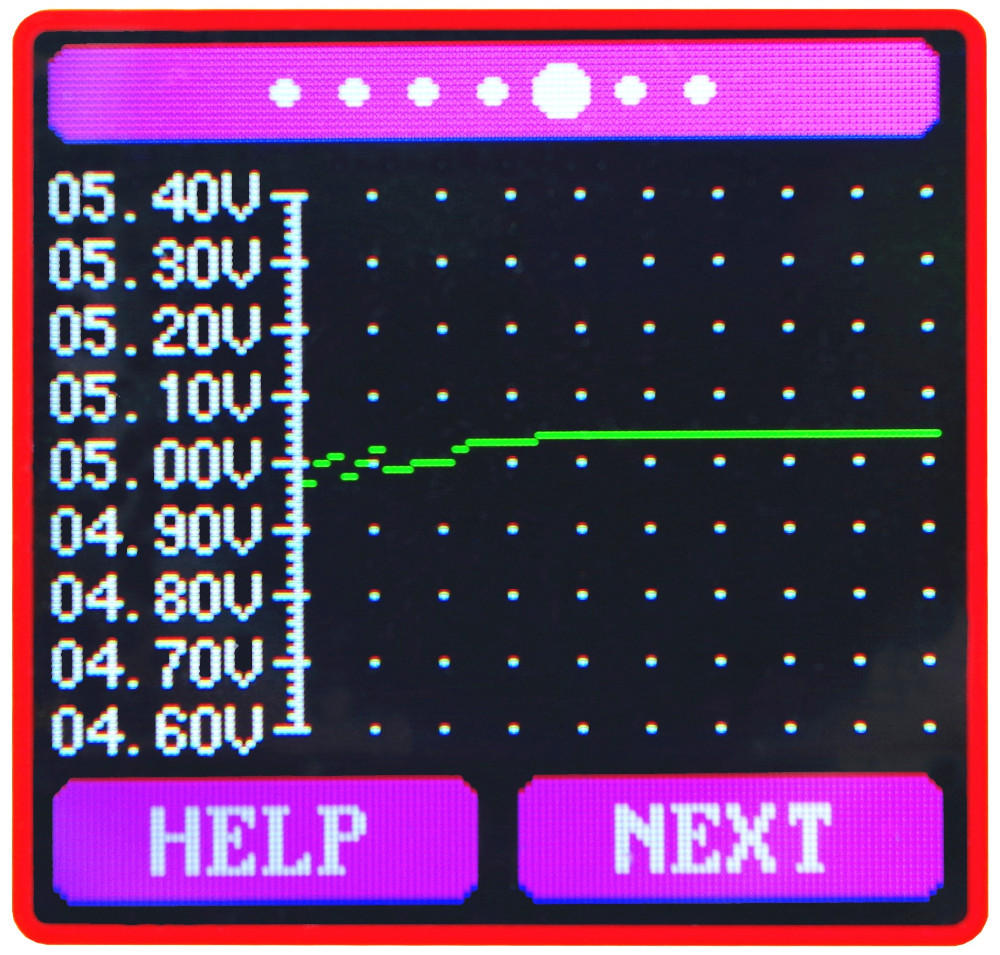

Voltage drawing interface

Current GUI

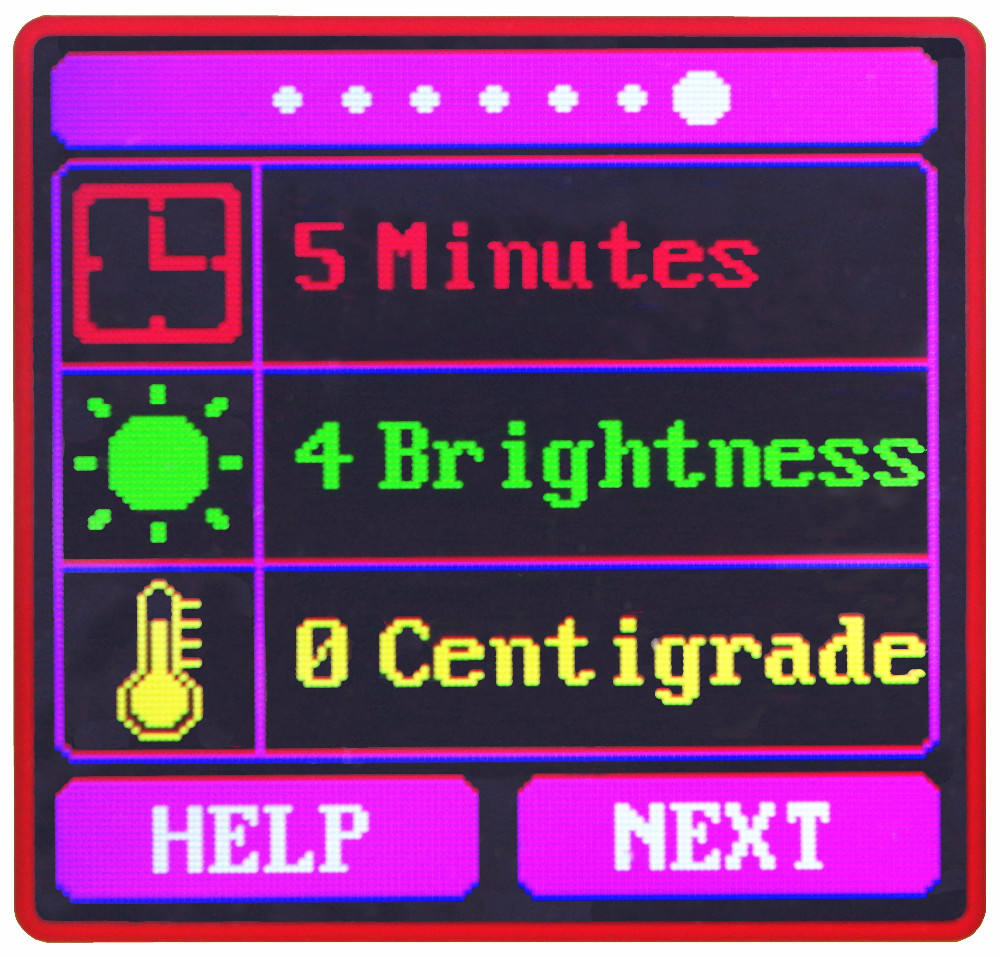

Set interface

In this interface, we can set the automatic screen off time/system brightness/switch temperature display unit, if you don’t
If you know how to do it, you can press "Help" to see how to do it.

Comparison chart:

	UM24 (medium)	UM25 (medium)	UM34 (medium)
usb port	USB2.0			USB3.0
Voltage measurement range	4.5-24.00V	4-24.000V	4-24.00V
Current measurement range	0-3.000A	0-5.0000A	0-4.000A
support fast fee agreement	QC2.0, QC3.0, FCP, AFC, PE2.0	QC2.0, QC3.0, FCP, AFC, PE2.0 Huawei SCP Huawei 40W fast charge OPPO VOOC SuperVOOC flash charge OnePlue Dash fast charging	QC2.0, QC3.0, FCP, AFC, PE2.0 OPPO VOOC Flash Charge OnePlue Dash fast charging
application	Support IOS8.0 above/Android5.0 above
PC software	Support WIN7 and above			No
download	IOS APP: Search UM meter in the Apple App Store to download Android APP: Search UM meter on Google play Download or use our file link to download
