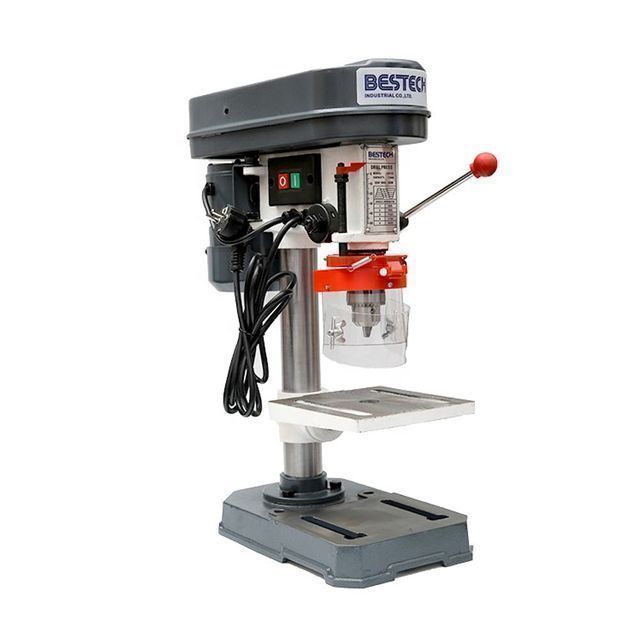

Hot Sale ZJ4113 13mm Mini Bench Drilling Machine Drilling Machine

Supplier: Jiangsu Bestech Industrial Co., Ltd.
Region: Jiangsu, China
Contact: Mr sam xia
Price: $50.00 / 50 - 499 sets
$20.00 / >=500 sets
Min. Order: 50 sets

Click here to contact

Product details

Warranty:	1 year	Speed class:	5
brand:	Jiebo Technology	Weight (kg):	17 kg
Speed 50/60Hz:	620~2620/740~3140rpm	Types of:	bench drill
Mechanical test report:	if	Power (kW):	0.35
place of origin; place of origin:	Jiangsu, China	port:	Shanghai, Ningbo
CNC or not:	normal	Marketing Type:	New Products 2023
State of health:	new	Applicable industries:	Manufacturing plant, mechanical repair shop, household, retail, construction
Main selling points:	competitive price	Showroom location:	not any
model:	ZJ4113	Packaging Details:	Carton
Supply capacity:	1500 drilling machines per month	payment terms:	L/C, Western Union, T/T
Core components:	Bearings, pumps, gears, motors, gearboxes, PLCs, pressure vessels, engines	maximum. Drilling diameter (mm):	13mm
table size:	160x160mm	Chuck capacity:	1.5-13mm
Video shipment inspection:	if	Spindle travel:	50mm
swing:	210mm	Motor Power:	250/350w
Spindle taper:	B16	Maximum drilling diameter:	13 mm (1/2 in)
Dimensions (LWH):	430340230 mm	Spindle speed range (rpm):	740 - 3140 rpm
weight:	17 kg	Drilling speed:	620~2620/740~3140rpm
Voltage:	220V/230V	Core component warranty:	1 year

Product Description

● Machine approval "CE"
● The height of drill floor is adjusted by rack
● The workbench can be tilted ±45° and rotated 360°
● Large size adjustable height screen with safety switch
● Guarantee the real running accuracy of the drill bushing less than 0.02
● Heavy duty for home stores, repair shops and light industrial applications

Specification

Model	ZJ4113
Maximum drilling diameter	Φ13mm(1/2'')
Motor Power	250/350w
Chuck Capacity	1.5-13mm
Spindle travel	50mm
speed class	5
Speed 50/60Hz	620~2620/740~3140rpm
Spindle taper	B16
Maximum distance from spindle axis to column surface	105mm
The maximum distance from the spindle end to the table surface	220mm
Maximum distance from spindle end to base surface	300mm
swing	210mm
table size	160×160mm
basic size	300×195mm
Column diameter	Φ46mm
high	580mm
Net weight Gross weight	16/17 kg
Package dimensions	430×340×X230mm

Standard accessories	Optional accessories
drill chuck	copper motor
wrench set	Power off chuck guard
aluminum motor	Micro Switch
	vice
	keyless drill chuck
	laser light
