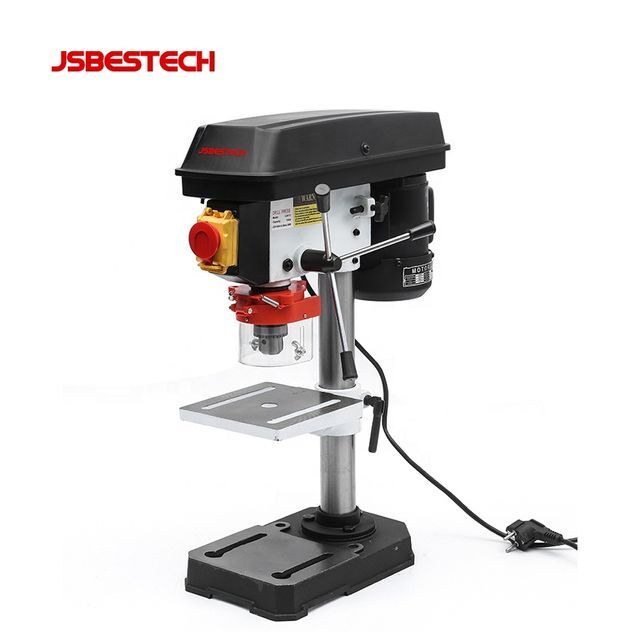

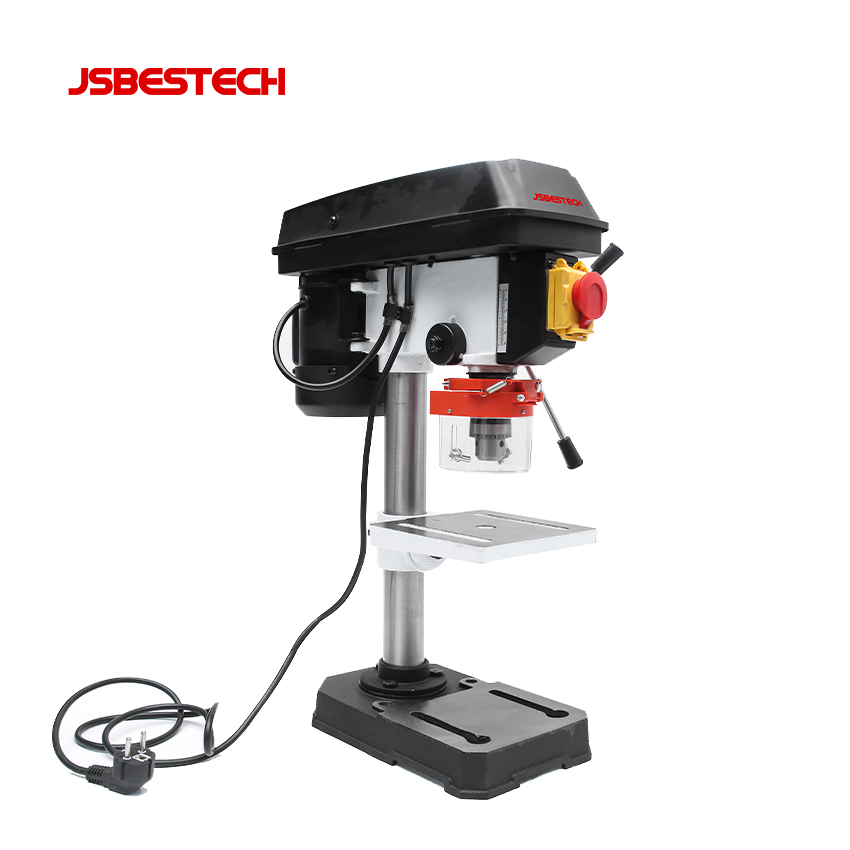

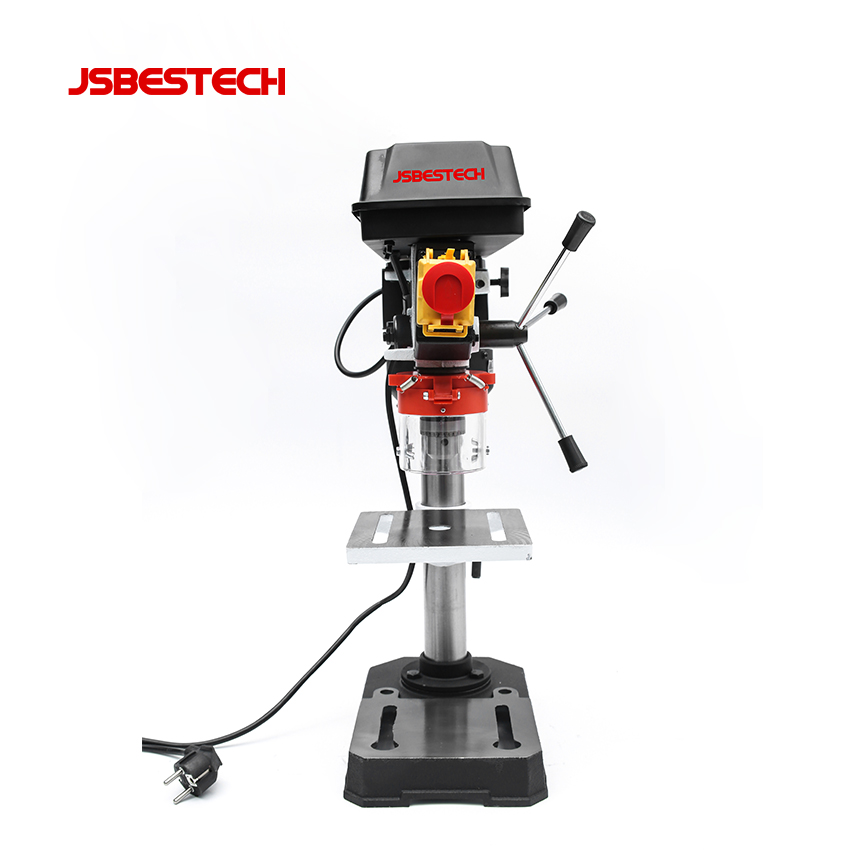

ZJ4113 13mm Drilling Benchtop Drilling Machine

Product details
Maximum Drilling Diameter:13mmSpeed ​​50/60Hz:620~2620/740~3140rpm
port:Shanghai Ningboplace of origin; place of origin:Jiangsu, China
type:bench drillSpindle speed range (rpm):620 - 2620 rpm
Column diameter:46mmDimensions (L*W*H):430*340*230mm
Core components:Bearings, pumps, gears, motors, gearboxes, PLCs, pressure vessels, enginespayment terms:L/C,D/A,T/T
Supply capacity:1000 sets per monthChuck capacity:1.5-13mm
Packaging Preview:Showroom location:not any
Voltage:customer requestBase size:300*195mm
Spindle taper:B16Warranty:1 year
Weight (kg):17kgSpeed ​​class:5
Main selling point:competitive priceTable size:160*160mm
Applicable industries:Manufacturing plant, household, retailCore Components Warranty:1 year
Spindle stroke:50mmmaximum. Drilling diameter (mm):13 mm
model:ZJ4113After Warranty Service:Online support
Marketing Type:New Products 2021Drilling speed:13mm
Local service location:not anyCNC or not:normal
Packaging Details:color boxAfter-sales service provided:Online support, video technical support
brand:JSBESTECHVideo external inspection:if
swing:210mmHealth status:new
Certification:CE GSG ISOPower (kW):0.25/0.35
Mechanical test report:if
Product Description
● Machine certification "CE"
● Adjust the height of the drill floor by the rack

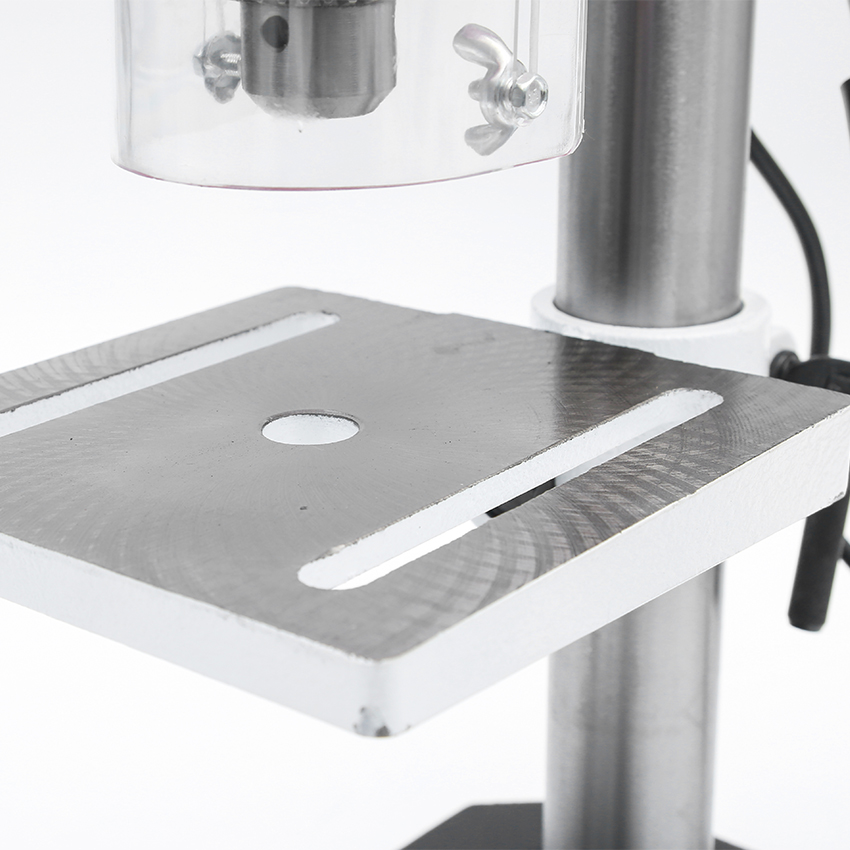

● The worktable can be tilted ±45° and can be rotated 360°
● Large size, height-adjustable screen with safety switch
● Guarantee the true running accuracy of the drilling spindle sleeve less than 0.02
● Heavy duty for home stores, repair shops and light industrial applications
Specification
Model
ZJ4113
Maximum hole diameter
Φ13mm(1/2'')

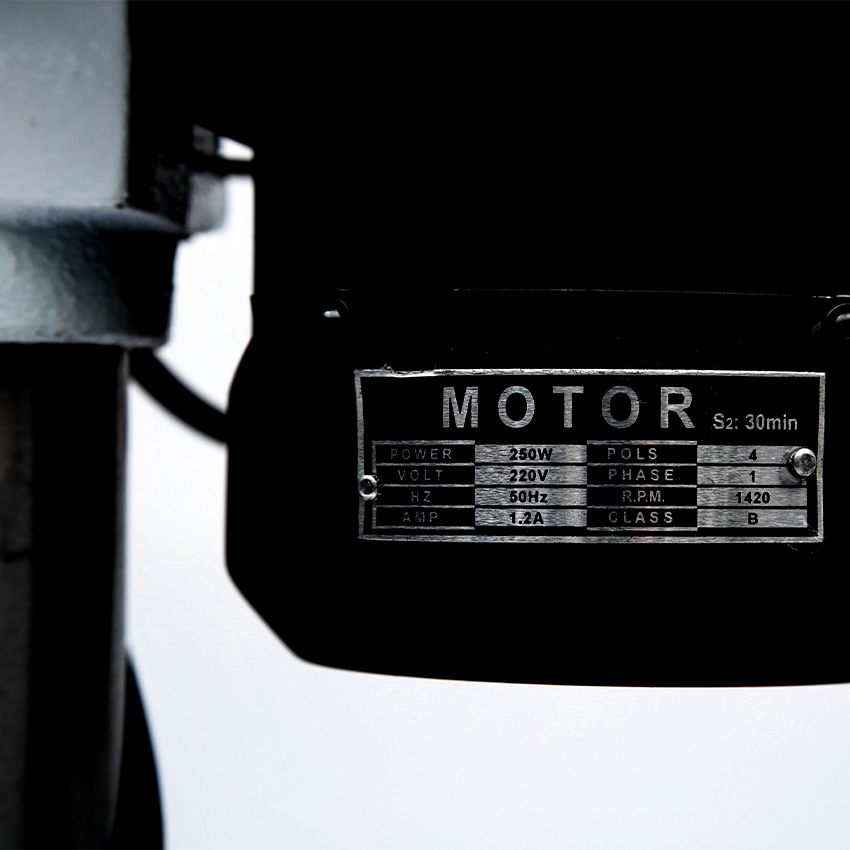

Motor Power
250/350w
Chuck capacity
1.5-13mm
Spindle stroke
50mm
Speed ​​class
5
Speed ​​50/60Hz
620~2620/740~3140rpm
Spindle taper
B16
The maximum distance from the axis of the spindle to the surface of the column
105mm
The maximum distance from the spindle end to the work surface
220mm
Maximum distance from spindle end to base surface
300mm
swing
210mm
table size
160×160mm
basic size
300×195mm
Column diameter
Φ46mm
high
580mm
net weight gross weight
16/17 kg
Package dimensions
430×340×X230mm
Standard accessories
Optional accessories
drill chuck
copper motor
wrench set

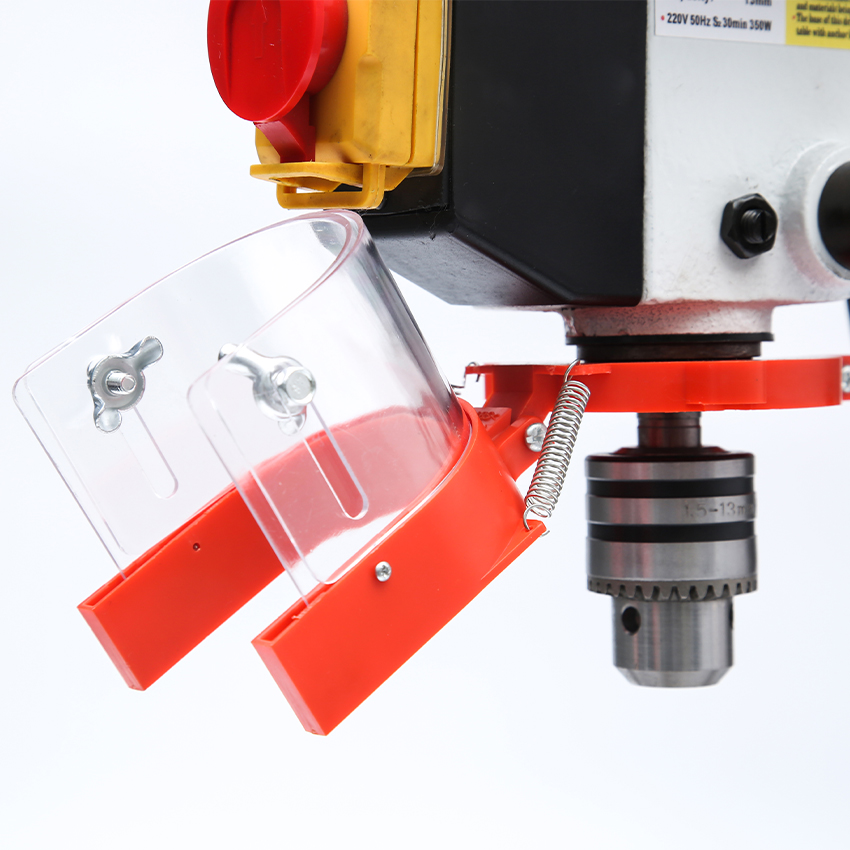

Power off chuck guard
aluminum motor
Micro Switch
vice
Keyless drill chuck
laser light
Product packaging
