Precision cnc cutting head for sale FK15 110A FK15 125A FK15 145

Supplier: Jiangsu Bestech Industrial Co., Ltd.
Region: Jiangsu, China
Contact: Mr sam xia
Price: $2180.00 / 1 - 49 sets
$1088.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	manufacturing plant, household, retail	type:	dividing head
Showroom location:	not any	Worm gear radio:	1:90
air pressure:	46105pa	payment terms:	L/C, D/P, D/A, T/T
Work surface diameter:	125/160/160	brand:	Best
Video outbound inspection:	if	Mesa T-slot width:	10H12
Warranty:	1 year	brand:	Jiasheng Technology
Tab width:	14/18/18 mm	maximum. speed:	11.1 rpm
port:	Shanghai Ningbo	Supply capacity:	1000 sets per month
Packaging Details:	Standard export wooden box	Marketing Type:	New Products for 2022
Model:	F11100A F11125A	Weight (kg):	52
Material:	Metal	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Net/Gross:	50/58kg	Mechanical test report:	if
Center height:	110/125/140mm	Center Bushing Diameter:	16H7/20H7/20H7
Indexing accuracy:	60"	Health status:	new

Product Description

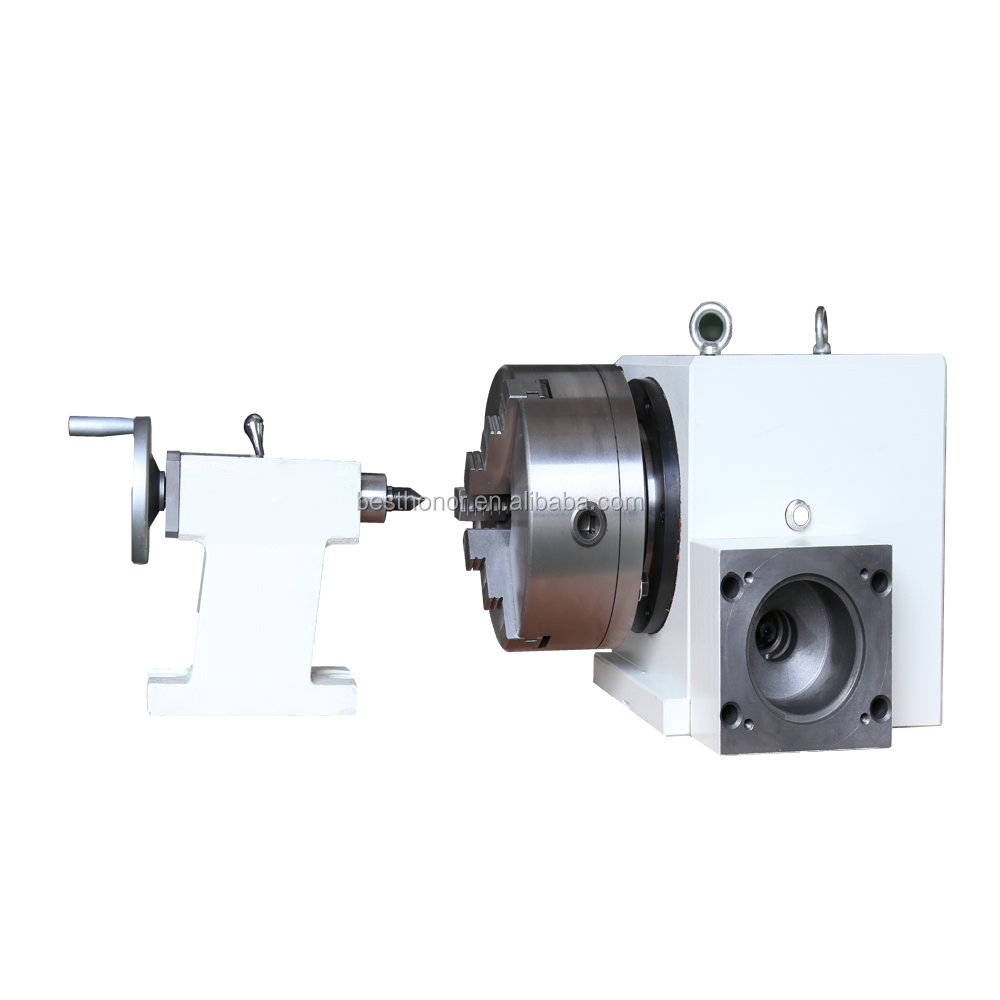

◊FK15 series CNC dividing head is one of the main accessories of CNC machine tools and machining centers, and can also be used as one of the main accessories of semi-automatic milling machines, boring machines or other machine tools.

◊The CNC dividing head is connected with CNC control device or machine tool control system and 4-6bar air pressure, which can perform performance, loosening and circular arc indexing on the workpiece at any angle. This product can be used both vertically and horizontally.

Model	FK15 110A	FK15 125A	FK15 145
Center height	110mm	125mm	145mm
Work surface diameter	φ125	φ160	φ160
Worktable T-slot width	10H12	October 10	October 10
worm gear radio	1:90	1:90	1:90
Center Bushing Diameter	Φ16H7	Φ20H7	Φ20H7
tab width	14mm	18 mm	18 mm
Spindle nose connection size	Φ52H6	A16	A16
engine	≥2.94Nm	≥2.94Nm	≥2.94Nm
air pressure	4~6×105pa	4~6×105pa	4~6×105pa
repeatability	7.5	7.5	7.5 Indexing accuracy
maximum. Tangential torque	90 Nm	120 Nm	120 Nm
maximum. speed	11.1 rpm	11.1 rpm	11.1 rpm
Net weight/Gross weight	50/58kg	80/88kg	90/100kg
Load capacity (horizontal/vertical)	100/50kg	150/80kg	150/80kg
