Semi Universal Index Center Splitting Heads

Supplier: Dezhou Guochang Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Alice Fan
Price: $185.00 / >=3 sets
Min. Order: 3 sets

Click here to contact

Product details

Material:	HT200	Warranty:	3 months
port:	Qingdao Shanghai	product name:	Semi-universal indexing center dividing head
color:	silver	Weight (kg):	10
Chuck:	100mm 130mm	Core components:	Material
Packaging Details:	wooden box	Marketing Type:	New Products 2020
MOQ:	1 set	Spindle hole:	MS2 MS3 B&S7 B&S9
Video shipment inspection:	if	type:	dividing head
Mechanical test report:	if	Supply capacity:	1000 sets per month
Applicable industries:	Mechanical Repair Shop, Retail	Showroom location:	not any
brand:	Guo Chang	payment terms:	L/C, Western Union, D/A, T/T
Model:	Half universal dividing head

Product Description

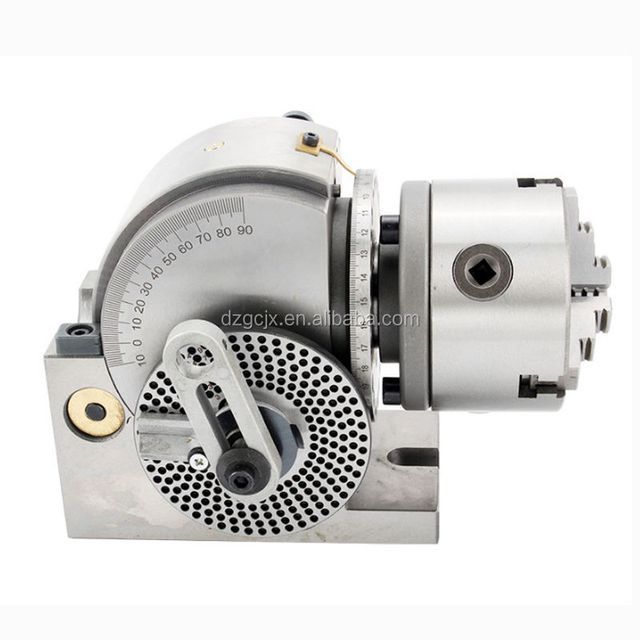

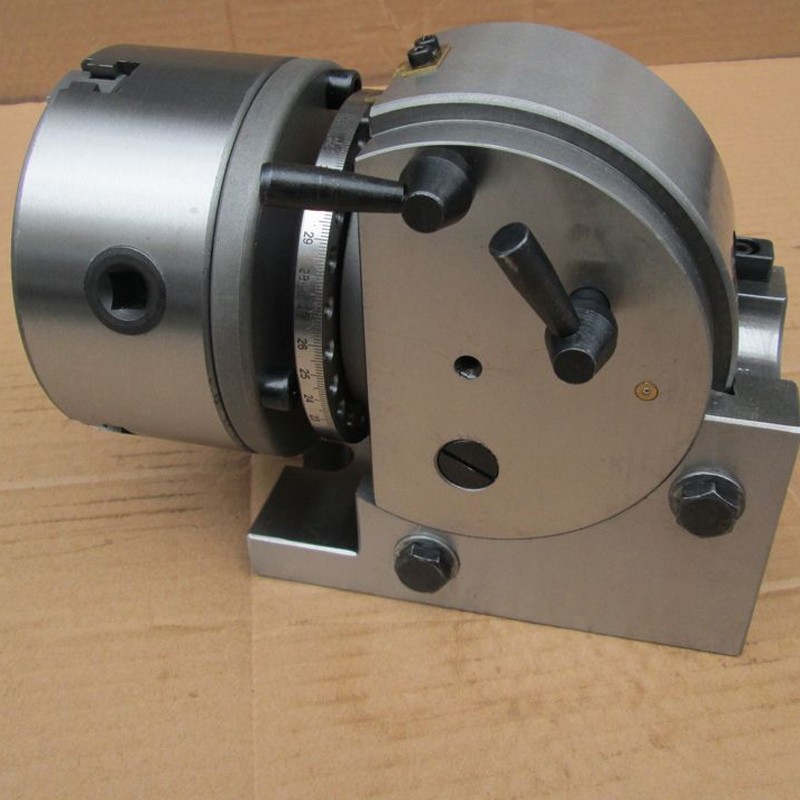

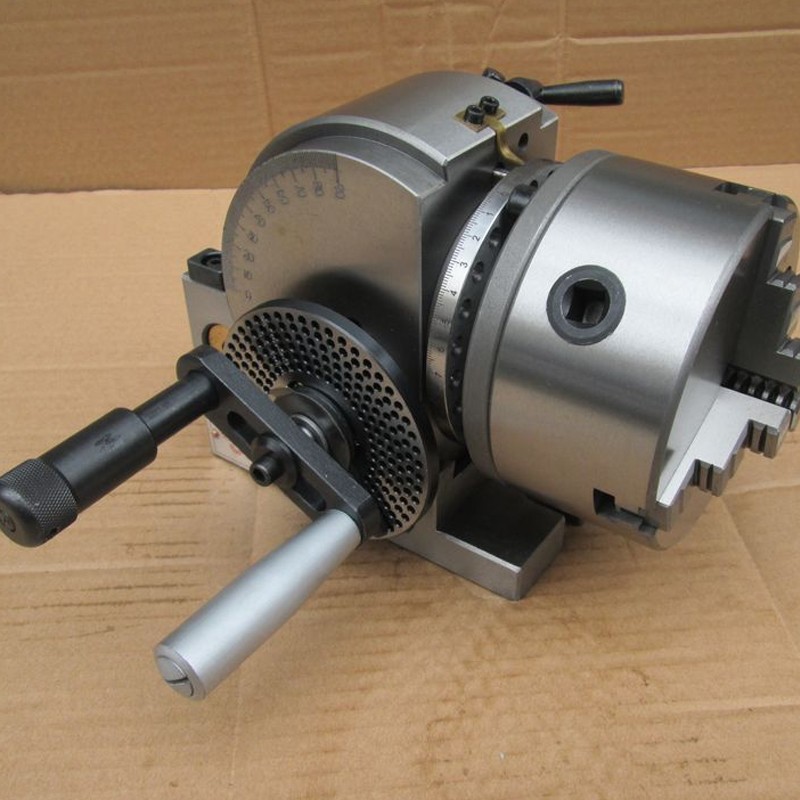

Semi-universal dividing head is a simple type of universal indexing center, which can be used for direct and indirect indexing. The accessories for differential indexing and screw work are not included, but the overall structure of the indexing head is the same as that of the universal type. The 24-hole direct indexing plate can be directly indexed into three indexing plates of 2, 3, 4, 6, 8, 12, and 24. The standard accessories can be indirectly indexed into any number from 2 to 50, and the number of parts can reach 380 .

detailed image
