JASU injection blow molded ISBM car

Product details
brand:JASUautomation:automatic
Dimensions (L*W*H):3.8X1.5X3.2MAfter Warranty Service:Video technical support, online support
port:Guangzhou, ShenzhenHealth status:new
Local service location:not anyBottle volume:550ml
Marketing Type:Hot Products of 2019Power (kW):18.5
Voltage:380V 50HZCore Components Warranty:1 year
Blow molding type:Injection blow moldingVideo external inspection:if
Mechanical test report:ifShowroom location:not any
After-sales service provided:Engineers can repair machinery overseasautomatic:Yes
Type of machine:verticalcar:Fully automatic
year:2020Volume of hollow part:not any
Weight (kg):5000Certification:Chief Executive
Core components:Motor, PLCSupply capacity:50 units per month
Main selling point:energy savingApplicable industries:Food and Beverage Factory
Station No:3 stopsplace of origin; place of origin:Guangdong, China
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGramapplication:bottle
Packaging Details:Plastic woven filmWarranty:1 year
Operating mode:Single-stagePlastic Processing:Personal computer, PCTG

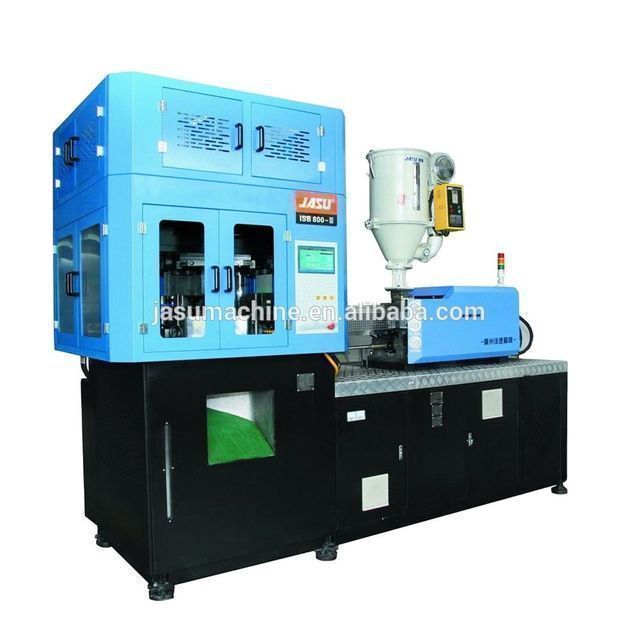

JASU Injection Stretch Blow Molding Machine ISBM

JASU one-step blow molding machine includes

Injection blow molding machines and injection stretch blow molding machines.

These machines are three stations, injection preform, blow/stretch blow and product release. The raw material is injected from the hopper to the injection screw to inject the preform; the plate is heated by itself to rotate the preform to the blow/stretch blow station without reheating for blow molding,
Then the product will be rotated to the release station and lowered, it is a fully automatic cycle rotation working mode.

Compared with the traditional blow molding machine, the JASU one-step blow molding machine has many advantages. First, there is no need for reheating. The preform itself is heated during injection blowing, which is very energy-saving and shortens the molding time. The step-by-step bottle blowing machine transfer process avoids the pollution caused by the transfer process, especially for medicine and food containers, saves labor and transfer costs, reduces production costs, and improves product competitiveness.

Models ISB800-3 and ISB800A-3 (larger size)

Suitable for PC, PS, PMMA shades, LED shades, Christmas flashlights, garden and street lights.
Suitable for PET high transparency, much thinner wall, cosmetic bottle 10ml to 500ml, PET wide neck can, PET medicine bottle
Suitable for PP high transparency, baby bottle, sports bottle
Suitable for PCTG, Tritan drinking water bottles, sports bottles.

Moulds and moulds, we have our own mould workshop, advanced CNC machines and intelligent design engineers, we can handle products of different materials and sizes from different customers all over the world.

Auxiliary machine, we will equip you with the necessary high-quality auxiliary machine to ensure the smooth progress of the production plan, we can provide you with one-stop service.

Model

International Bureau of Standards 800-3
injection model
Screw diameter 40mm
Screw aspect ratio 20.5:1
Screw speed 0-190RPM
Theoretical injection capacity 238cm3
injection pressure 174Mpa
maximum. hydraulic 140 kg/cm
Actual injection volume (PS): 225g(ps)/8Oz
Screw stroke: 190mm
clamping part
Blow clamping force: 80Kn
Fixture Tonnage: 400Kn
Wheel diameter: 800mm
maximum. Bottle height: ISB:145/IB:140
Turn on vertical mode travel: 430mm
other
maximum. Pump pressure: 16Mpa
Oil: 18.5Kw
electricity: 12.2Kw
tank: 400L
Dimensions (L*W*H): 3.8m*1.45m*3.0m
weight: 5000kg

If you are interested in our products
Click here to send us a message Send an inquiry >>>
We have someone tell you about solution products

With the increasing requirements for high quality and elegant appearance in the packaging fields of food, beverages, cosmetics, etc., the plastic containers produced by the old-fashioned extrusion blow molding machine can no longer meet the needs of customers. However, with a one-step injection stretch blow molding machine, the process from raw material to product is completed in one step. The entire process includes preform injection, stretch blowing and demolding. No trim, no runner gate material, but perfect neck, bottom and lines, higher transparency, higher rigidity. Thin-walled stretch blow molded products save material.

One-step injection stretch-blow molding machines complete high-speed molding without reheating the preform. Utilize the heat from the preform injection to stretching and blow molding, no reheating is required, and the preform cooling time is shortened to save energy.

The one-step injection stretch blow molding machine optimizes the working structure, eliminates the unfavorable factors of molding, cuts off the complicated process, makes the molding more reliable, and improves the scrap rate.

One-step injection stretch blow molding machine reduces conveying costs and avoids secondary pollution, especially for food and pharmaceutical companies. Take the 19g 500ML bottle as an example, if you use a 1m³ trunk, you can hold 1024 bottles, or 9280 preforms, but if you use raw materials, you can produce 56421 bottles. The material logistics cost is 98.2% lower than that of the transfer bottle; compared with the cost of the transfer preform, the cost can be reduced by 83.6%.

Compare with one-step and two-step methods:



forming process structure Manpower/Energy/Space product quality
step From prefab to product a machine small Not affected by moisture, less pollution; various shapes
two steps Injection and blow molding are two separate processes

1. Injection molding machine

2. Preform conveyor

3. Reheating, stretching, demoulding machine

more susceptible to moisture and contamination; single shape



The advantages of JASU one-step injection stretch blow molding machine model ISB800-3/ISB800A-3 are as follows:

1. Wheel rotation is driven by electric servo motor, not hydraulically driven.
2. Fully automatic control system, easy to operate.
3. The temperature of barrel and hot runner is precisely controlled by PIT.
4. More cost savings than traditional machines.
5. Compact structure; less space required.
6. Injection molding:
Hot runner and temperature controls are standard. Change molds only for making new products;
Stretch Strike:
Standard configuration hydraulic mold clamping, core insert, stretch blow, bottom mold;
product release:
Comes with standard injectors.

Guangzhou Jiasu Machinery Co., Ltd. has been researching, designing and manufacturing blow molding machines since 1989. Specializing in the manufacture of one-step blow molding machines and injection stretch blow molding machines. Our solutions for high-quality, high-precision plastic containers at low cost and low energy consumption have attracted the attention of the market.

More than 100 employees and 30 professional technicians are dedicated to the JASU® brand series of machines, and our R&D department is dedicated to the continuous development of new blow molding technologies. We have set up 30 representative offices and a 24-hour maintenance service network across the country.

JASU® has established a high reputation among domestic and foreign customers, especially overseas customers in Southeast Asia, Middle East, Africa, Europe, South America and so on. At the end of 2014, exports accounted for 60% of annual sales.

Located in the Pearl River Delta region, close to ship ports and air freight services, especially close to Hong Kong Airport, we have the competitive advantage of a fast delivery system and a centralized supply chain center. We sincerely invite trading partners and import buyers to visit our showroom and workshop to discuss possible cooperation.

Q1: Are all your products made by yourself or compacted by purchasing other products?
A1: We have an independent technical team that focuses on manufacturing machines; all products are manufactured by our technical team.

Q2: What is the capacity of your factory?
A2: Regarding blow molding machines, we can produce 15 machines per month

Q3: Do you have technical support for your products?
A3: We have a long-term cooperation with Germany, and we have a lot of cooperation with many advanced manufacturing companies in the world.

Q4: Do your products have other services?
A4: We have extensive experience in making complete "turnkey" projects and specifications for our clients. We also have a fixed service system

Q5: How do you quote for customers?
A5: The price depends on the quality and performance, but the customer should make us satisfied first
