Machine for making 10 ml dropper bottles

Click here to contact

Product details

Origin:	Jiangsu, China	Power (kW):	twenty two
Video outbound inspection:	if	Core components:	Gearboxes, pressure vessels, pumps, gears, bearings, engines, motors, PLCs
Showroom location:	Bangladesh, Ukraine	Blow molding type:	injection blow molding
brand:	Shen Zhou	Weight (kg):	4000
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Main selling points:	High security level
Packaging Details:	wood packaging or as a customer	automation:	automatic
Bottle size:	2ml to 1000ml	Applicable industries:	Energy and Mining, Restaurants, Machine Repair Shops, Manufacturing Plants, Building Materials Stores, Food and Beverage Stores, Print Shops
Marketing Type:	2020 new products	Post-warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Voltage:	220V/380V/400	Mechanical test report:	if
Warranty:	two years	Dimensions (LWH):	310012002200
Volume of hollow parts:	10ml	Health status:	new
Supply capacity:	50 sets per month	Plastic processing:	polyvinyl alcohol
port:	Shanghai	Certification:	TUV CE ISO
Name:	Injection blow molding machine	Core component warranty:	1 year
After-sales service provided:	Engineers available to repair machinery overseas	Bottle material:	PP LDPE HDPE PETG
application:	bottle	automatic:	Yes
Local service locations:	United States, Peru, Pakistan, India, Russia, Romania, Bangladesh, Ukraine, Nigeria, Uzbekistan

HDPE/LDPE/PP bottle injection machine IBM35

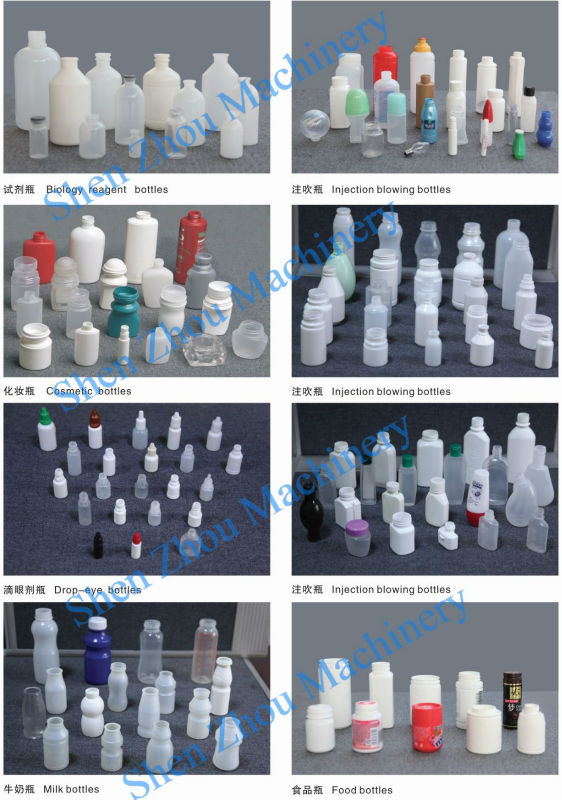

bottle sample

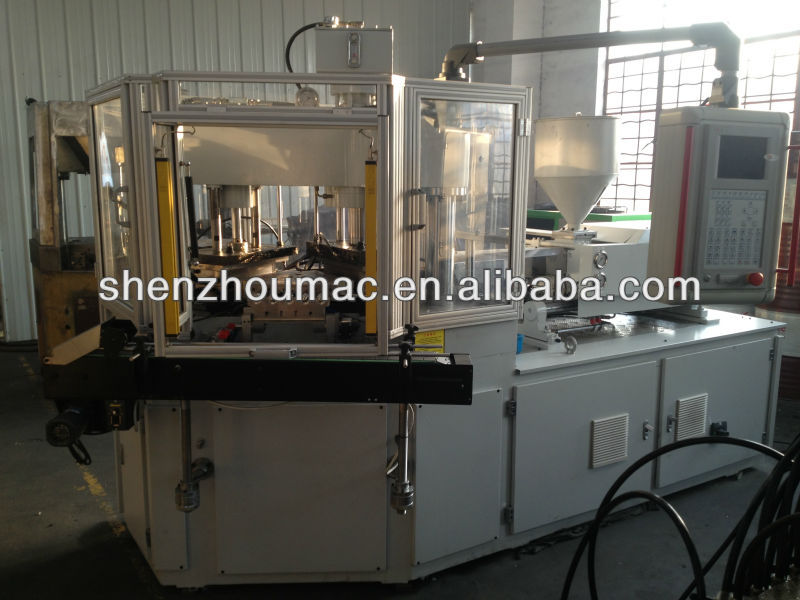

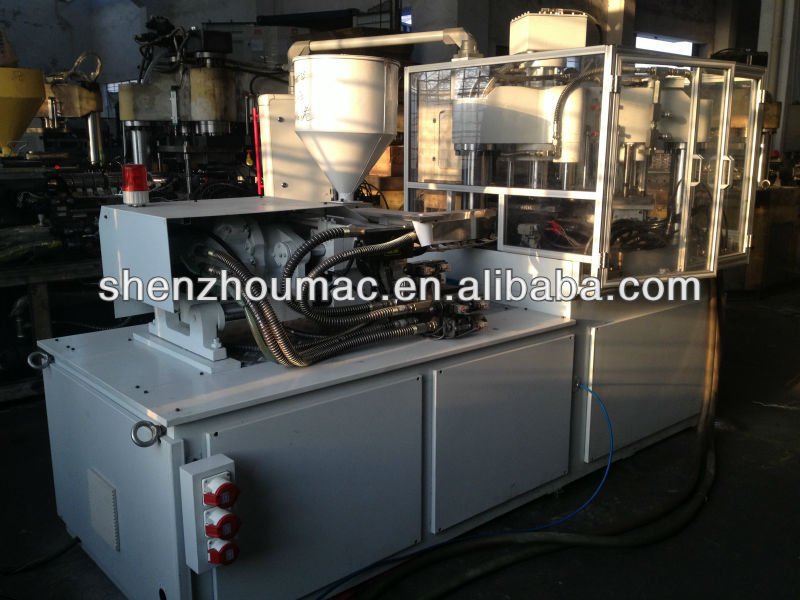

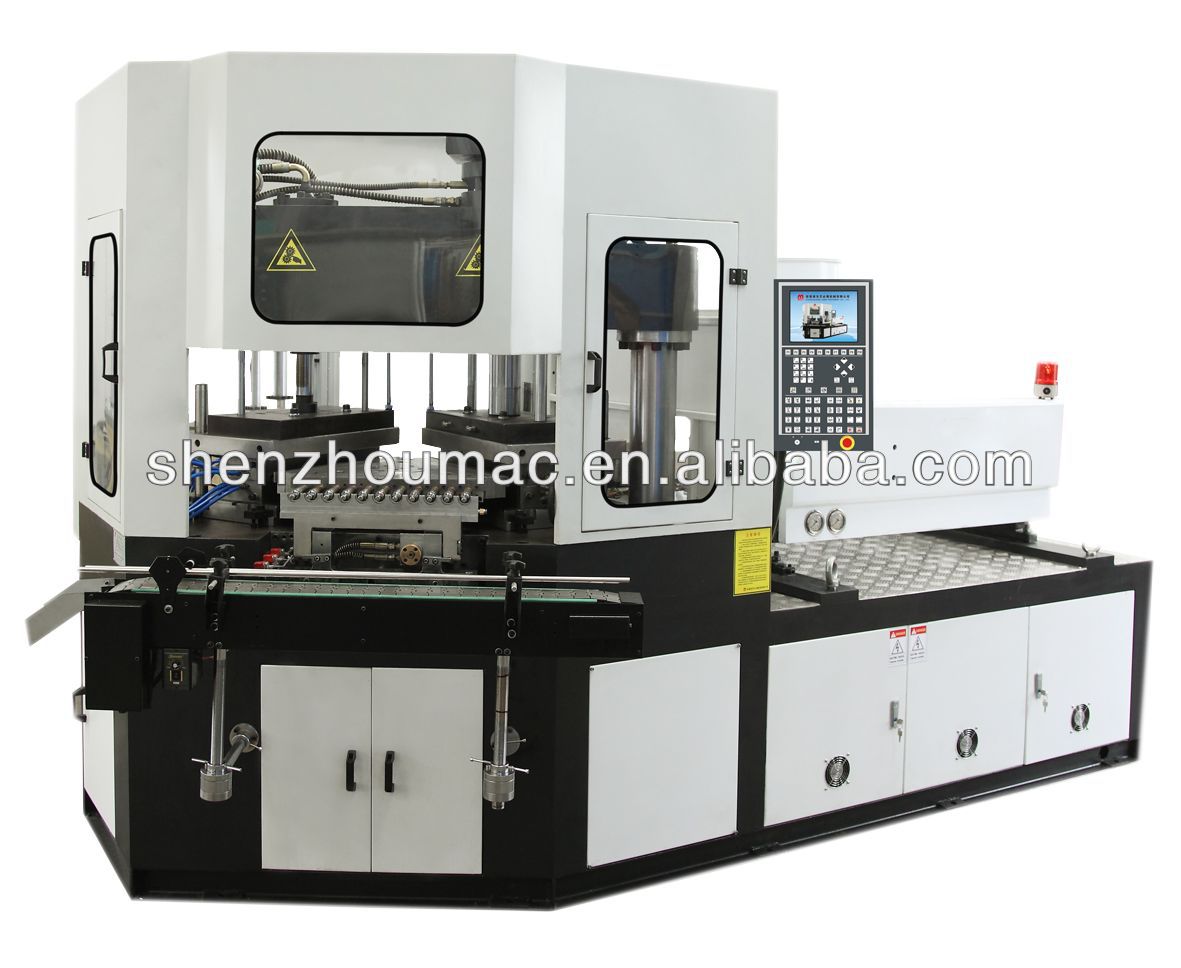

Machine photos:

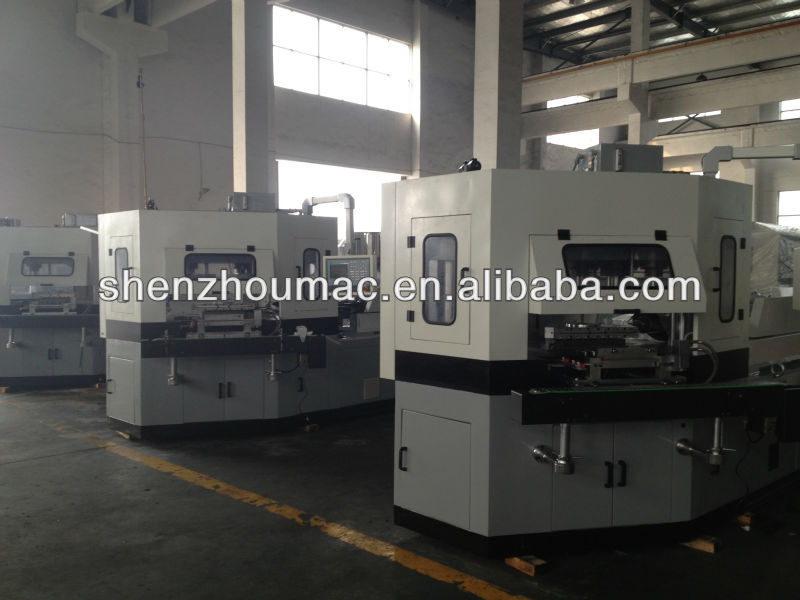

Machines in our workshop:

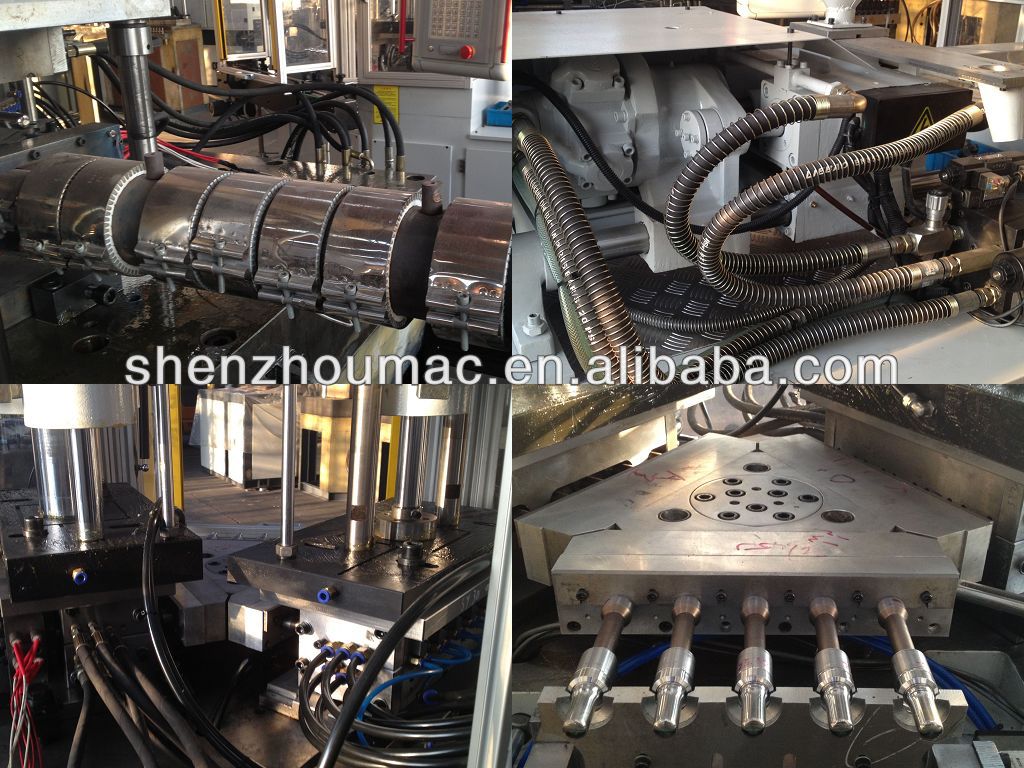

Machine parts:

Machine specifications:

No	thing	unit	IBM35
1	Screw diameter	mm	40
2	Injection weight	G	176
3	Heating capacity	kilowatt	7.2
4	Electric heating control area	quantity	3
5	Injection clamping force	KN	350
6	Impact clamping force	KN	40
7	Template mold opening stroke	mm	120
8	Injector stroke	mm	220
9	maximum. Mold plate size (length*width)	mm	420*340
10	minute. diameter. Thickness (height)	mm	180
11	Motor Power	kilowatt	15/11
12	Mold heating capacity	kilowatt	2.8
13	Hydraulic system pressure	Association for Public Administration	14
14	minute. Compressed air working pressure	Association for Public Administration	0.8
15	Compressed air discharge	Medium³/minute	≥0.7
16	Cooling water consumption	cubic meters/hour	3
number 17	Machine size (lengthwidthheight)	mm	310012002200
18	Machine weight	time	3.0
No. 19	Applicable bottle type range	machine learning	3-600
20	maximum. bottle height	mm	≤175
twenty one	maximum. diameter. Bottle	mm	≤80
twenty two	total power	kilowatt	201/25

For more details, please feel free to contact us, welcome!
