Plastic Bottle Blow Molding Machine Injection Molding Machine Plastic Bottle Making Machine
- 10000.00 set
| Applicable industries: | manufacturing plant | port: | Qingdao Port |
| Power (kW): | 10 | Weight (kg): | 9000 |
| automation: | automatic | Applicable bottle: | 100-2000ml |
| After-sales service provided: | Engineers available to service machinery overseas | Origin: | Shandong China |
| Warranty: | 12 months | Plastic processing: | polyethylene |
| Blow molding type: | injection blow molding | Year: | 2021 |
| Health status: | new | payment terms: | L/C, T/T |
| Main selling points: | easy to operate | Hollow part volume: | 1000 |
| Package preview: | product name: | Automatic Blow Molding Machine | |
| use: | Making PET bottles | Video shipment inspection: | if |
| Packaging Details: | Film packaging or according to customer requirements | capacity: | 2000 bottles/hour |
| color: | customer acquisition | Supply capacity: | 1000 sets per year |
| Mechanical test report: | if | Showroom location: | not any |
| Key words: | Automatic Extrusion Blow Molding Machine | Core component warranty: | 1 year |
| application: | bottle | type: | Packaging line |
| Type of machine: | High speed plastic bottle making machine | brand: | Lian Gong |
| Voltage: | 380V | Core components: | engine |
| Dimensions (L*W*H): | 5.9*3.4*3.9m | Material: | High Density Polyethylene Low Density Polyethylene Linear Low Density Polyethylene |
blow molding machine

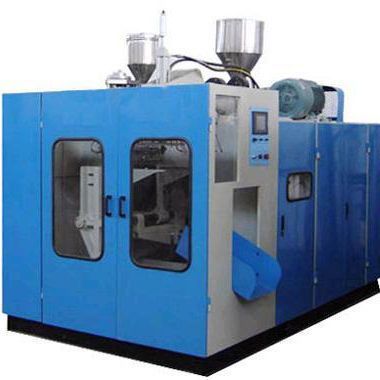

Fully automatic plastic blow molding machine below 1L
Performance and features: computer control, frequency conversion speed regulation. Nitride screw cylinder head is equipped with agitation. With coating head, it produces double-layer plastic barrels (bottles).
It can be equipped with a transparent liquid level line. If it is monochrome, two or four bottles can be produced in one mode. Production capacity, 180-240 molds/hour
application:

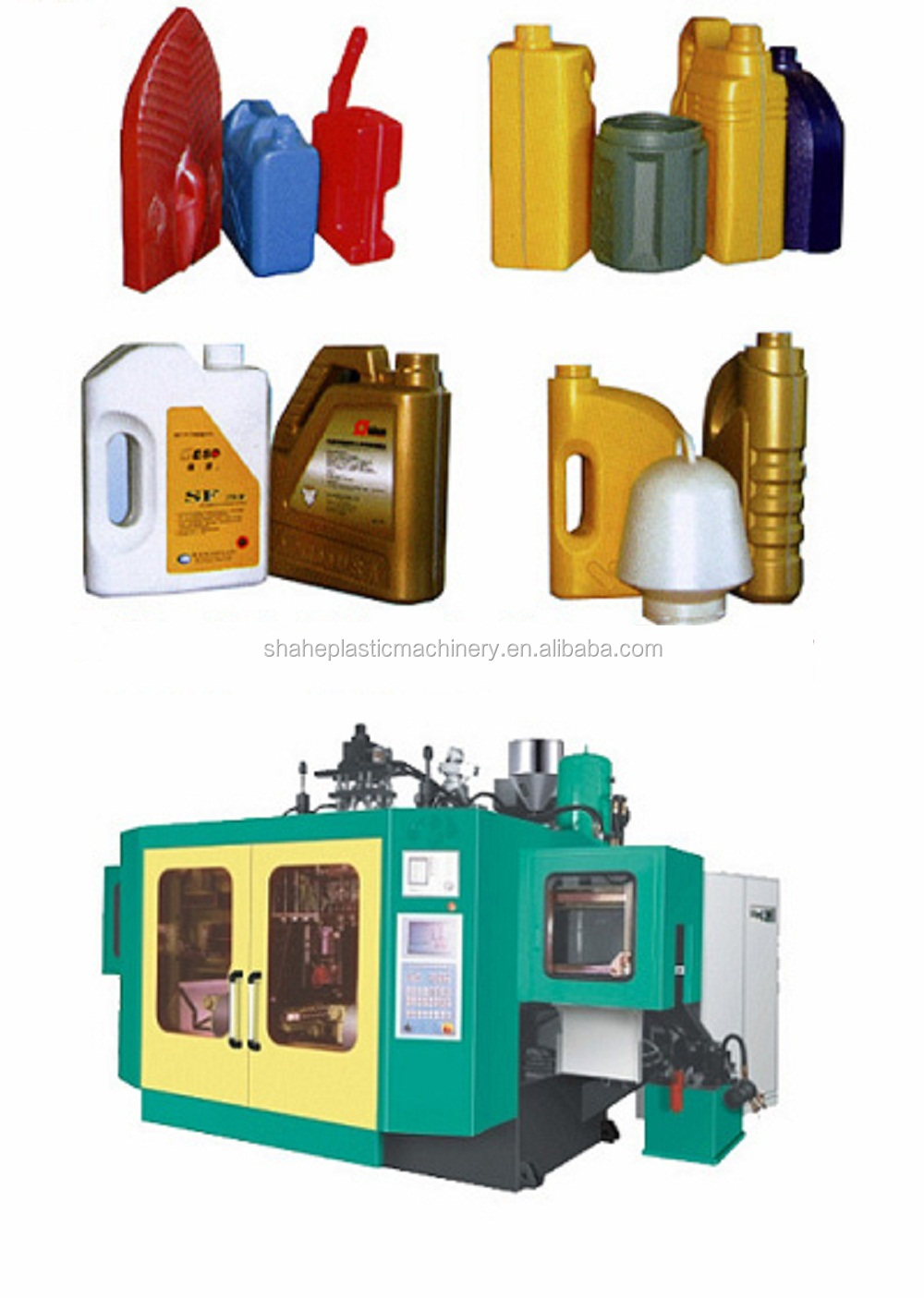

All kinds of oil bottles, feeding bottles, beverage bottles and baby feeding bottles below 1L.
Technical Parameters:
|
Large volume blow molding most |
1 Litre |
|
Template size (W×H |
300×200mm |
|
clamping force |
20KN |
|
Min Mold Thickness |
100mm |
|
maximum. space between platens |
300mm |
|
Host screw diameter |
45mm |
|
Screw aspect ratio |
251 |
|
A pair of machine screw diameter |
25mm |
|
Screw aspect ratio |
301 |
|
Liquid level screw diameter |
25mm |
|
Screw aspect ratio |
251 |
|
Screw speed |
20-60rpm |
|
maximum. Plasticizing ability (PE) |
25 kg |
|
Motor Power |
5.5KW |
|
Extruder driving power |
4KW |
|
heating power |
10KW |
|
Number of buckets |
9 |
|
Machine weight (T) |
2200 kg |
|
Mold outer dimension L×W×H |
2×1.2×2 meters |
Laizhou Liangong Machinery Co., Ltd. is a professional plastic machine manufacturer. Has 18 years of experience in plastic machine manufacturing and exporting. Our plastic machinery manufacturing technology is advanced, with a high degree of automation, high efficiency and energy saving. The products are well received and praised by customers, and are exported to many regions of the world, especially Southeast Asia, Europe and Africa.
If you want to know more about our plastic machinery, please feel free to contact me!
Packaging details: film packaging or according to customer requirements
Delivery Details: 30 days depends on machine model and configuration
-install service
Provide installation services to ensure the safety of the machine.
-Technical know-how
Provides rope making know-how from start to finish for the convenience of customers.
-Customer training
Train your staff on how to use machines properly and how to maintain optimal operational efficiency.
- After-sales service
Provide preventive maintenance and after-sales service.
