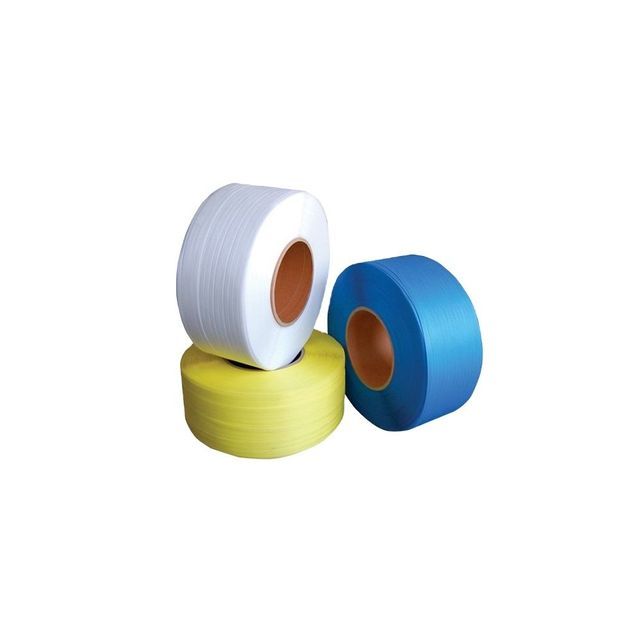

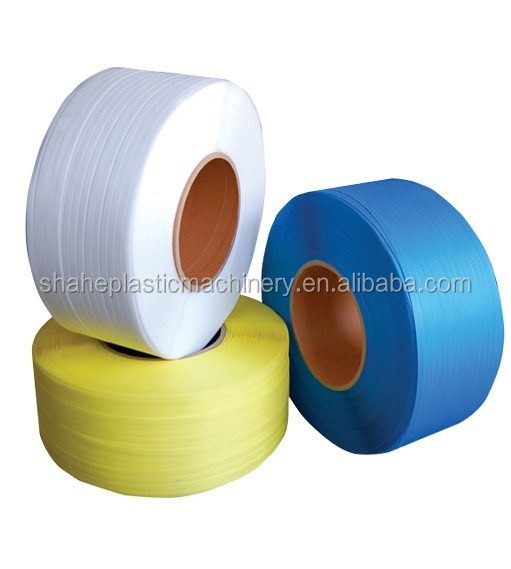

Full Automatic PP Strap Belt Making Machine Belt Roll Making Machine

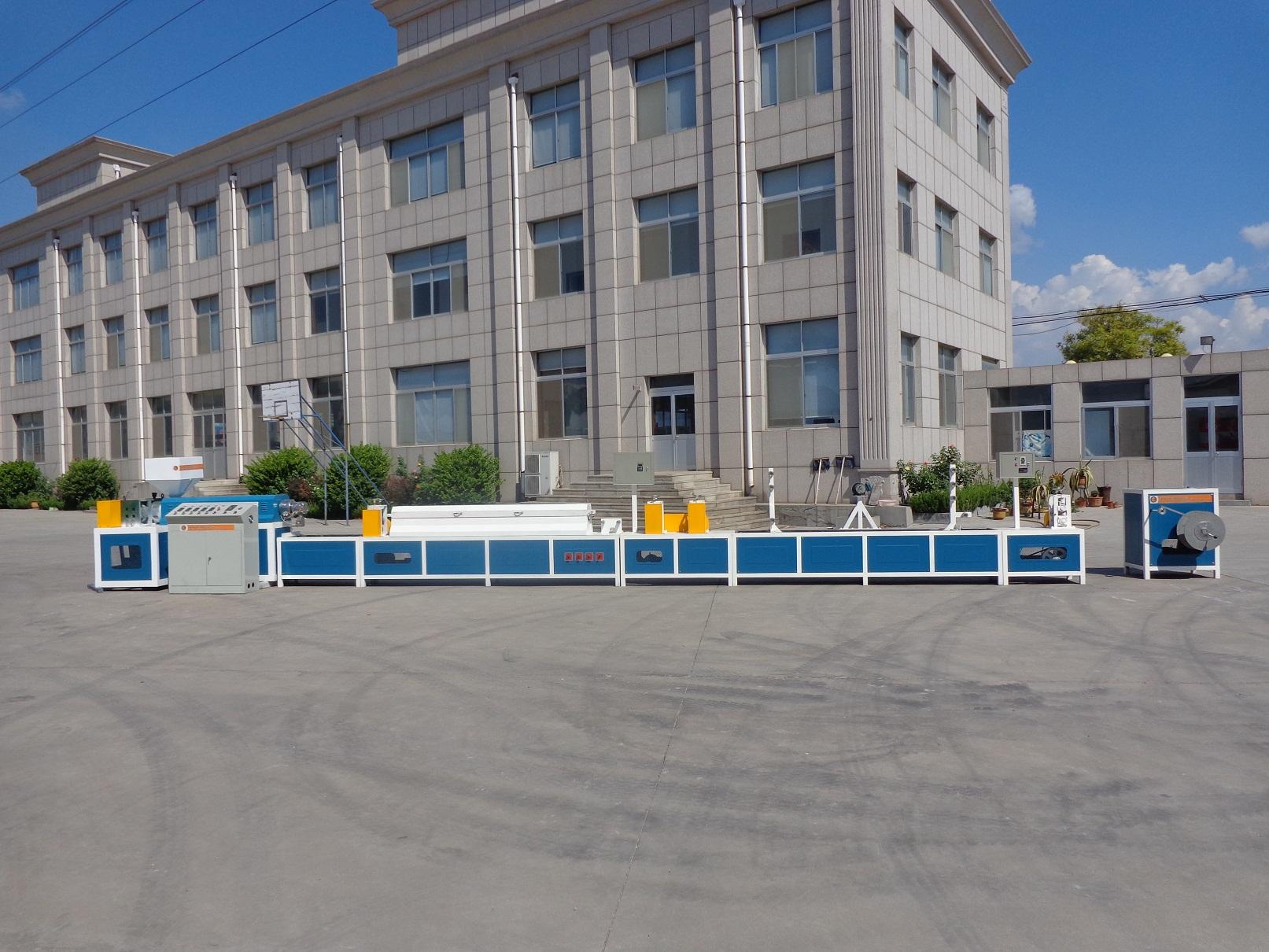

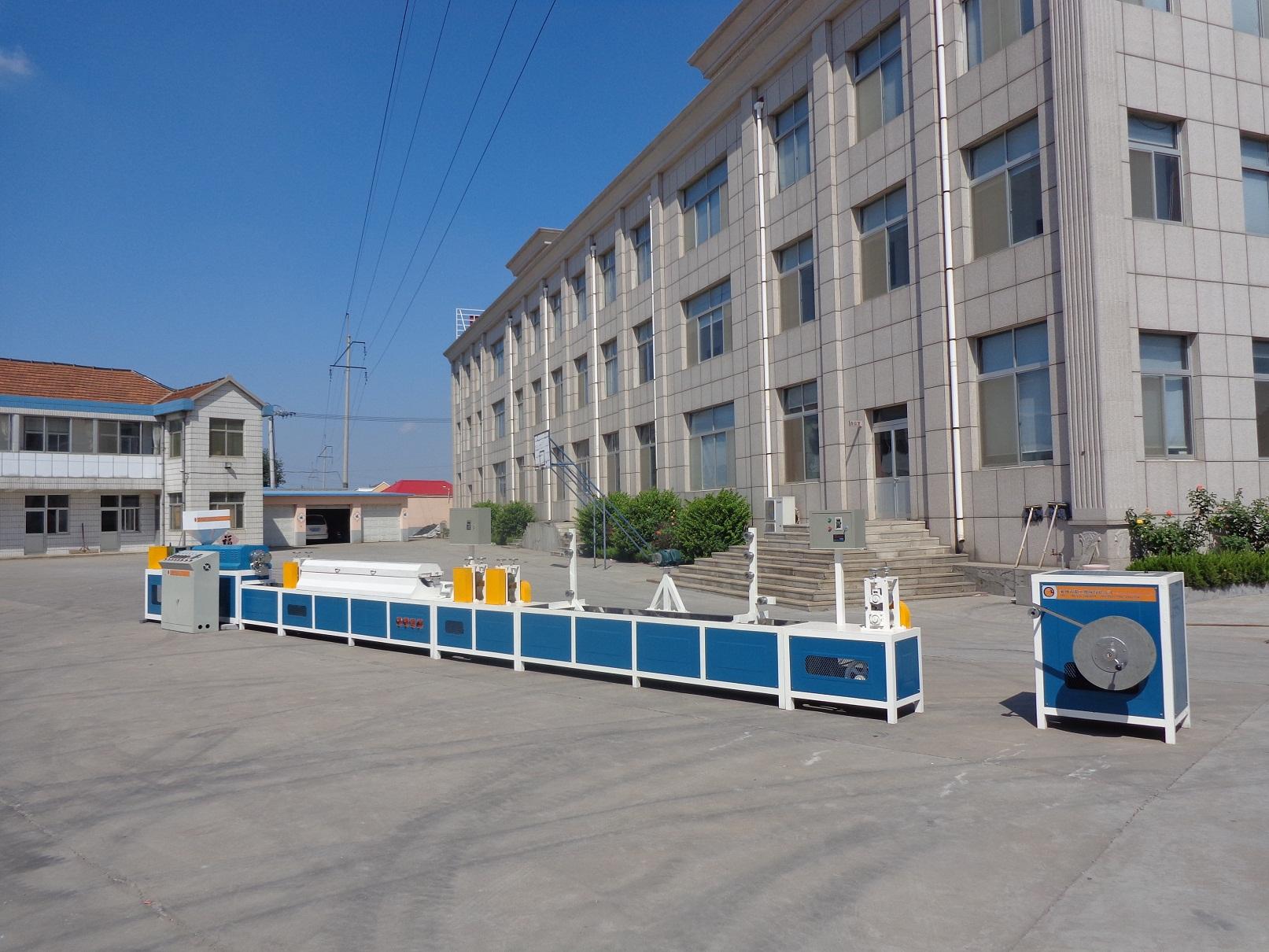

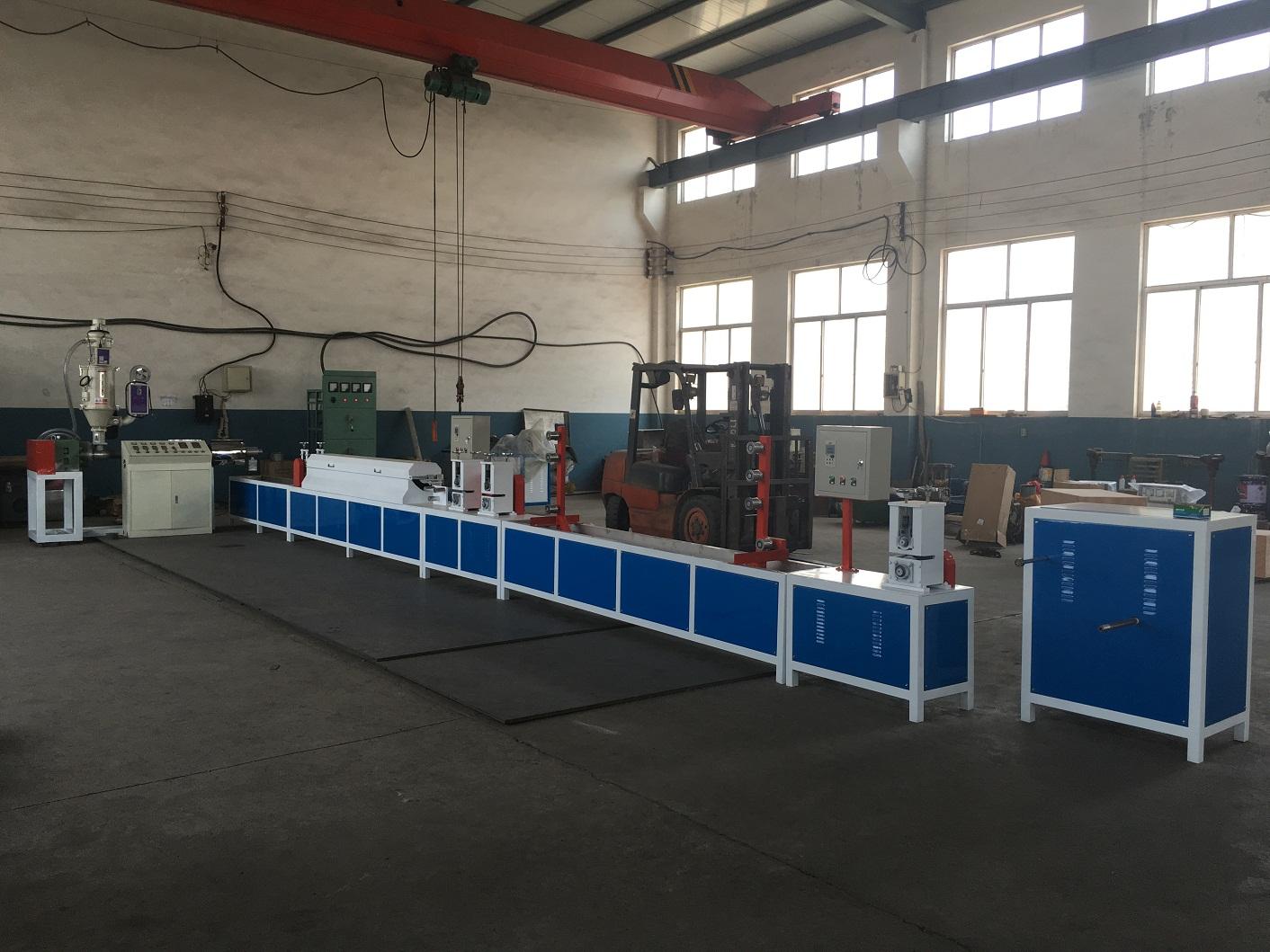

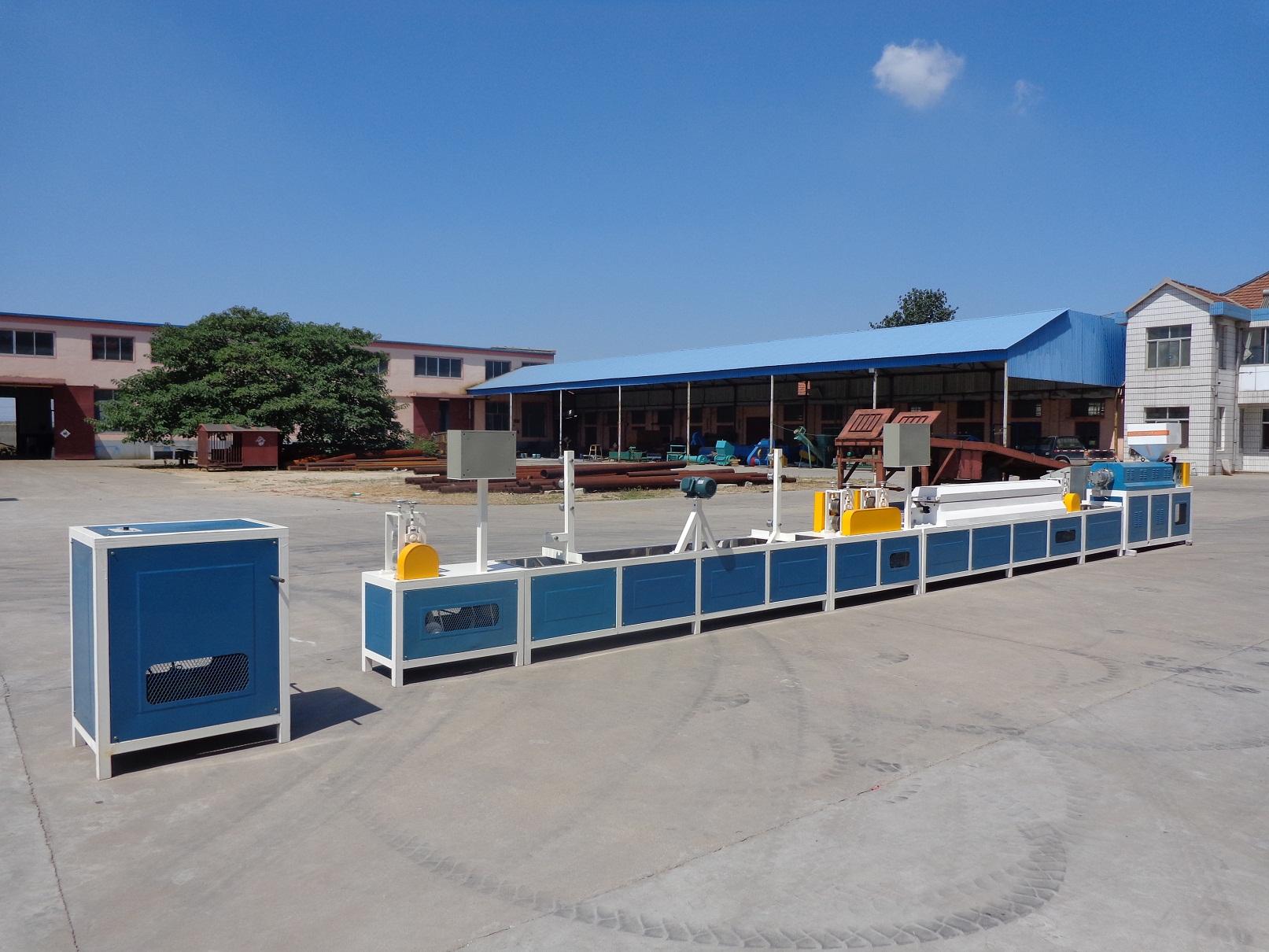

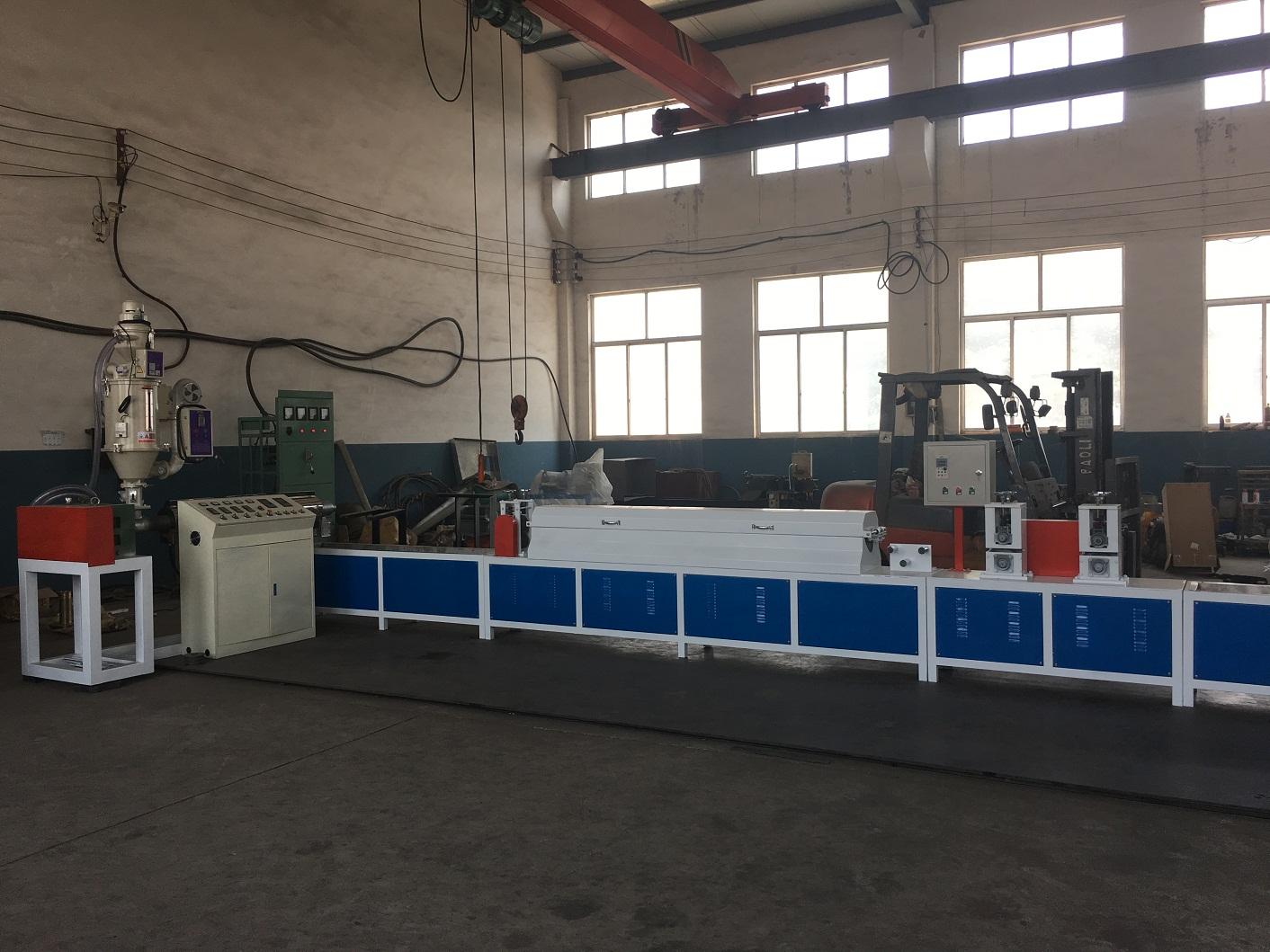

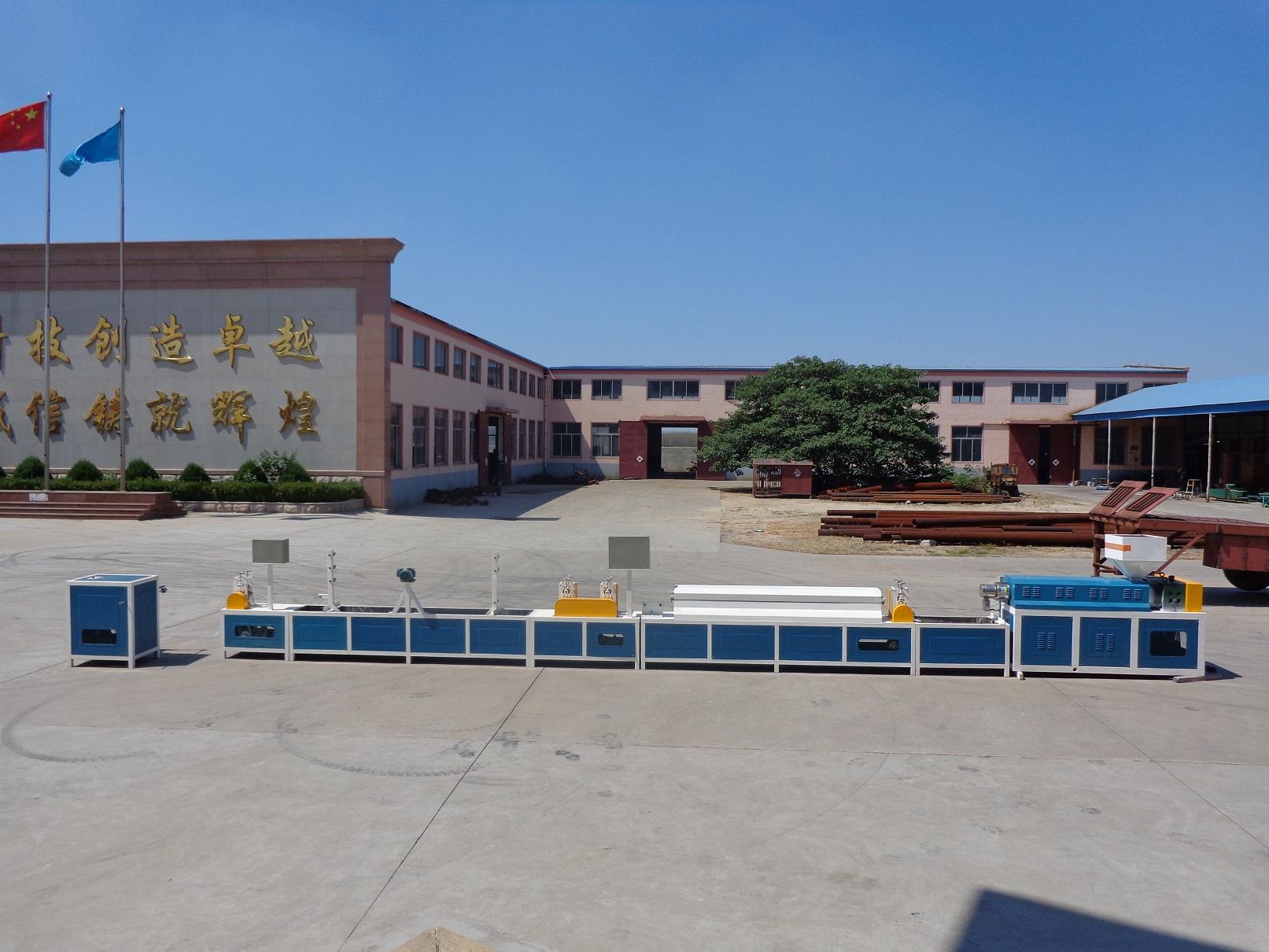

LGSJ-DBD-65 PP packing belt production line

1. LGSJ65/28 extruder
Center height 1000mm
Screw speed 0~70r/min
1.1 Gearbox
Harden Gear Jiangsu International
Reducer model ZLYJ173
1.2 Screw barrel parameters
Screw diameter Φ65mm
Length to diameter ratio 28/1
Screw and barrel material 38CrMoAlA
Mixed screw structure
heat treatment nitriding treatment
Surface hardness HV940~1050
Nitriding depth 0.6~0.7mm
1.3 Heating and cooling parameters of screw tube
Screw tube heating infrared heat exchanger 3 sections 15KW
1.4 Main motor parameters
Speed ​​regulation mode frequency conversion speed regulation
Motor power 15kw
1.5 Electrical Control
CHINT
Chint low voltage electrical appliances
2. Extrusion die
Standing mold 60mm
Heating power 1.5kw
3. Cooling box
Material: Stainless steel
Size 1000*300*300mm(H*W*H)
4. Pull first
Drum specification φ130*100
Transmission Type Chain Drive
Drive motor 0.75Kw three-phase asynchronous motor
Speed ​​regulation mode frequency conversion speed regulation
String speed 0~25m/min
5. Stretching oven
Length 2.3M (push-pull)
Temperature Control Solid Regulated Temperature Control
6. Embossing tensile machine
Drum specification φ150*100
Transmission Type Chain Drive
Drive motor 3Kw three-phase asynchronous motor
Speed ​​regulation mode frequency conversion speed regulation
String speed 0~100m/min
7. Cooling box
Material: Stainless steel
Size 3000*300*300mm(L*W*H)
8. The third pull
Drum specification φ150*100
Transmission Type Chain Drive
Drive motor 0.75Kw three-phase asynchronous motor
Speed ​​regulation mode frequency conversion speed regulation
String speed 0~100m/min
9. Winding
Drive motor 6-6N torque motor
Speed ​​regulation mode Electronic speed regulation
Paper tube specification φ200 paper core support ring
Rewinding width 9-19mm
10. Summary
Output 30~50Kg/h
