JASU ppsu baby bottle making machine for sale

Product details
Port:GUANGZHOU, SHENZHEN;Application:BULB, LIGHT COVER, LAMPSHADE, BALL;
Automation:Automatic;After Warranty Service:Video technical support,Online support;
Material:PET;Marketing Type:Hot Product 2019;
Local Service Location:None;Weight:5TONS;
Showroom Location:None;Brand Name:JASU;
Machinery Test Report:Provided;Station No:3-station;
Year:2020;Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram;
Power:18.5KW;Key Selling Points:Energy saving;
Plastic Processed:PET;Automatic:yes;
Core Components:PLC,Motor;Hollow part volume:NONE;
Packaging Detail:plastic injection machine:PLASTIC WOVEN FILM;Warranty of core components:1 Year;
Machine:plastic bottle making machine;PC material:Diffused;
Warranty:1YEAR;Blow Moulding Type:Injection Blow Moulding;
Dimension(L*W*H):3.8X1.5X3.2M;Blow:Injection Blow;
Supply Ability:50 Unit/Units per Month plastic bottle making machine;After-sales Service Provided:Engineers available to service machinery overseas;
Cavity No:8-cavity;Applicable Industries:Food & Beverage Factory,Other;
Working Mode:one step;Voltage:380V 50HZ;
Condition:New;Place of Origin:Guangdong China;
Video outgoing-inspection:Provided;Certification:CE;

JASU ppsu baby bottle making machine for sale

JASU plastic bottle making machine include

Injection blow molding machine and injection stretch blow molding machine.

The machines are three stations, injection preform, blow/stretch blow and product release. The raw material comes from the hopper to the injection screw to inject preform; the plate rotates preforms to blow/stretch blow station with themselves heat, without any reheating for blowing,
Then the product will rotate to release station and drop down, it is fully automatically cycle rotation working mode.

Comparing the traditional blow machine, JASU plastic bottle making machine possess lots of advantages, first,no needreheating, with the preforms themselves heating when injection to blow,highly save energy and shorten molding time, more importance is that one step machines have cut off the transfer process from two step blow machine, avoidcontamination causing by transfer process, especially for Pharmaceutical and food containers,save labor force andtransfer cost,decrease the production cost and increase product competitive power.

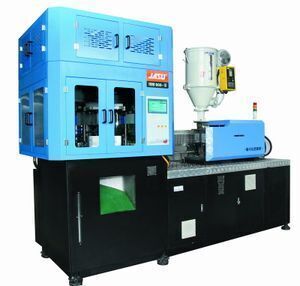

Model ISB800-3 and ISB800A-3 (larger size)

For PC, PS,PMMA lamp cover, LED light lampshade,Christmas flash light, garden and street light.
For PET high transparent,much thinner wall, cosmetic bottle 10ml to 500ml, PET wide neck jar, PET pharmaceutical bottle
For PP high transparent, baby feeding bottle, sport bottle
For PCTG, Tritan drinking water bottle, sport bottle.

Mould and tooling, we have mould workshop ourselves, advanced CNC machine and smart design engineers,we can treat different material and size products from different customers over the world.

Auxiliary machine,we will equip you with the necessary quality auxiliary machines to ensure the production plan running well,we can supply you one-stop service.

Model

ISB 800-3
Injection Part
Screw Diameter 40mm
Screw L/D Ratio 20.5:1
Screw Speed 0-190RPM
Theoretical Injection Capacity 238cm3
Injection Pressure 174Mpa
Max. Hydraulic Pressure 140Kg/cm
The Actual Injection Quantity(PS): 225g(ps)/8Oz
Screw Stroke: 190Mm
Clamping Part
Blow Clamping Force: 80Kn
Clamp Tonnage: 400Kn
Wheel Diameter: 800mm
Max. Height of Bottle: ISB:145/IB:140
Open Vertical Mode Trip: 430mm
Others
Max. Pump Pressure: 16Mpa
Motor Oil: 18.5Kw
Electric Power: 12.2Kw
Oil Tank: 400L
Overall Dimension(L*W*H): 3.8m*1.45m*3.0m
Weight: 5000kg

If you are interested in our products
Click here to send us a message Send Inquiry >>>
We have someone who tell you Solutions Products

With the increasing requirement of high quality and elegant appearance in the packing field of food, beverage, and cosmetic, the plastic containersmade by the old style extrusion blowing machine cannot meet the customer’s demand any more. However, by one step injection stretch blow molding machine, from the raw material to productis processed by one step.The whole process includes preform injection,stretch blow and release. No trimmings, No runner gate material, but perfect neck, bottom and line, higher transparent, higher rigid. Stretch-blowing molding products come with thinner wall andsave more material.

plastic bottle making machine completes a high speed molding without preform reheated. With the heat from preform injection to stretch and blow, unnecessary reheating and shorten preform cooling time to save energy.

plastic bottle making machine optimizes the working structure, removes molding disadvantage factor, cuts off the complicated working procedure to ensure molding more reliable and increase the reject rate.

plastic bottle making machine decrease the convey cost and avoid the second contamination, special for food and pharmaceutical company. For example, to transit the 19g 500ML bottle, if the 1m³trunk used, it can load 1024 bottles, or 9280 preform, but if by the raw material that can produce 56421 bottles. The logistic cost of material comparing with transiting bottles can be reduced by 98.2%; Comparing with the cost of transiting preform, the cost can be reduced by 83.6%.

Compare with One-step and Two-step:



+
Molding Process Structure Manpower/Energy/Space Product Quality
One-step From preform to product One machine Little Not affect by damp and less pollution; Various kinds of shape
Two-step Injection and blow molding are two separated process

1.Injection molding machine

2.Preform transiting machine

3.Reheating, stretch and off-moulding machine

More Easy affect by damp and polluted; Singleness shape



JASU plastic bottle making machine Model ISB800-3/ISB800A-3 advantages are as follows:

1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating.
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed.
6. Injection:
   Hot runner and temperature control device are standard configuration. Only change mold for making a new product;
   Stretch Blow:
   Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;
   Product Release:
   Equipped with a standard ejector.

GUANGZHOU JASU MACHINE CO., LTD researched, designed and manufactured BLOW MACHINES since 1989. Specialize in manufacturing one step INJECION BLOW MOULDING MACHINE and INJECTION STRETCH BLOW MOLDING MACHINE. Attracting the market’s concern for the solutions we supplied to the high quality, high precision plastic containers with low cost and low energy consumption.

More than 100 employees and 30 professional technicians dedicate themselves to JASU® brand series machines, our R&D department devotes to constantly developing new blow technology. We have set up 30 representative offices and 24hours maintenance service network throughout China.

JASU® has established a high reputation from customers home and abroad, specially the oversea customers from Southeast Asia, Middle East, Africa, Europe, South America, etc. At the end of 2014, the export amount took up 60% of the yearly sales.

Located in Pearl River delta area, closed to vessel port and air transportation services, special near HONGKONG air port, we have the competitive advantage of a fast delivery system and centralized supply chain center. We sincerely wish to invite the trade partners and import buyers to visit our showroom, as well as the workshop, to discuss the possible cooperation.

Q1: All of your products are made by your self or compacted via purchasing the others?
A1: We have independent technical team who focus on making machines; all the products are made by our technical team.

Q2: What is the ability of your factory?
A2: About blow molding machine, we could produce 15sets machine per month

Q3: Do you have any technical supports about your products?
A3: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.

Q4: Do you have any other service about your products?
A4: We have a lot of experience on making complete “Turn-Key” projects and specifications for our clients. Also we have a fixed service system

Q5: How do you make the quotation for clients?
A5: The price depends on quality and performance but the clients should be satisfied us at first
