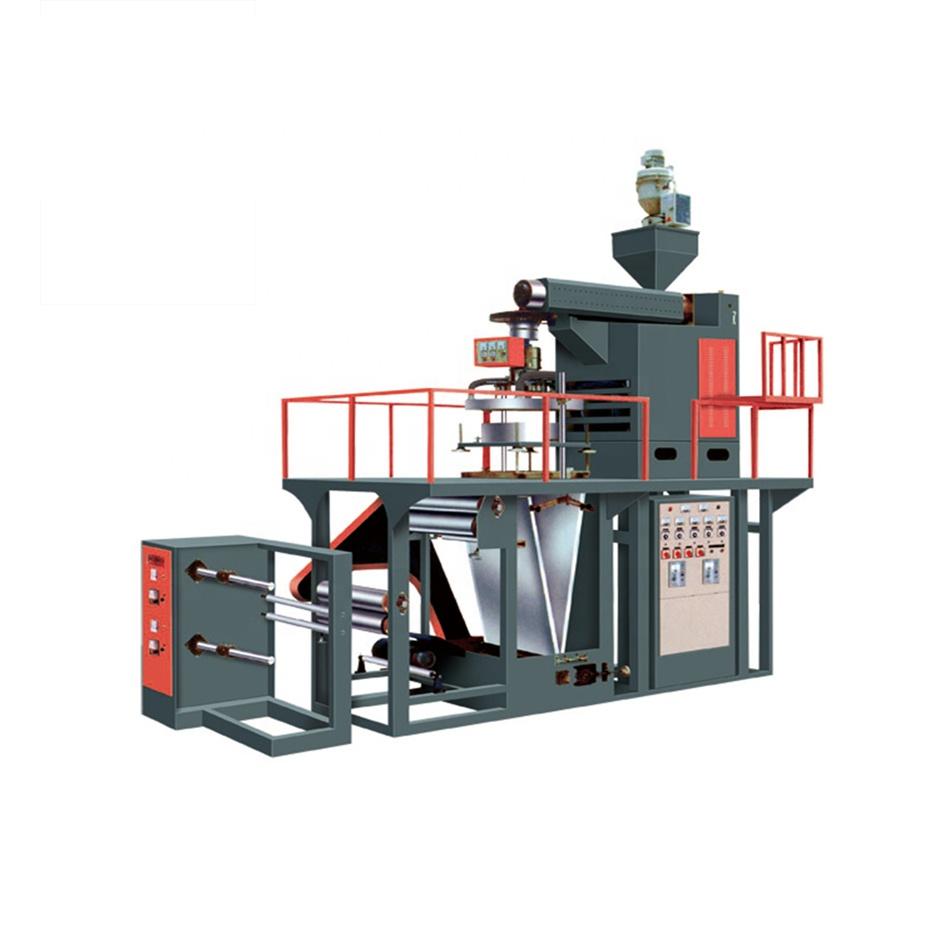

PP FILM BLOWING MACHINE
- 2000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Blow molding type: | extrusion blow molding | Winder: | Double rewinder |
| Video outbound inspection: | if | Dimensions (L*W*H): | 4.2*2.5*4.0m |
| Supply capacity: | 30 sets per month | brand: | Jiamao |
| Main selling points: | high productivity | Cooling type: | water cooling |
| Package preview: | Origin: | Zhejiang, China | |
| port: | Ningbo/Shanghai | Core components: | Gearbox, motor |
| weight: | 3000 | Packaging Details: | plastic film/wooden box |
| Warranty: | 1 year | Core component warranty: | 1 year |
| Die head: | Rotary die | Health status: | new |
| Voltage: | 220V/380V/410V | strength: | 35 kW |
| Marketing Type: | normal product | payment terms: | L/C, T/T |
| Air compressor: | 1 set | Year: | 2022 |
| Plastic processing: | Polypropylene | Applicable industries: | Manufacturing plants, food and beverage plants, farms, food stores, print shops, food and beverage stores |
| Showroom location: | not any | application: | Movie |
| Mechanical test report: | if |
Product Description
Specification
Model | SJ-55/FM600 |
Screw diameter | 55mm |
Screw ratio | Long diameter/diameter 28:1 |
Screw speed | 10-120 rpm |
main motor power | 15 kW |
Head rotation method | keep spinning |
maximum output | 35kg/hour |
Maximum folding width of film | 600 mm |
film thickness | 0.01-0.15 mm |
total power | 35 kW |
machine weight | 2900 kg |
Dimensions (L*W*H) | 4.2*2.5*4.0m |
Packaging and Shipping
plastic film/wooden box
