Automatic color registration gravure circular arc rotogravure printing machine

Supplier: Wenzhou Jiamao Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Monica Zhang
Price: $52000.00 /set
Min. Order: 1 set

Click here to contact

Product details

usage:	Receipt Printer, Card Printer, Cloth Printer, Label Printer, Paper Printer	port:	Ningbo/Shanghai port
payment terms:	L/C, D/P, T/T	Supply capacity:	20 sets per month
Warranty:	1 year	type:	Gravure printing machine
Voltage:	220V/380V/415V	Packaging Details:	plastic film
Product Keywords:	Automatic color gravure printing	Health status:	new
Automatic level:	automatic	Dimensions (LWH):	15.22.52.5m
motor:	Siemens/Made in China	Applicable industries:	Advertising agency, food and beverage factory, manufacturing factory, printing factory
place of origin; place of origin:	Zhejiang, China	Machine color:	According to customer requirements
Shipping Details:	Within 30 working days after receiving the deposit	change:	Made in Schneider/China
brand:	Jiamao brand	After-sales service provided:	On-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support, video technical support
Colors and Pages:	Polychromatic	Inverter:	Delta/Made in China
weight:	19 tons	Certification:	CE certification

Product Description

Automatic color registration gravure circular arc rotogravure printing machine

Product Details

machine color	According to customer requirements
motor	Siemens/Made in China
inverter	Delta/Made in China
change	Made in Schneider/China
Product Keywords	Automatic color gravure printing

feature:

1. This machine is suitable for BOPP, PET, PVC, PE, NY and paper, etc., for multi-color continuous printing on roll film and materials, with excellent printing performance.

2. Shaftless loading, printing speed 10-120 meters, mechanical speed 150 meters.

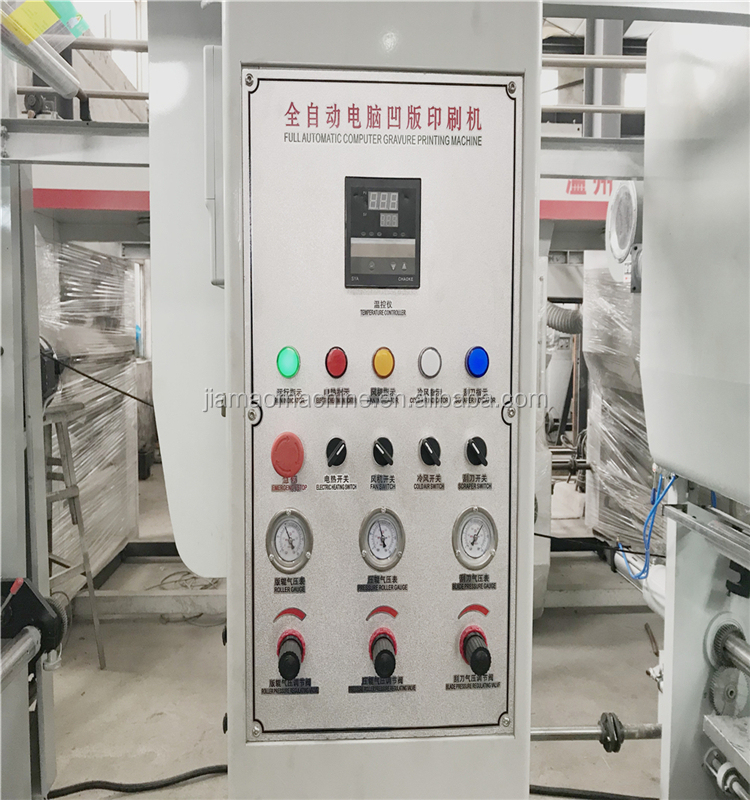

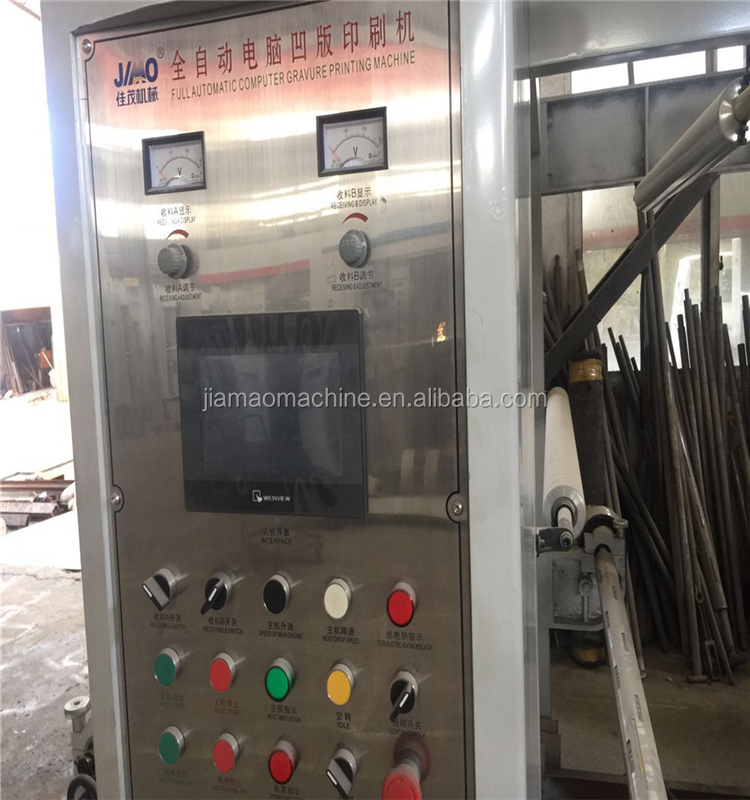

3. Automatic color registration system, each control unit is equipped with an independent computer processor, which can quickly and accurately correct color shift

4. The main engine is controlled by frequency conversion.

5. Unwinding tension is controlled by automatic constant tension controller and magnetic powder brake.

6. Rewinding tension is controlled by automatic constant tension controller and double torque motor, and automatic double station flip can realize non-stop charging.

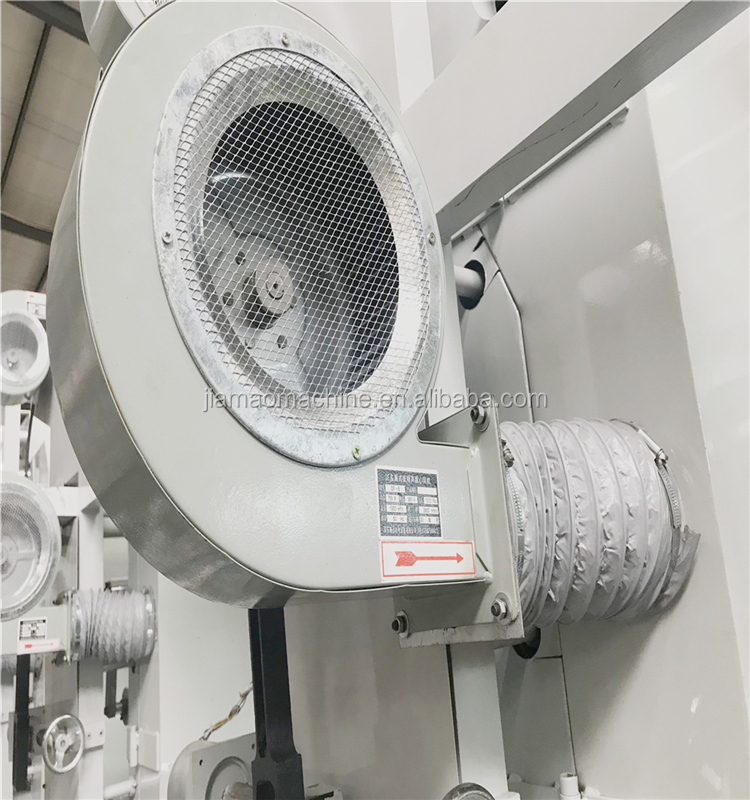

7. Independent external heating, closed-loop hot air drying, can save 30% of electricity. Independent cold air box for cooling.

8. Subsection heating system.

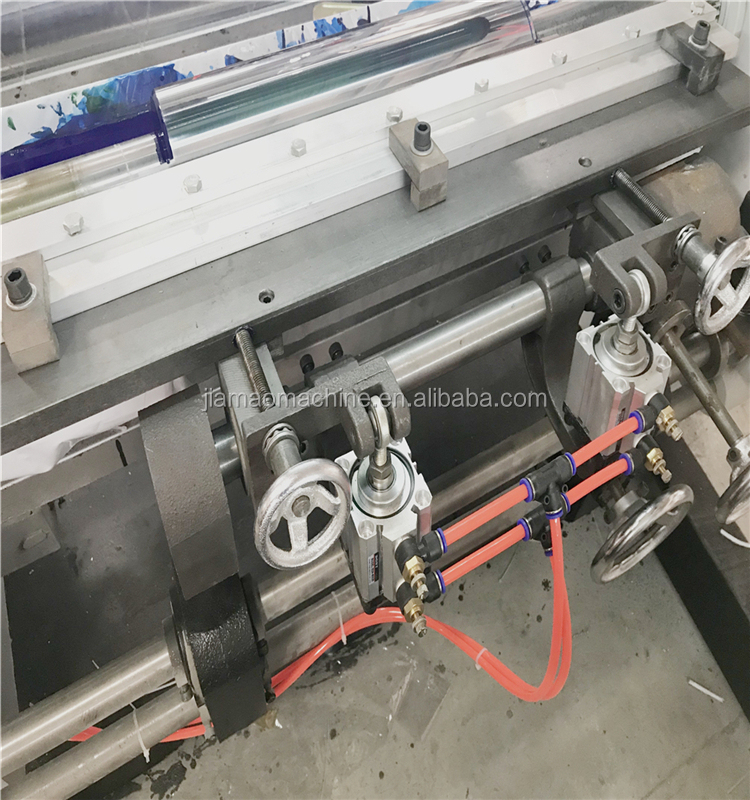

9. Pneumatic embossing system and independent pneumatic scraper system.

10. Automatic ink circulation system.

11. The receiving shaft adopts the air-expanding shaft, which is convenient for loading and unloading.

12. Printing line speed and meter display.

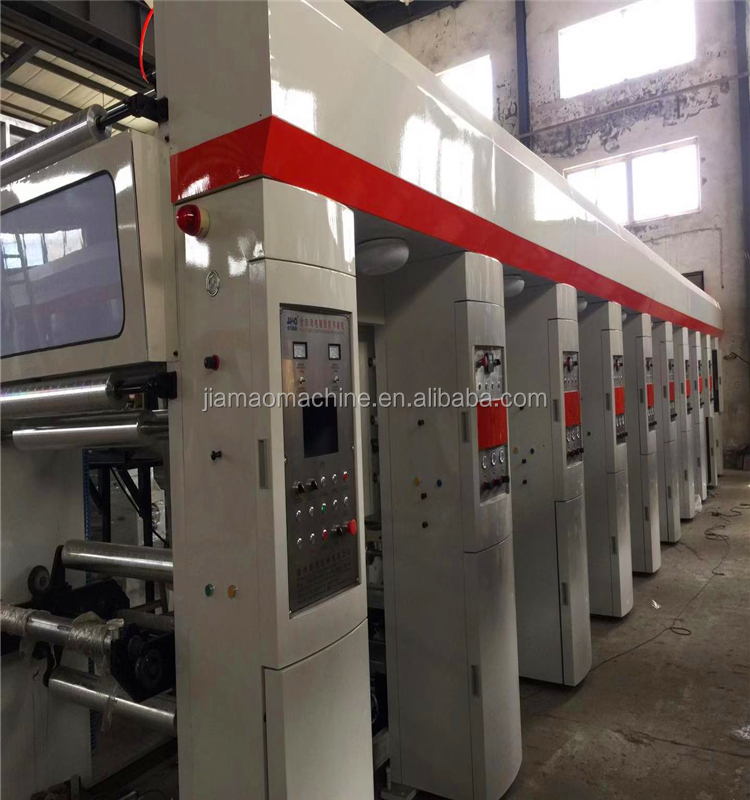

13. The whole machine is a frame-type high-quality cast iron structure, which has good stability and shock resistance.

14. With color deviation display, the system integrates deviation correction and error alarm functions.

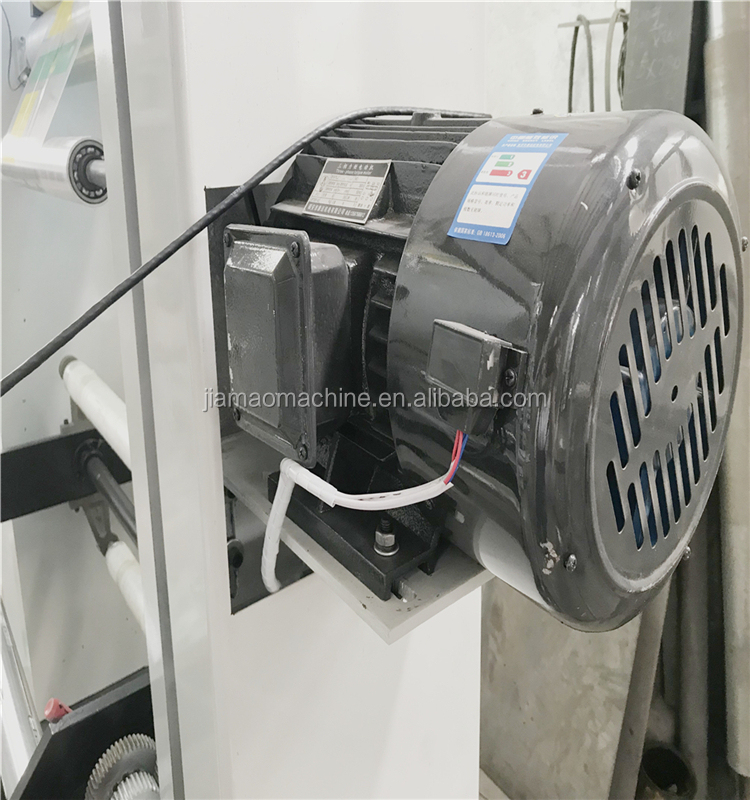

15. The motor drive adopts the principle of synchronous pulley drive.

The main parameters:

Model	JMMS-B600	JMMS-B800	JMMS-B1000	JMMS-B1200
printing color	1-9	1-9	1-9	1-9
Plate cylinder diameter	100-320mm	100-320mm	100-320mm	100-320mm
printing width	600mm	800mm	1000mm	1200mm
Maximum unwinding diameter	600mm	600mm	600mm	600mm
Maximum winding diameter	600mm	600mm	600mm	600mm
printing speed	120m/min	120m/min	120m/min	120m/min
Registration accuracy	≤0.10mm	≤0.10mm	≤0.10mm	≤0.10mm
drying method	electric	electric	electric	electric
machine power	76 kW	84 kW	92 kW	92 kW
machine weight	19000 kg	20000 kg	21000 kg	21000 kg
Dimensions (LWH)	15.2×2.5×2.5m	15.2×2.7×2.5m	15.2×2.9×2.5m	15.2×2.9×2.5m
