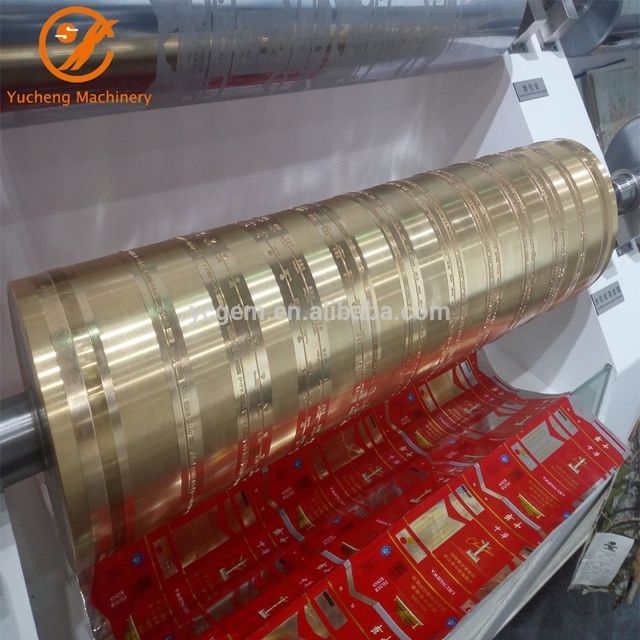

Gravure printing machine 9 color cigarette case tipping paper printing machine
- 200000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Colors and Pages: | Polychromatic | Dimensions (L*W*H): | 15800*4400*3500mm |
| Voltage: | 380v | usage: | Paper Printers, Label Printers, Card Printers |
| Showroom location: | Egypt, Vietnam, Philippines, Indonesia, Pakistan, Russia, Thailand, Kenya, Bangladesh, Ukraine, Nigeria, Uzbekistan, Japan, Malaysia | Marketing Type: | Hot Products of 2022 |
| Automatic level: | automatic | Mechanical test report: | if |
| Supply capacity: | 4 sets per month | Unwinding/rewinding diameter: | 600mm-800mm |
| Certification: | CE ISO9001 | Printing material: | BOPP.PET.PVC.PE.Aluminum foil |
| payment terms: | L/C, D/P, D/P, T/T | Applicable industries: | Hotels, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Food Stores, Printing Shops, Energy and Mining, Food and Beverage Stores |
| Core component warranty: | 1 year | weight: | 35000 kg |
| Main selling points: | easy to operate | After-sales service provided: | On-site maintenance and repair services |
| Printing speed: | 200m/min | Core components: | PLC, engine, gearbox, motor, gear |
| Print width: | 800-1300mm | Health status: | new |
| Drying method: | oil heating | Warranty: | 1 year |
| type: | Gravure printing machine | brand: | Yuncheng plate making |
| Video shipment inspection: | if | Registration accuracy: | 0.1mm |
| Origin: | Shanxi, China | Printing color: | 1~12 colors |
Product parameters
Film running direction from unwinding to winding | from left to right |
printing color | 8 |
maximum. Material width | 1250mm |
mechanical speed | 200m/min (bore diameter ≥Φ175mm) |
Unwinding diameter | Φ800mm |
Rewinding diameter | Φ800mm |
accuracy of registration | Horizontal ≤ ± 0.1mm (automatic) (constant speed) vertical ≤ ± 0.1mm (automatic) (constant speed) |
Tension range | 3~25kg |
Tension accuracy | Rewinding and unwinding ±0.3kg Traction ± 0.3kg |
Core diameter | Φ76mm×Φ92mm |
Rubber roller pressure | 380 kg |
Rubber roller hardness | (A) 70°~75° |
cylinder diameter | Φ120mm~Φ300mm |
cylinder length | 1000-1350mm |
Scraper reciprocating motion | ±5mm |
Air pressure | 0.6Mpa≤P≤1.0Mpa |
Maximum temperature of drying room | 80°C |
Hot air recovery rate | 0~50% |
Temperature control accuracy | ±2℃ |
heating method | electricity or steam or gas |
Maximum hot air velocity in drying chamber | 25 m/s |
Film length in drying chamber | Last color 1.6m 2m |
printing material | PET: 12~60μm BOPP: 20~60μm CPP: 20~60μmOPP: 20~60μm Cellophane: 20~30μm |
Main features of ELS machine
1. Independent disc-type rotary turret with double stations and wall panels
2. Two unwinding shafts adopt independent active unwinding mode
3.Automatic paper pick-up alarm, new paper rotation, pre-drive speed synchronized with machine speed.
4.Synchronous belt makes transfer more convenient and less noise
5.Double cylinder consists of steel and rubber rollers
6.The scraper assembly adopts pneumatic control and can be adjusted in three directions through the handle
7.Remote Service
8.Separate Drive Motor Inverter
9.Each unit is equipped with an independent drying system
10.Touch HMI
11.Energy saving and environmental protection
detailed drawing
Gravure printing machine structure:
- Unwinding device
- Feed section
- print section
- dry part
- cooling section
- Discharge part
- Rewinding device
