Rotogravure printing machine 8 colors price printing machine plastic rotogravure printing machine

Supplier: Zhejiang Kete Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Carter Huang
Price: $40000.00 / 1 - 2 sets
$38000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Packaging Details:	Use shrink wrap
Video shipment inspection:	if	port:	Ningbo/Shanghai
After-sales service provided:	Online support, free spare parts, on-site installation and commissioning training, video technical support	Mechanical test report:	if
Print width:	600-1500mm	Drying method:	electro-thermal
Function:	accurate color registration	Origin:	Zhejiang, China
brand:	Kate	Automatic level:	automatic
Supply capacity:	50 sets per month	Main selling points:	high productivity
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Printing speed:	200m/min
After warranty service:	Video technical support, online support, spare parts	Model:	KTHS-A type
type:	Gravure printing machine	Health status:	new
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	product name:	High-speed computer-controlled gravure printing machine
Colors and Pages:	Polychromatic	Printing color:	1~12 colors
Warranty:	1 year	Local service location:	not any
Voltage:	380V	Certification:	CE certification
Plate type:	Gravure cylinder	Core component warranty:	1 year
weight:	36 tons	Dimensions (LWH):	18600 x 3800 x 3100(mm)
system:	7 motor tension control system, non-stop system	Marketing Type:	hot product
Applicable industries:	Hotels, manufacturing plants, machinery repair shops, food and beverage factories, restaurants, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies	usage:	Paper printers, label printers, foil roll printing
Printing material:	BOPP.PET.PVC.PE.Aluminum foil

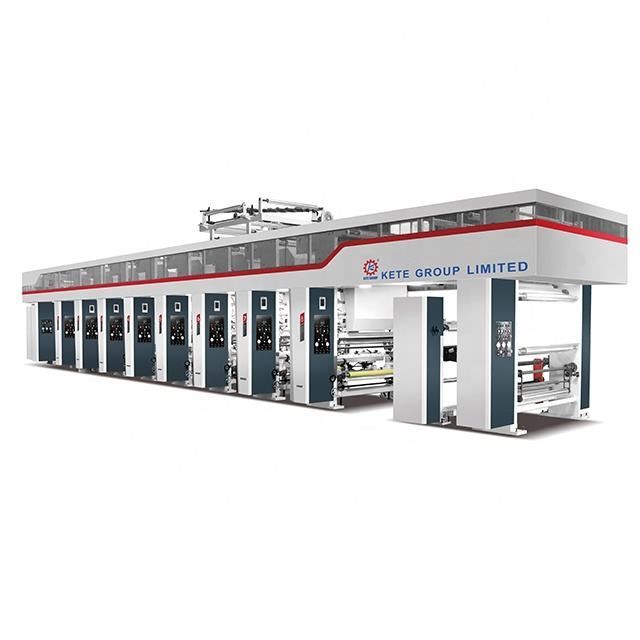

High-speed computer-controlled gravure printing machine

This high-speed computer-controlled gravure printing machine is suitable for roll-to-roll printing materials such as BOPP, CPP, PET, PVC, PE, nylon, metallized film, paper, cellophane, aluminum foil, etc., and is widely used in high-quality packaging material printing industry.

Product Description

* Unwind and rewind with dual-arm swivel design.
* Unfold and rewind automatic splicing and cutting.
* Pneumatic design of scraper.
* The movement of the scraper is controlled by an independent motor.
* Shaftless printing cylinder loading design.
* Automatic ink recovery system.
* With computer automatic color registration system

*Web video inspection.
*7 drive tension control system,

Specification

direction of flow	right to left
printing color	8 colors
Maximum raw material width	1350 mm
Maximum print width	1300 mm
mechanical speed	220 m/min
printing speed	10-200m/min (drum diameter ≥ 160mm)
Unwinding diameter	Φ600mm
Rewinding diameter	Φ600mm
Printing cylinder diameter	Φ120mm~Φ300mm
Printing cylinder width	920mm~1350mm
Color accuracy	±0.10mm (vertical, BOPP or PET)
Tension range	2~50kg
Tension accuracy	±0.3 kg
Core diameter	Φ76mm×Φ92mm
Printing roller pressure	500 kg
Blade movement range	±5mm
drying method	Electric heating (200KW) 8 colors
main motor power	AC 22kw
Total power:	About 260kw
net weight	About 36000kg
Machine size:	18600 × 3800 × 3100(mm) (length × width × height)
