Professional Manufacturer Nissei ASB Machinery Plastic Injection Stretch Blow Molding Cosmetic Bottle Mold

Semi-automatic PET bottle blowing machine

JASU one-step blow molding machine includes

Injection blow molding machines and injection stretch blow molding machines.

The machine is divided into three stations: injection of preforms, blow/stretch blow molding and product release. The raw material is injected from the hopper to the injection screw into the preform; the plate rotates the preform to the blow molding/stretch blow molding station by its own heat, without any reheating for blow molding,
Then the product rotates to the release station and descends, which is a fully automatic cycle rotation working mode.

Compared with the traditional bottle blowing machine, the JASU one-step bottle blowing machine has many advantages. First, no reheating is required. The preform itself is heated during injection blowing, which highly saves energy and shortens the molding time. More importantly, it is a one-step machine cut-off. It eliminates the transfer process of the two-step blow molding machine and avoids contamination caused during the transfer process, especially for pharmaceutical and food containers, saving labor and transfer costs, reducing production costs, and improving product competitiveness.

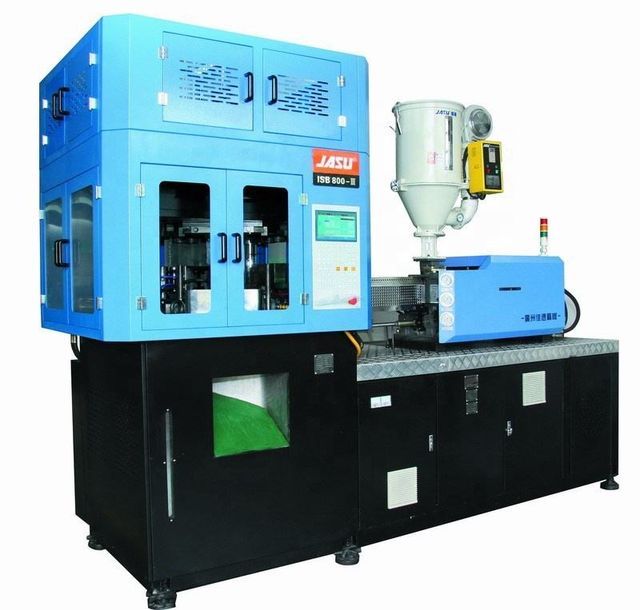

Models ISB800-3 and ISB800A-3 (larger size)

Suitable for PC, PS, PMMA lampshades, LED lampshades, Christmas flashing lights, garden lights and street lights.
Suitable for PET high transparency, thinner wall, cosmetic bottles 10ml to 500ml, PET wide-neck jars, PET medicine bottles
Suitable for PP high transparency, baby bottles, sports bottles
Suitable for PCTG, Tritan drinking water bottles and sports bottles.

For molds and tooling, we have our own mold workshop, advanced CNC machine tools and intelligent design engineers, we can handle products of different materials and sizes from different customers around the world.

Auxiliary machinery, we will equip you with the necessary high-quality auxiliary machinery to ensure the smooth progress of the production plan. We can provide you with one-stop service.

If you are interested in our products
Click here to leave us a message and send an inquiry >>>
We have someone to tell you about solution products

As the requirements for high quality and beautiful appearance in the packaging fields of food, beverages, cosmetics and other areas are increasing day by day, the plastic containers produced by old-fashioned extrusion blow molding machines can no longer meet the needs of customers. The one-step injection stretch blow molding machine processes everything from raw materials to products in one step. The entire process includes preform injection, stretch blow molding, and demoulding. No scrap material, no runner material, but the neck, bottom, and lines are perfect, with higher transparency and higher rigidity. Stretch-blow molded products have thinner walls and save material.

The one-step injection stretch blow molding machine can complete high-speed molding without reheating the preform. Utilizing the heat from preform injection to stretching and blow molding, unnecessary reheating and shortening the preform cooling time save energy.

The one-step injection stretch blow molding machine optimizes the working structure, eliminates disadvantages of molding, and eliminates complex processes, ensuring more reliable molding and increasing the scrap rate.

The one-step injection stretch blow molding machine reduces transportation costs and avoids secondary pollution, making it especially suitable for food and pharmaceutical companies. For example, to transport a 19g 500ML bottle, if a 1 cubic meter suitcase is used, 1024 bottles can be loaded, or 9280 preforms, but if raw materials are used, 56421 bottles can be produced. The material logistics cost can be reduced by 98.2% compared with the cost of transfer bottles; compared with the cost of transfer bottle preforms, the cost can be reduced by 83.6%.

Comparison of one-step method and two-step method:

The advantages of JASU one-step injection stretch blow molding machine model ISB800-3/ISB800A-3 are as follows:

1. The wheel rotation is driven by servo motor, not hydraulic drive.
2. Fully automatic control system, easy to operate.
3. The temperature of the barrel and hot runner is accurately controlled by PIT.
4. Save more costs than traditional machines.
5. Compact structure; less space required.
6. Injection:
Hot runner and temperature control device are standard configuration. Only the mold is replaced to make a new product;
Stretch Strike:
Hydraulic clamping, core inserting, stretch blowing and bottom forming are standard configurations;
product release:
Comes with standard injectors.

Guangzhou Jiasu Machinery Co., Ltd. has been researching, designing and manufacturing bottle blowing machines since 1989. Specializing in manufacturing one-step injection blow molding machines and injection stretch blow molding machines. The solutions we provide for high-quality, high-precision, low-cost, low-energy plastic containers have attracted the attention of the market.

More than 100 employees and more than 30 professional technicians are dedicated to JASU® brand series machines, and our R&D department is committed to continuously developing new bottle blowing technologies. We have established 30 representative offices and a 24-hour maintenance service network across the country.

JASU® has established a high reputation among domestic and foreign customers, especially overseas customers in Southeast Asia, the Middle East, Africa, Europe, and South America. As of the end of 2014, exports accounted for 60% of annual sales.

Located in the Pearl River Delta region, close to ship ports and air transportation services, especially close to the Hong Kong Airport, we have the competitive advantages of a fast delivery system and a centralized supply chain center. We sincerely invite trading partners and import buyers to visit our showroom and workshop to discuss possible cooperation.

Q1: Do you make all your products yourself or do you buy them compressed by others?
A1: We have an independent technical team that focuses on manufacturing machines; all products are manufactured by our technical team.

Q2: What are the capabilities of your factory?
A2: Regarding blow molding machines, we can produce 15 machines per month

Q3: Do you have any technical support for your products?
A3: We have long-term cooperation with Germany, and we have many cooperation with many advanced manufacturing companies in the world.

Q4: Are there any other services for your products?
A4: We have extensive experience in developing complete "turnkey" projects and specifications for our clients. We also have a fixed service system

Q5: How do you quote prices for customers?
A5: The price depends on the quality and performance, but the customer should satisfy us first
