AC DC Ceiling Fan Circuit PCB Infrared Remote Control Dual Power DC Motor Driver
- 3.50 100 - 1999 pieces
- 3.43 2000 - 9999 pieces
- 3.15 10000 - 99999 pieces
- 2.92 >=100000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Solder Mask Color: | Blue, green, red, black, white, etc. | place of origin; place of origin: | Guangdong, China |
| Layers: | 1-40 layers (rigid PCB) | Minimum order quantity: | 1 |
| Copper Thickness: | 1~3OZ | Material: | FR4/Aluminum/Ceramic CEM1 |
| minute. Line spacing: | 3MIL | PCBA service: | Turnkey Assembly PCB Service |
| product name: | PCB Assembly | Substrate: | FR4 |
| minute. Hole size: | 0.2MM | type: | Electronic PCB Assembly |
| Surface treatment: | Gold and tin spray | application: | Electronic equipment |
| Packaging Details: | 1. Inside: PCB: Vacuum packing PCBA: ESD packing 2. Outside: Standard export carton; 3. Customized packing. | Certificate: | ISO/TS16949/RoHS/TS16949 |
| Supply capacity: | 99999 pieces per month | brand: | ZYL-PCBA |
| payment terms: | Letter of Credit, T/T, Western Union, MoneyGram | model: | ZYL-PCBA-M009 |
| PCB project: | Fr4 94V0 Rohs Pcba Pcb | minute. Line width: | 3MIL |
| port: | Shenzhen/Hong Kong | Plate thickness: | 0.8MM~4MM |
China Supplier Manufacturing High Quality PCB Board 0.33mm PCB Board
Product display

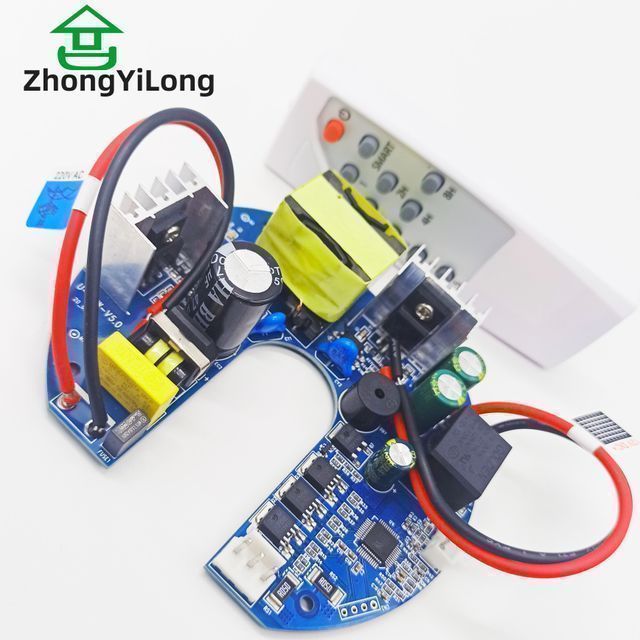

AC DC Dual Voltage Input Sine Wave DC BLDC Brushless Motor Ceiling Fan PCB Control Board | ||
Specifications | ||
Voltage | Input AC80-220v DC12-23V; output DC12-23v | |
strength | 60W | |
Rotating speed | 380-390 rpm | |
Functional Specifications | ||
5- Speed regulation, constant speed, constant power control | ||
Overvoltage protection, overvoltage protection, undervoltage protection | ||

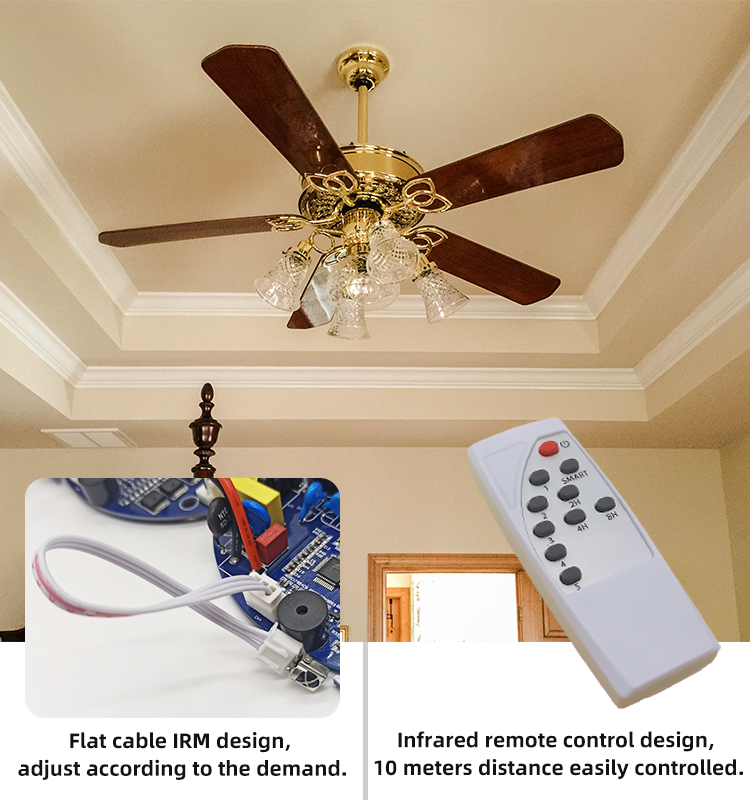

Wireless infrared remote control | ||
headwind | ||
product name | PCB Assembly Services |
type | boring |
Material | FR4, CEM1, CEM3, high frequency board, Rogers |
Floor | 1,2,4,6...20 layers |
shape | Rectangle, Circle, Slot, Cutout, Complex, Irregular |
cut | Cut, V Score, Tab Routing |
plate thickness | 0.2-4mm, conventional 1.6mm |
copper thickness | 0.5-4oz, normal 1oz |
Solder mask | Green, red, blue, yellow, etc. |
silk screen | white, black, etc. |
Screen printing minimum line width | 0.006" or 0.15mm |
Minimum trace/gap | 0.1 mm or 4 mil |
Minimum drilling diameter | 0.01", 0.25mm or 10mils |
surface treatment | HASL, ENIG, OSP, etc. |
