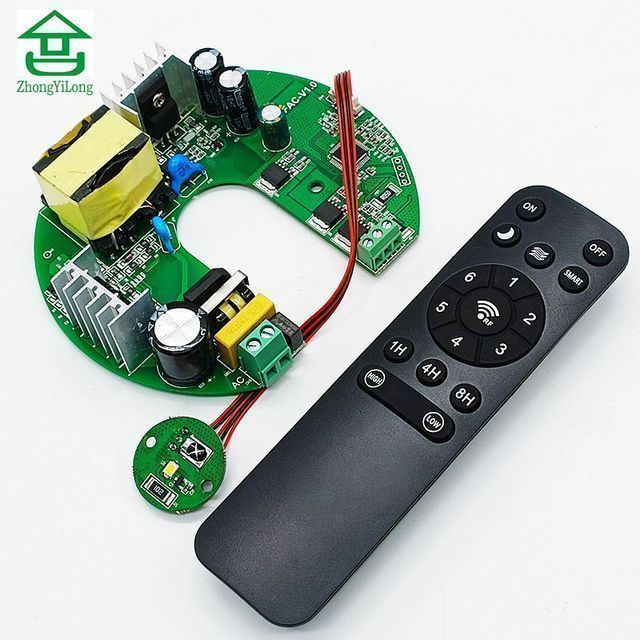

Factory Direct Export India BLDC Ceiling Fan Controller RF Remote Control PCBA Board 12V 24V Output for 35 Watt Motor

Product details
type:Fan controller PCBAAC input:100-254V AC 50/60Hz
brand:Zhong YilongDC output:24V DC
Output current:0.1-0.8Aplace of origin; place of origin:China
Sales unit:single productSupplier type:Controller PCBA with remote control
model:ZYL-FAC-V1.0Single package size:7X9X6 cm
product name:BLDC ceiling fan controller PCBARotating speed:400 (maximum)
Output Power:30-60WGross weight per piece:0.150 kg
China supplier manufacture high quality PCB board 0.33mm PCB board

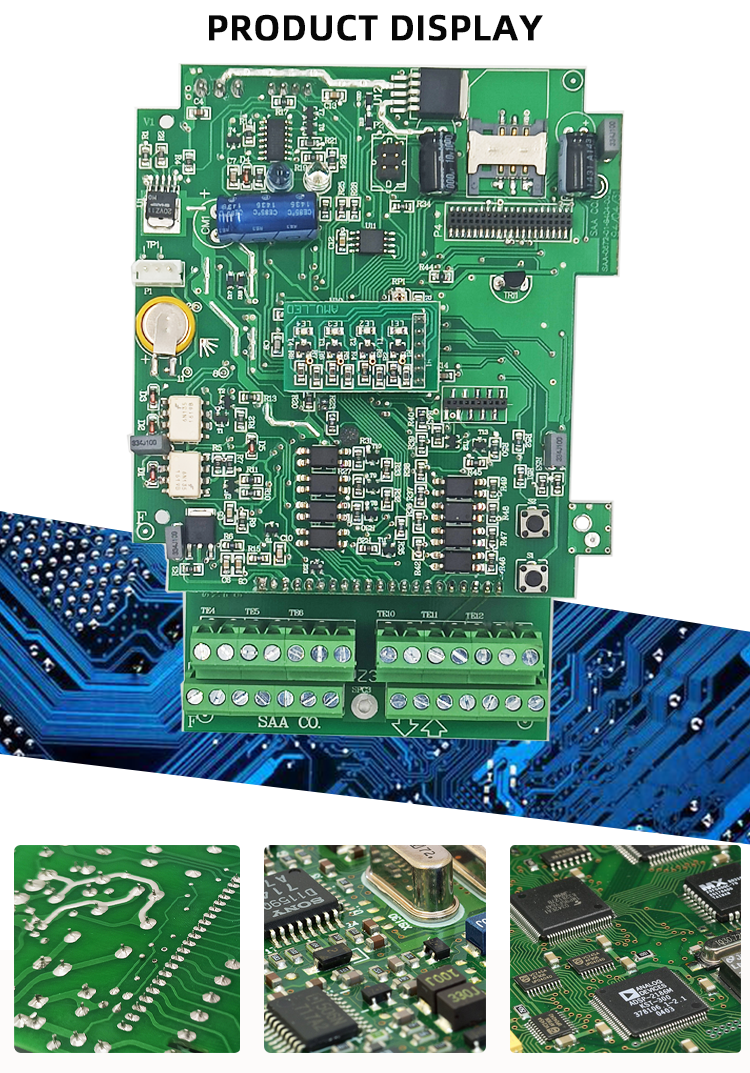

product display
AC DC Dual Voltage Input Sine Wave DC BLDC Brushless Motor Ceiling Fan PCB Control Board
Parameter Description
Voltage
Input AC80-240v DC24V; output DC24v
strength
30-60W
Rotating speed
375 rpm
Functional Specifications
7-Speed ‚Äč‚Äčregulation, constant speed, constant power control
OCP , OVP , UVP
wireless infrared remote control
Set off against the wind
product name
PCB assembly service
type
boring
Material
FR4, CEM1, CEM3, high frequency board, Rogers
Floor
1,2,4,6...20 floors
shape
Rectangular, circular, grooved, hollowed out, complex, irregular
to cut
Cut, V-score, tab routing
plate thickness
0.2-4mm, conventional 1.6mm
copper thickness
0.5-4oz, regular 1oz
Solder mask
Green, red, blue, yellow, etc.
silk screen
white, black, etc.
Screen printing minimum line width
0.006" or 0.15mm
Minimum trace/clearance
0.1 mm or 4 mil
Minimum drilling diameter
0.01",0.25mm or 10mils
surface treatment
HASL, ENIG, OSP, etc.
