Nail horizontal single block wire drawing machine
- 2000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Function: | smaller diameter | Inlet diameter: | 6.5-2.0mm |
| Health status: | new | Video external inspection: | if |
| Outlet diameter: | 0.8-5.5mm | Packaging Details: | Wooden crate or sea worth horizontal single cow block drawing machine for nails |
| usage: | brushed metal | Voltage: | 440/380/210 etc. |
| port: | Qingdao Port | Core Components Warranty: | 2 years |
| brand: | Hongshuo | product name: | Nail horizontal single block wire drawing machine |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Mechanical test report: | if |
| Showroom location: | not any | Core components: | Gearboxes, Pressure Vessels, Pumps, Gears, Bearings, Engines, Motors, PLCs |
| application: | Drawing process | quality: | efficiency |
| place of origin; place of origin: | Henan, China | Supply capacity: | 200 sets/month horizontal single block wire drawing machine |
| Warranty: | 2 years after installation | Applicable industries: | Building materials stores, manufacturing plants, construction projects |
| Certification: | ISO9001:2008 | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Minimum order quantity: | 1 set | Applicable materials: | Medium and high carbon steel wire |
| type: | Fully automatic | Marketing Type: | New Products 2020 |
| Local service location: | not any | color: | Require |
| Main selling point: | competitive price | year: | 2020 |
| After-sale service: | if |
Product Description

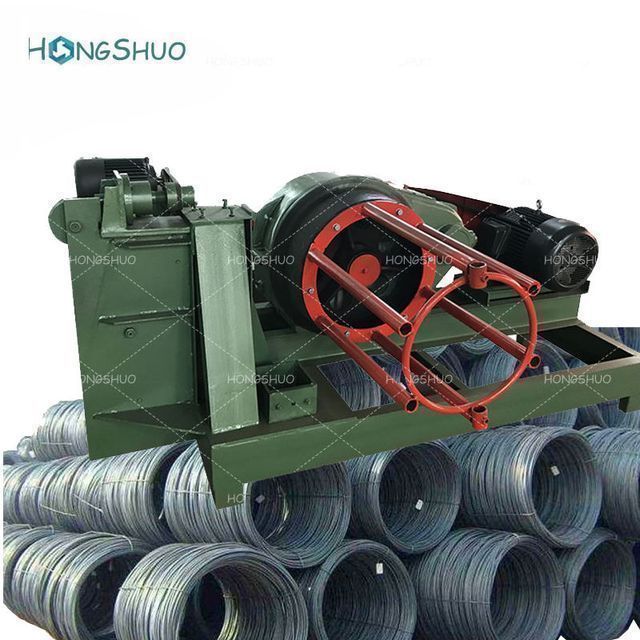

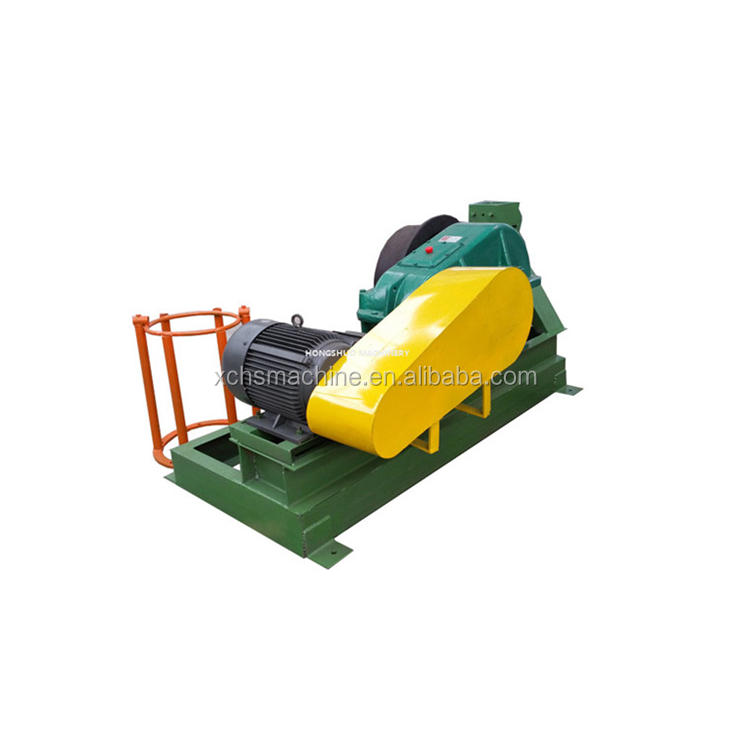

Nail horizontal single block wire drawing machine
This is a single wire drawing machine. If the wire diameter is thick before entering the nail making machine, this machine can reduce the wire diameter, and the user can reduce the wire diameter from 6.5mm to 2.0mm.
Function: reduce the wire diameter from 6.5-2.0mm
Product parameters
model. | Single wire drawing machine |
The maximum diameter | 6.5mm |
Minimum diameter | 2.0mm |
Motor Power | 11kW |
drawing speed | 56 rpm |
total measurement | 2.5*1.3*1.0m |
weight | 1.0 tons |
Process flow

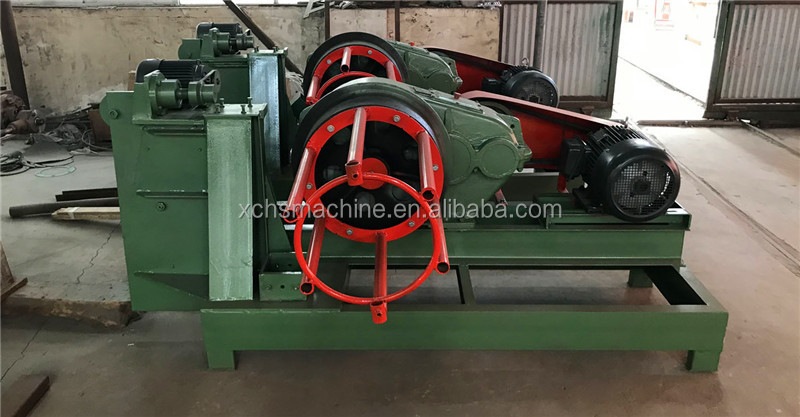

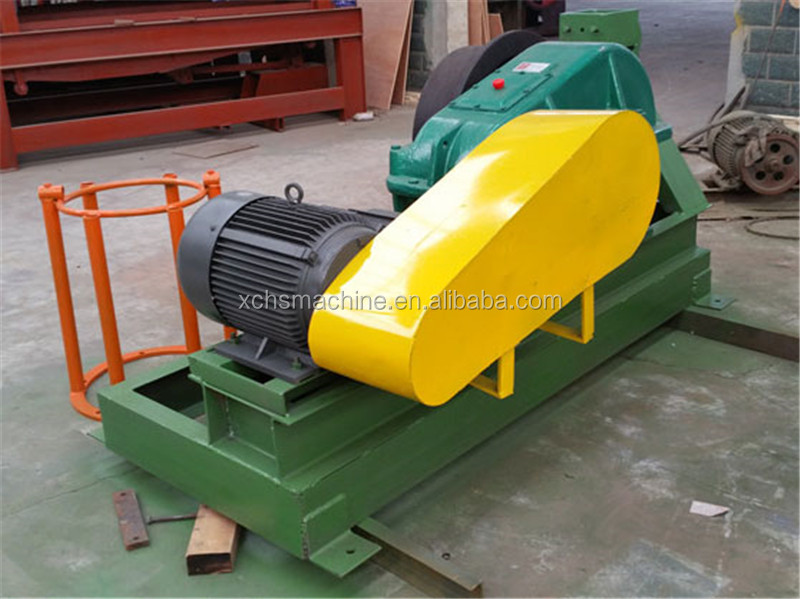

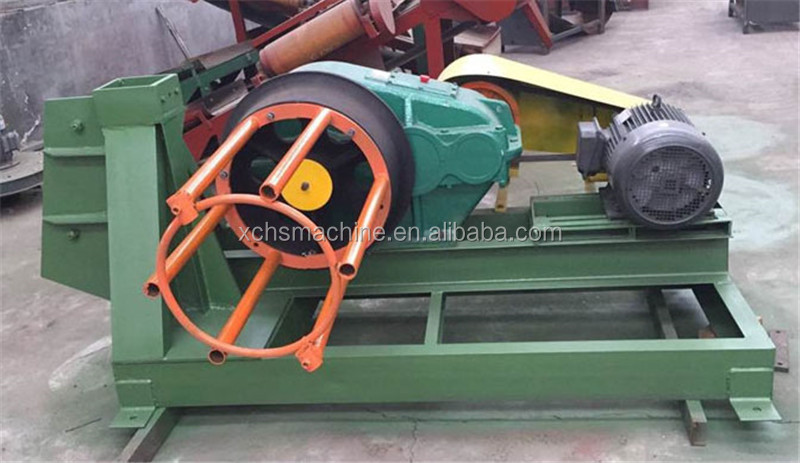

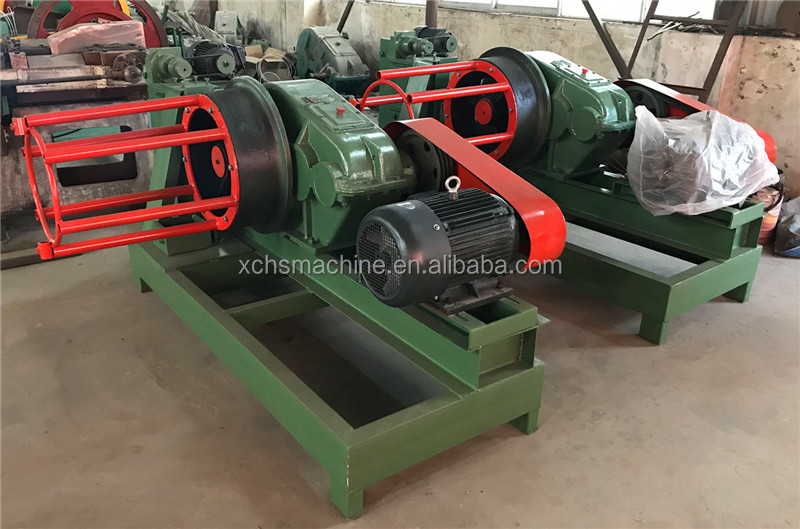

detailed image
Auxiliary equipment

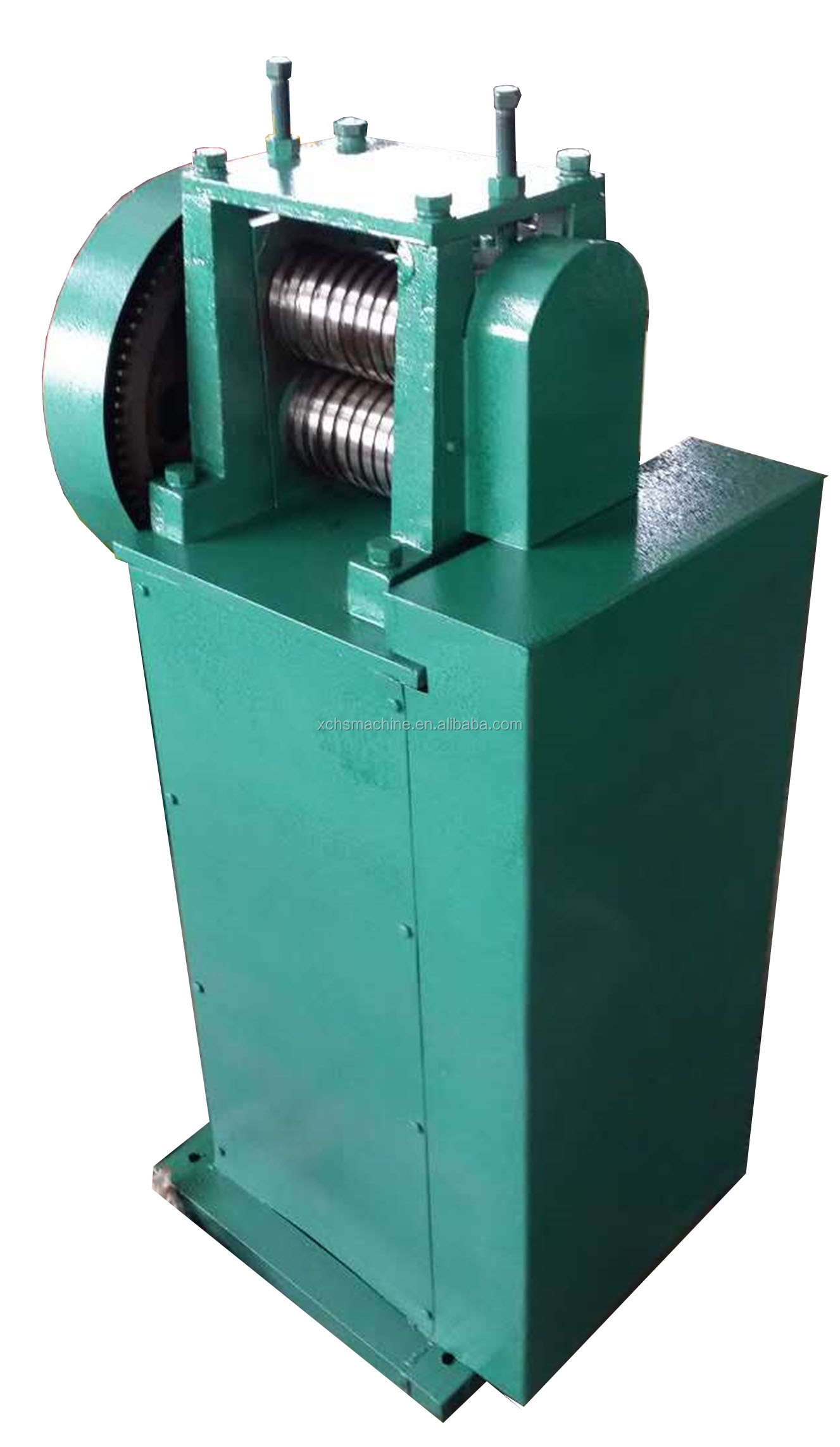

1. Pointing and rolling machine
Solder the two coils together for continuous operation.
Function: sharpen the thread end, so that the coil can easily enter the wire drawing machine.
model. | scroll to range | Motor Power | total measurement | weight |
Pointing Roller | ≤8mm | 2.2KW | 1.2*0.6*1.0m | 80kg |
2. Butt welding machine
Solder the two coils together for continuous operation.
Function: Weld two wire coils together to maintain the continuity of the drawing process.
model. | Butt welding range | Voltage | weight |
Butt welding machine | φ3—φ8mm | 380V 50HZ | 50kg |
manufactures
manufactures
Wire diameter 6.5-2.0mm
