Annealed wire high-speed linear drawing machine, galvanized wire winding machine

Supplier: Fine Fasteners Industry Co., Ltd.
Region: Anhui, China
Contact: Ms Lucy Xu
Price: $10500.00 / 1 - 1 sets
$10300.00 / 2 - 2 sets
$10000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Voltage:	380V 50Hz
Marketing type:	Hot Products of 2020	Place of origin:	Anhui, China
Warranty:	one year, 1 year	Suitable materials:	High, medium and low carbon, copper wire, aluminum wire,
Packaging details:	Plywood box or customized	strength:	30KW*6+15KW
Video outbound inspection:	if	color:	blue/green/customized
Import diameter:	3.0-6.5mm	Package preview:
payment terms:	L/C, D/P, D/A, T/T, MoneyGram	product name:	Annealed galvanized wire linear drawing machine
Core component warranty:	1 year	Minimum order quantity:	1 set
weight:	2000	Showroom location:	not any
Core components:	Gearbox, gear, bearing, engine, motor, PLC	Year:	2021
Dimensions (lengthwidthheight):	210016001700mm	Main selling points:	long lasting
port:	Shanghai	Supply capacity:	20 sets per month
Applicable industries:	Manufacturing plants, construction projects	Maximum export speed:	1.5-3.0mm
brand:	foreign financial institution	Outlet diameter:	1.6-3.0mm
Maximum drawing speed:	600-1200m/min	Health status:	new
engine:	Inverter motor	Block diameter:	560 mm
Material strength:	≤1250mpa

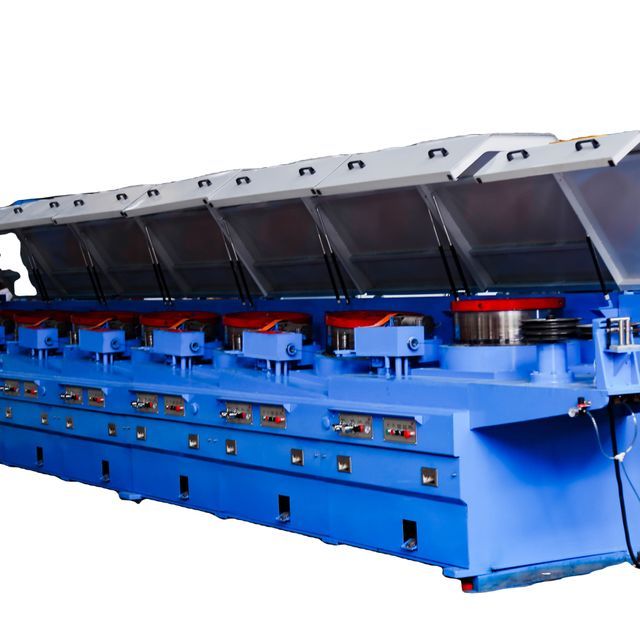

High-speed linear wire drawing machine for annealed wire and galvanized wire

Product Description

We specialize in providing nail salon setup solutions.

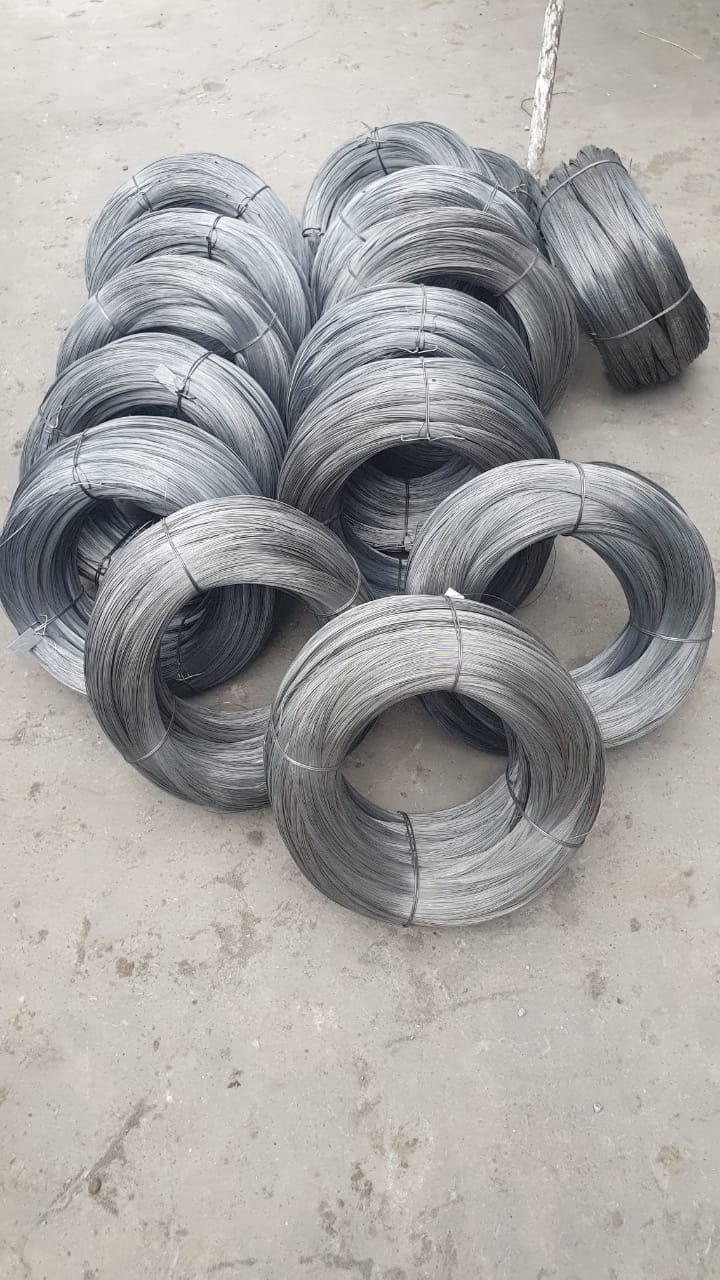

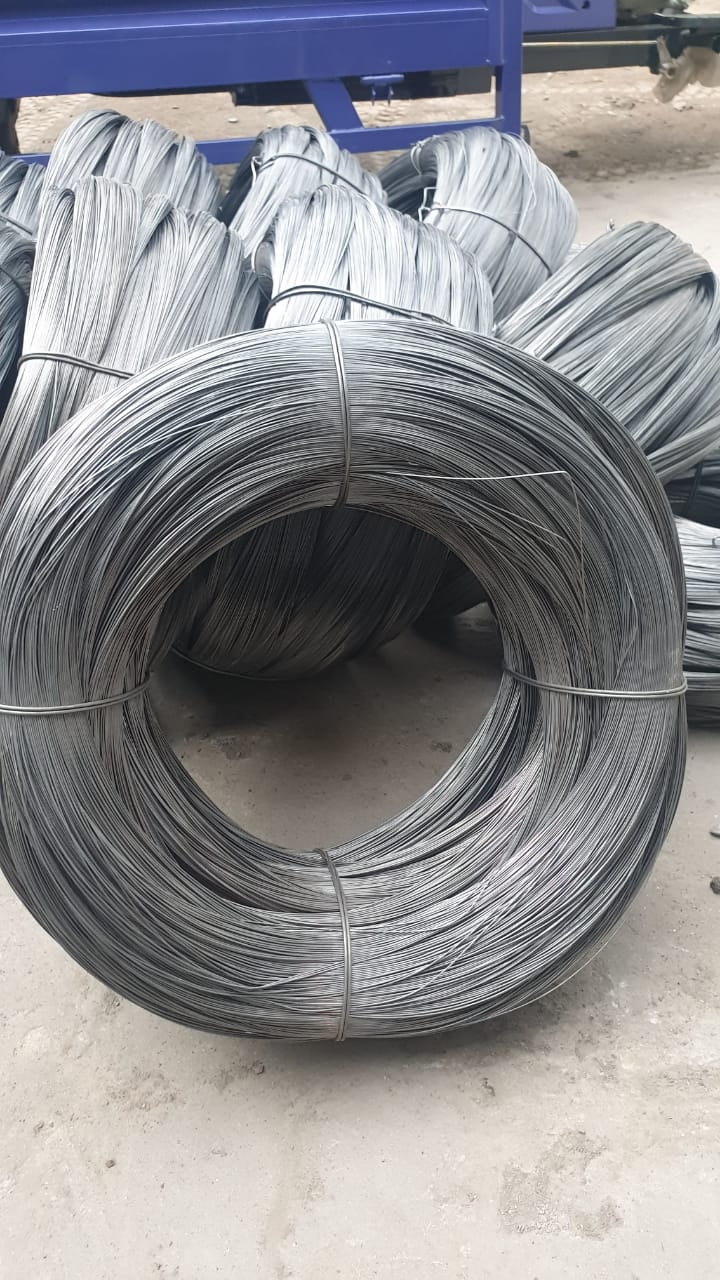

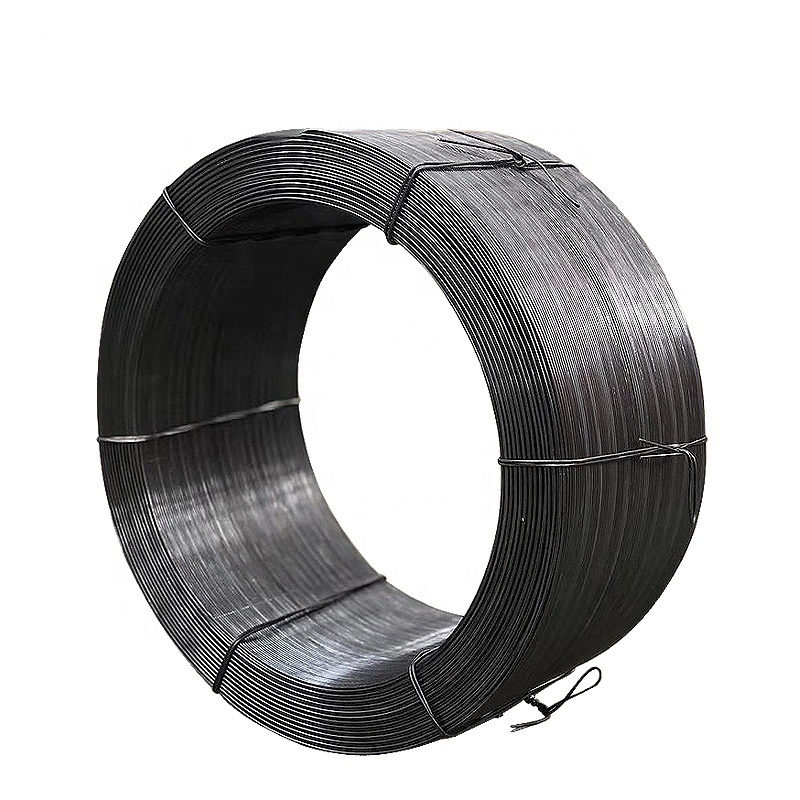

Final product (annealed wire)

Product parameters

Purpose and characteristics
Our factory introduces, digests, and absorbs foreign advanced technology and its essence, and the linear wire drawing machine developed and produced is a wire drawing equipment suitable for drawing steel wires with high tensile strength and performance. This machine is suitable for producing tire cord, bead wire, steel rope wire, stainless steel wire, carbon dioxide gas shielded welding wire, etc.

main feature

●Easy to install,maintain.

●Pneumatic components, electrical components, and operating components are all made of advanced world-renowned brand components.

●Operation automation, high degree of intelligence, no pollution

●Due to the adoption of frequency conversion technology, it can meet a wide range of processes and high-speed drawing when the compression ratio of parts changes greatly.

●Good cooling system, the final wire quality is very good.

type

300

350

400

450

500

Chapter 560

600

700

800

Material strength

≤1250Mpa

drawing pass

2～11

2～12

2～9

maximum. diameter. Number of incoming lines

2.8mm

3.5mm

4.2mm

50mm

5.5mm

6.5mm

8 mm

10mm

12.7mm

minute. diameter. Number of outlets

0.5 mm

0.6mm

0.75mm

1.0mm

1.2mm

1.4mm

1.6mm

2.2mm

2.6mm

maximum. drawing speed

~25m/s

~20m/s

~16m/s

~15m/s

~12m/s

~8m/s

Traction

7.5~18.5kW

11~22kW

11~30kW

15~37kW

22~45kW

22~55kW

30~75kW

45~90 kilowatts

55~110kW

Accessory equipment

Name	Model	Diameter range

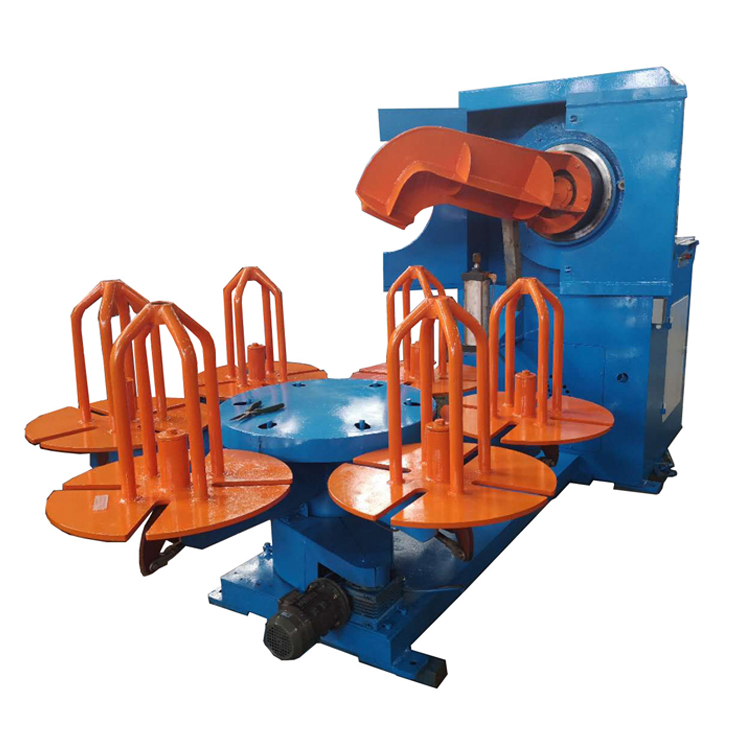

discharge machine
dotting machine	FFI-F-96	6.5-1.5mm
dotting machine	FFI-F-80	3.5-1.0mm
Butt welding machine	FFI-UN-10	8--2mm
Butt welding machine	FFI-UN-3	6.5-1.5mm
Butt welding machine	FFI-UN-1	3.5-1.0mm
Automatic discharging machine	FFI-XB-600	Capacity 800kg
Automatic discharging machine	FFI-XB-360	Capacity 400kg
I type winding machine	FFI-SG-800	Capacity 800kg
I type winding machine	FFI-SG-630	Capacity 500kg
Descaler	FFI-SW650
Motorless descaler	With steel brush
pit furnace	FFI-RJ-90-9

Detailed description:

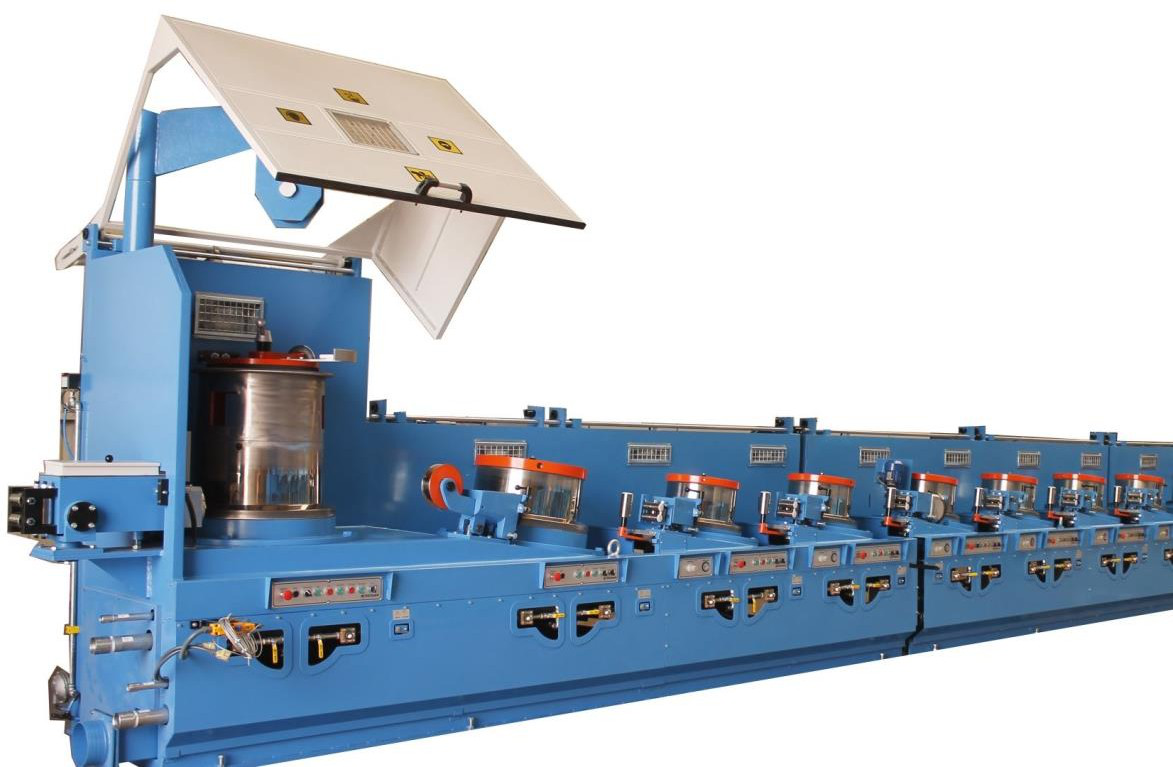

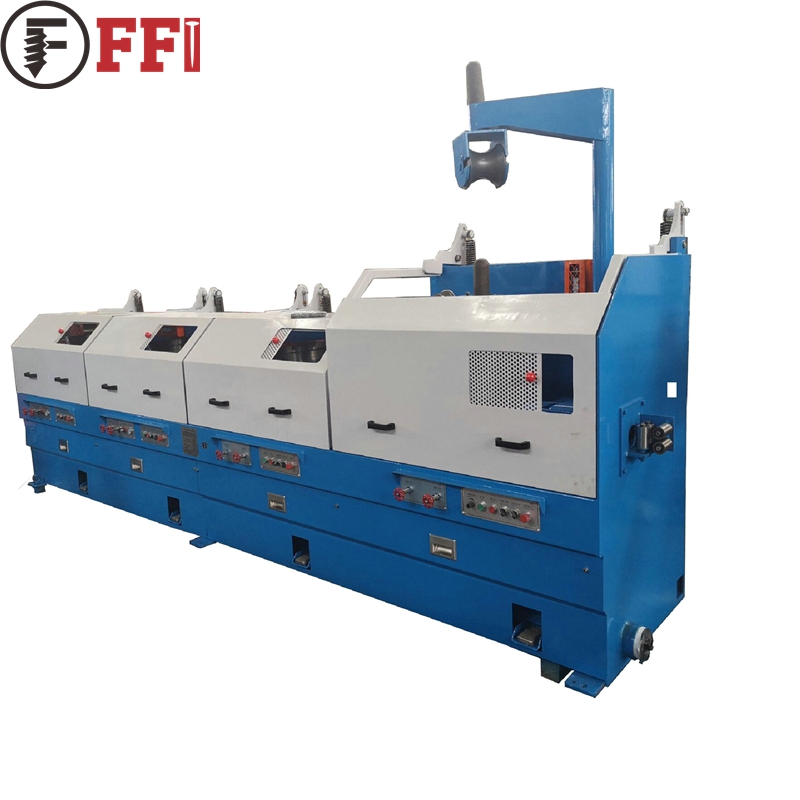

Linear drawing machine
1	Drawing roller material	Cast steel, tungsten coated and hardfacing, HRC60. Roughness less than 0.8umm
2	drum cooling	1. Internal cooling of the drum: There are 3 water channels on the inner wall of the drum, which are arranged in a 120-degree direction through water spray. 2. External cooling of the reel: The ventilation duct under the outside of the reel performs 360-degree forced air cooling on the surface of the reel and wire, reducing the surface temperature of the reel to below 80 degrees.
3	Mold box cooling method	The drawing die adopts direct water inlet and outlet cooling, and the cooling effect is particularly good.
4	tension machine	Built-in
5	Main Frame	Welding of steel plate and square tube
6	safety devices	Safety protective cover, disconnection stop test
7	Vacuum design	Vacuum cleaning hole
8	light	Each machine is equipped with independent lighting
9	Parking brake	pneumatic brake
10	Electric control cabinet	Protection grade IP54
11	electronic system	Distributed structure of the whole machine, PROFIBUS-DP field bus control
12	Energy consumption	Monitoring equipped with electricity meter
13	PLC	Huichuan (Huichuan) brand
14	touch screen	Inovance 10-inch screen
15	Variable frequency motor brand	Fonda
16	Low voltage electrical appliances	Chint
number 17	inverter	Huichuan (Huichuan) brand
18	sensor	Omron
No. 19	On-site cable supply	Dedicated control lines are provided by the seller, other control cables and power lines are provided by the buyer

Compact and cost-effective

1: Drawing in one compact unit
2: Economical and user-friendly machine design, easy maintenance
3: Left and right handed versions of non-ferrous metals
4: Metal wire with the highest quality requirements
5: No cross-crossing of monofilament paths for effective monofilament drying
